Description
Gigabyte B860M AORUS ELITE WIFI6E Overview

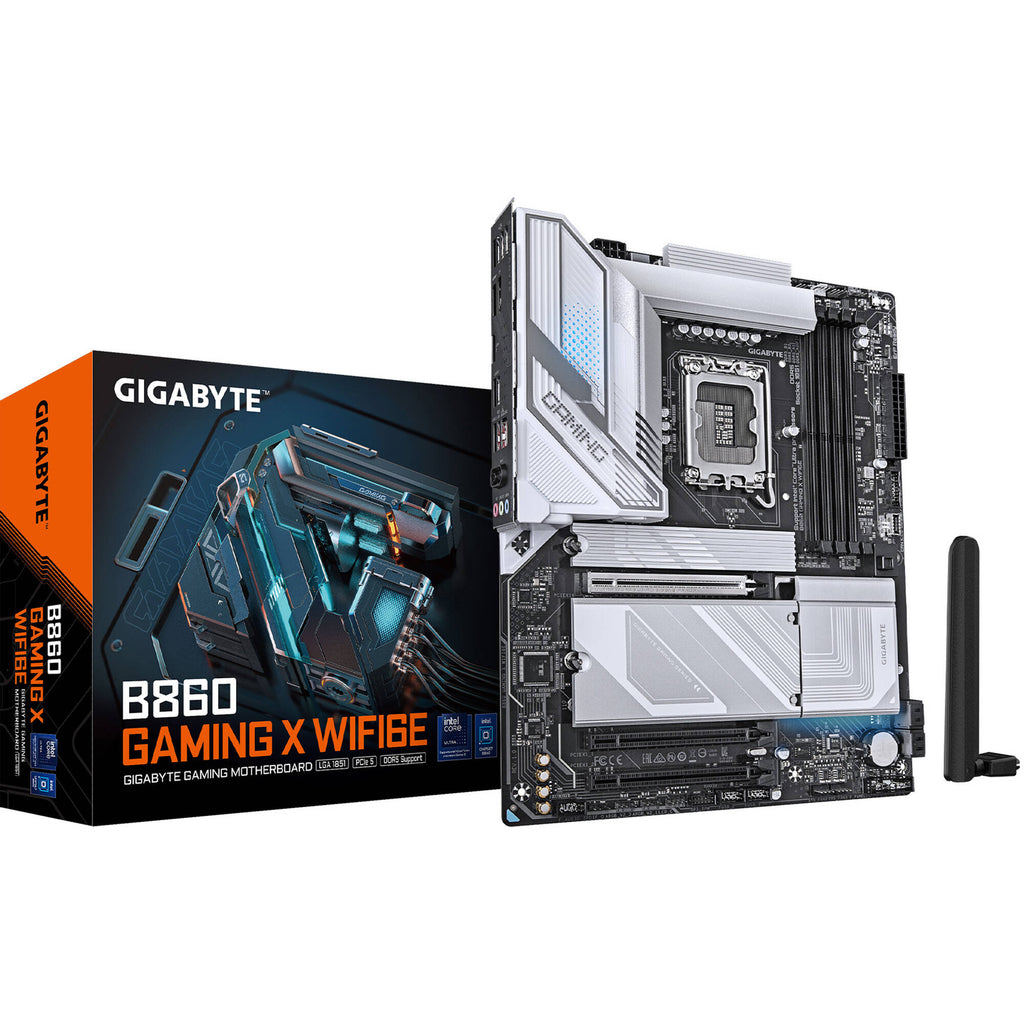

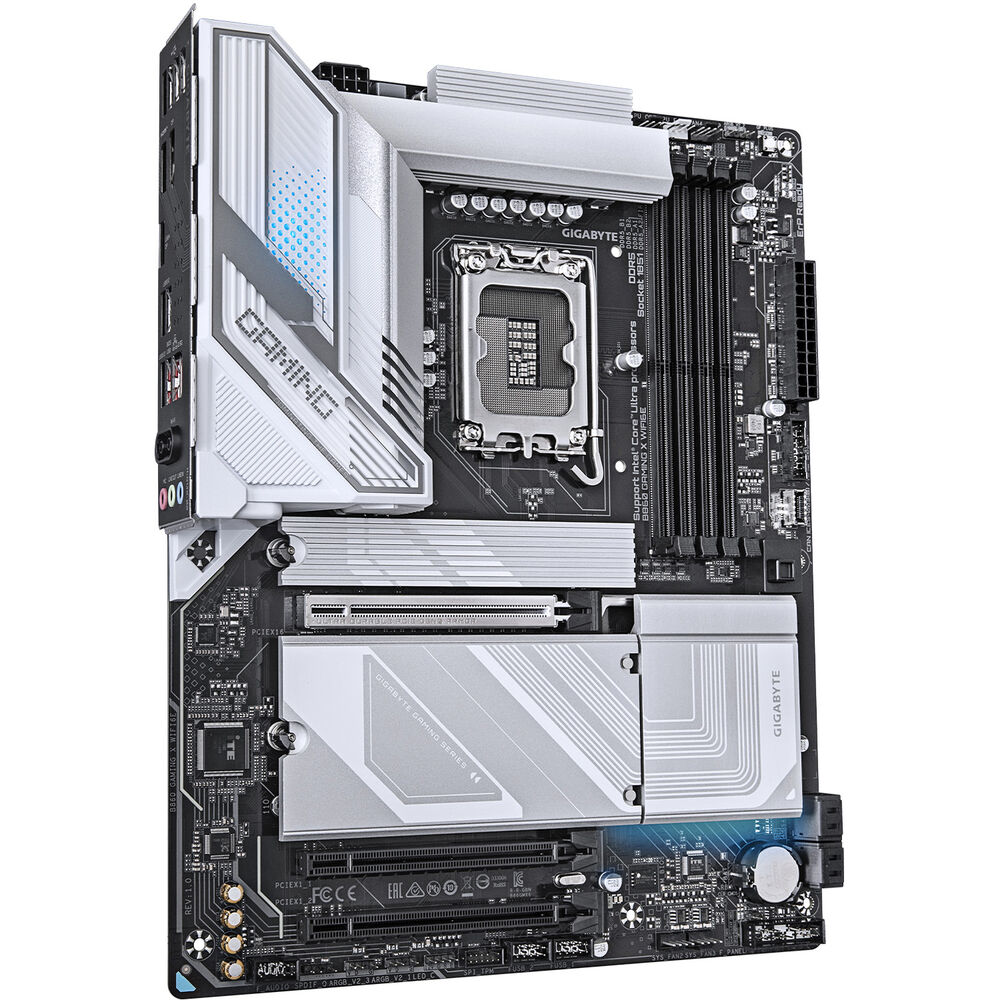

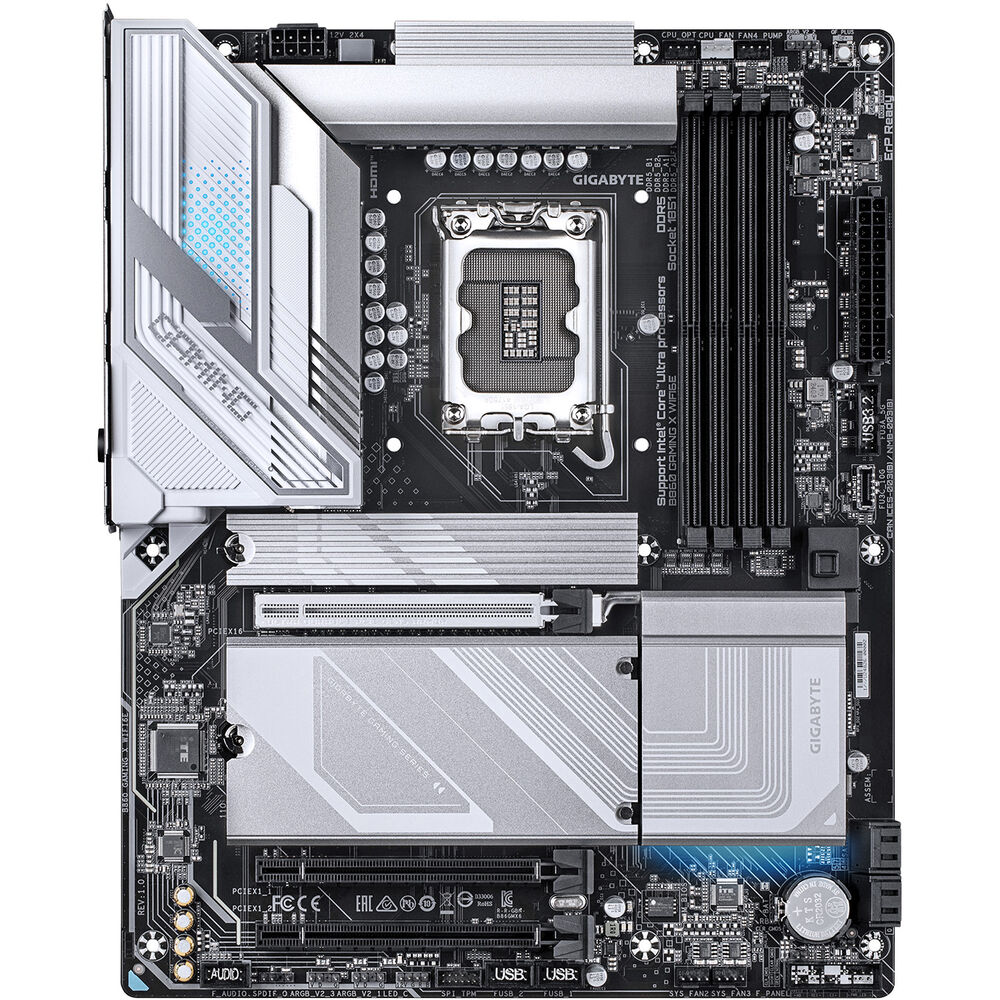

Start your ultimate gaming build with the Gigabyte B860 GAMING X WIFI6E LGA 1851 ATX Motherboard. The motherboard features the LGA 1851 socket, which can support Intel Core Ultra processors (Series 2). With four DDR5 slots, one PCIe 5.0 x16 slot with PCIe UD Slot, two M.2 slots, and four SATA slots, this motherboard can provide the performance you need for gaming and content creation. With EZ-Latch Plug, Plus, and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides both fast 2.5GbE LAN and Wi-Fi 6E.
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Hybrid Digital VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Wi-Fi EZ-Plug
The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install. Take full advantage of Wi-Fi 6E.
2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.
Comprehensive Thermal
With an advanced full-metal thermal design and durable heat sinks, this motherboard is designed to keep your system cool and efficient under graphics-intensive workloads. The VRM heat sinks provide four times the cooling surface for efficient heat dissipation. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs. The RL-ILM significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader). Smart Fan 6 allows you to take full control of both your PWM and DC fans, as well as water cooling pumps.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
UPC: 889523046340
Items Included
- Gigabyte B860 GAMING X WIFI6E LGA 1851 ATX Motherboard
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Gigabyte B860M AORUS ELITE WIFI6E Specs
Key Specs
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|

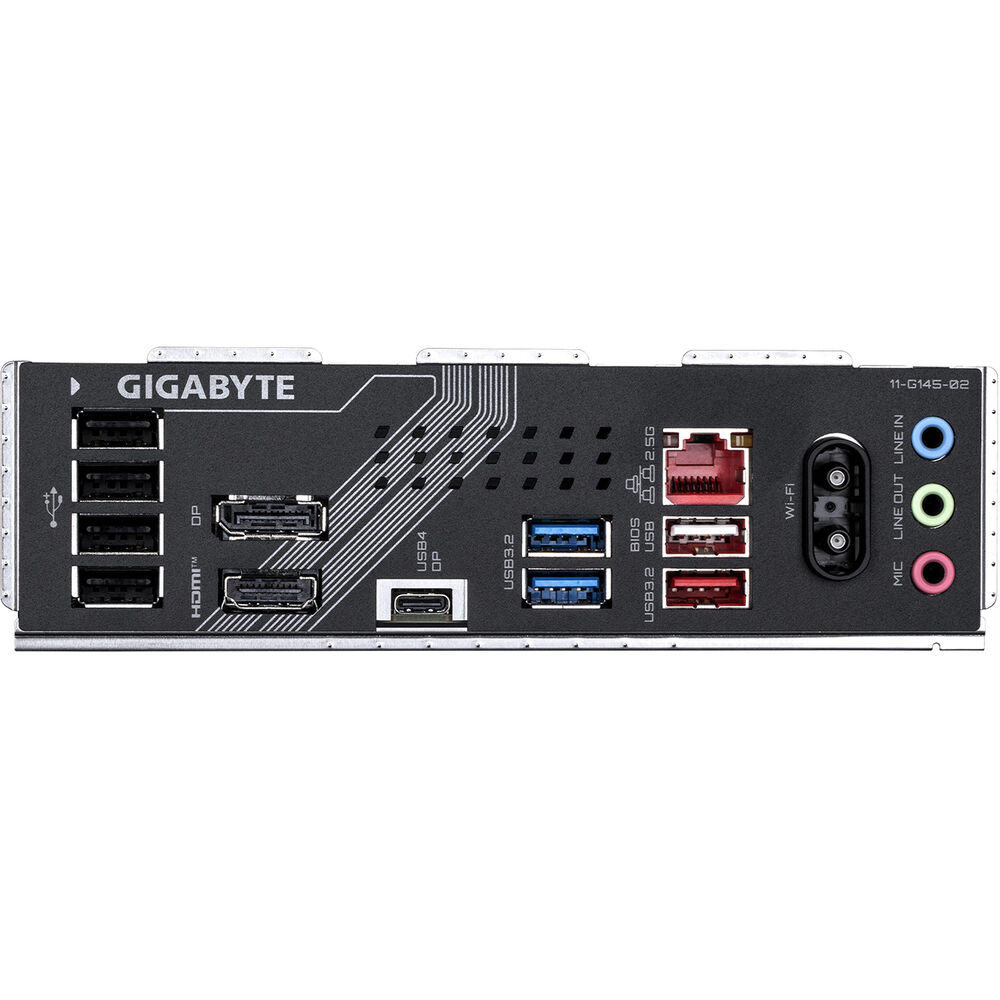

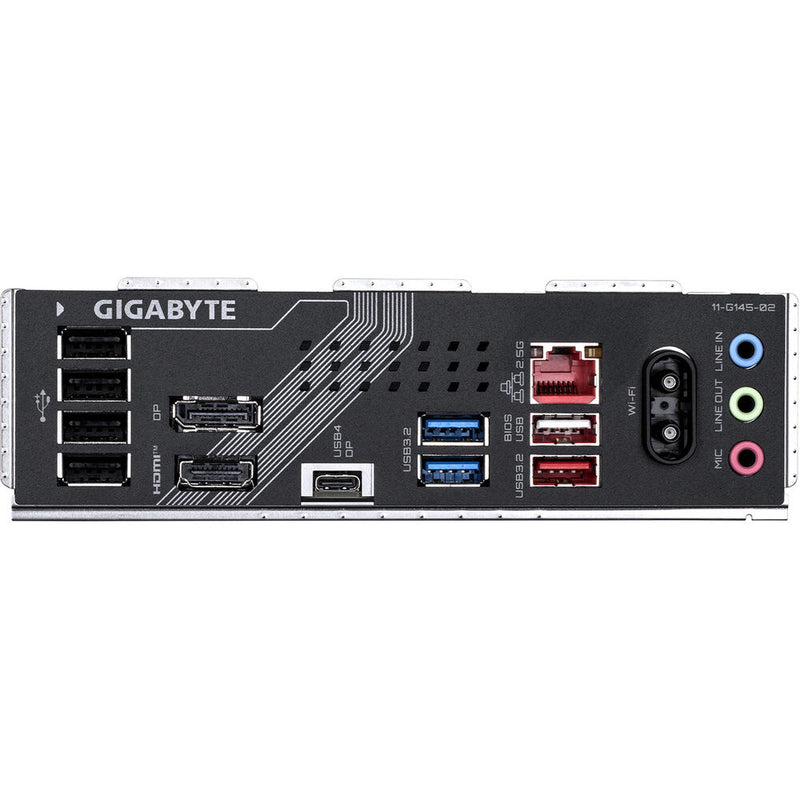

Back Panel I/O
| USB |
1x USB-C (USB4)
1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 5x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI Output
1x DisplayPort Output |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x 2.5Gigabit
|
| Wi-Fi Antenna |
1x Connector
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC, ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
3x 4-Pin System |
| Liquid Cooling |
2x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Audio |
No
|
| Diagnostics |
Clear CMOS, Flash BIOS, Reset
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
Packaging Info
| Package Weight |
4.25 lb
|
| Box Dimensions (LxWxH) |
13.4 x 10.85 x 3.4"
|
