Description

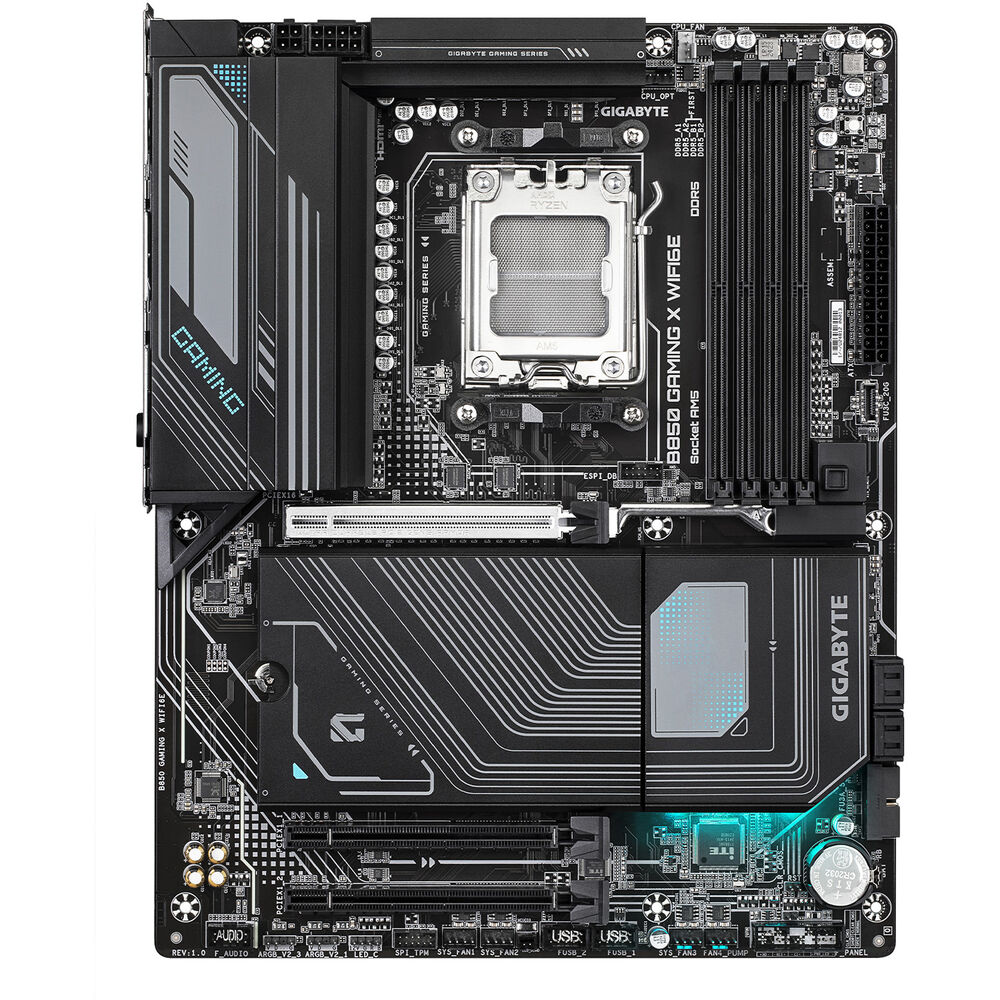

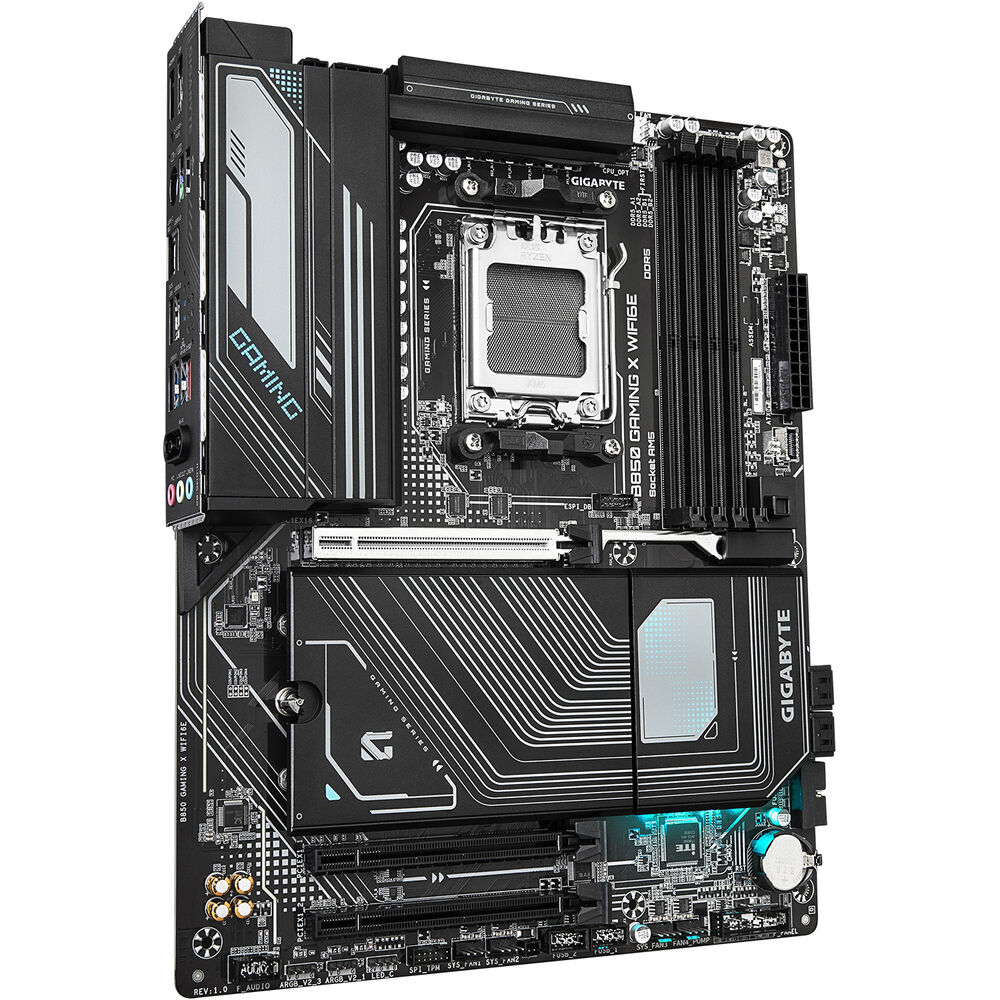

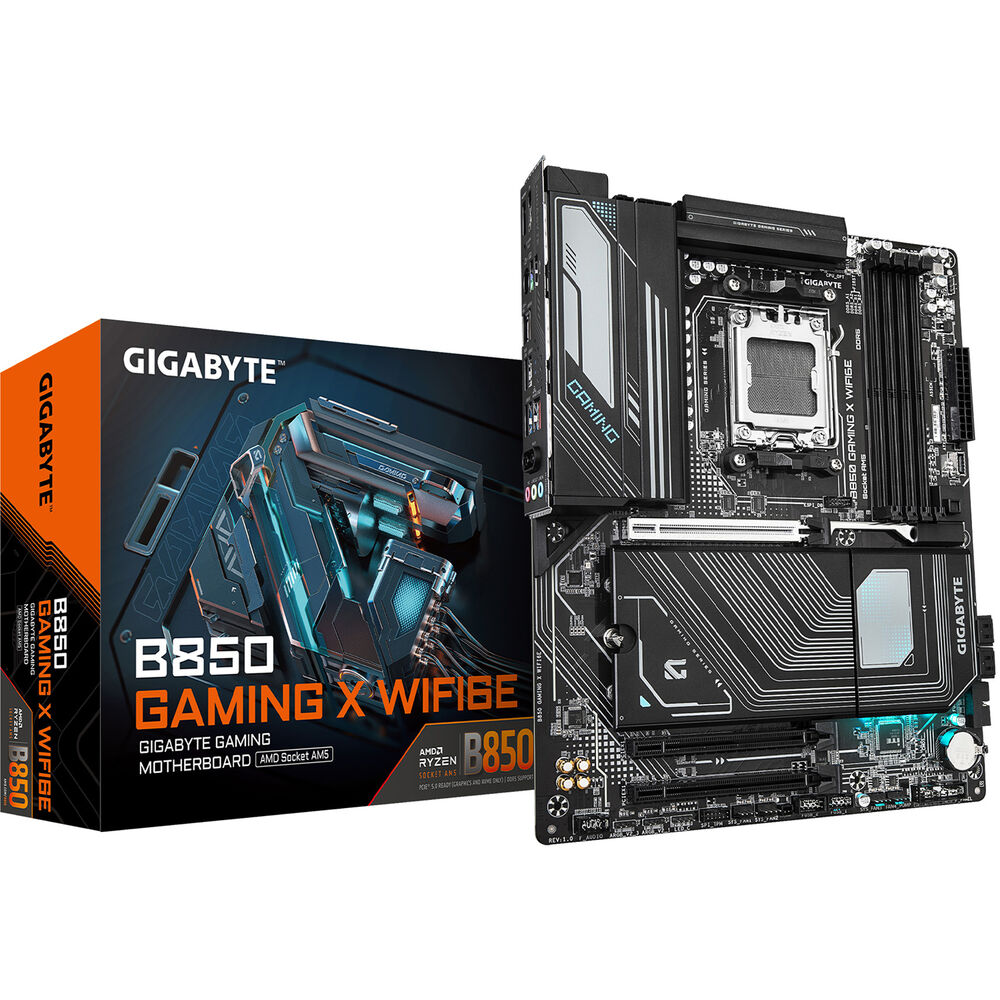

Gigabyte B850 GAMING X WIFI6E Overview
Designed for both gamers and creative professionals, the Gigabyte B850 GAMING X WIFI6E AM5 ATX Motherboard supports AMD 7000, 8000, and 9000 series processors, which utilize the AM5 socket. With support for DDR5, PCIe 5.0, M.2, and SATA, you'll be able to build a powerful PC with this motherboard. With EZ-Latch, installing certain components is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 6E. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.
X3D Turbo Mode
With one-click acceleration, X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with this GIGABYTE's BIOS innovation.
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Digital Twin VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 12 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
UPC: 889523046135
Items Included
- Gigabyte B850 GAMING X WIFI6E AM5 ATX Motherboard
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Gigabyte B850 GAMING X WIFI6E Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

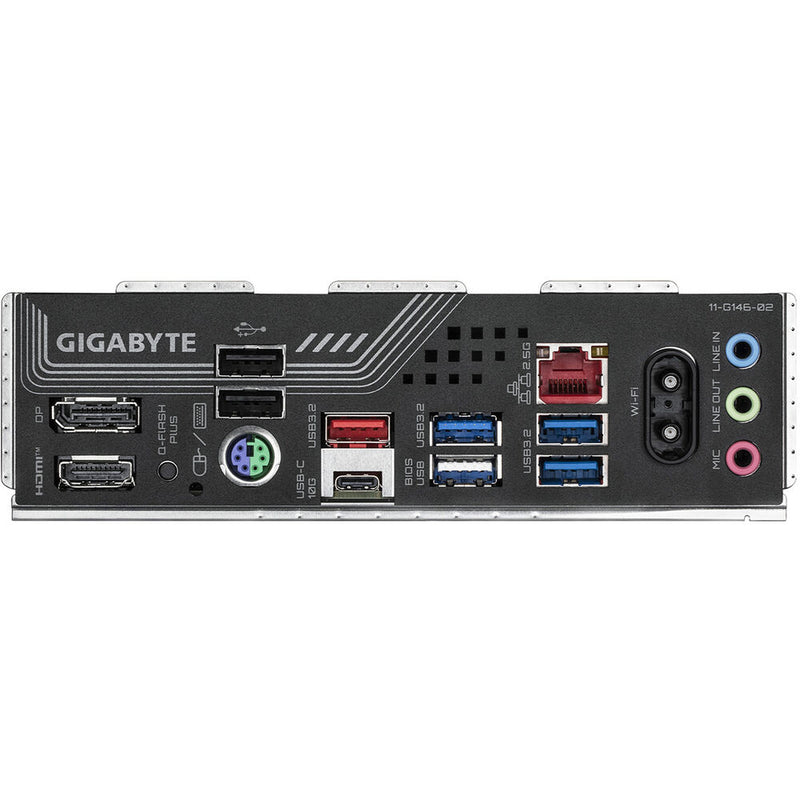

Back Panel I/O
| USB |
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI Output
1x DisplayPort Output |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Gigabit
|
| PS/2 |
1x Combo
|
| Wi-Fi Antenna |
1x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| RAID Support |
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 10 (SATA) |
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 3.0 x1 |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
3x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU 1x 4-Pin CPU |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Diagnostics |
Clear CMOS, Power, Reset
|
BIOS
| ROM |
256 Mb
|
Audio
| Audio Codec |
Realtek (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
Packaging Info
| Package Weight |
4.6 lb
|
| Box Dimensions (LxWxH) |
11.7 x 11.4 x 5.8"
|
