Description

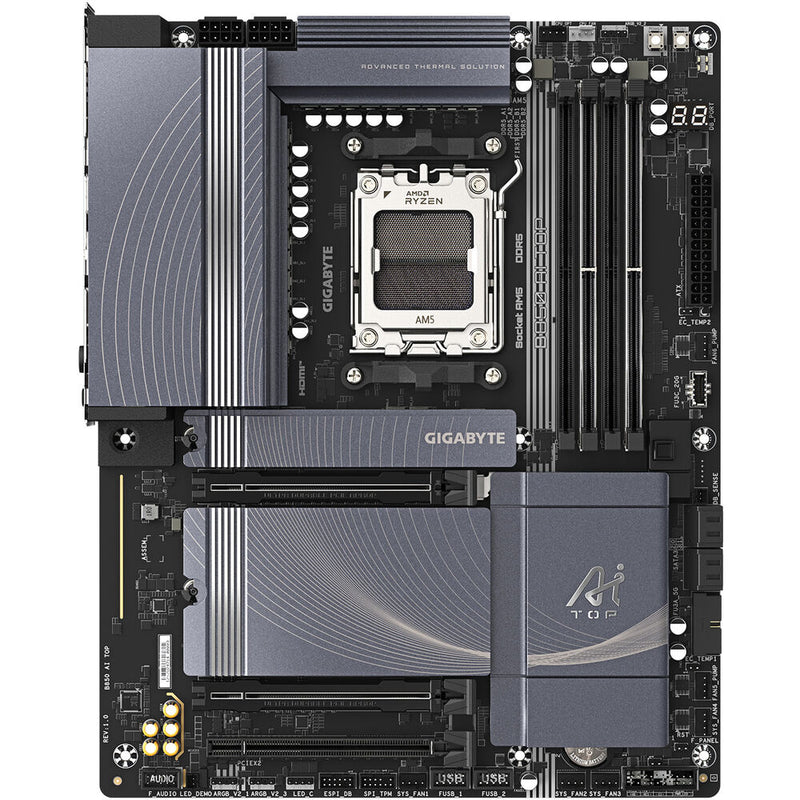

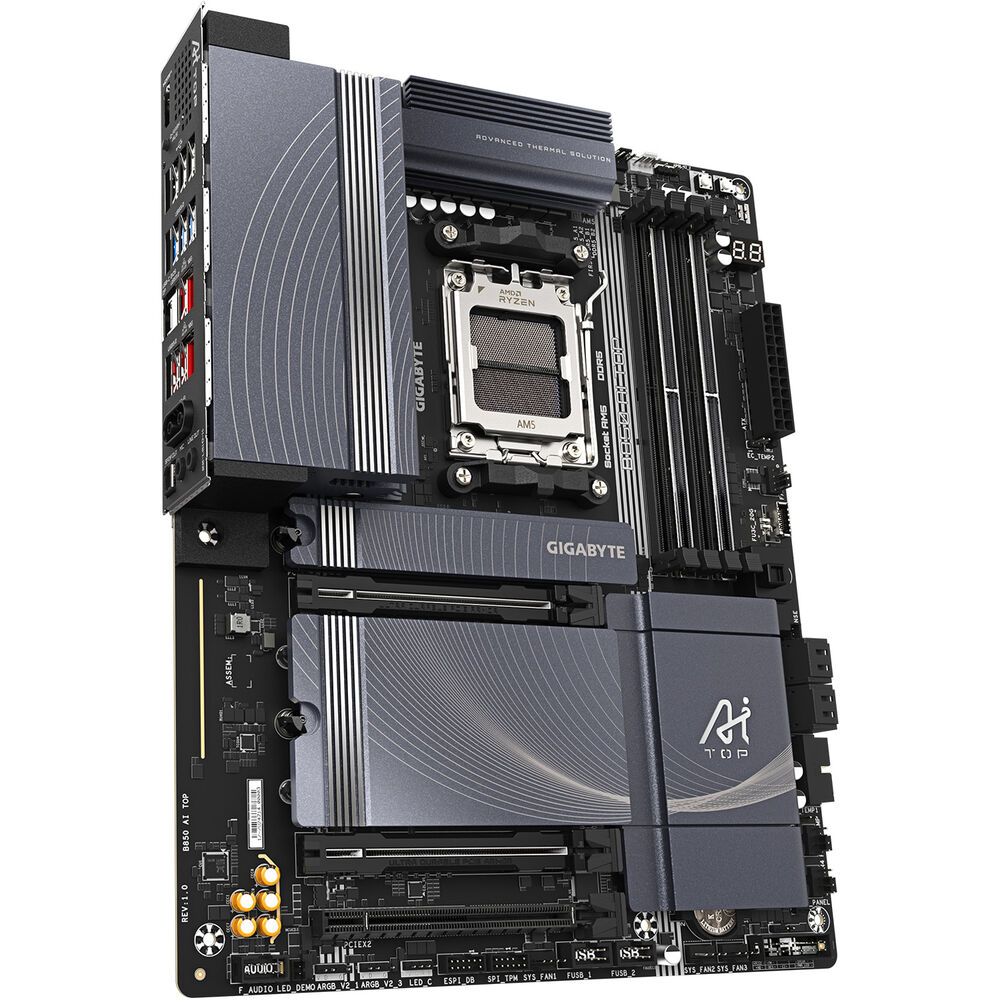

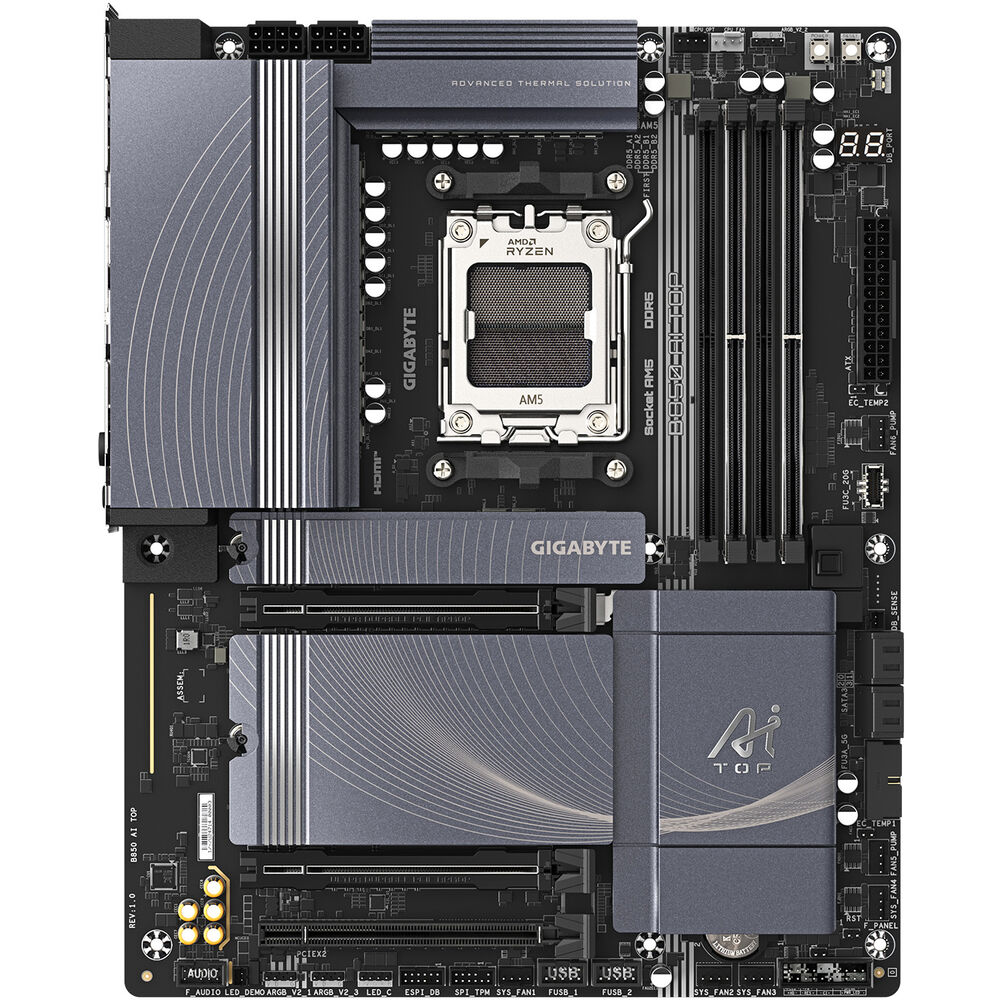

Gigabyte B850 AI TOP Overview
Train your own AI right at your desk with the Gigabyte B850 AI TOP AM5 ATX Motherboard and AI TOP Utility 2.0. This motherboard utilizes the AM5 socket and supports AMD 7000, 8000, and 9000 series processors. With support for DDR5, PCIe 5.0, M.2, and SATA, you'll be able to build a powerful PC with this motherboard. With EZ-Latch, installing certain components is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast 10GbE LAN and Wi-Fi 7. Install Windows 11 (64-bit) to take full advantage of all the features of this motherboard.
X3D Turbo Mode
With one-click acceleration, X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with this GIGABYTE's BIOS innovation.
AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.
Digital Twin VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 16 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phase provides reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Dual 10GbE LAN
Supercharge your online gaming with dual 10GbE RJ45 LAN jacks. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.
EZ-Latch Designs
PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Easy ejection with a single click for graphics cards
M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink
M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs
Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
UPC: 889523045893

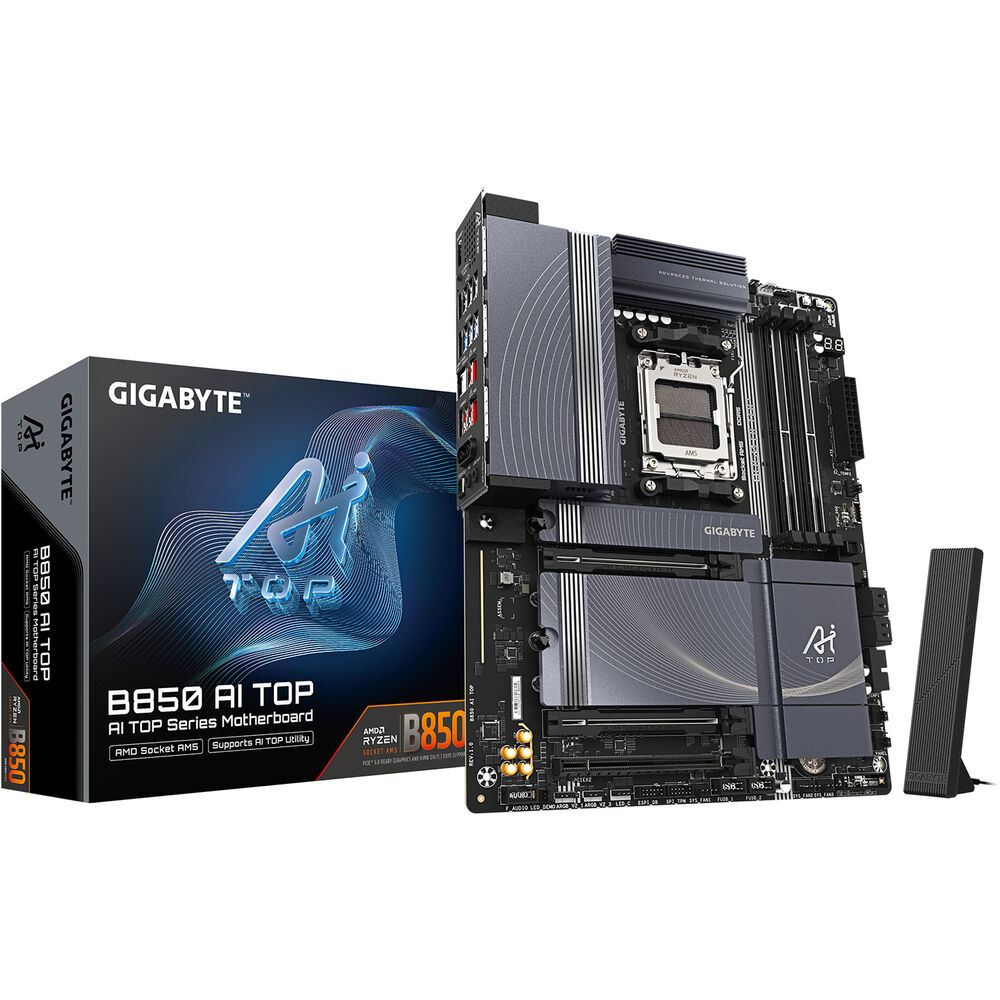

Items Included
- Gigabyte B850 AI TOP AM5 ATX Motherboard
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Gigabyte B850 AI TOP Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
|
| Storage Slots |
2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x2 |
| Wi-Fi |
Wi-Fi 7 (802.11be) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

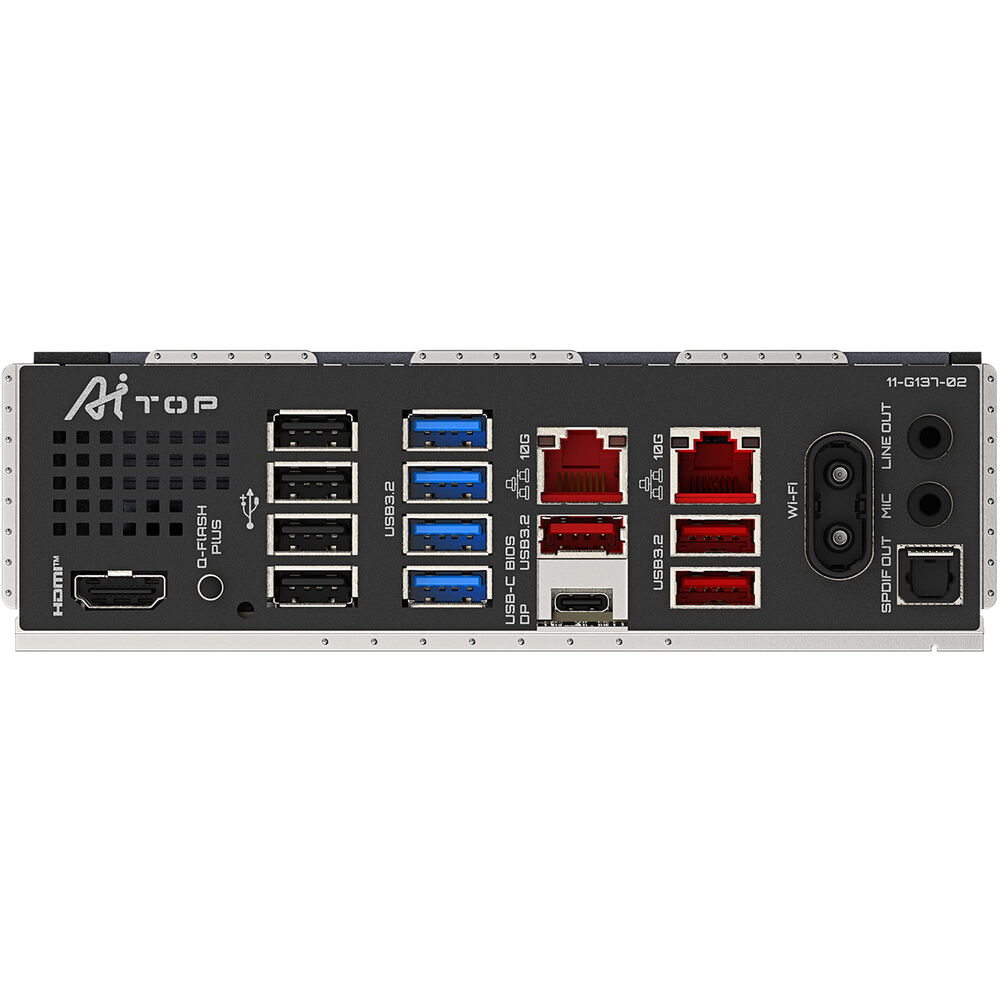

Back Panel I/O
| USB |
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI Output
|
| Audio |
2x 1/8" / 3.5 mm
1x S/PDIF |
| Ethernet / Controller |
2x 10GbE
|
| Wi-Fi Antenna |
1x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| RAID Support |
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 10 (SATA) |
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x2 |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
2x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Diagnostics |
Clear CMOS, Power, Reset
|
BIOS
| ROM |
256 Mb
|
Audio
| Audio Codec |
Realtek ALC1220 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be) with MU-MIMO Support
|
| Bluetooth |
5.4
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
Packaging Info
| Package Weight |
5.94 lb
|
| Box Dimensions (LxWxH) |
13.9 x 12.3 x 3.3"
|
