Gigabyte B760I AORUS PRO LGA 1700 Mini-ITX Motherboard

Roll over image to zoom in

Gigabyte B760I AORUS PRO LGA 1700 Mini-ITX Motherboard


	₹ 34960.0 includes GST and import duties.
	B2B customers can avail ₹ 5331.4 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	7073133101141
MPN:	B760I AORUS PRO
UPC/HSN:	889523037317

Share this product

Gigabyte B760I AORUS PRO Overview

Get your next gaming rig up and running with the GIGABYTE B760I AORUS PRO LGA 1700 Mini-ITX Motherboard. Designed to give new and seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the AORUS PRO lays a proper foundation for your next small build.

Equipped with Intel's LGA 1700 socket and B760 chipset, you can leverage a wide range of 14th, 13th, and 12th Gen Intel Core processors, enhancing performance and responsiveness. Two dual-channel DDR5 RAM slots enable you to install up to 98GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets with two SATA III and two M.2 PCIe interfaces. The AORUS PRO also has one PCIe 4.0 x16 expansion slot so you can equip your system with various graphics cards of your choice. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS PRO with USB 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6E (802.11ax) technology for wireless connectivity or use the wired 2.5 Gigabit Ethernet port for a strong and reliable connection.

Performance

A Twin Digital VRM design leverages 8 VCORE phases and 90A Power Stage to ensure electrical throughput that can handle 14th, 13th, and 12th Gen Intel Core Series processors as well as extreme overclocking. An M.2 PCIe 4.0 storage interface offers data transfer speeds up to 64 Gb/s, getting your games running even faster. XMP overclocking boosts RAM up to 8000 MHz for enhanced multitasking and rendering performance. PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS PRO's fully covered MOSFET heat sink, M.2 Thermal Guard, and 10-layer PCB with 2x copper work together to ensure that onboard components are safe under heavy loads. The Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The USB 3.2 Gen 1 port offers data transfer speeds up to 5 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE's RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS PRO provides you with several enhancements that make the installation of components a breeze. Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor installed.

UPC: 889523037317

Items Included

Gigabyte B760I AORUS PRO LGA 1700 Mini-ITX Motherboard
Antenna
2 x SATA Cables
2 x Fan Power Extension Cable
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

17.2 MB

Gigabyte B760I AORUS PRO Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	2x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 8000 MT/s
Storage Slots	2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 (x16 mode)
Wi-Fi	Wi-Fi 6E (802.11ax)
Form Factor	Mini-ITX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

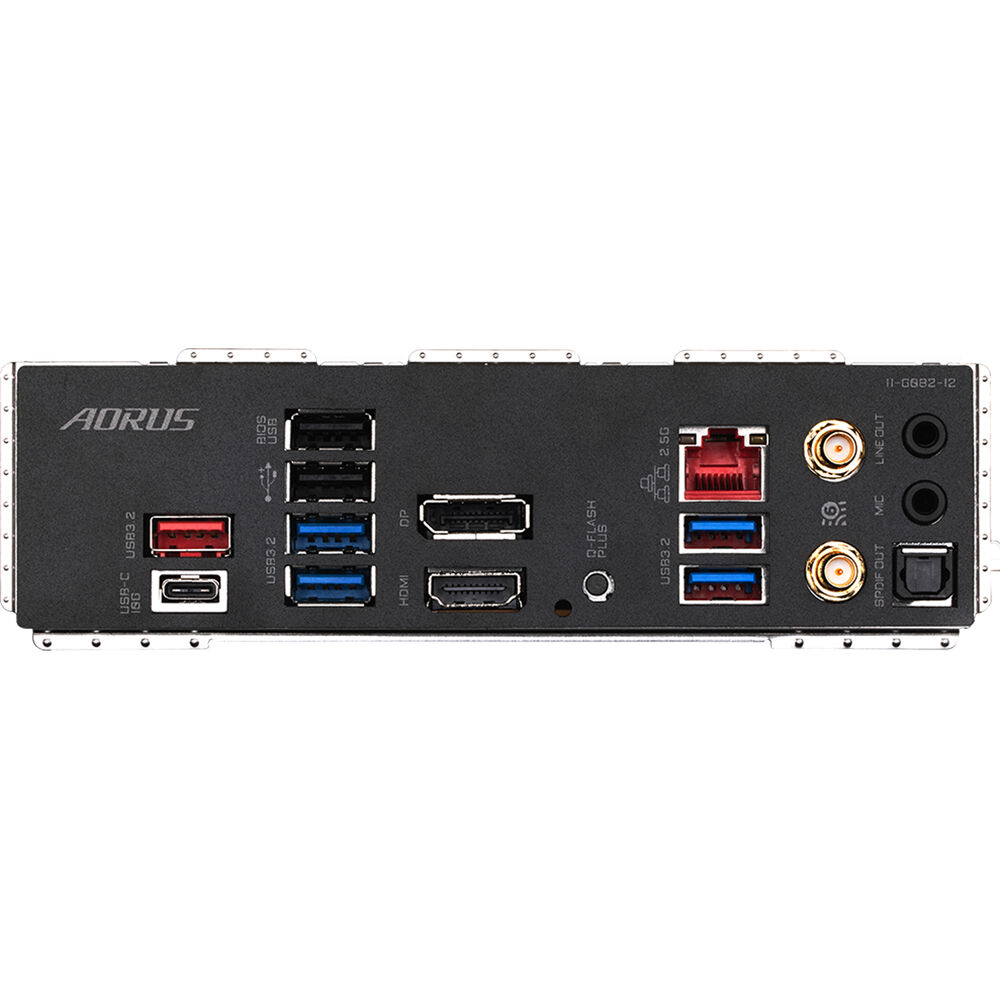

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort Output 1x HDMI Output
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 8000 MT/s
Maximum Capacity	96 GB
Channel Architecture	Dual Channel
ECC Support	ECC (Non-ECC Mode) Unbuffered

Storage Expansion

SATA	2x SATA III
Storage Slots	2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1 (SATA)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 (x16 mode)
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	2x 4-Pin CPU 1x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	2x RGB
Audio	1x Speaker

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek CODEC (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7" / 17 x 17 cm

Packaging Info

Package Weight	2.8 lb
Box Dimensions (LxWxH)	9.8 x 9.1 x 3.8"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 34260.8
3-5	₹ 33911.2
5-10	₹ 33212.0
10+	₹ 32512.8

Bulk discount will be automatically applied during checkout based on quantity.
