Gigabyte B760I AORUS PRO DDR4 LGA 1700 Mini-ITX Motherboard

Roll over image to zoom in

Gigabyte B760I AORUS PRO DDR4 LGA 1700 Mini-ITX Motherboard


	₹ 32215.0 includes GST and import duties.
	B2B customers can avail ₹ 4912.79 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	6995088834645
MPN:	B760I AORUS PRO DDR4
UPC/HSN:	889523035412

Share this product

Gigabyte B760I AORUS PRO DDR4 Overview

1Description
2Performance
3Enhanced Thermal Design
4Front Panel USB-C Connector
5Personalization & Customization
6Ultra Durable

Get your next gaming rig up and running with the GIGABYTE B760I AORUS PRO DDR4 LGA 1700 Mini-ITX Motherboard. Designed to give new and seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the AORUS Pro lays a proper foundation for your next small build.

Equipped with Intel's LGA 1700 socket and B760 chipset, you can leverage a wide range of 13th and 12th Gen Intel Core processors, enhancing performance and responsiveness. Two dual-channel DDR4 RAM slots enable you to install up to 64GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets with four SATA III and two M.2 PCIe interfaces. The AORUS PRO also has one PCIe 4.0 x16 expansion slot so you can equip your system with various graphics cards of your choice. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS PRO with USB 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.2 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6 (802.11ax) technology for wireless connectivity or use the wired 2.5 Gigabit Ethernet port for a strong and reliable connection.

Performance

Twin Digital VRM design leverages 8 VCORE phases and 90A Power Stage to ensure electrical throughput that can handle 13th and 12th Gen Intel Core Series processors as well as extreme overclocking. M.2 PCIe 4.0 storage interface offers data transfer speeds up to 64 Gb/s, getting your games running even faster. XMP overclocking boosts RAM up to 5333 MHz for enhanced multitasking and rendering performance. PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS PRO's fully covered MOSFET heat sink, M.2 Thermal Guard, 10-layer PCB, and 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port offers data transfer speeds up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE's RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS PRO provides you with several enhancements that make the installation of components a breeze. Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor installed.

UPC: 889523035412

In the Box

Gigabyte B760I AORUS PRO DDR4 LGA 1700 Mini-ITX Motherboard
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Performance
Enhanced Thermal Design
Front Panel USB-C Connector
Personalization & Customization
Ultra Durable

Gigabyte B760I AORUS PRO DDR4 Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	2x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
M.2	2x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 (x16 mode)
Wi-Fi	Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Form Factor	Mini-ITX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

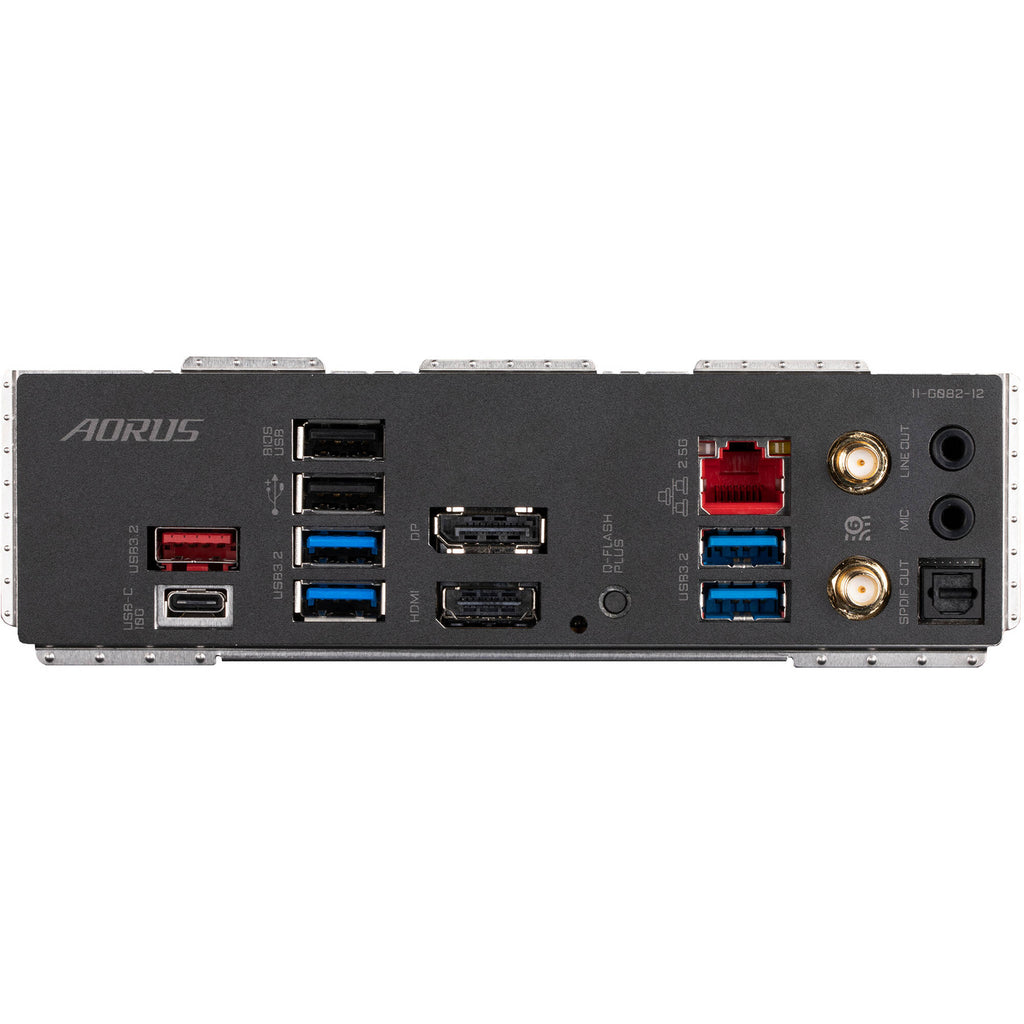

Back Panel I/O

USB	1 x USB-C (USB 3.1/3.2 Gen 2) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort Output 1x HDMI Output
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity	64 GB
Channel Architecture	Dual Channel
ECC Support	ECC (Non-ECC Mode) Unbuffered

Storage Expansion

SATA	4x SATA III
M.2	2x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 (x16 mode)
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 1x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	2x RGB
Audio	1x Speaker

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek CODEC (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth	5.2

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7" / 17 x 17 cm

Packaging Info

Package Weight	2.805 lb
Box Dimensions (LxWxH)	9.6 x 9.5 x 3.8"
