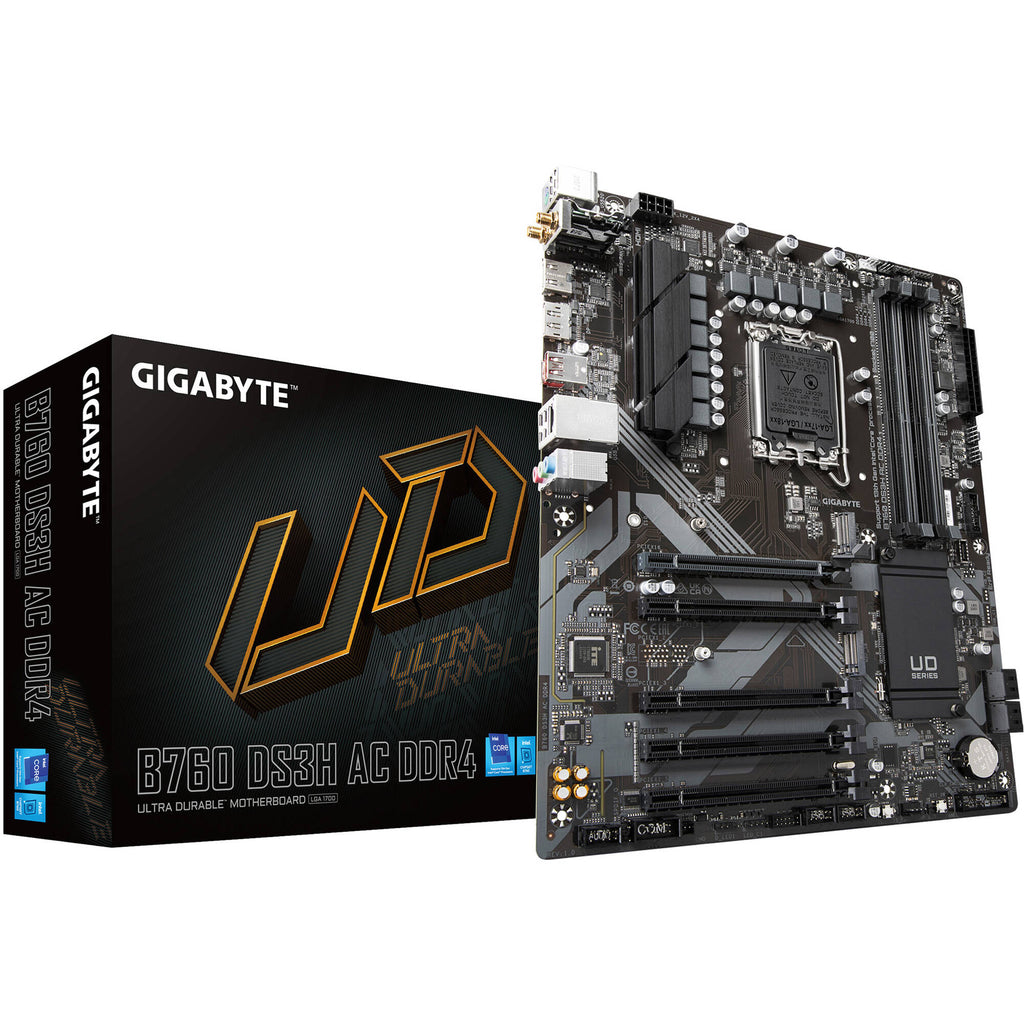

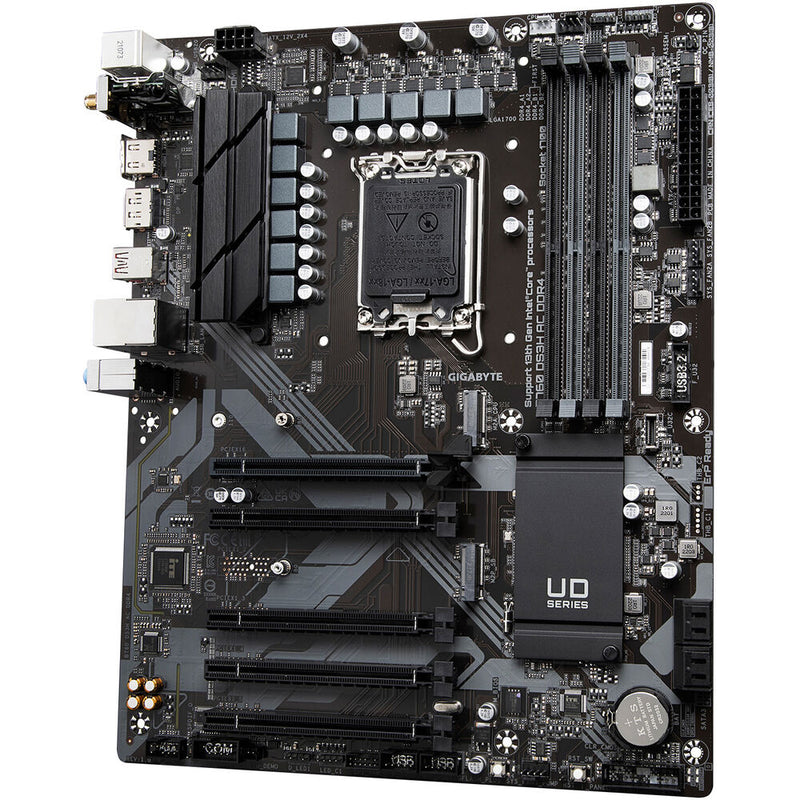

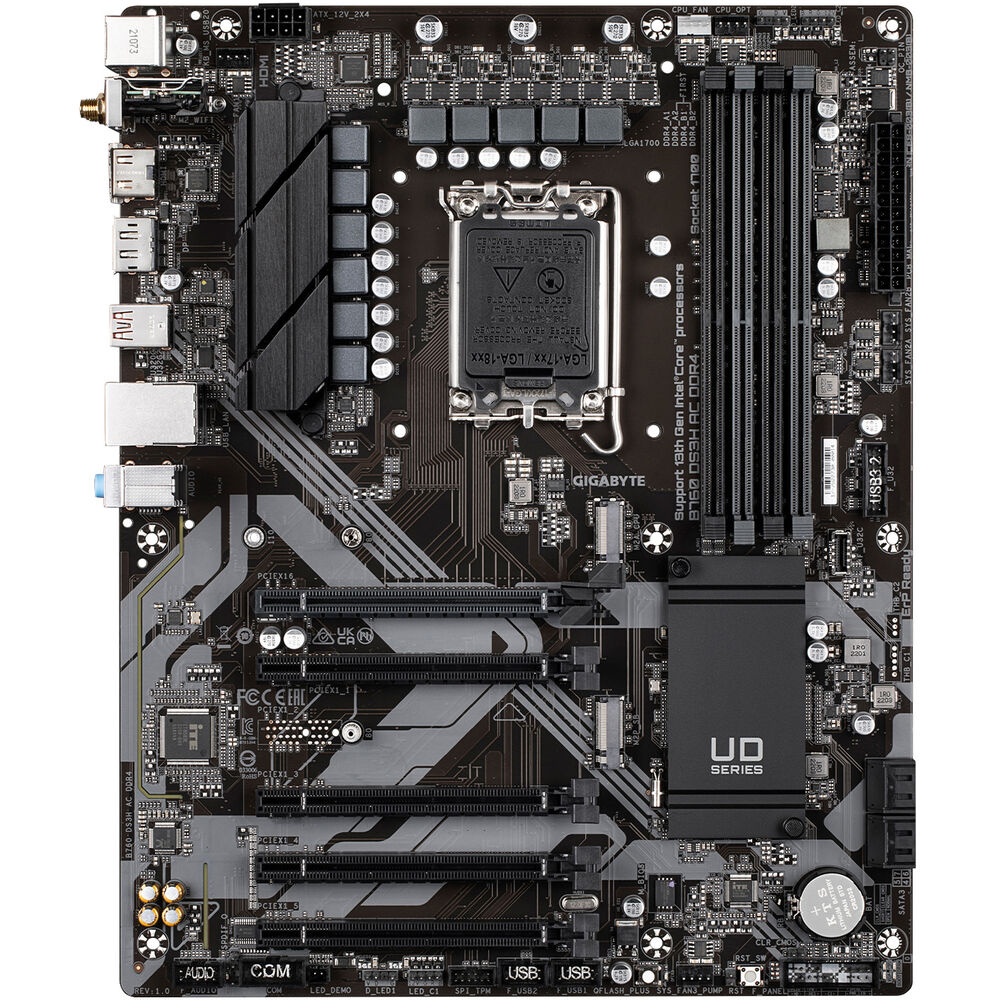

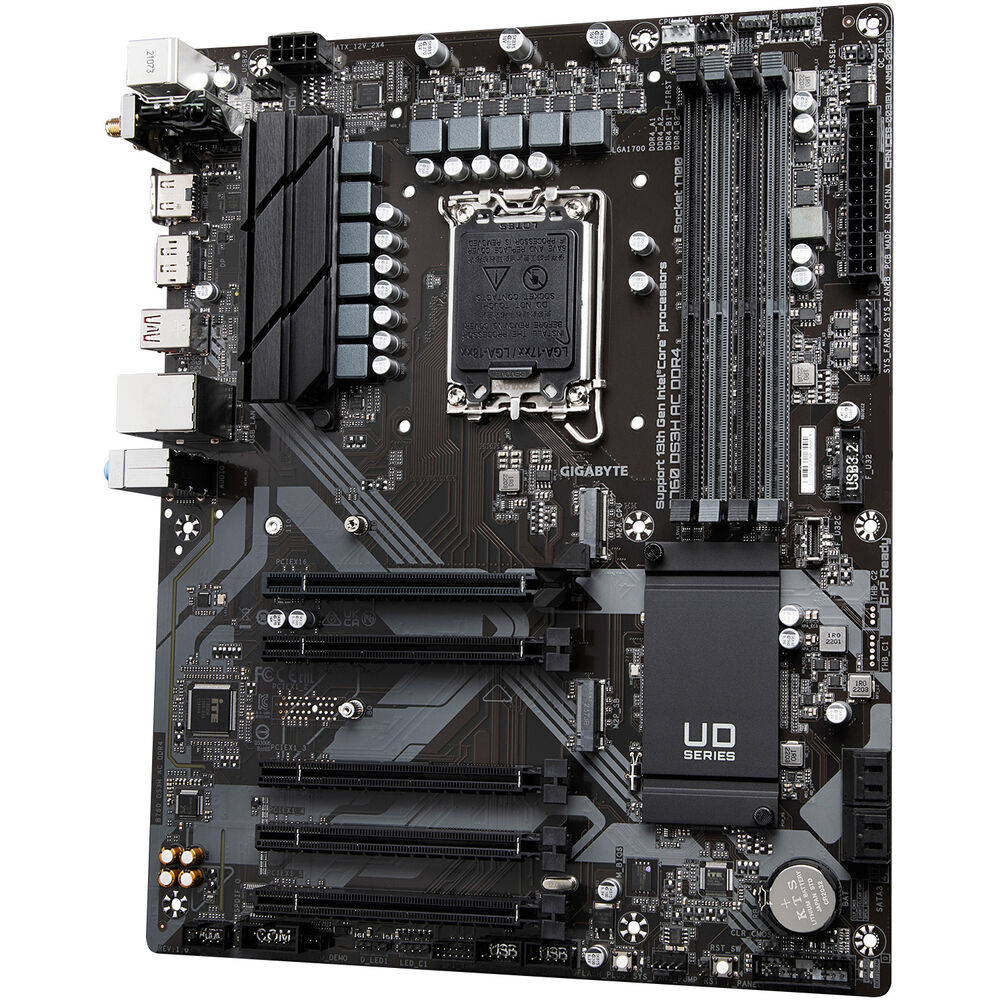

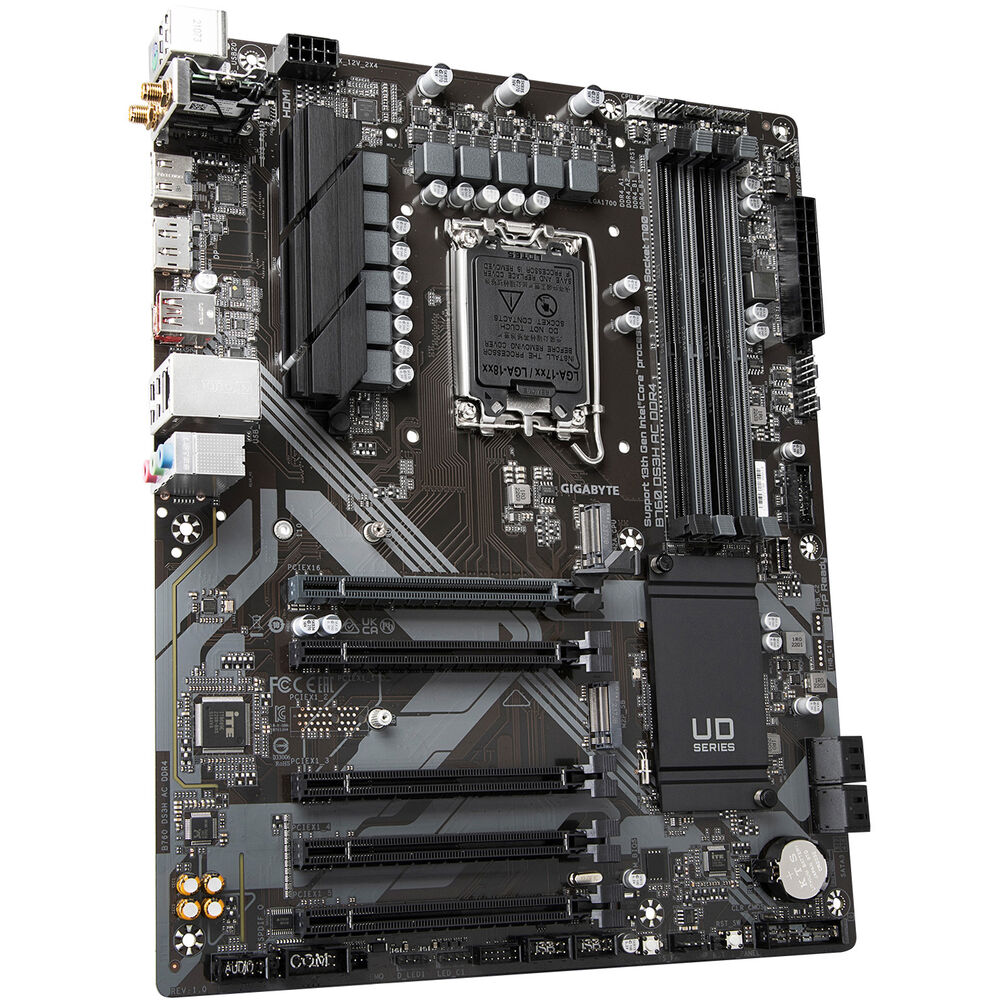

Gigabyte B760 DS3H AC DDR4 LGA 1700 ATX Motherboard

Roll over image to zoom in

Gigabyte B760 DS3H AC DDR4 LGA 1700 ATX Motherboard


	₹ 24045.0 includes GST and import duties.
	B2B customers can avail ₹ 3666.86 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	6995130744917
MPN:	B760 DS3H AC DDR4
UPC/HSN:	889523035139

Share this product

Gigabyte B760 DS3H AC DDR4 Overview

1Description
2Ultimate Power Design
3Enhanced Throughput
4Networking Connectivity
5Ultra Durable Design
6RGB Fusion

Get your gaming build off on the right foot with the B760 DS3H AC DDR4 LGA 1700 ATX Motherboard from GIGABYTE. Sporting multiple inputs and a wide range of headers with a flexible and expansive design, you can focus on building a solid foundation for your next gaming components without breaking the bank.

The DS3H is built on Intel's B760 chipset, giving you access to an LGA 1700 CPU socket for Intel 13th and 12th Gen Core, Pentium, and Celeron series processors. Four dual-channel DIMM slots allow you to easily install up to 128GB of DDR4 memory for faster multitasking capabilities. Take advantage of enhanced storage capabilities with four SATA III ports and two M.2 PCIe connectors. Additionally, install various graphics and utility cards with one PCIe 4.0 x16 and four PCIe 3.0 x16 (x1) slots. Between internal headers and the back panel of the DS3H, you get an array of USB 3.2 Gen 1, Gen 2, and 2.0 ports for your peripherals. A specialized USB-C 3.2 Gen 2x2 port supports high-powered devices with up to 20 Gb/s data transfer speeds, ideal for handling external storage arrays, displays, and more. Bluetooth 4.2 technology allows you to use various wireless peripherals such as headphones and mice for a true cable-free experience. Additionally, a 1 Gigabit LAN port allows you to experience enhanced network bandwidth, essential for competitive online gaming, while Wi-Fi 5 is available if you prefer to connect to your wireless network.

Ultimate Power Design

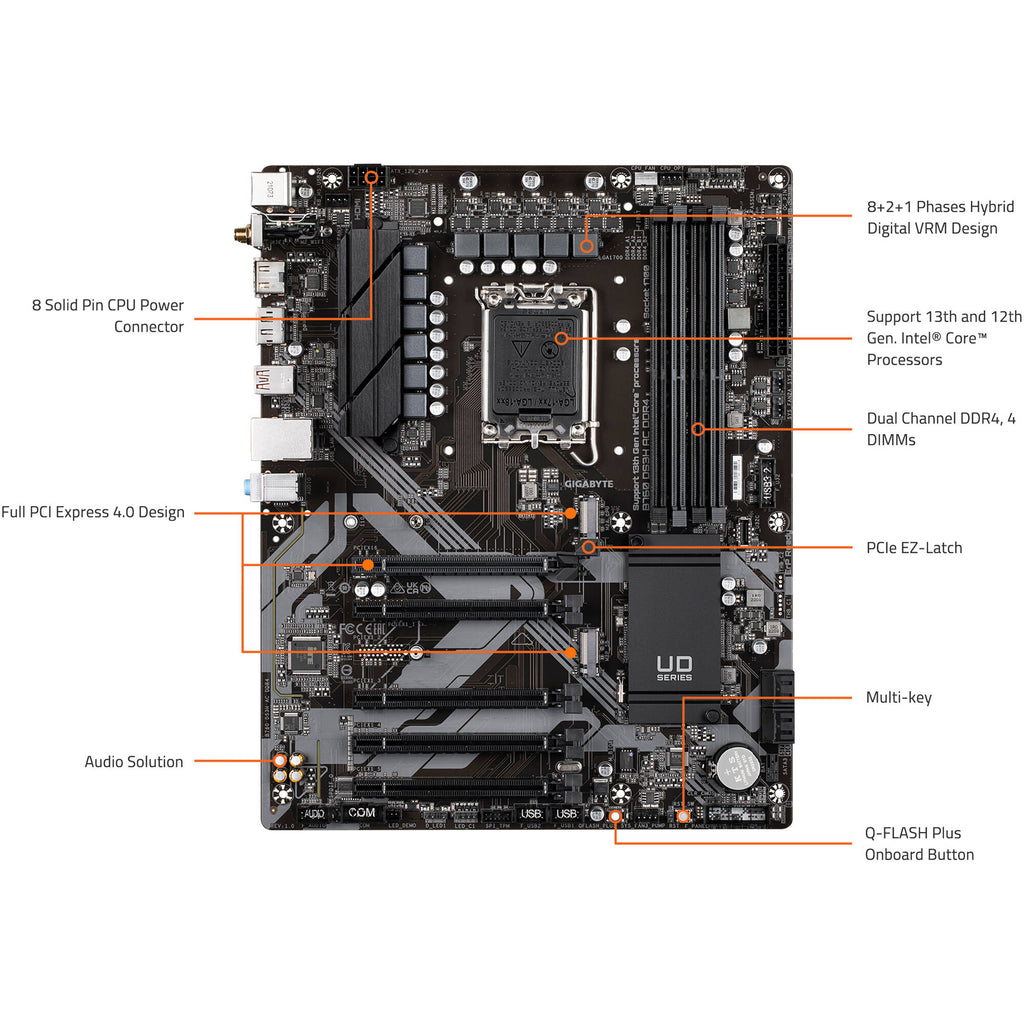

With an 8+2+1 phase digital VRM solution design, the DS3H stabilizes system performance, balances voltage, and prevents moisture. Digital PWM and Low RDS(on) MOSFET components improve transient response, allowing this board to handle various levels of current with ease. Solid pin connectors promote durability and conductivity for strong electrical connection. Anti-sulfur design gives resistors an added layer of protection, preventing contaminants from affecting your motherboard and preventing component failure.

Enhanced Throughput

Several expansion slots and two M.2 interfaces provide enhanced throughput that can easily handle high-powered graphics cards and SSDs. PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Networking Connectivity

Essential for competitive online gaming and live streaming, the Realtek Gigabit LAN adapter allows you to experience enhanced network speeds. This is also backwards compatible with multi-gig configurations. You can also use built-in Wi-Fi technology to connect to wireless networks while retaining performance.

Ultra Durable Design

Q-Flash Plus technology allows you to upgrade the DS3H's BIOS with only the power cables installed, making upgrading quick and easy.

RGB Fusion

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, you gain complete control over the LEDs which surround the motherboard.

UPC: 889523035139

In the Box

Gigabyte B760 DS3H AC DDR4 LGA 1700 ATX Motherboard
2 x SATA Cables
Antennas
I/O Shield
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Ultimate Power Design
Enhanced Throughput
Networking Connectivity
Ultra Durable Design
RGB Fusion

Gigabyte B760 DS3H AC DDR4 Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
M.2	1x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 4x PCIe 3.0 x16 (x1 mode)
Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Form Factor	ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

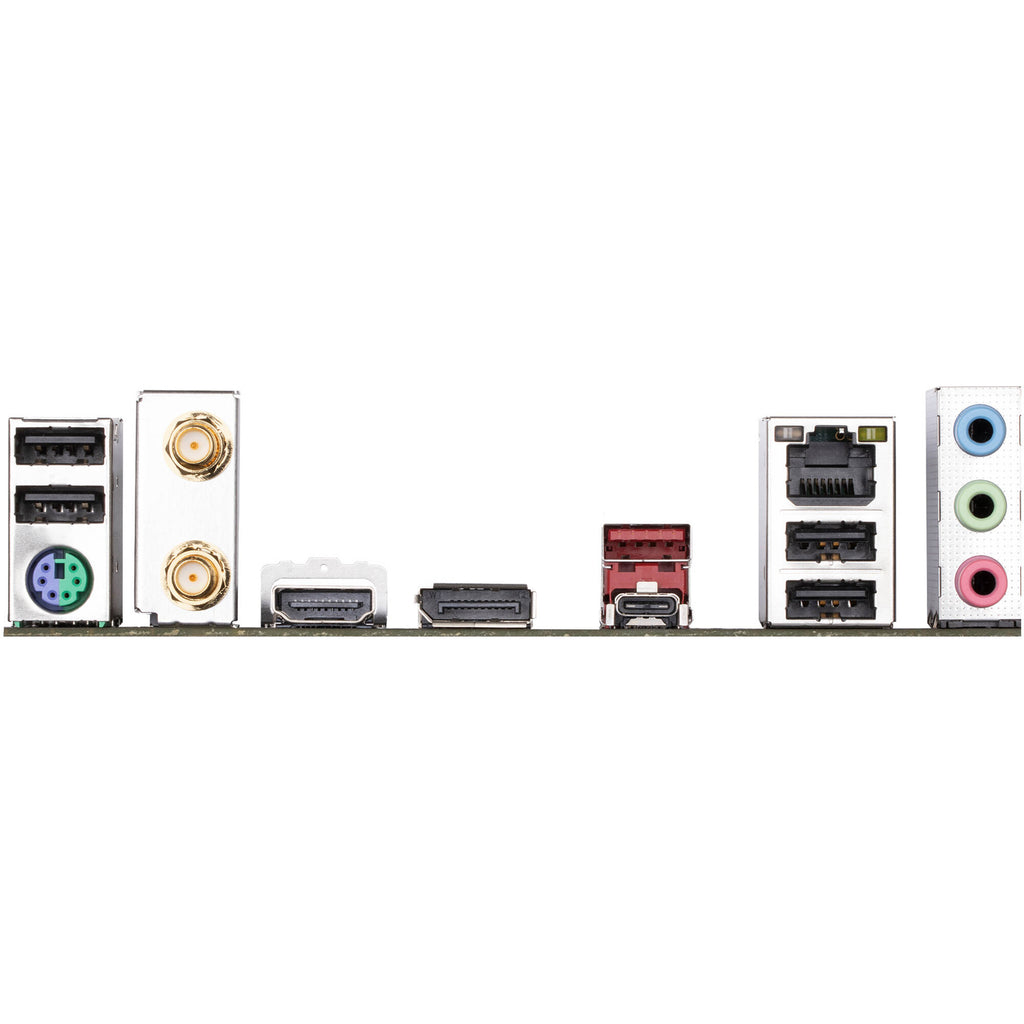

Back Panel I/O

USB	1 x USB-C (USB 3.2 Gen 2x2) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort Output 1x HDMI Output
Audio	3x 1/8" / 3.5 mm
Ethernet / Controller	1x Gigabit
PS/2	1x PS/2
Wi-Fi Antenna	2x Connector

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC (Non-ECC Mode) Unbuffered

Storage Expansion

SATA	4x SATA III
M.2	1x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 4x PCIe 3.0 x16 (x1 mode)
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Audio	1x S/PDIF
Diagnostics	Clear CMOS, Flash BIOS
Legacy	1x Serial

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek CODEC (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	4.2

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6" / 30.5 x 24.4 cm

Packaging Info

Package Weight	2.74 lb
Box Dimensions (LxWxH)	13.6 x 10.9 x 3.3"
