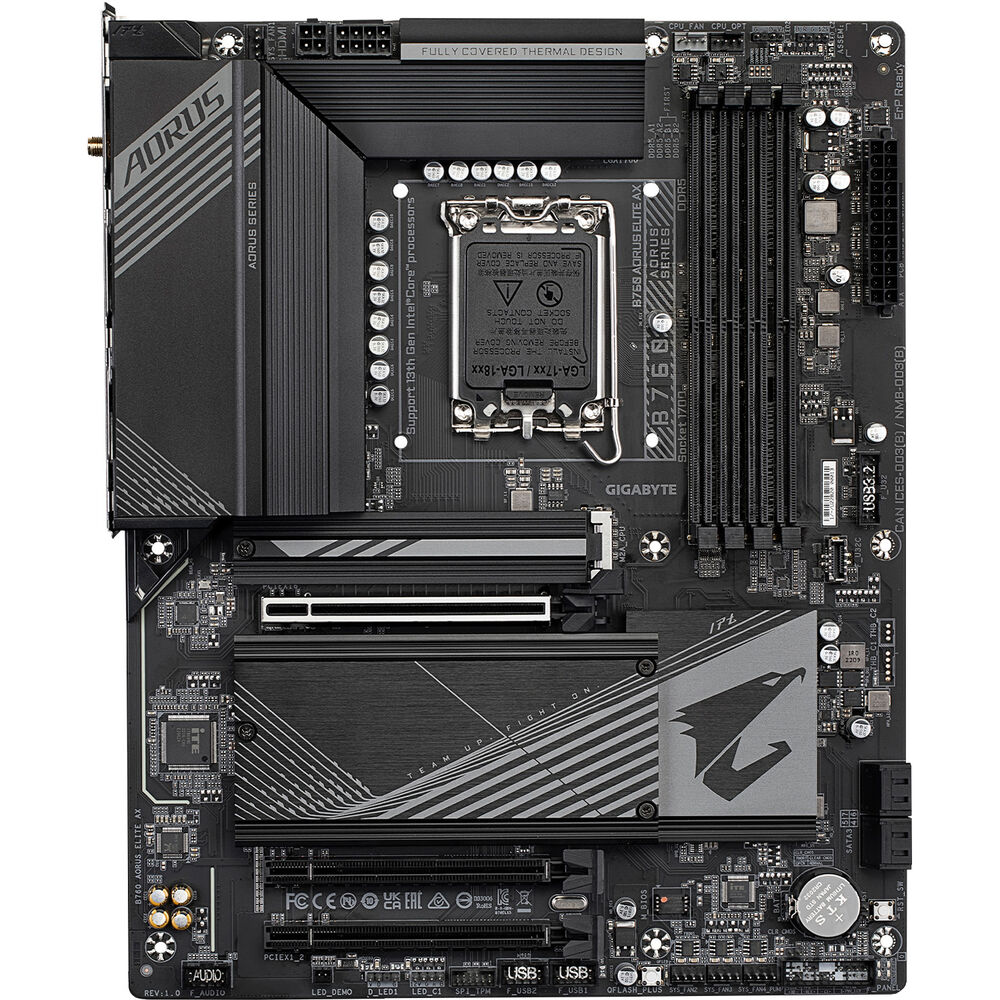

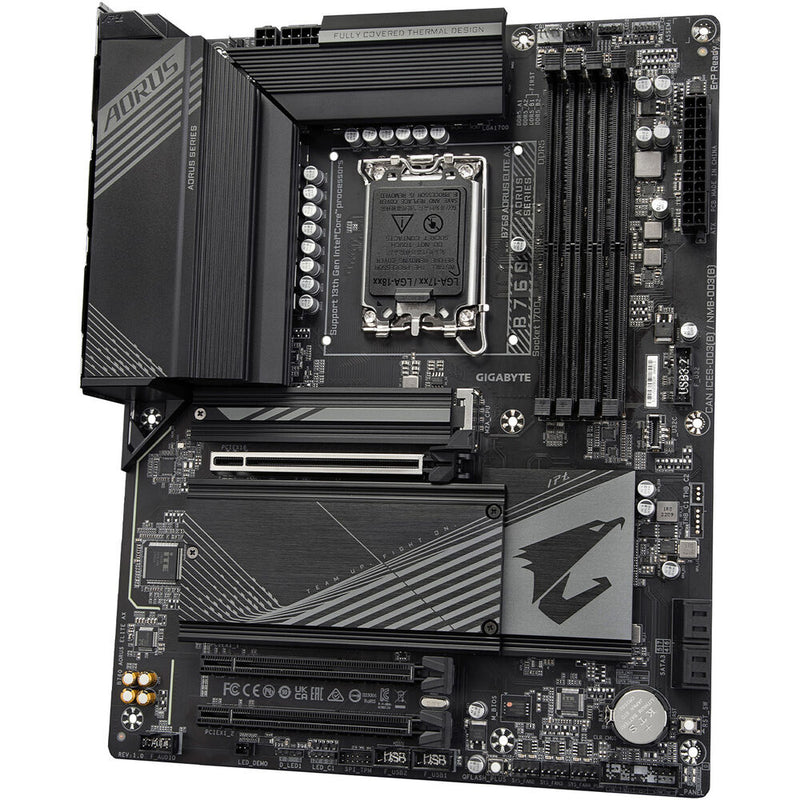

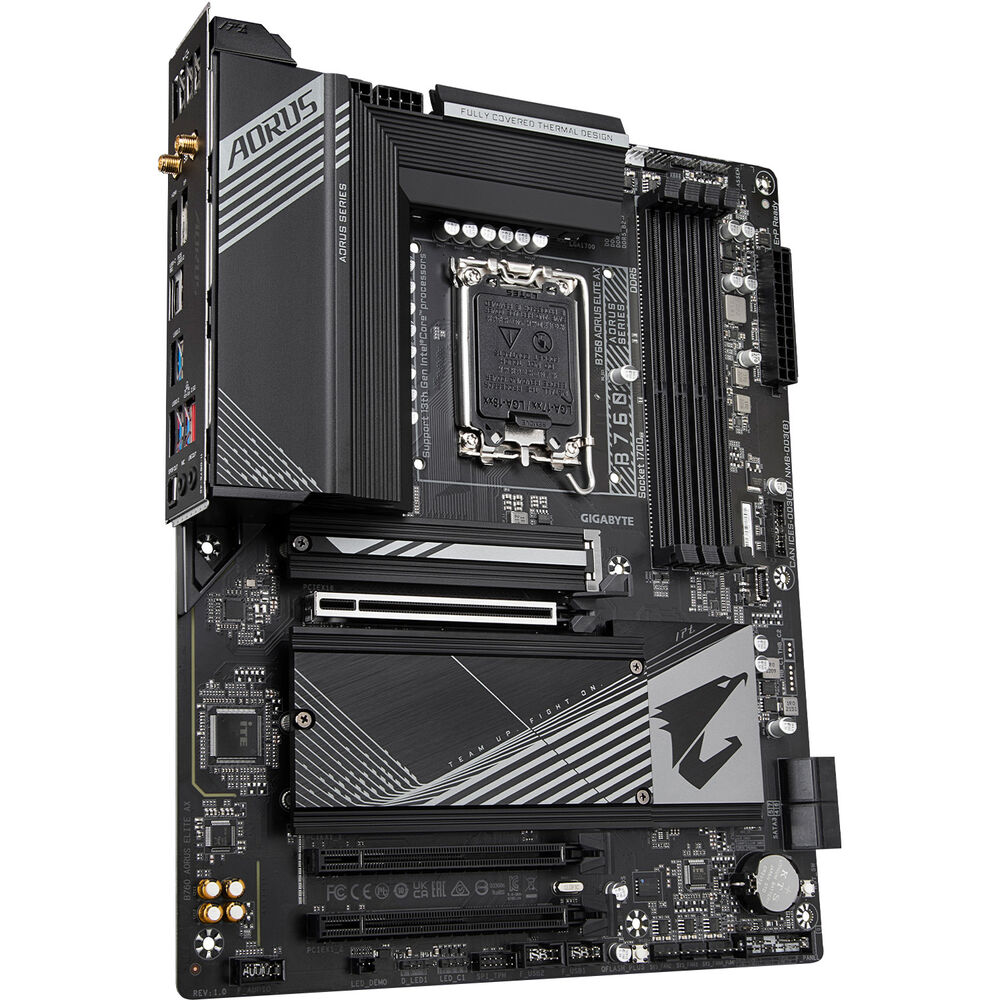

Gigabyte B760 AORUS ELITE AX LGA 1700 ATX Motherboard

Roll over image to zoom in

Gigabyte B760 AORUS ELITE AX LGA 1700 ATX Motherboard


	₹ 28335.0 includes GST and import duties.
	B2B customers can avail ₹ 4321.09 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Gigabyte
SKU:	6981013602389
MPN:	B760 AORUS ELITE AX
UPC/HSN:	889523035924

Share this product

Gigabyte B760 AORUS ELITE AX Overview

1Description
2Performance
3Enhanced Thermal Design
4Front Panel USB-C Connector
5Personalization & Customization
6Ultra Durable

Get your next gaming rig up and running with the GIGABYTE B760 AORUS ELITE AX LGA 1700 ATX Motherboard. Designed to give new and seasoned builders the ability to install resource-demanding components while offering a unique and customizable aesthetic, the AORUS ELITE AX lays a proper foundation for your next build.

Equipped with Intel's LGA 1700 socket and B760 chipset, you can leverage a wide range of 13th and 12th Gen Intel Core processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 192GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets with four SATA III and three M.2 PCIe interfaces. The AORUS ELITE AX also has one PCIe 4.0 x16 and two PCIe 4.0 x16 (in x1 mode) expansion slots so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS ELITE AX with USB 2.0 ports while USB 3.2 Gen 1 and Gen 2 ports are reserved for resource-demanding devices such as external drives, audio interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6E (802.11ax) technology for wireless connectivity or use the 2.5 Gigabit Ethernet port for a strong and reliable wired connection.

Performance

Twin Digital VRM design leverages 12 VCORE phases and 60A Power Stage to ensure electrical throughput that can handle 13th and 12th Gen Intel Core Series processors as well as extreme overclocking. M.2 PCIe 4.0 storage interface offers data transfer speeds up to 64 Gb/s, getting your games running even faster. XMP overclocking boosts RAM up to 7600 MHz for enhanced multitasking and rendering performance. PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to find a balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE AX's fully covered MOSFET heat sink, M.2 Thermal Guard, and 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port offers data transfer speeds up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE's RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS ELITE AX provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.

UPC: 889523035924

In the Box

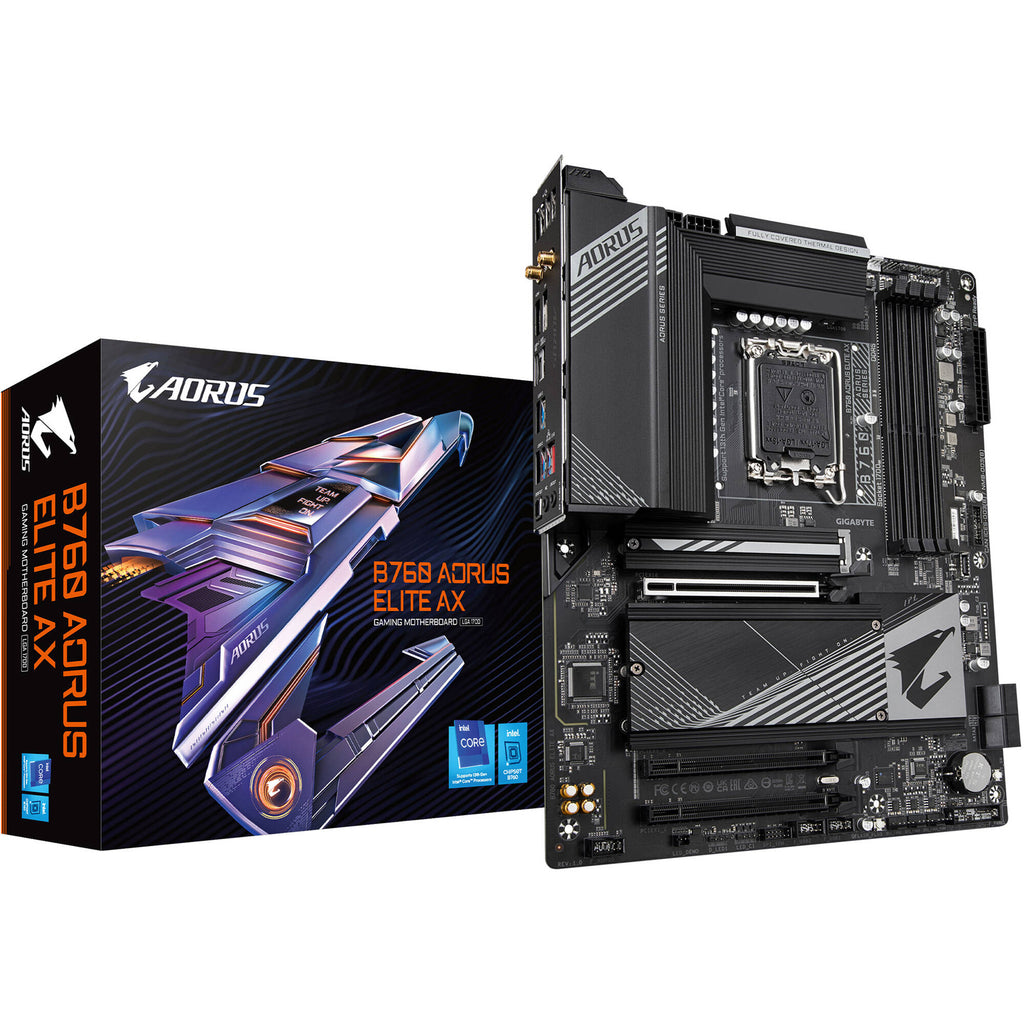

Gigabyte B760 AORUS ELITE AX LGA 1700 ATX Motherboard
2 x SATA Cables
Wi-Fi Antenna
M.2 Screw
G Connector
Limited 3-Year Manufacturer Warranty

User Manual

15.5 MB

Table of Contents

Description
Performance
Enhanced Thermal Design
Front Panel USB-C Connector
Personalization & Customization
Ultra Durable

Gigabyte B760 AORUS ELITE AX Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4 x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
M.2	3 x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 (x1 mode)
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Form Factor	ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

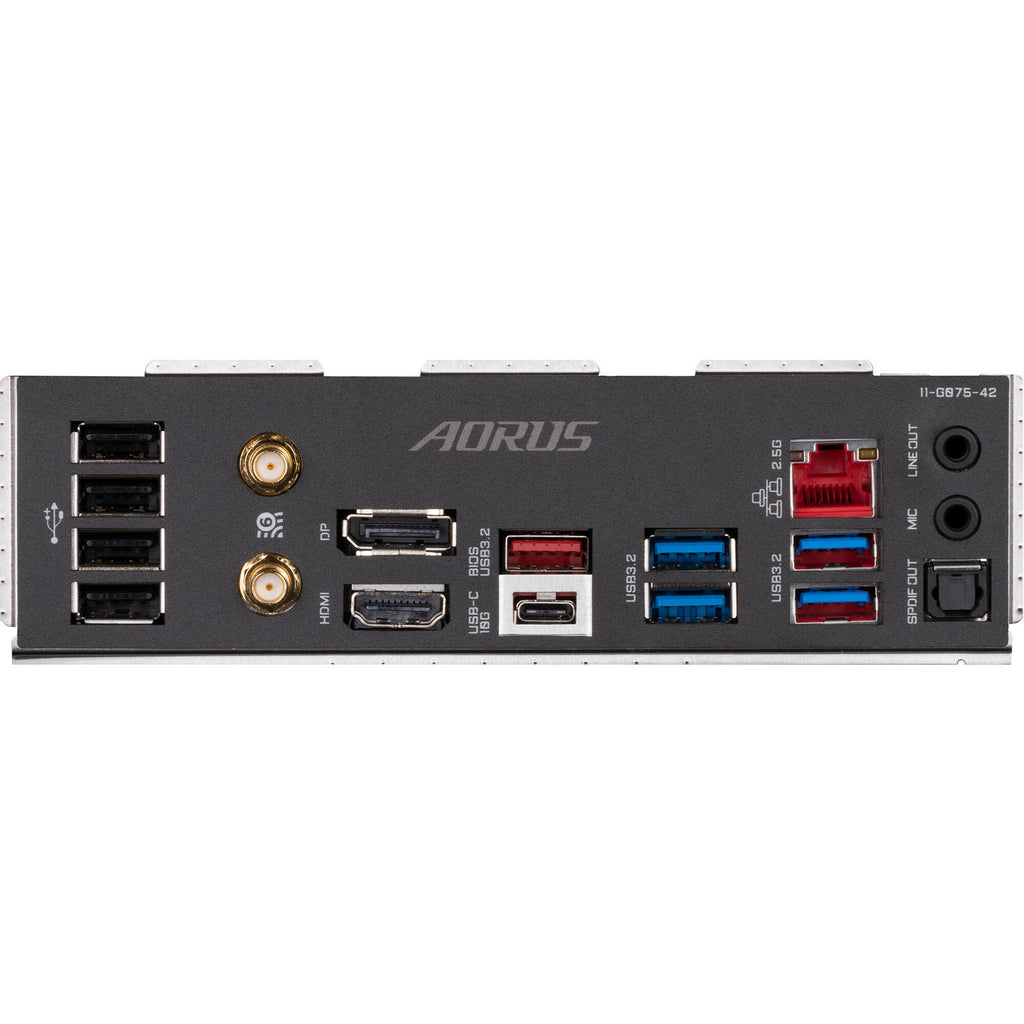

Back Panel I/O

USB	1 x USB-C (USB 3.1/3.2 Gen 2) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0)
Thunderbolt	No
Display	1 x HDMI Output 1 x DisplayPort Output
Audio	2 x 1/8" / 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x 2.5Gigabit
Wi-Fi Antenna	2 x Connector

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
Maximum Capacity	192 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC (Non-ECC Mode) Unbuffered

Storage Expansion

SATA	4 x SATA III
M.2	3 x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 (x1 mode)
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1 x 3-Pin CPU 3 x 4-Pin System
Liquid Cooling	2 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	4 x RGB
Audio	1 x Speaker
Diagnostics	Clear CMOS, Flash BIOS

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek CODEC (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	ATX
Dimensions	12.0 x 9.6" / 30.5 x 24.4 cm

Packaging Info

Package Weight	4.125 lb
Box Dimensions (LxWxH)	13.2 x 11.2 x 3.2"
