Description
Gigabyte B650 AORUS ELITE AX V2 Overview
- 1Description
- 2User Friendly Design
- 3Memory Compatibility
- 4Rear I/O
- 5Storage Compatibility
- 6Expansion Slots
Lay a robust foundation for your next PC build using the Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard. The B650 AORUS ELITE AX V2 uses an AM5 socket that supports AMD 7000 series CPUs and has compatibility with a wide range of components.
User Friendly Design
EZ-Latch designs lead to easier installation for the NVMe M.2 SSDs and graphics card. Solid heatsinks keep your system cooler with no additional effort from you using its multi-cut design that creates more surface area for dissipating heat. Additionally, the M.2 thermal guard helps prevent throttling and bottlenecks from higher speed Gen 5 SSDs.
Memory Compatibility
This motherboard supports up to 192GB of 8000 MT/s dual-channel DDR5 memory in overclocked mode across four slots. AMD EXPO and Intel XMP 3.0 user profiles make overclocking and achieving better performance easier. Your RAM is protected against interference thanks to shielded memory routing that uses the PCB's inner layer, and daisy-chained routing enables higher frequencies for a faster and denser system.

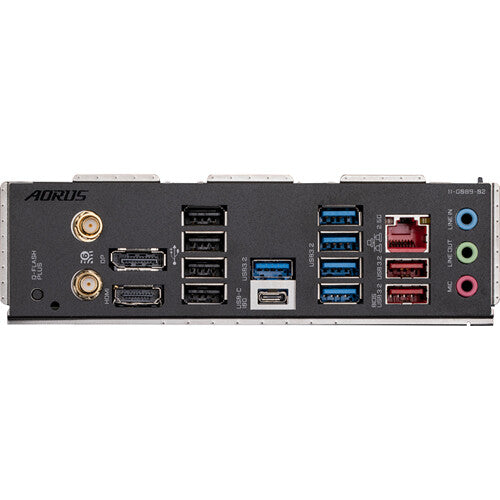

Rear I/O
The single DisplayPort and single HDMI ports can be used for CPUs with integrated graphics. A single USB-C 3.2 Gen 2 port and dual USB-A 3.2 Gen 2 ports provide up to 10 Gb/s speeds, five USB-A 3.2 Gen 1 ports offer 5 Gb/s speeds, and the four USB-A 2.0 ports work well with peripherals like keyboards and mice. Set up a wired connection to the internet using the 2.5 GbE Ethernet Port or a wireless connection using the Wi-Fi 6E antenna connector. With support for Realtek Audio's 7.1-channel ALC897 codec, you can attach headphones, a headset, a microphone, or speakers using the three 3.5mm audio jacks.
Storage Compatibility
The single M.2 PCIe 5.0 x4 and single M.2 PCIe 4.0 x4 SSD slots are available in addition to four SATA III ports for storage drives.
Expansion Slots
A single PCIe 4.0 x16 slot is perfect for a graphics card while two additional PCIe 3.0 slots operate in x1 mode ideal for network and port expansion cards.
UPC: 889523039984
In the Box
- Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- User Friendly Design
- Memory Compatibility
- Rear I/O
- Storage Compatibility
- Expansion Slots
Gigabyte B650 AORUS ELITE AX V2 Specs
Key Specs
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 2133, 2400, 2600, 2800, 3000, 3066, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MHz
|
| M.2 |
1x M Key 2280, 25110 (PCIe 5.0 x4)
1x M Key 2280, 25110 (PCIe 4.0 x4) 1x M Key 2280, 25110 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 6E (802.11ax) (2 x 2)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
Back Panel I/O
| USB |
1 x USB-C (USB 3.1/3.2 Gen 2)
2 x USB-A (USB 3.1/3.2 Gen 2) 5 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 2133, 2400, 2600, 2800, 3000, 3066, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MHz
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| M.2 |
1x M Key 2280, 25110 (PCIe 5.0 x4)
1x M Key 2280, 25110 (PCIe 4.0 x4) 1x M Key 2280, 25110 (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2) |
Internal I/O
| Expansion Slots |
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode) |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port) 2x USB 2.0 Header (Supports 1 USB-A Port) |
| Air Cooling |
3x 4-Pin System
2x 4-Pin CPU |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin ATX 1x 4-Pin ATX |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Diagnostics |
Clear CMOS, Reset
|
BIOS
| ROM |
256 Mb
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax) (2 x 2)
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 10 (64-Bit Only)
Windows 11 (64-Bit Only) |
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm
|
Packaging Info
| Package Weight |
4.445 lb
|
| Box Dimensions (LxWxH) |
13.3 x 11.2 x 3.1"
|
