Description
GEOVISION GV-EBFC5800 Overview

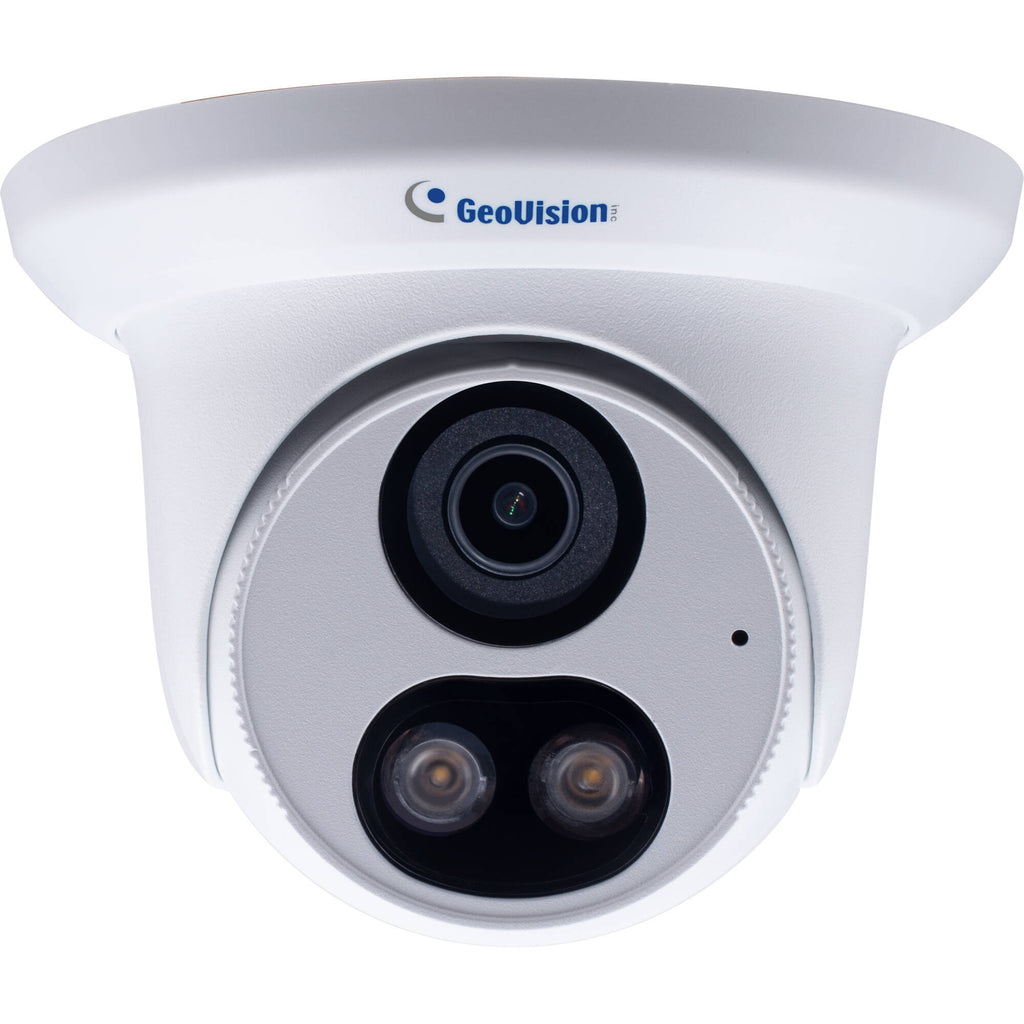

Monitor an indoor or outdoor area with the GV-EBFC5800 5MP Network Turret Camera from GEOVISION. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2880 x 1620 resolution video at up to 30 fps. Two IR LEDs provide up to 100' of illumination in low-light conditions. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
Day and night switching
H.265, H.264, and MJPEG video compressions
Triple streaming
Three-axis angle adjustment (3 to 360° horizontal pivot, 0 to 80° vertical pivot, and 3 to 360° rotation)
56 dB S/N ratio
Dynamic range up to 120 dB
Auto and manual white balance
Auto and manual gain control
WDR Pro
Defogging
Image settings include: brightness, contrast, saturation, sharpness, flicker-less, and image orientation (flip, mirror, 0, 90, 180 & 270° including corridor format)
Analytics include: motion detection, tampering alarm, audio detection, intrusion, line crossing, enter area, leave area (human and vehicle classification), face detection, people flow counting, and crowd density monitoring
Compatible with GV-DVR/NVR (V8.9.1), GV-VMS (V17.4.4/V18.2.1), GV-Control Center (V3.8.0/V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server/Video Gateway (V2.0.1), GV-Redundant/Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0), Internet Explorer, Edge, Chrome, Firefox, and Safari
Access from web browser enables live viewing, video recording, changes to video quality, bandwidth control, image snapshot, text overlay, and image masking
Firmware upgrades via web browser or GV-IP device utility
FCC, CE, and RoHS certified
In the Box
- GEOVISION GV-EBFC5800 5MP Outdoor Network Turret Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
GEOVISION GV-EBFC5800 Specs
Camera
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1 |
| Lens Field of View | Horizontal: 102° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Shutter Speed | 1/100,000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 3 to 360° Vertical: 0 to 80° |
Video
| Streaming Resolution | 2880 x 1620 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Tampering Alarm, Audio Detection, Intrusion, Cross Line, Enter Area, Leave Area (Human & Vehicle Classification), Face Detection, People Flow Counting, Crowd Density Monitoring |
| OS Compatibility | Android iOS Windows *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
Power
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 7.5 W |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 2 x IR LEDs up to 100' / 30.5 m |
| Video Management Software | GV-DVR/NVR (V8.9.1), GV-VMS (V17.4.4/V18.2.1), GV-Control Center (V3.8.0/V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server/Video Gateway (V2.0.1), GV-Redundant/Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0) |
| Supported Languages | Czech English French German Hungarian Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Dimensions | ø: 5.0 x H: 3.7" / ø: 126.0 x H: 93.0 mm |
| Weight | 0.97 lb / 0.44 kg |
Packaging Info
| Package Weight | 1.185 lb |
| Box Dimensions (LxWxH) | 6.2 x 5.3 x 5.2" |
