GEOVISION 140-APOE81W-V2 Overview

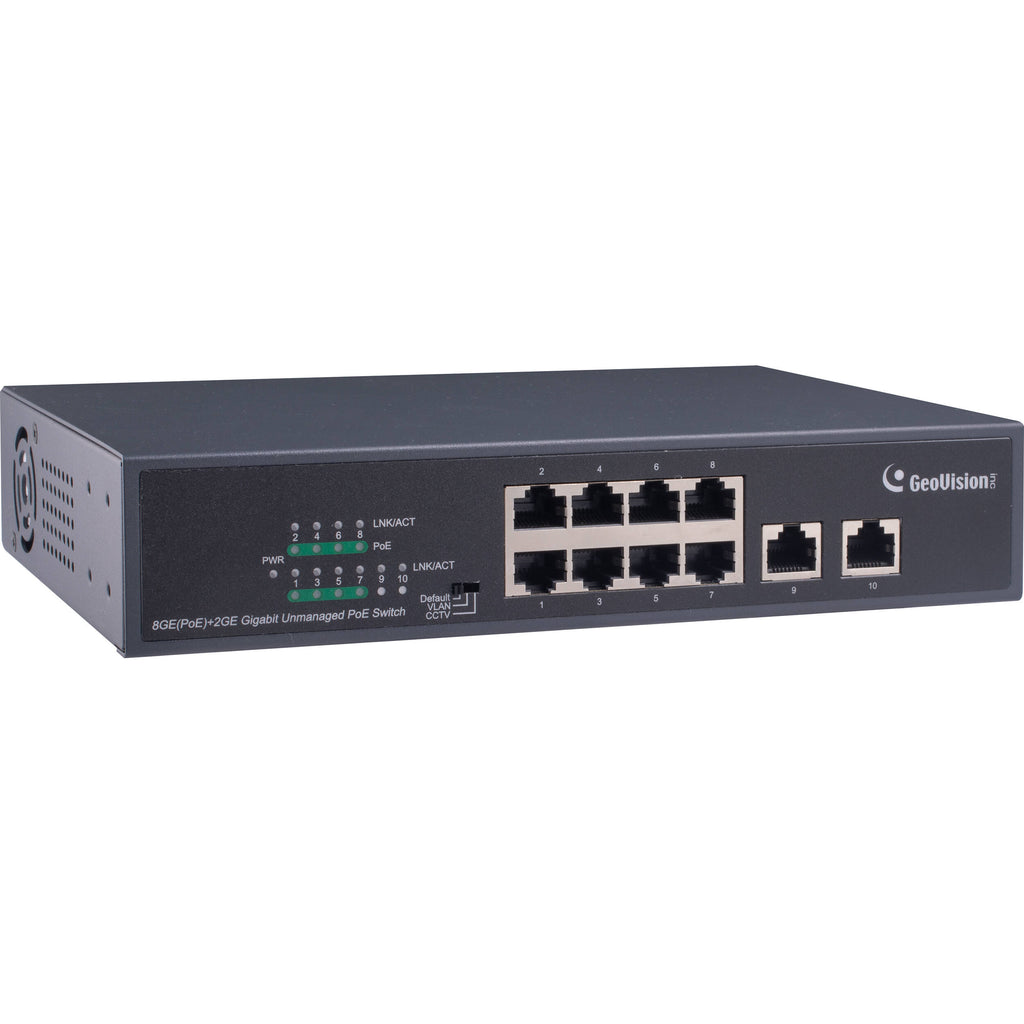

Expand your small- to medium-sized network to support additional IP security cameras and other Power-over-Ethernet (PoE) compatible devices with the GV-APOE0810-V2 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch from GeoVision. This entry-level unmanaged Layer 2 network switch features eight PoE+ compatible Gigabit RJ45 Ethernet ports, each supporting between 15W and 32W of power with a total budget of 120W. Configuring the switch for 10 Mb/s transfer speeds enables a range of up to 820' using Cat 5 cables for long-distance installations. There are also two Gigabit Ethernet RJ45 uplink ports available.
With a 20 Gb/s switching capacity and 13.4 Mpps forwarding rate, the GV-APOE0810-V2 delivers smooth data transfers. Mount this switch onto a desktop or rack using the included kit.
Enable VLAN mode to isolate each of the PoE ports for an enhanced forwarding rate.
This switch automatically checks the connection to powered devices every four minutes.
In the Box
- GEOVISION GV-APOE0810-V2 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Cable
- 4 x Rubber Feet
- Rack Mount Kit
- 8 x Screws
GEOVISION 140-APOE81W-V2 Specs
Interfaces
| Inputs/Outputs |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) |
Protocols
| Layer Services Supported |
Layer 2 Support |
| Transmission Method |
Store-and-Forward |
| MAC Address Table Size |
2K |
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3at, 802.3az, 802.3u, 802.3x |
Performance
| Forwarding Rate |
13.4 Mpps |
| Switching Bandwidth |
20 Gb/s |
| Packet Buffer |
2 Mb |
Electrical
| Power Draw |
125.00 W (Max) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget |
120 W |
| PoE per Port |
15.4 to 32 W |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
General
| Cooling System |
Passive |
| Material of Construction |
Metal |
| Rack Form Factor |
1 RU |
| Dimensions |
8.7 x 5.9 x 1.7" / 220 x 150 x 44 mm |
| Weight |
2.73 lb / 1.24 kg |
Packaging Info
| Package Weight |
3.83 lb |
| Box Dimensions (LxWxH) |
12.6 x 8.5 x 3.1" |
