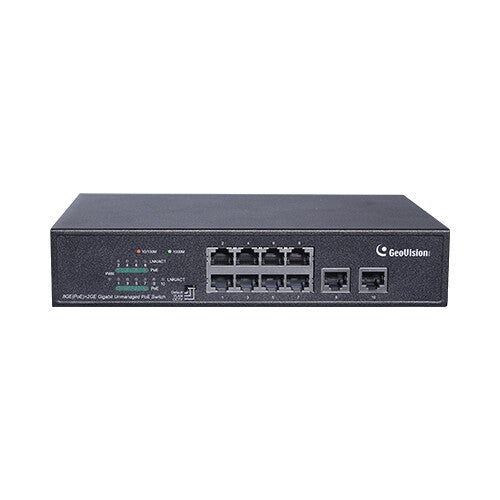

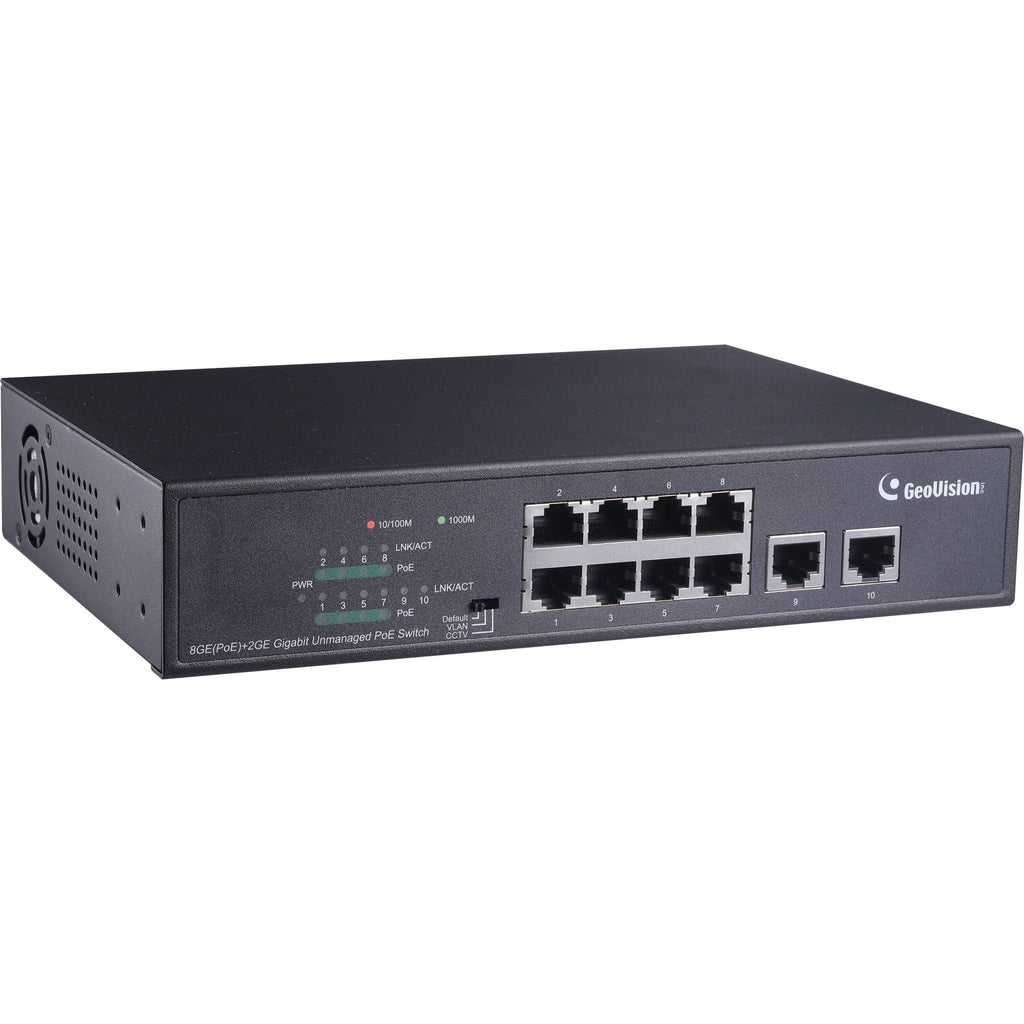

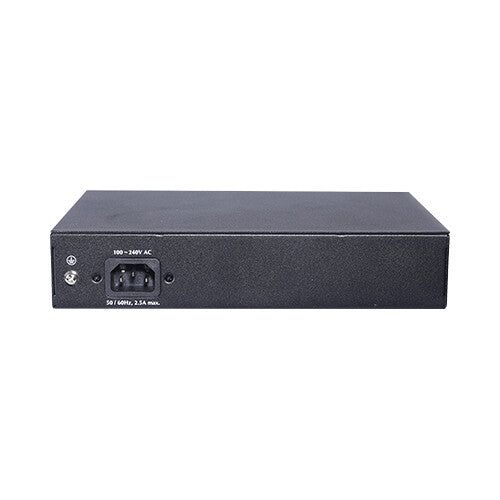

GEOVISION GV-APOE0810 Overview
Operate power-over-Ethernet (PoE) devices, such as IP security cameras, VoIP phones, and access points, without having to go through a complicated setup process by integrating the GV-APOE0810 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch from GeoVision into your business's small- to medium-sized network. Each of its eight Gigabit Ethernet ports support up to 32W of power with a total budget of 125W, allowing you to use all the ports at 15.4W or four ports at 30W. Long-range 802.3at PoE connections can reach up to 820 feet with 10 Mb/s data transfer rates. Two Gigabit RJ45 uplink ports are also available. This compact, unmanaged Layer 2 network switch doesn't require any additional software drivers or hardware to work. A rackmount kit is included.
Performance
The GeoVision GV-APOE0810 network switch delivers smooth data transfers with a 20 Gb/s switching capacity and 13.4 Mpps forwarding rate.
VLAN Mode
Enable VLAN mode to isolate each of the PoE ports for an enhanced forwarding rate.
In the Box
- GEOVISION GV-APOE0810 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Cable
- 4 x Rubber Feet
- Rackmount Kit
- 8 x Screws
- Limited 2-Year Warranty
GEOVISION GV-APOE0810 Specs
Interfaces
| Ports |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) |
Protocols
| Layer Services Supported |
Layer 2 Support |
| Transmission Method |
Store-and-Forward |
| MAC Address Table Size |
8K |
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3at, 802.3u, 802.3x |
Performance
| Forwarding Rate |
13.4 Mpps |
| Switching Bandwidth |
20 Gb/s |
| Packet Buffer |
2 Mb |
Electrical
| Power Draw |
125.00 W (Max) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget |
120 W |
| PoE per Port |
15.4 to 32 W |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
General
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, PoE, Power |
| Rack Form Factor |
1 RU |
| Dimensions |
8.7 x 5.9 x 1.7" / 220 x 150 x 44 mm |
| Weight |
2.73 lb / 1.24 kg |
Packaging Info
| Package Weight |
3.97 lb |
| Box Dimensions (LxWxH) |
12.2 x 7.9 x 3.2" |
