Description
GeoBox S902 Overview

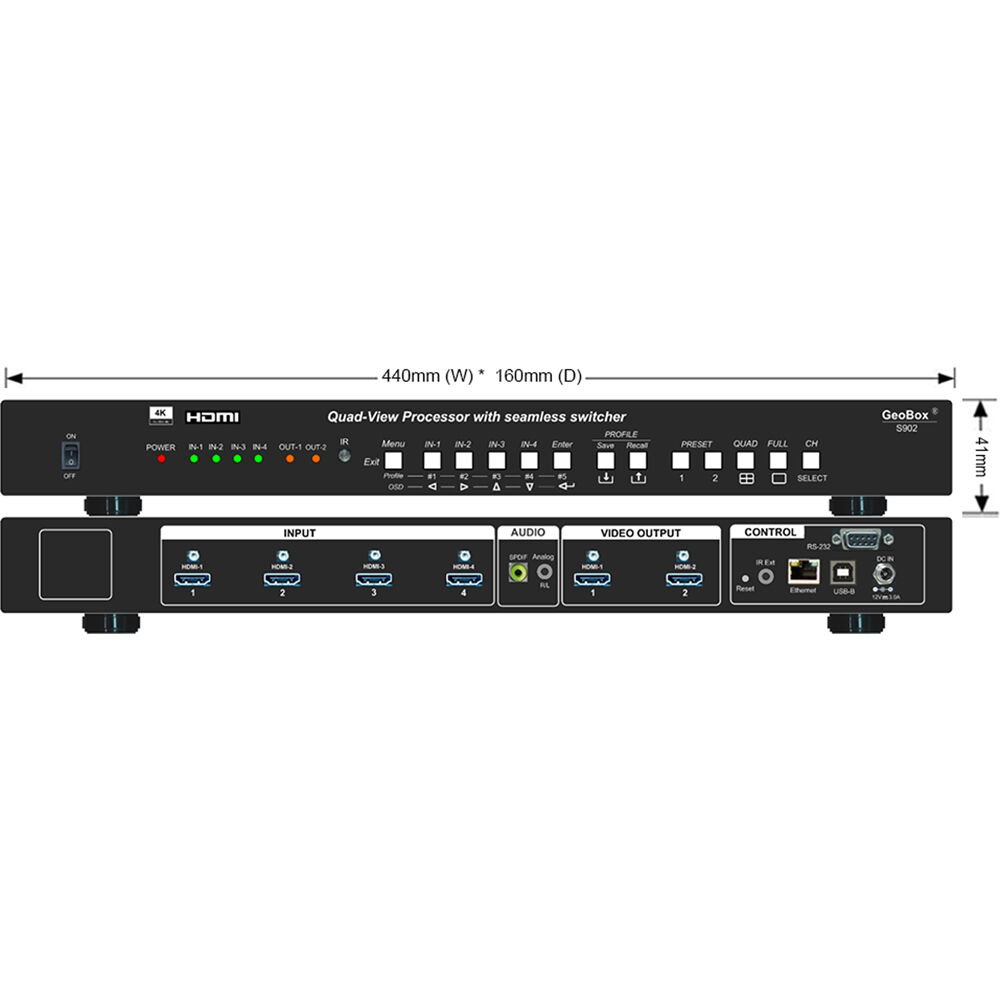

The S902 4x2 Quad View Processor with Seamless Switcher from GeoBox allows you to display up to 4K60 sources simultaneously on up to two displays in digital signage, security, and conference room applications. The processor features four HDMI inputs that output to two HDMI outputs simultaneously. The outputs can accommodate up to four windows each, with each window selectable from any input source. Adjust each input selection, image size, position, cropping, and color settings using the front-panel buttons, IR remote, RS-232, web GUI, or Ethernet connection. Utilize up to 16 transition modes and create up to 20 customized profile presets.
Features at a Glance
- Supports CEA standard video timings with high-end scaling up and down to 600 MHz.
- Preset 14 output timings and 12 EDID from XGA to 3840 x 2400 @ 60 for each input port.
- Each output display shows up to four windows with flexible location, resizing, scaling, positioning, cropping, and color correction. PIP/POP and Overlapping are included.
- Users can set overlap priority in each output port separately
- Supports 16 transition effects, including seamless, face-in, fade-out, dissolve, and wipe.
- Seamless switching in source selection and display mode switching.
- Toggle between 12 system presets and 20 custom profile presets.
- Selectable high-end video processing, 3:2/2:2 cadence, diagonal correction, and noise reduction.
- 3D motion adaptive de-interlace for interlaced input.
- Embedded HDMI audio, S/PDIF digital, and analog L/R audio outputs. Each output can select an independent audio source from the inputs.
Items Included

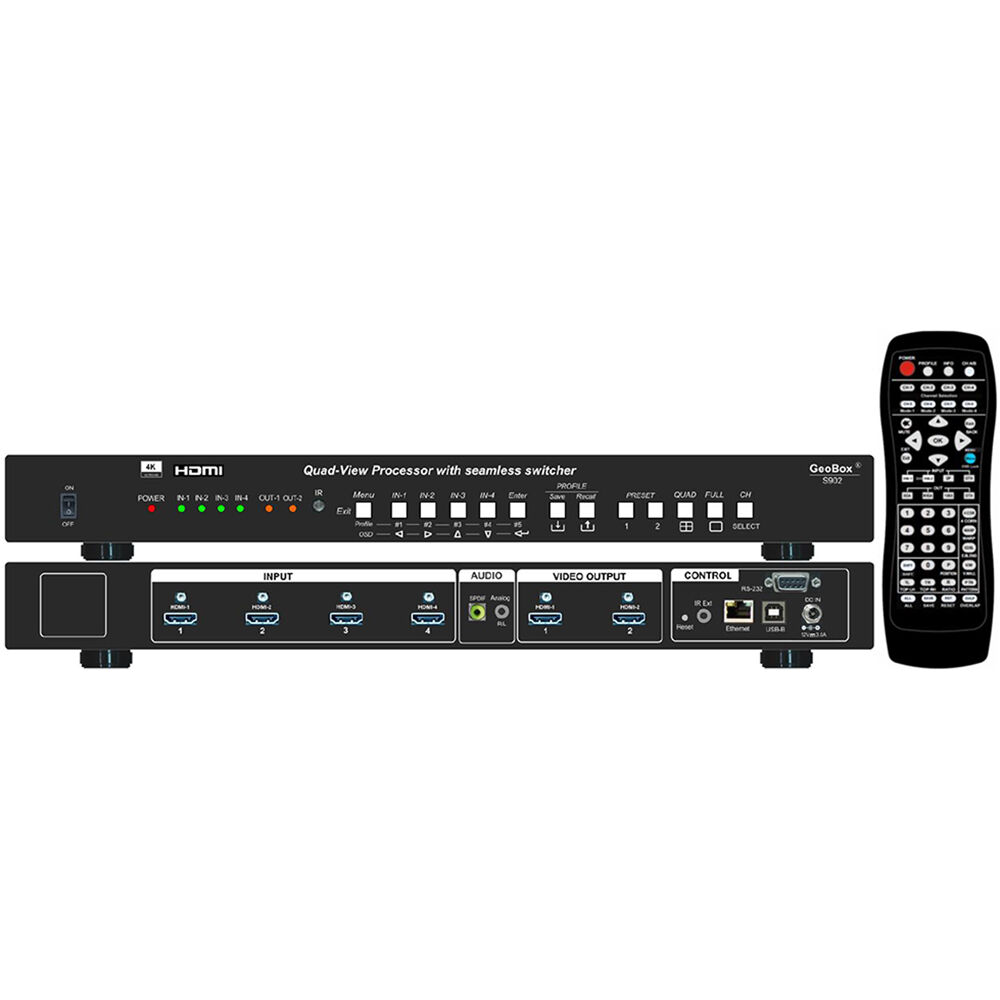

- GeoBox S902 4x2 Quad View Processor with Seamless Switcher

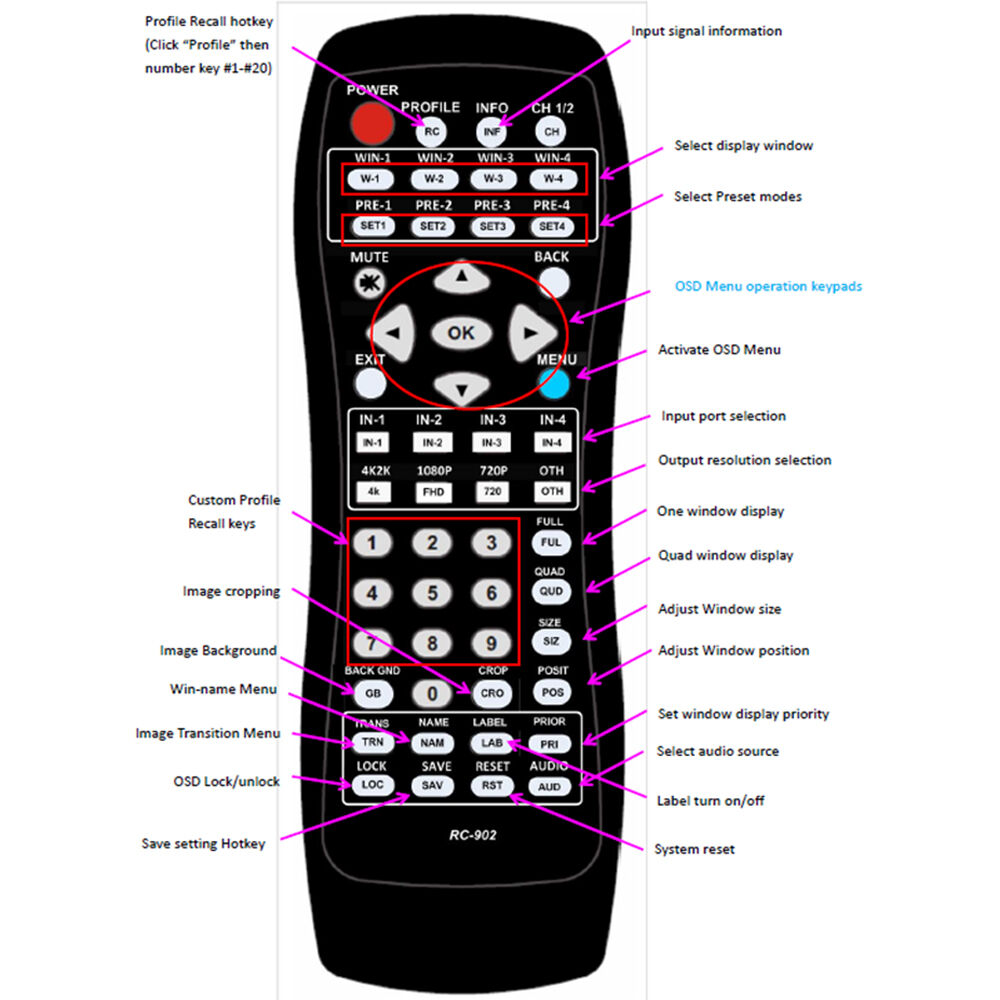

- IR Remote
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 3-Year
Additional Resources
GeoBox S902 Specs
Key Specs
| Inputs |
4 x HDMI (HDMI 2.0)
|
| Embedded Audio |
HDMI
|
| Outputs |
2x HDMI (HDMI 2.0)
1x RCA (S/PDIF) |
| Video Format |
HDMI Input (8/10-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K: 60 fps |
Interfaces
| Inputs |
4 x HDMI (HDMI 2.0)
|
| Embedded Audio |
HDMI
|
| Outputs |
2x HDMI (HDMI 2.0)
1x RCA (S/PDIF) |
| Other I/O |
1x 1/8" / 3.5 mm (IR)
1x USB-B 1x RJ45 (Gigabit Ethernet) 1x DE-9/DB-9 (RS-232) 1x 1/8" / 3.5 mm |
Standards
| HDR Support |
No
|
| HDCP Support |
No
|
| EDID Support |
Yes
|
Transmission
| Video Format |
HDMI Input (8/10-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K: 60 fps |
| Audio Format |
S/PDIF
Analog |
| Bandwidth |
600 MHz
|
Power
| Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Power Consumption |
Power Supply: (22.5 W)
|
| ESD Protection |
±15 kV Air-Gap Discharge
±8 kV Contact Discharge |
Environmental
| Operating Temperature |
104°F / 40°C
|
| Operating Humidity |
10 to 90%
|
General
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
17.3 x 6.3 x 1.6" / 440.0 x 160.0 x 41.0 mm
|
| Weight |
5.3 lb / 2.4 kg
|
Packaging Info
| Package Weight |
6.705 lb
|
| Box Dimensions (LxWxH) |
20 x 13.3 x 3.9"
|
