Genustech G-DSLRMOUNT250 Overview

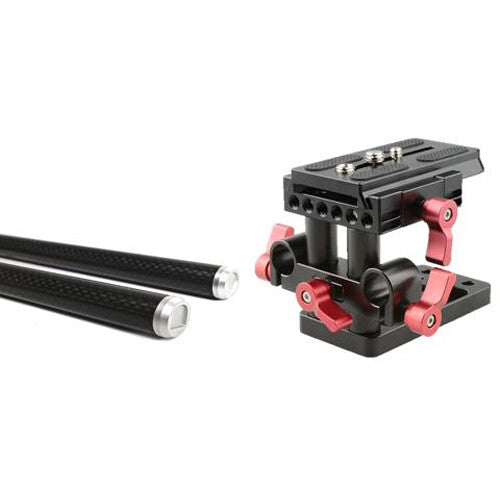

The Genustech DSLR Mount with 9.8" Carbon Fiber Rod Pair is for the DSLR shooter looking to adapt their camera into a cine-style production rig. This durable mounting system features height-adjustable 15mm LWS rod clamps that allow you to set the rod clamp height to match the cine-standard 85mm lens center to rod center height with different DSLRs. This adjustment lets you use the mount and your camera with optional cine-style accessories such as follow focus units, lens motors, and rod-mounted matte boxes.
The system includes a 501-compatible baseplate with both 1/4"-20 and 3/8"-16 camera tie-down screws, and a 1.5" sliding range for balancing your camera. Six 1/4"-20 accessory mounting holes on the front and rear of the mount allow you to add accessories. The bottom of the mount features both 1/4"-20 and 3/8"-16 threaded holes for attaching the system to a tripod or other mounting platform. The included 9.8" 15mm carbon fiber rods are lightweight yet strong and capable of supporting your lens accessories.
Height-Adjustable Rod System
The 15mm LWS rod clamps have slightly more than 1" of height adjustment, allowing you to wet the distance between the center of your camera's lens port and the included rods to 85mm, which is the standard distance for cine-style rod-mounted accessories
The 501-compatible camera plate has approximately 1.5" of sliding adjustment for balancing your camera
In the Box
- Genustech DSLR Mount with 9.8" Carbon Fiber Rod Pair
- Quick Release Plate
- Rod Clamp Bracket
- 2 x 15mm Carbon Fiber Rod (9.8")
- Limited 1-Year Warranty
Genustech G-DSLRMOUNT250 Specs
| Support Type |
Baseplate, Rod Support System |
| Grip Type |
None |
| Camera Compatibility |
Universal |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Included Rods |
2 x 9.8" / 25 cm 15 mm Carbon Fiber Rod |
| Battery Plate Type |
None |
| Accessory Mounting |
Rod Block, Front: 6 x 1/4"-20 Female Thread
Rod Block, Rear: 6 x 1/4"-20 Female Thread |
| Camera Mounting |
Manfrotto 501 Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting |
Baseplate: 1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Rod Ports |
Rod Blocks, Front: 2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Materials |
Carbon Fiber (Rods) |
| Dimensions |
4.3 x 4.3" / 110 x 110 mm |
| Weight |
13.4 oz / 380 g |
