Description

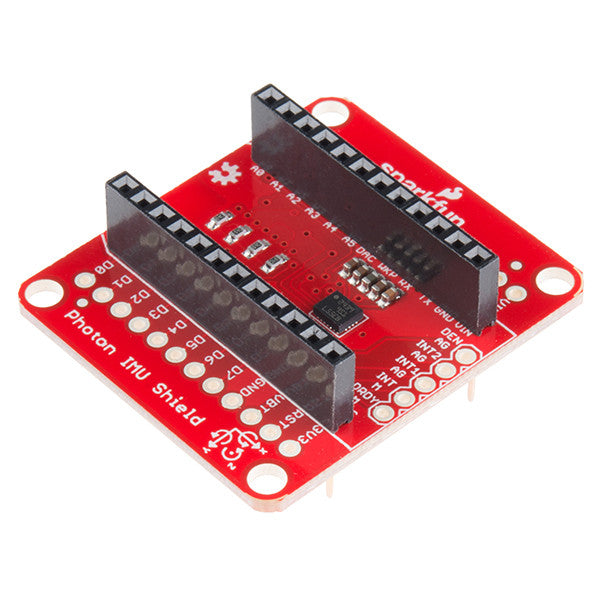

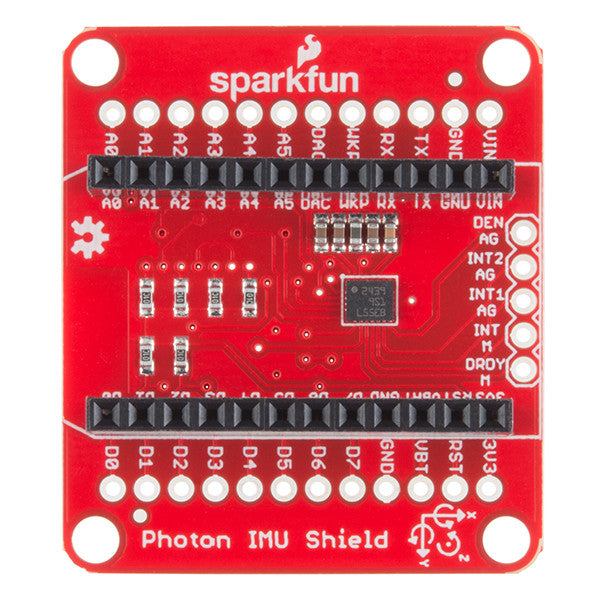

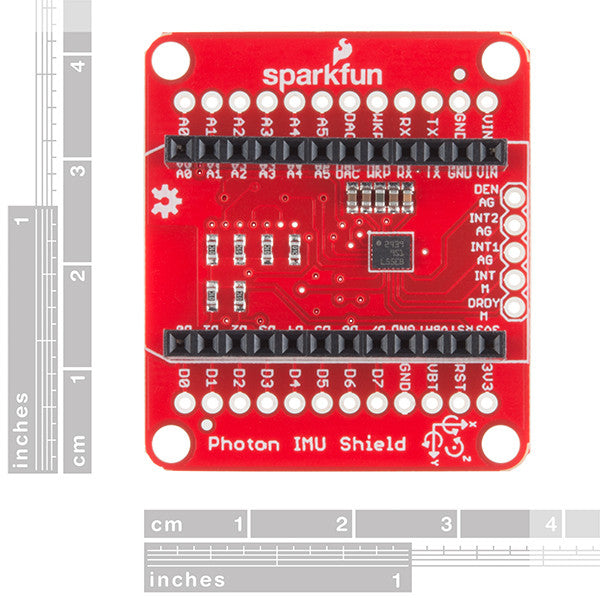

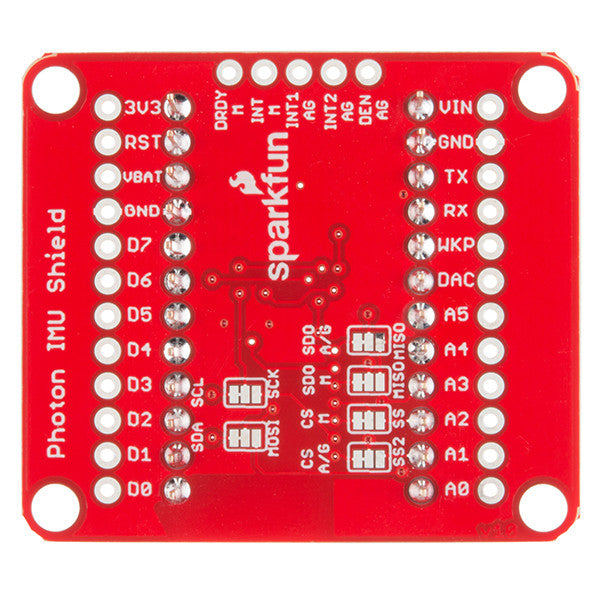

This is the SparkFun Photon IMU Shield, a versatile motion-sensing add-on board for your Photon device. Each IMU shield is equipped with an on-board LSM9DS1 system-in-a-chip that houses a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. That’s right, 9 degrees of freedom (9DOF) from a single IC!
Each sensor in the LSM9DS1 supports a large variety of ranges: the accelerometer?s scale can be set to � 2, 4, 6, 8, or 16 g, the gyroscope supports � 245, 500, and 2000 �/s, and the magnetometer has full-scale ranges of � 2, 4, 8, or 12 gauss. The SparkFun Photon IMU Shield comes with the headers already soldered on, so you can plug and play!
The Particle Photon is a tiny WiFi development kit for creating connected projects and products. Sporting a 120Mhz ARM Cortex M3 and built-in WiFi, the Photon is not only powerful, but easy to use. The small form factor is ideal for IoT projects with cloud-connectivity.
Note: Not only can this shield operate with the Photon, it can also be used with the Particle Core! We understand that there are a ton of you out there who still haven’t been able to get your hands on a Photon yet and would like to start playing with this shield now. If that person is you we hope we have obliged!
Features:
- 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
- �2/�4/�6/�8/�16 g linear acceleration full scale
- �2/�4/�8/�12 gauss magnetic full scale
- �245/�500/�2000 dps angular rate full scale
- 16-bit data output
- Headers and Connectors Pre-Soldered
- Compatible with the Photon and the Core
Documents:
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2352.0 |
| 3-5 | ₹ 2328.0 |
| 5-10 | ₹ 2280.0 |
| 10+ | ₹ 2232.0 |
Bulk discount will be automatically applied during checkout based on quantity.
