SparkFun Photo Interrupter Breakout Board - GP1A57HRJ00F Infrared

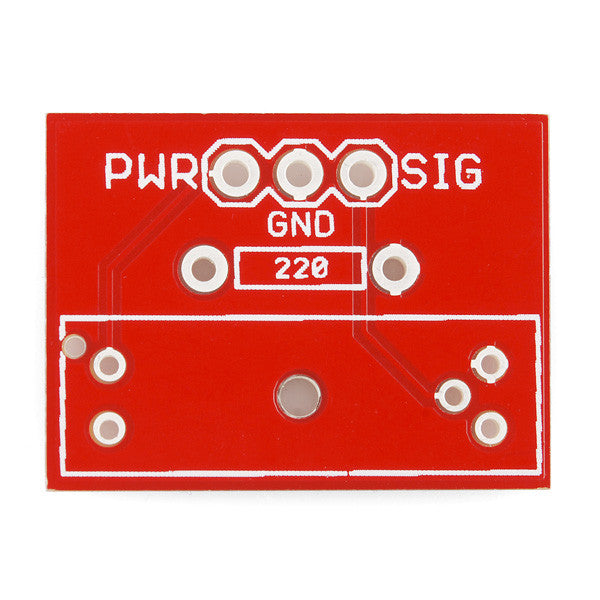

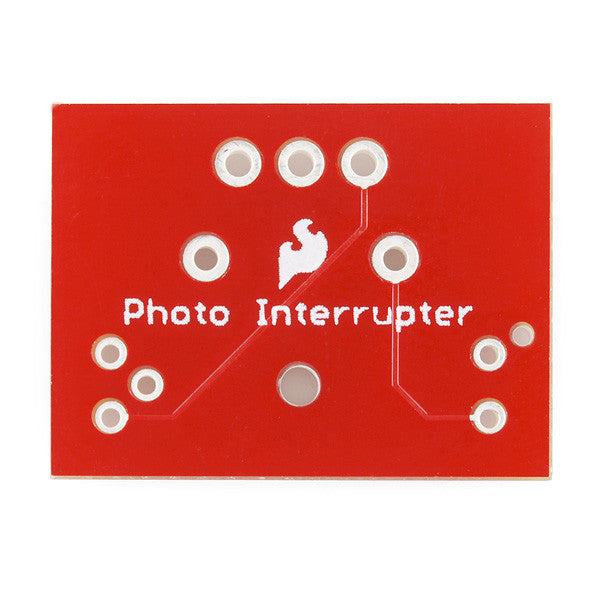

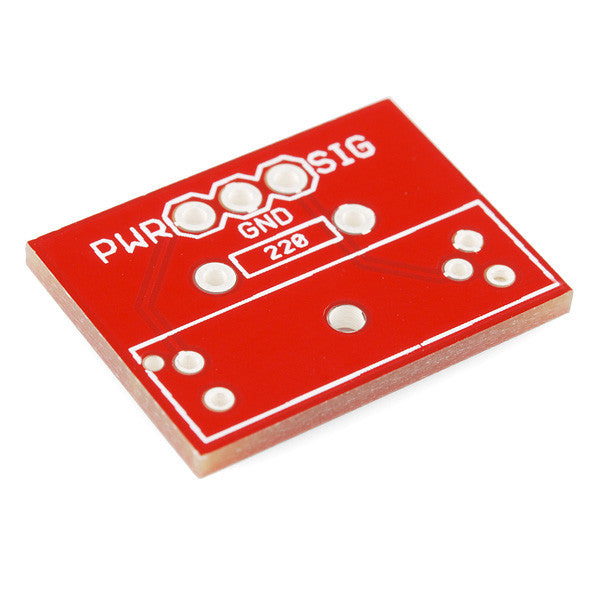

A simple breakout PCB for the GP1A57HR photo interrupter. This PCB has three connections for PWR, GND, and Signal.

When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V).

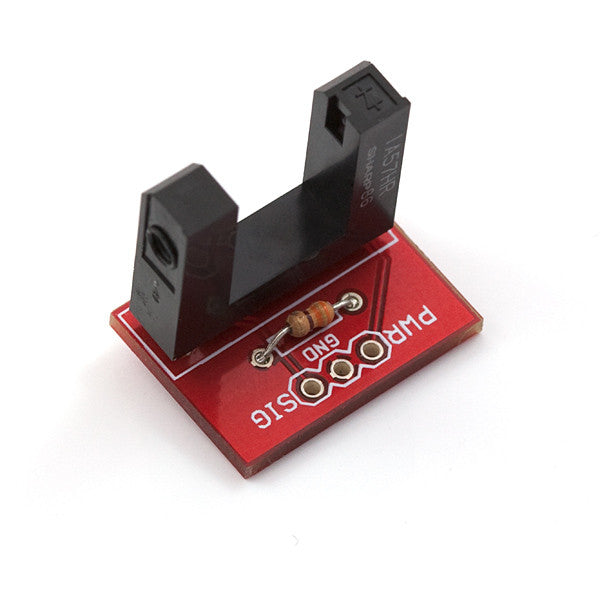

Assembled picture is for reference only, board comes bare; photo interrupter and the 220? (330?, works as well) current limiting resistor are listed below.

Documents:

• Schematic
• Eagle Files
• GitHub (Design Files)
