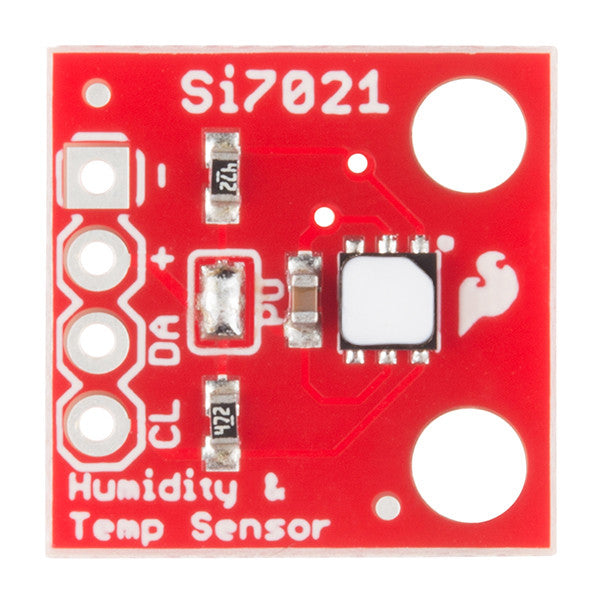

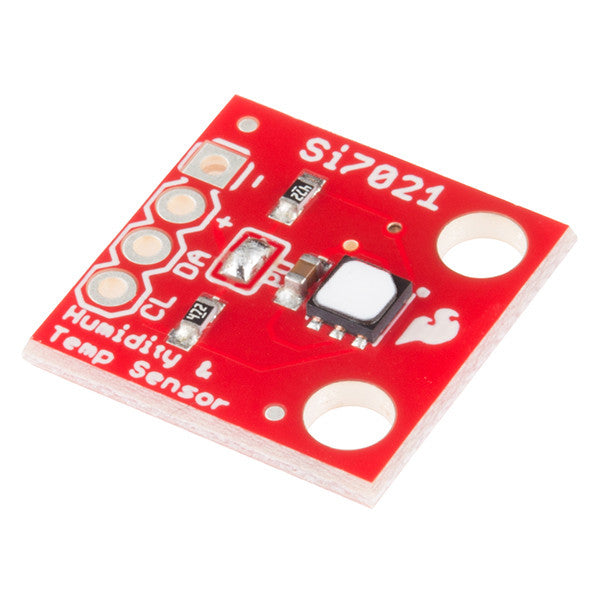

SparkFun Humidity and Temperature Sensor Breakout - Si7021 Weather

The Si7021 is a low-cost, easy-to-use, highly accurate, digital humidity and temperature sensor. This sensor is ideal for environmental sensing and data logging and perfect for build a weather stations or humidor control system. All you need are two lines for I²C communication, and you?ll have relative humidity readings and very accurate temperature readings as a bonus!

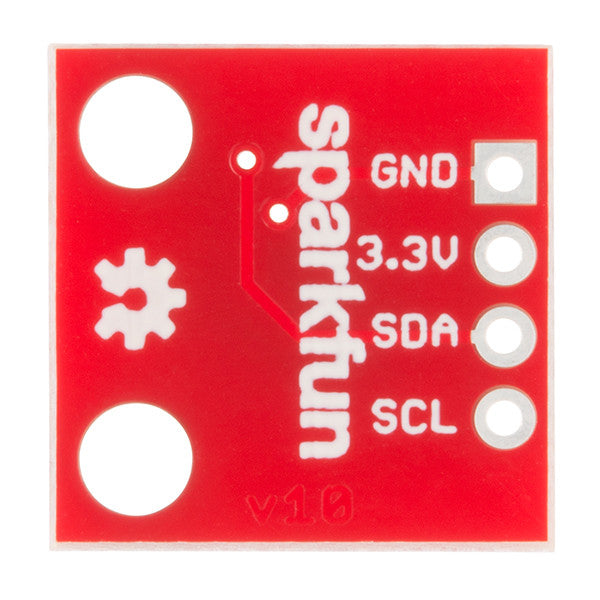

There are only four pins that need to be hooked up in order to start using this sensor in a project. One for VCC, one for GND, and two data lines for I²C communication. This breakout board has built-in 4.7K? pullup resistors for I²C communications. If you?re hooking up multiple I²C devices on the same bus, you may want to disable these resistors.

Note: Full drops of water can damage the sensor. We recommend wrapping the board in Teflon/irrigation tape for extreme conditions where water droplets may find their way onto the sensor.

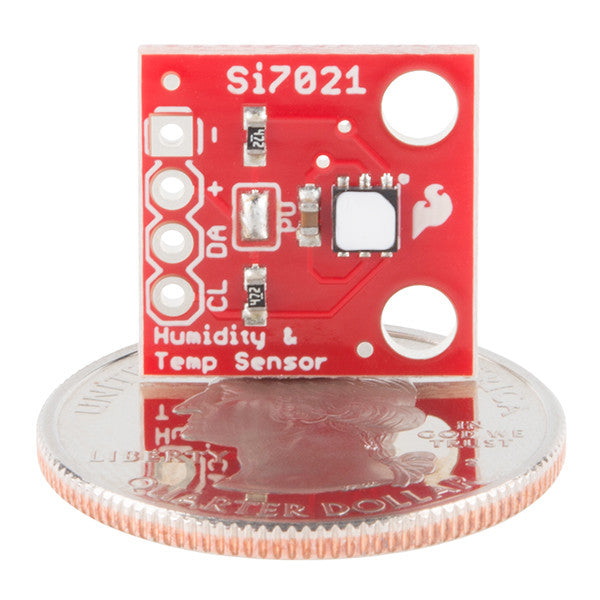

Dimensions: 0.6" x 0.6"

Documents:

• Schematic
• Eagle Files
• Datasheet (Si7021)
• Hookup Guide
• GitHub (Design Files & Example Code)
• GitHub (Library)
