Description

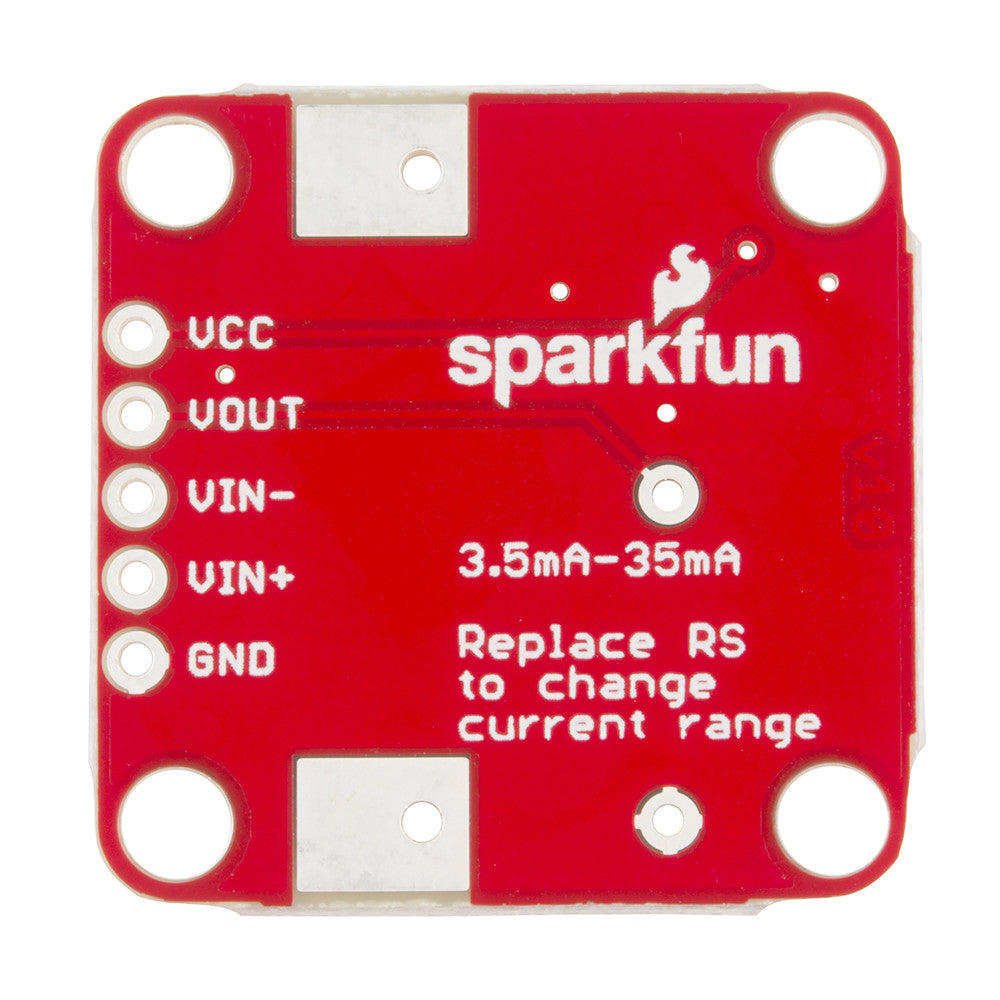

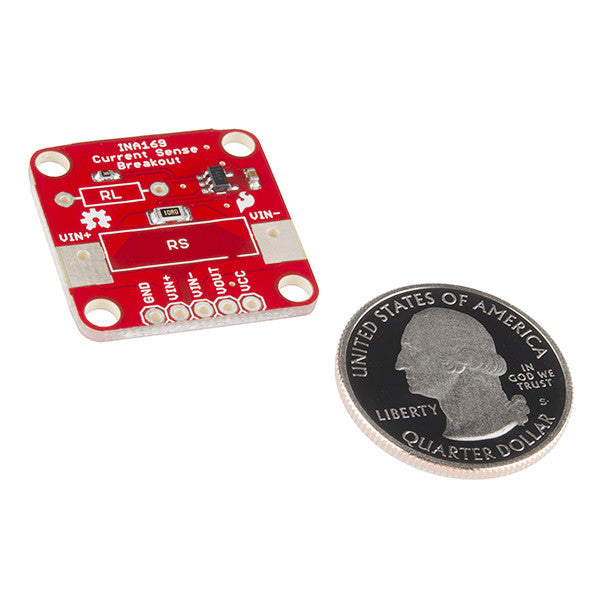

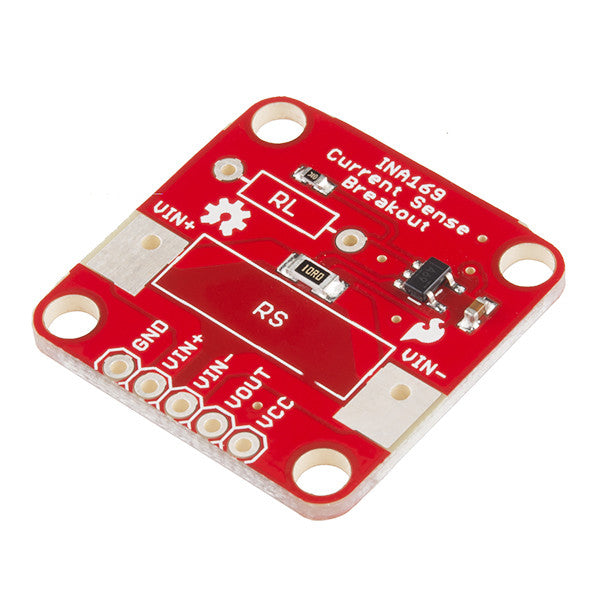

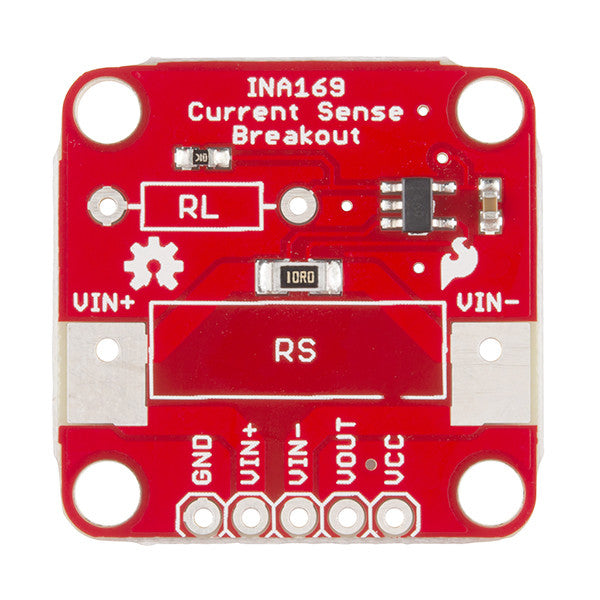

The INA169 is a ?high-side current monitor,? which means that you place a resistor (a ?shunt resistor?) on the positive power rail and the INA169 measures the voltage drop across that resistor. The INA169 outputs a small current based on the measured voltage drop. If you place a resistor from the output of the INA169 to ground, you can measure the voltage at the output.
Input common-mode and power supply voltages are independent and can range from 2.7V to 60V on the INA169 and quiescent (sleep) current is only 60uA.
Documents:
- Schematic
- Eagle Files
- Datasheet (INA169)
- Hookup Guide
- GitHub
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1024.1 |
| 3-5 | ₹ 1013.65 |
| 5-10 | ₹ 992.75 |
| 10+ | ₹ 971.85 |
Bulk discount will be automatically applied during checkout based on quantity.
