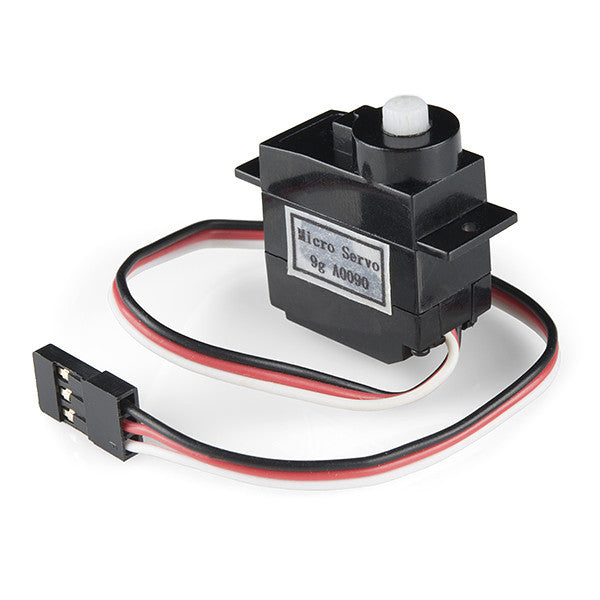

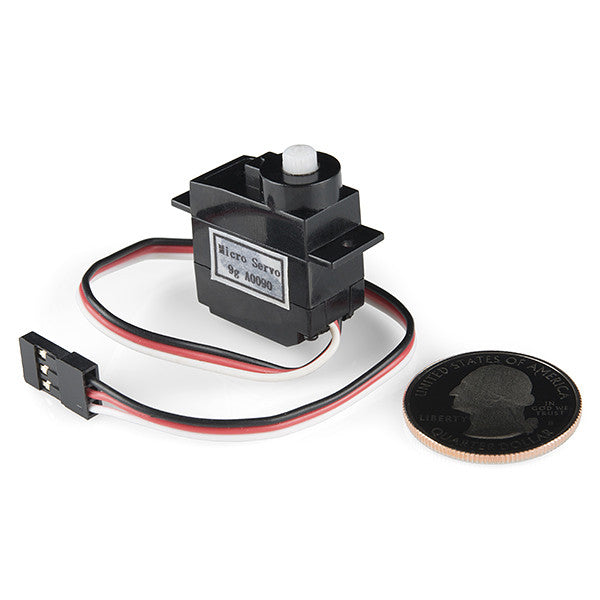

SparkFun Servo - Generic (Sub-Micro Size)

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is...

Regular price Rs. 685.00
Share

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is able to take in 6 volts and deliver 20.8 oz-in. of maximum torque at 0.10 sec/60�

This small servo comes with a standard 3 pin power and control cable, and all hardware listed below.

Note: This servo is rated for 180� rotation, but in actuality it only hits ~160�.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 16.6/20.8 oz-in. (4.8/6.0V)
  • Speed: 0.15/0.10 sec/60� (4.8/6.0V)
  • Rotation: ~160�
  • Single Top Ball Bearing
  • Nylon Gears
  • 3-Pole Ferrite Motor

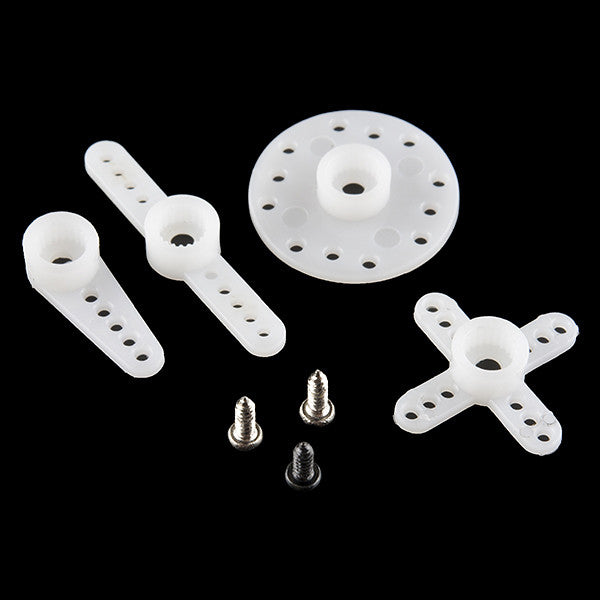

Includes:

  • 1x Micro Size Servo
  • 1x Single Arm Micro Horn
  • 1x Double Arm Micro Horn
  • 1x Four Point Micro Horn
  • 1x Circle Micro Horn
  • 2x 2x8mm Phillips Screw

Dimension:

  • 31.8 x 11.7 x 29mm
  • Wire Length: 160mm
  • Weight: 9g

Documents:
