Tanotis - SparkFun Piezo Vibration Sensor - Small Vertical Flex / Force - 1

Click on picture to view larger

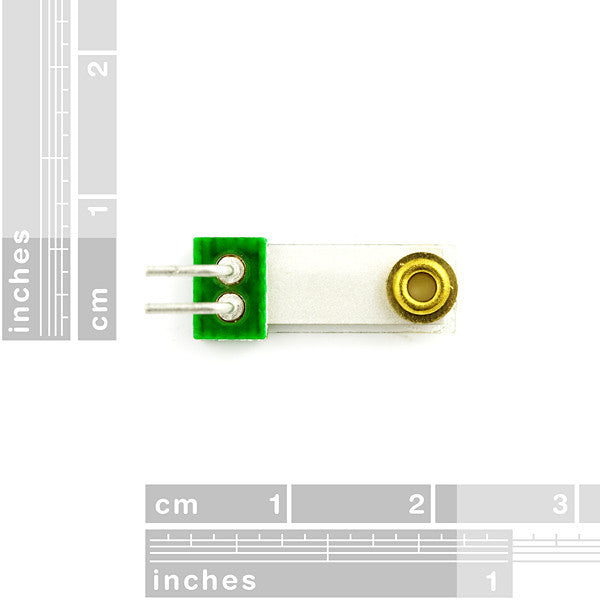

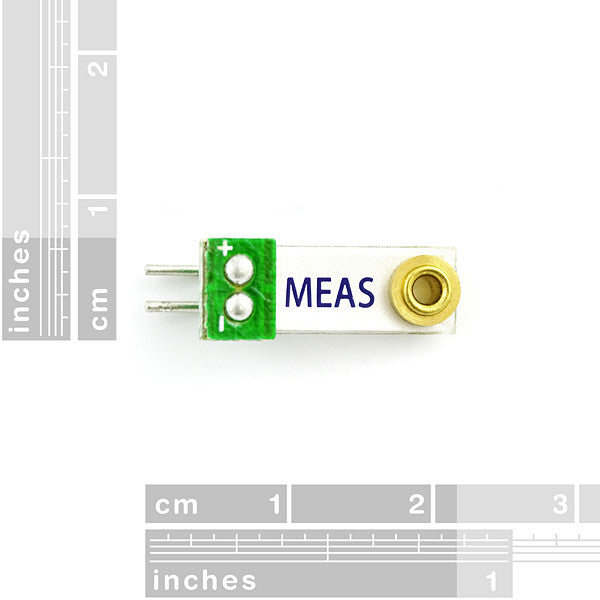

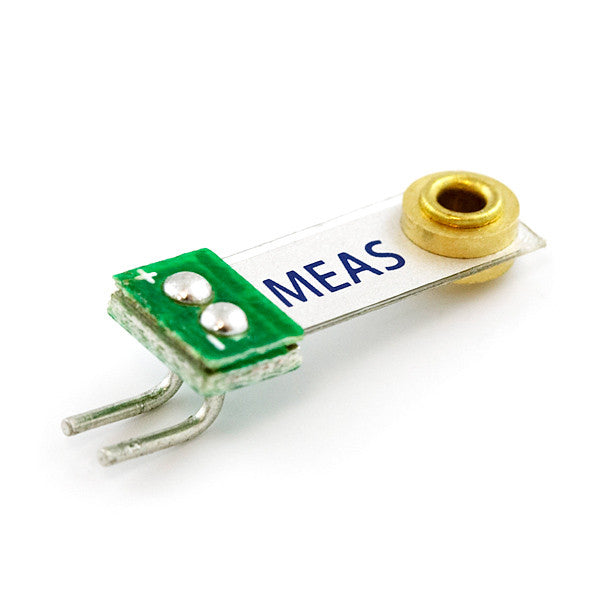

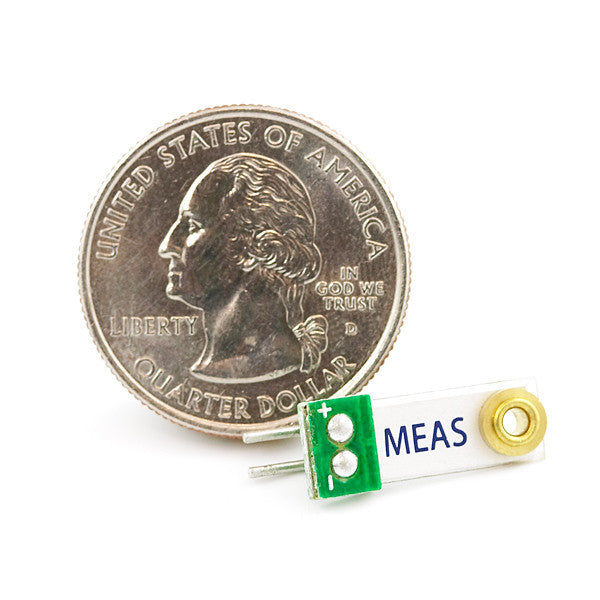

SparkFun Piezo Vibration Sensor - Small Vertical Flex / Force

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs...
Brand: Sparkfun
MPN: SEN-09199
UPC: 9031.80.8070
Regular price Rs. 260.00 Sale price

Actual Price Rs. 350.00

Price includes International shipping charges, Import and Custom duties/taxes, No Additional Charges collected during delivery.

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads

Documents:
