SparkFun Interface Cable - SMA Female to Male (25cm) General

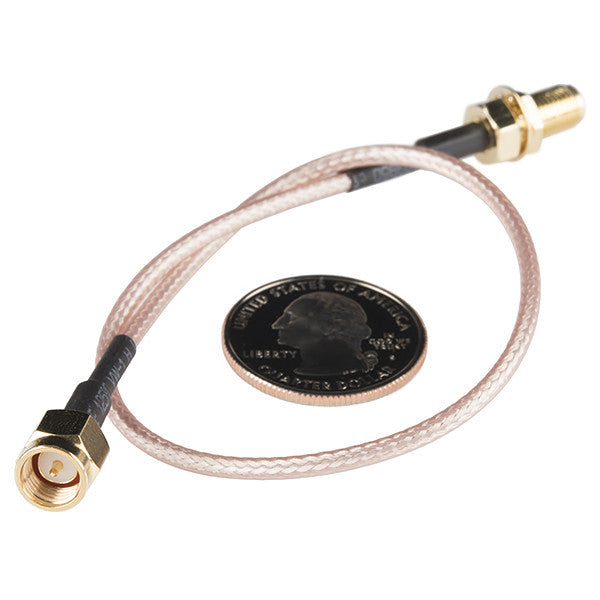

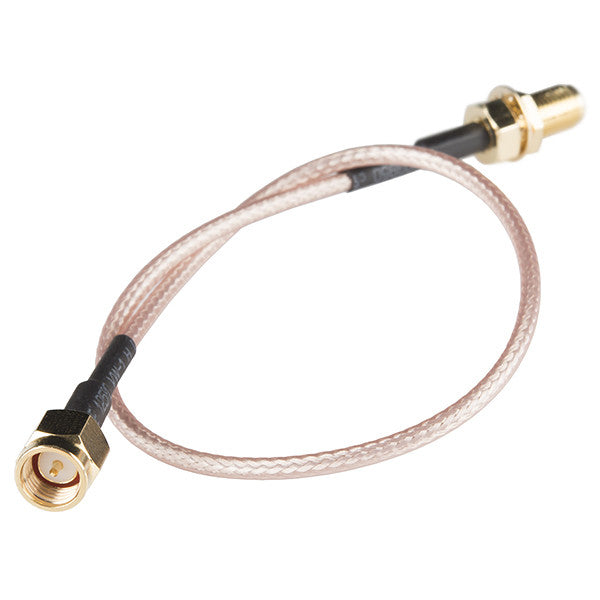

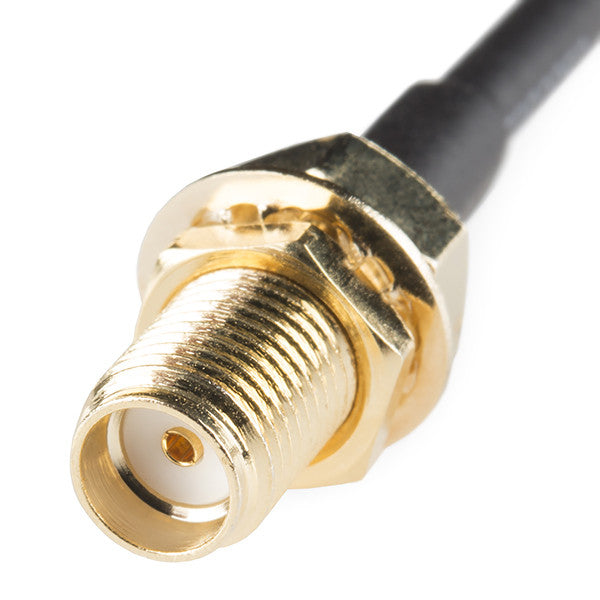

This is a basic SMA (Sub-Miniature A) male to female connector cable. Each cable is 25cm (9.8") long and has a 50? impedance that can handle frequencies up to 17 GHz. The SMA connectors at each end are small enough for most consumer GPS, cellular, and other RF applications and they use a threaded housing to create strong mechanical connections.

These work well for mounting an antenna to the outside of an enclosure, while keeping the electronics neatly inside.

Note: If you are looking for an RPSMA interface cable, it can be found here.

Documents:

• Dimensional Drawing
• SMA Antenna Connectors
