| ₹ 545.0 includes GST and import duties. | |
| B2B customers can avail ₹ 83.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

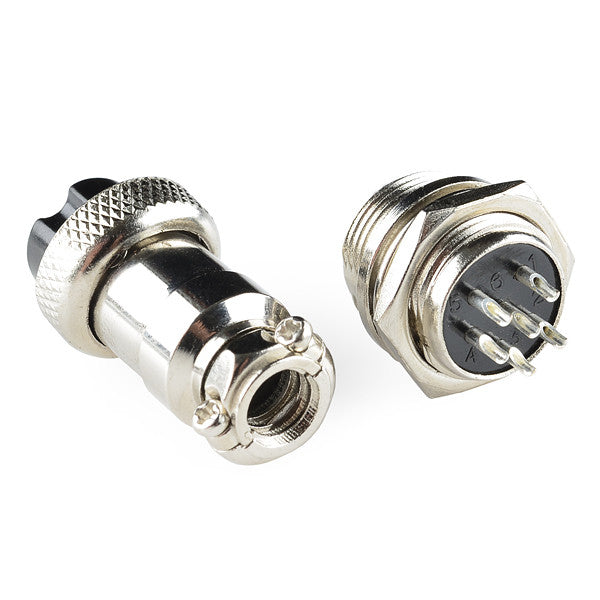

This 6-pin connector and plug set is great when you need to create a robust connection for signal or power. This product consists of two separate parts, the panel-mount jack and the mating plug. The plug has a ring which screws to the panel-mount connector ensuring a solid connection that won’t pull off.
The connector uses 6 solder-cup connections for easy wiring. The panel-mount side mounts in a 15.5mm hole with the aid of a lock-washer and nut (both included). The jack uses solder-cup terminals as well and comes apart for easy assembly. It even has a strain relief clamp on the end which clamps down to 5mm for a sturdy connection. Pins are clearly labeled on both jack and connector.
Documents:
Bulk Discount
| Quantity | Price |
| 2 | ₹ 534.1 |
| 3-5 | ₹ 528.65 |
| 5-10 | ₹ 517.75 |
| 10+ | ₹ 506.85 |
Bulk discount will be automatically applied during checkout based on quantity.
