Description
Geneinno GTP_SONAR-M2 Overview

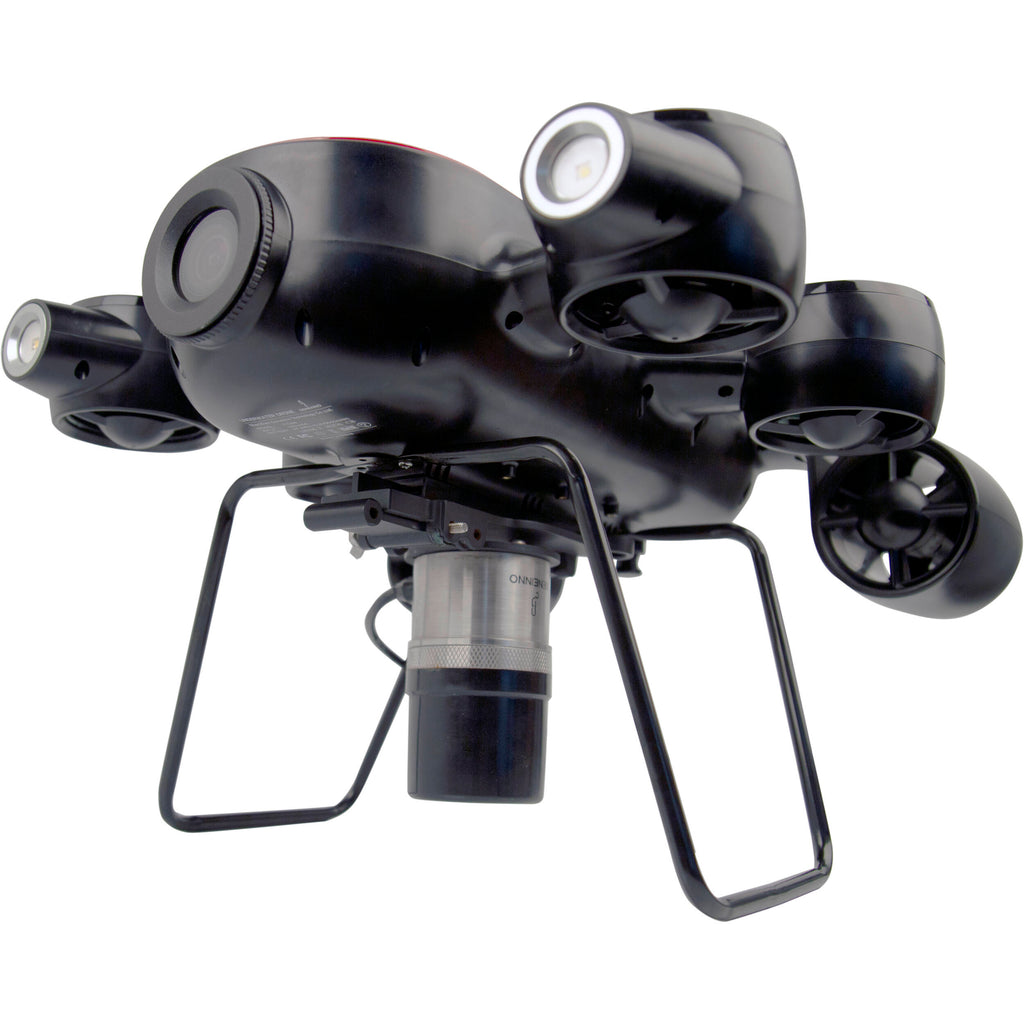

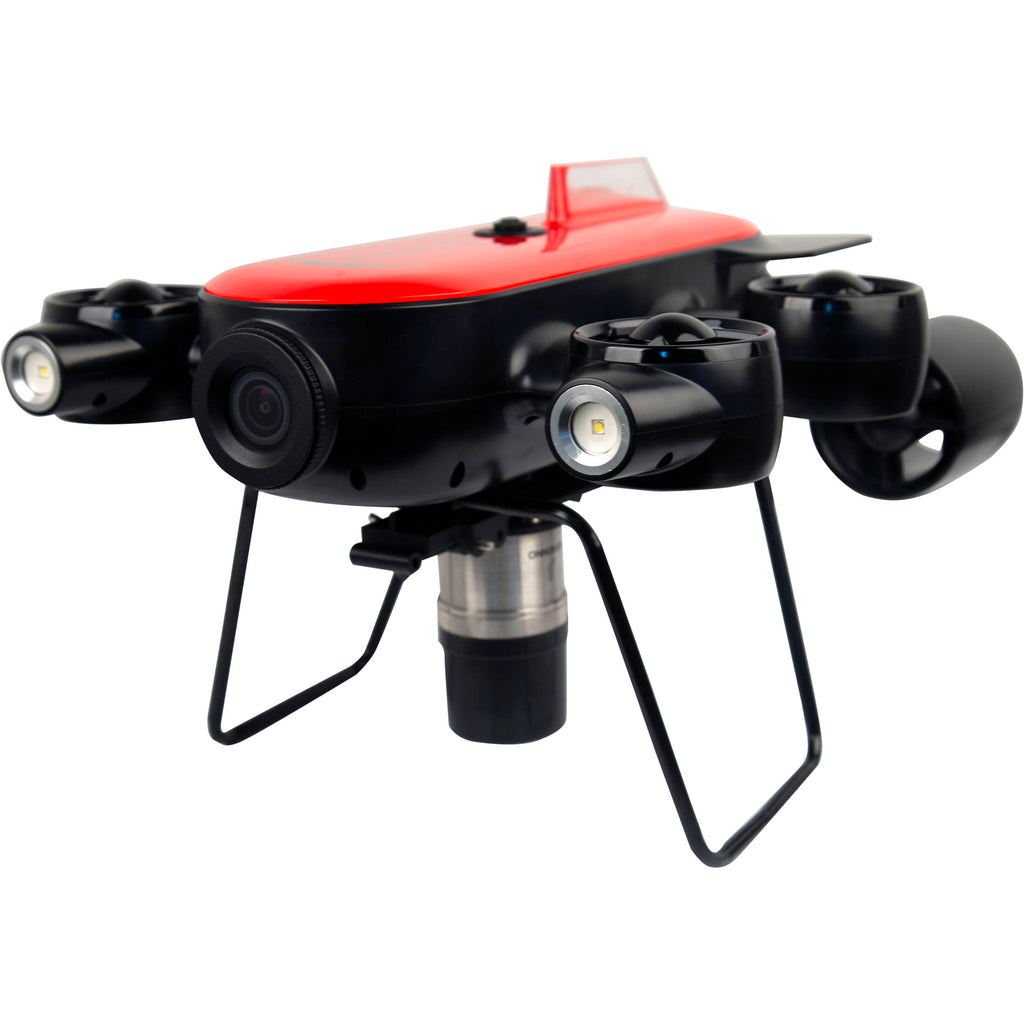

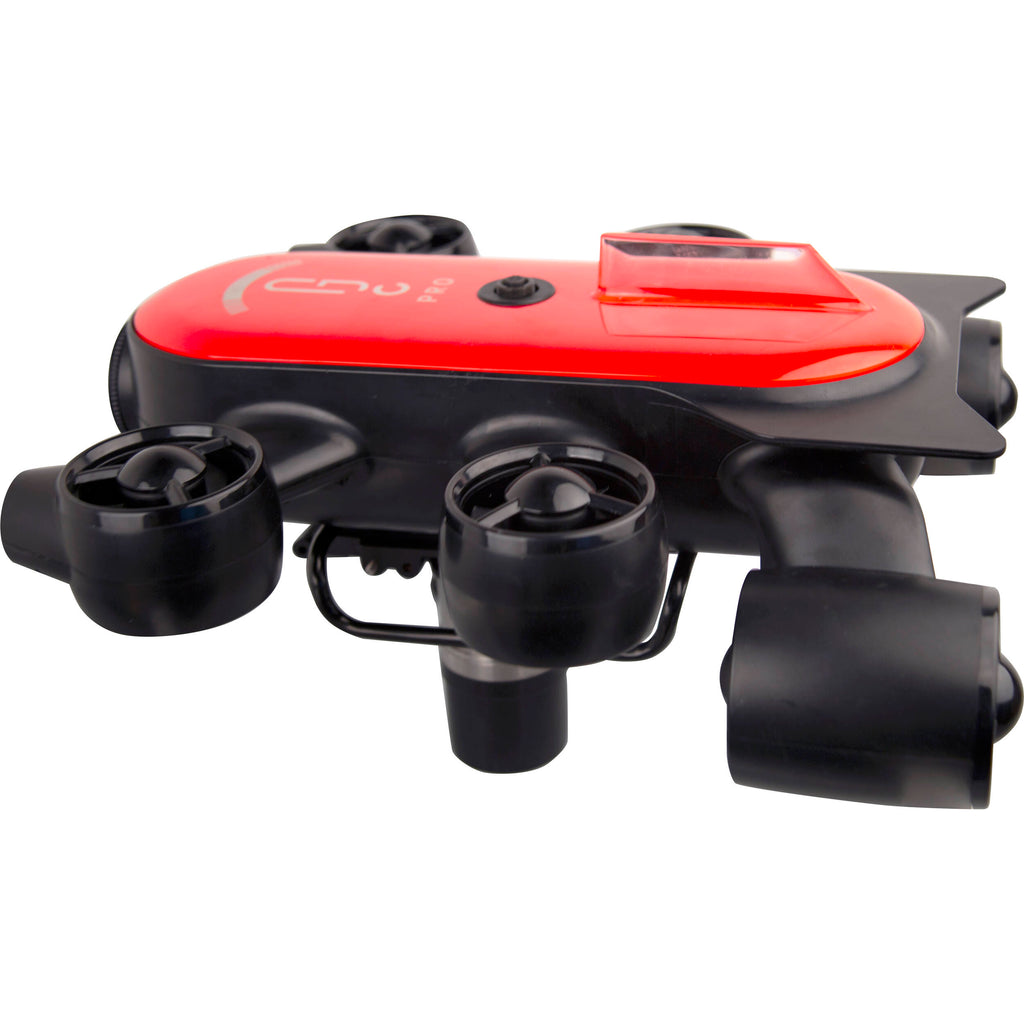

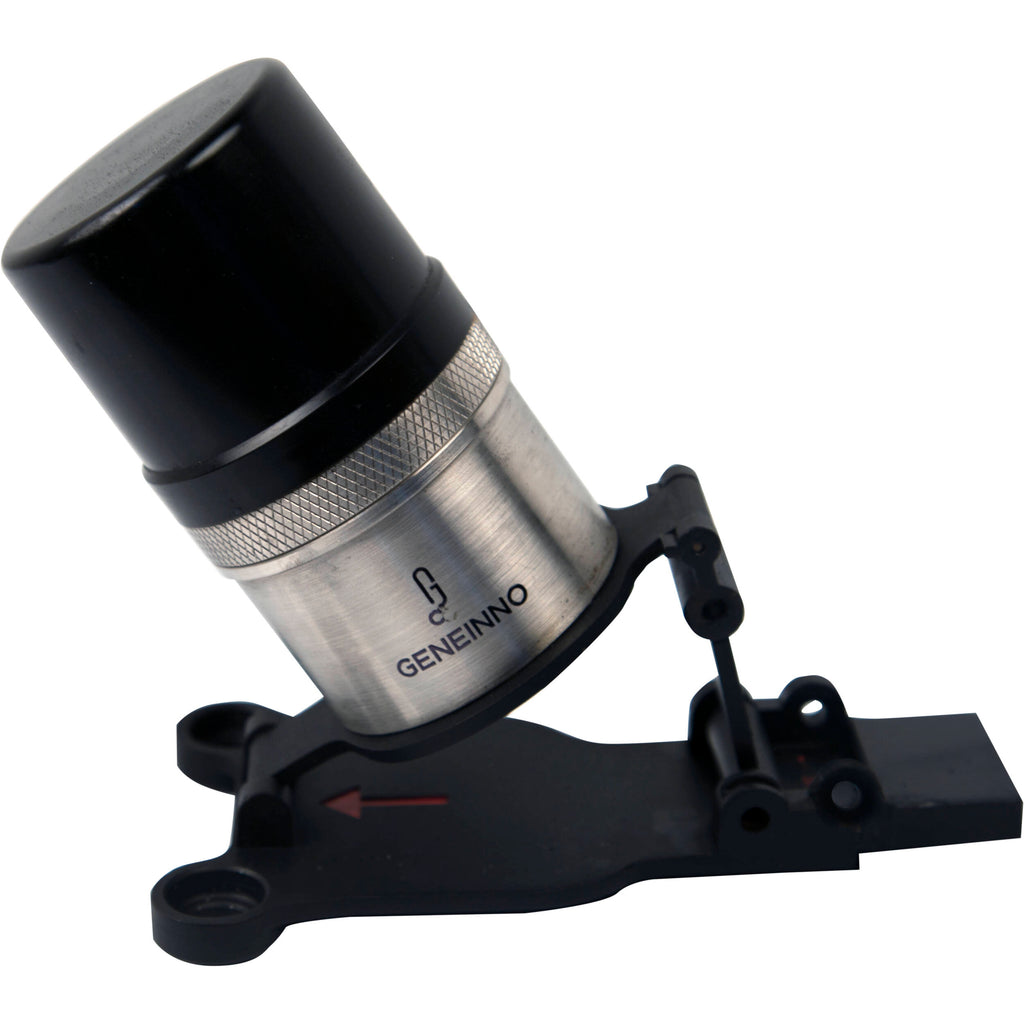

This Omni Scan Sonar is an accessory for the Genienno T1 Pro underwater ROV. It has applications including underwater detection, object scanning, pipeline profile detection, silt measurement, detection of suspended objects in water, objects protruding from the bottom of the seabed, and objects that pose collision risks. It is small, lightweight, corrosion resistant, and easy to operate. You have a choice of 360° or sector scanning, with a range of 197' at low, high, or automatic frequency rates. Observation data is stored on the ROV's remote control tablet, and imagery is displayed on the tablet in your choice of red, bronze, high-contrast, cool tone, warm tone, and grayscale. Grid lines can be set to organize your underwater observation, and the gain control allows for 10-100% amplification of the sonar signal.
- Mounts on Geneinno T1 Pro underwater ROV
- 360° or sector scanning
- 3.3-197' scanning range
- Palettes include red, bronze, high-contrast, cool tone, warm tone, and grayscale
- Data is stored and displayed on ROV's remote control tablet
- Grid switch, 10-100% gain switch
In the Box
- Geneinno Omni Scan Sonar for T1 Pro Underwater ROV
- Limited 6-Month Warranty
Geneinno GTP_SONAR-M2 Specs
| Depth Rating | 984' / 300 m |
| Material of Construction | 316 Stainless Steel Housing |
| Working Frequency | High: 2 ±0.02 MHz Low: 667 ±5 kHz |
| Beam Angle | (Customizable) Low Frequency: Horizontal 2.6 ±0.3°, Vertical 7.5 ±1.5° High Frequency: Horizontal 0.9 ±0.1°, Vertical 2.5 ±0.5° |
| Accuracy | Low Frequency: 0.6" / 1.5 cm High Frequency (2 MHz): 3.3' / 1m, 2 mm; 6.6' / 2 m, 2.6 mm; 19.7' / 6 m, 5 mm |
| Range | Low Frequency: 0.5-197' / 0.15-60 m High Frequency: 0.5-49.2' / 0.15-15 m |
| Refresh Rate | Hz @ 3.3' / 1 m |
| Operating Temperature | 28.4°F to 96.8°F / -2°C to 36°C |
| Storage Temperature | -4°F to 122°F / -20°C to 50° |
| Dimensions | 3.9 x 2.2" / 9.9 x 5.7 cm |
| Weight | 22 oz / 625 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2150487.5 |
| 3-5 | ₹ 2128543.75 |
| 5-10 | ₹ 2084656.25 |
| 10+ | ₹ 2040768.75 |
Bulk discount will be automatically applied during checkout based on quantity.
