Description
Product Overview

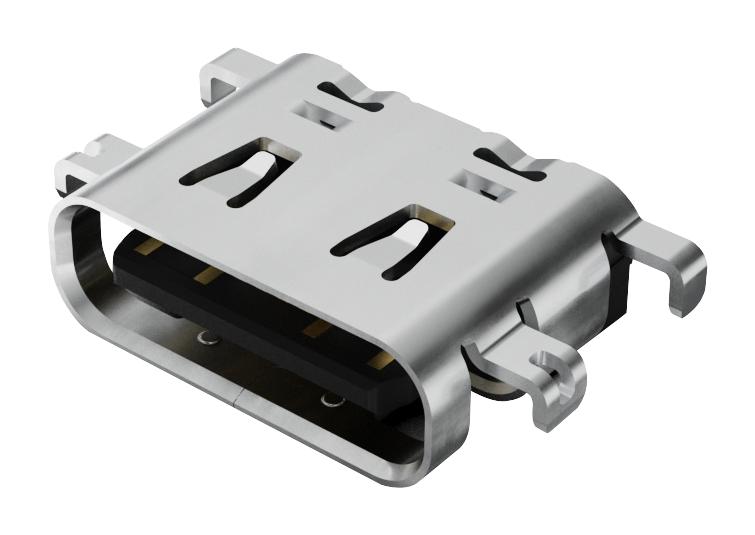

USB4520-03-1-A is a USB4520 series Type C USB 2.0 receptacle connector with copper alloy C18400 contact material. LCP, E130i black, UL-94V-0 standard insulator material, stainless steel SUS304 1/2H metallic shell and stainless steel SUS304 3/4H mid plate. 50µ" min nickel all over underplating, 3µ" gold contact plating, gold flash solder tail, 30µ" min nickel all over metallic shell.
- 16 number of contacts
- Horizontal orientation and side entry type
- Mid mount position, 3.16mm profile and 6.50mm body length
- 240W power rating, 48V DC voltage rating, 5A current rating and 100Mohm min insulation resistance
- Without mating face lead in and through hole shell stake
- 0.85mm shell stake length and with shell spring
- Without locating peg and surface mount PCB mounting
- 10000 mating cycles
- 5 to 20N mating force and unmating force of 6 to 20N after testing
- Operating temperature range from -25°C to +85°C
Product details
Other details
| Brand | GCT |
| Part Number | USB4520-03-1-A |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
