Description
Product Overview

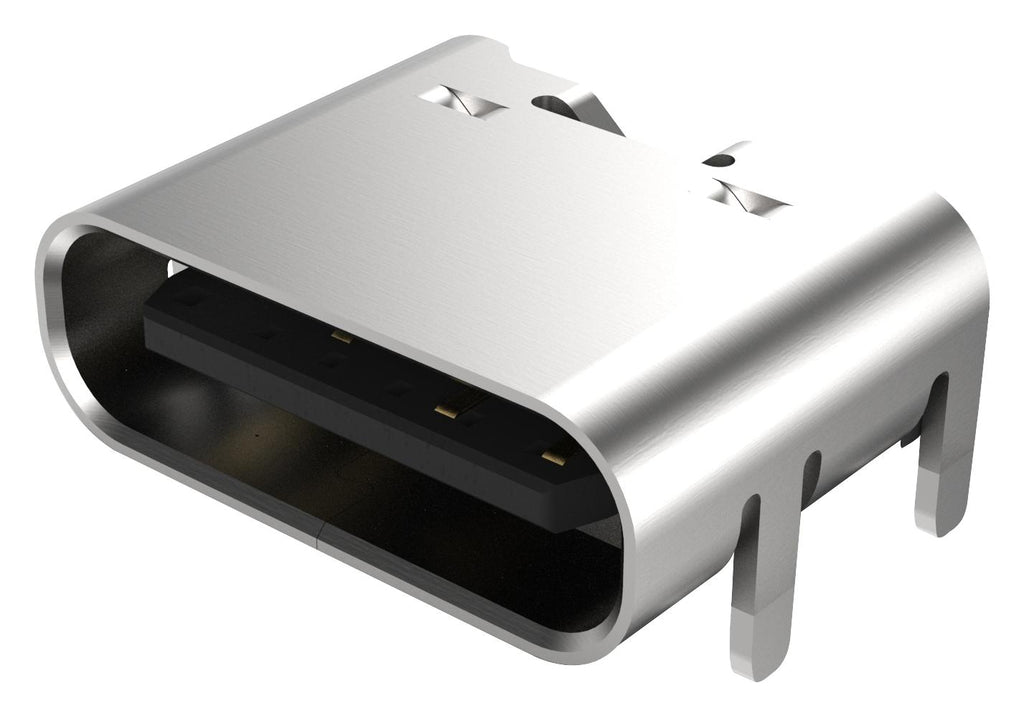

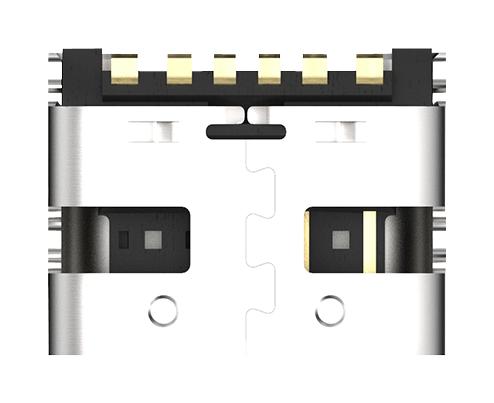

USB4125-GF-A-0190 is a Type C receptacle (socket) USB charging connector with 6 contacts for surface mount, and horizontal top mount.
- 3.16mm, with profile
- 6 contacts
- Voltage rating is 48VDC, current rating of 3A
- Copper alloy contact material, LCP insulator, stainless steel plate and shell
- Gold contact plating
- 20,000 cycles durability
- Contact resistance of 40mohm maximum initial, dielectric withstand voltage of 100VAC
- Insulation resistance of 100Mohm
- Without locking peg
- Operating temperature from -30°C to +85°C
Product details
Other details
| Brand | GCT |
| Part Number | USB4125-GF-A-0190 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
