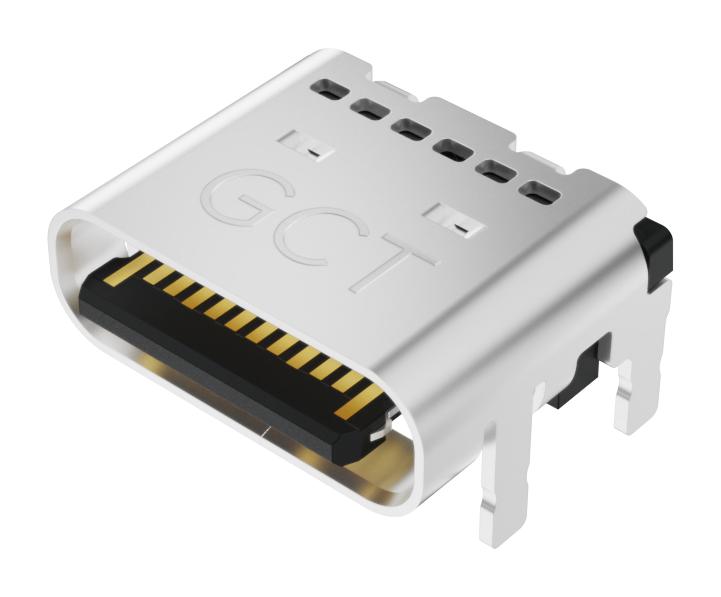

USB4081-03-A is a USB4081 series Type C USB 3.2 Gen 2 receptacle connector with copper alloy contact material and contact terminal. LCP, black, UL-94V-0 standard insulator material, stainless steel metallic shell and mid plate. 50µ" min nickel all over underplating, 3µ" gold contact plating, Gold flash solder area and solder tail, 30µ" min. nickel all over metallic shell.
- 24 number of contacts
- Horizontal orientation, side entry type and top mount position
- 240W power rating, 48V DC voltage rating and 5A current rating
- Insulation resistance is 100Mohm min, 100V AC. 1 min dielectric withstanding voltage
- Without mating face lead in and through hole shell stake
- 1.6mm shell stake length, 7.05mm body length
- Without locating peg and surface mount PCB mounting
- 20000 mating cycles
- 5 to 20N mating force and unmating force of 6 to 20N after testing
- Operating temperature range from -25°C to +85°C
Other details
| Brand |
GCT (GLOBAL CONNECTOR TECHNOLOGY) |
| Part Number |
USB4081-03-A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
| Drawing EN |
|
| Drawing EN |
|
| Enhanced Product Overview EN |
|
