Description

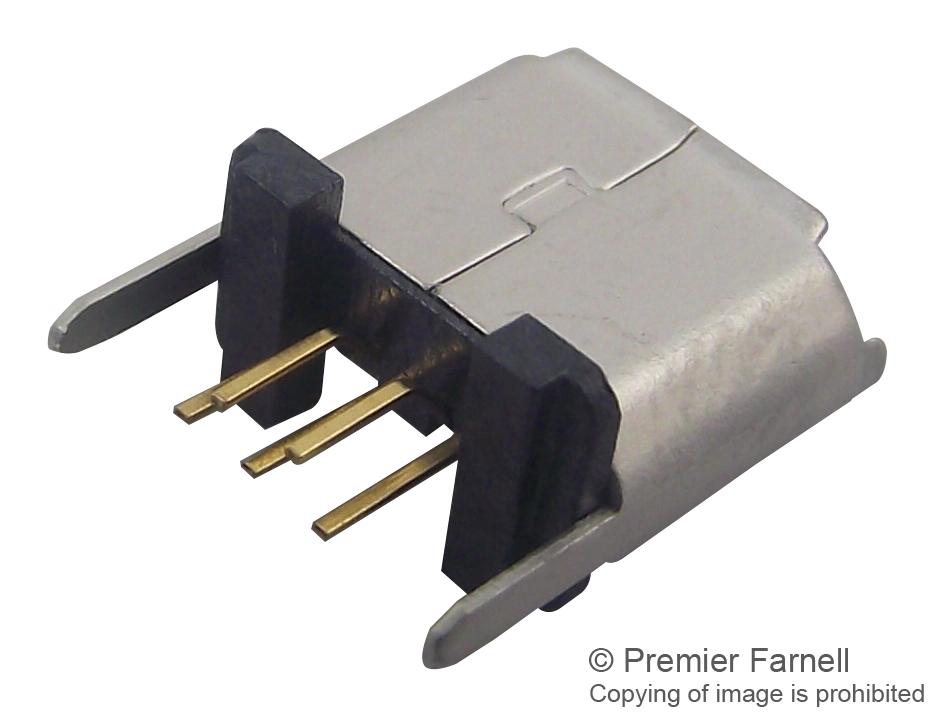

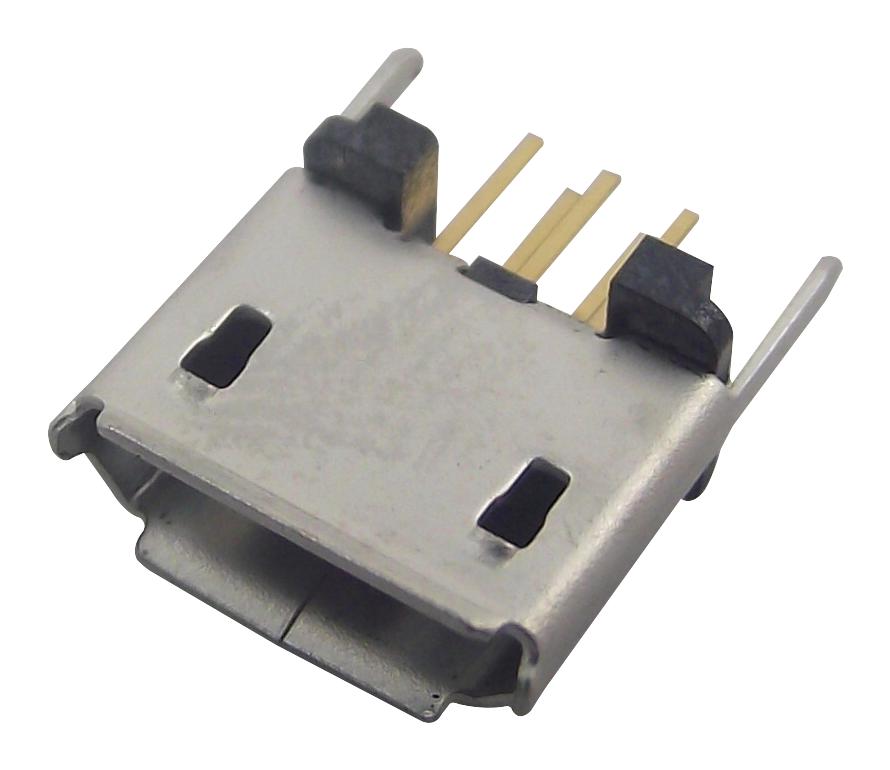

The USB3145-30-1-A is a 5-contact type B Micro USB 2.0 Verticall Receptacle with 30µinch gold plated copper alloy contact terminal, a black UL94V-0 LCP housing and stainless steel (T=0.25mm) metallic shell. The USB3145 series connector has through hole type PCB mount, top entry type and stainless steel outer shell stake.
- Top Entry, with Outer shell stake 2.30mm
- No locating peg
- 6.5mm Profile
- 1.0A Signal (Pins 2, 3, 4), 1.8A power (Pins 1, 5) current rating
- 100V Voltage rating
- 30mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 500VAC for one minute Dielectric withstanding voltage
- 10,000 cycles Durability
- -30 to 85°C Operating temperature range
Industrial, Computers & Computer Peripherals, Consumer Electronics, Smartphones, Telecommunications
Other details
| Brand | GCT (GLOBAL CONNECTOR TECHNOLOGY) |
| Part Number | USB3145-30-1-A |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| 3D Product Image EN | |
| Drawing EN | |
