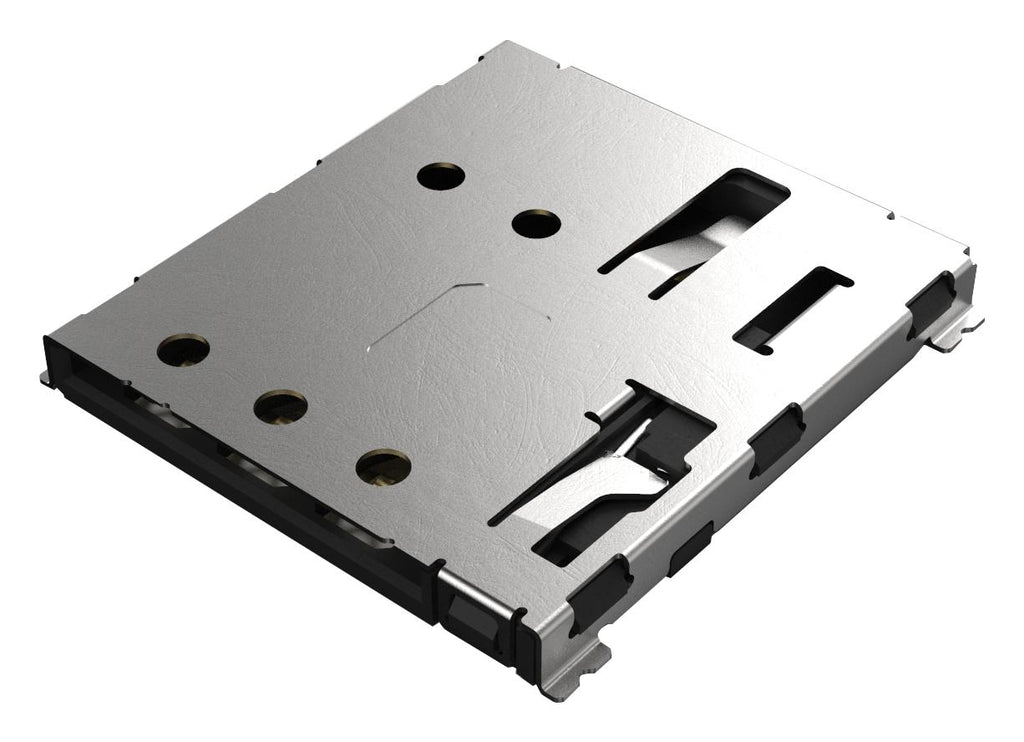

SIM8066 low profile nano SIM push-push SIM card connector features a revised contact design which eliminates the need for additional PCB preparation work to be undertaken, and which also prevents the possibility of contact stubbing during angular or harsh insertion of the SIM card. Additionally this 6P SIM card connector is low profile with a height of only 1.44mm above the PCB and features both locating pegs and an integral card detection switch, making it a feature rich product for a variety of applications. Typically used in mobile phones, tracking equipment, cellular dongles, satellite navigation and consumer electronics.
- One of the slimmest connector in class
- Card detection switch and retention mechanism
- Perfect for super slim devices
- Operating temperature range from -40 to +85°C
- 5000 mating cycles, stainless steel shell
- Copper alloy contact material and terminal, black colour high-temp plastic (UL94V-0) housing
- 30V AC/DC voltage rating, 0.5A AC/DC max current rating
- With locating peg, 1.44mm profile height, polarised
Other details
| Brand |
GCT (GLOBAL CONNECTOR TECHNOLOGY) |
| Part Number |
SIM8066-6-1-14-01-A |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
