Description
Product Overview

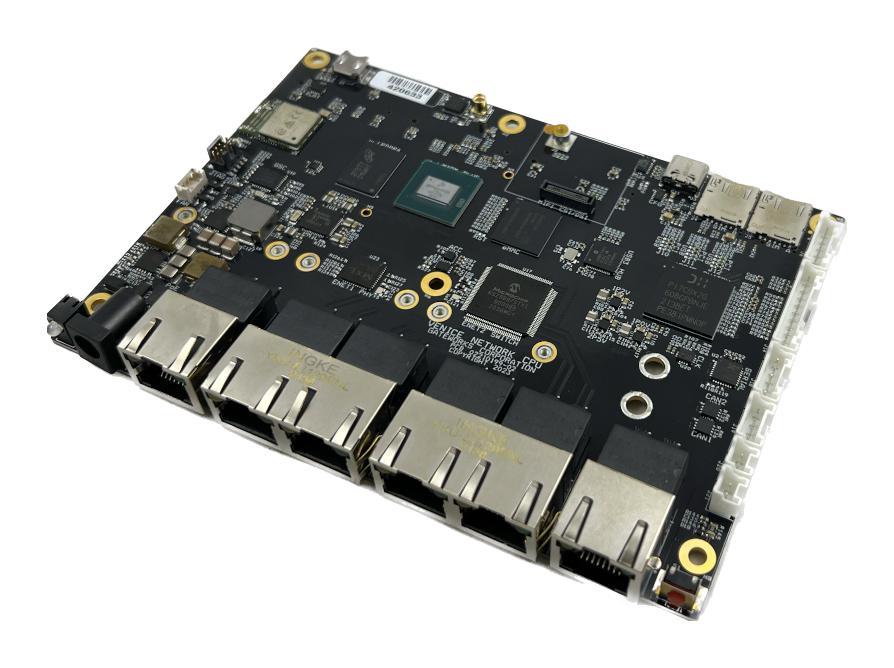

GW7400 is a Venice GW7400 single-board computer targeted for industrial applications. It features NXP� 64-bit i.MX8M Plus 1.6GHz Quad Core ARM® Cortex�-A53 SoC Processor ( Neural Processing Unit (NPU) - up to 2.3 TOPS, Cadence® Tensilica® HiFi 4 DSP, Video Processing Unit (VPU) up to 1080p60 and Graphics Processing Unit (GPU) - GC7000UL with OpenCL and Vulkan support), one high-power Mini-PCIe socket with PCIe 3.0 and USB 2.0 signalling, two high-power Mini-PCIe sockets with USB 3.0 signalling, one M.2 B-Key socket with USB 3.0 and dual Nano SIMs, Six GbE Ethernet Ports, one WAN and five switched LAN.
- 1GByte DDR4-2133 DRAM
- 8GBytes eMMC flash
- CAN bus transceiver, RS232/RS485 and TTL serial port
- USB 3.0 Type-C port
- MIPI-DSI and MIPI-CSI Port, I2S audio
- Digital I/O & analogue Port, I2C & SPI Port
- Digital 3-axis MEMS accelerometer, RTC with battery backup, voltage and temperature monitor
- Serial configuration EEPROM
- Programmable watchdog timer
- 8 to 60VDC input voltage range
Product details
Other details
| Brand | GATEWORKS |
| Part Number | GW7400 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 106969.25 |
| 3-5 | ₹ 105877.73 |
| 5-10 | ₹ 103694.69 |
| 10+ | ₹ 101511.64 |
Bulk discount will be automatically applied during checkout based on quantity.
