GATEWORKS GW11049-2 Development Kit, Single Board Computer, 64bit, ARM Cortex-A53

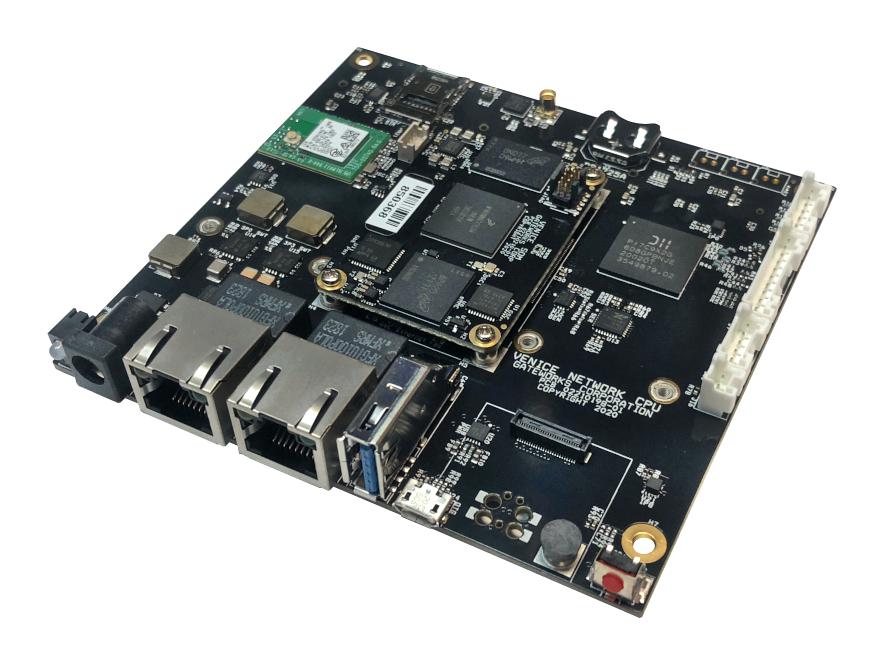

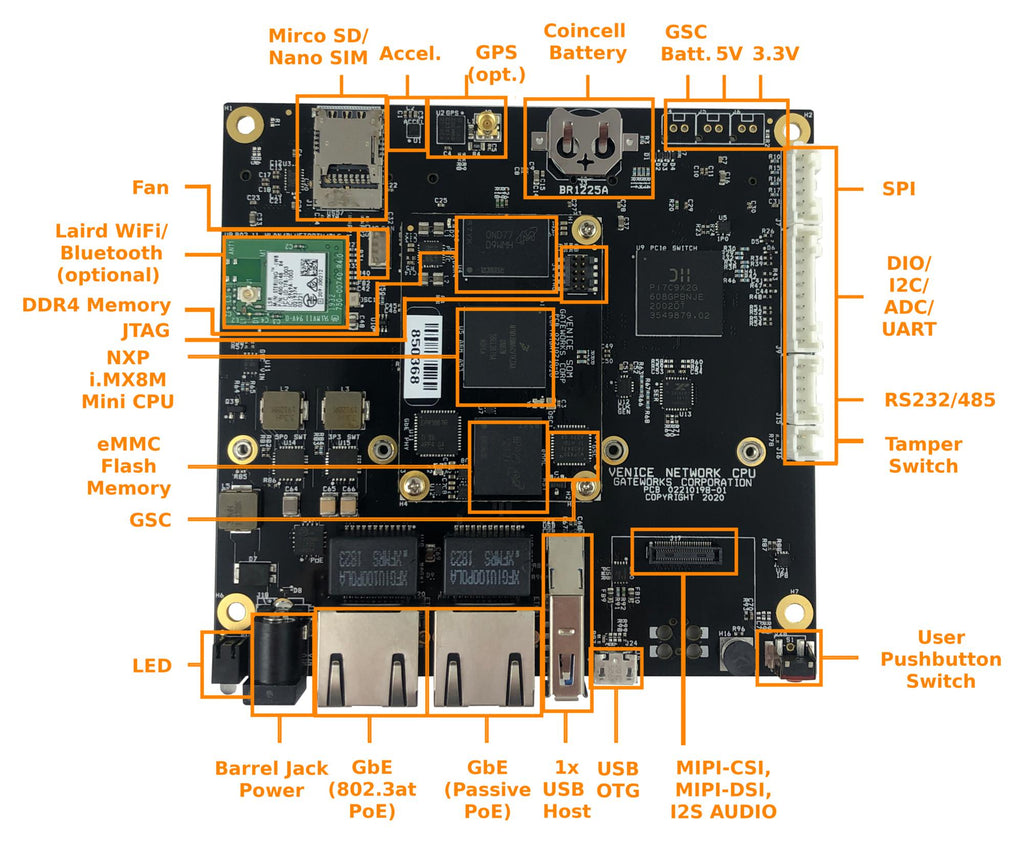

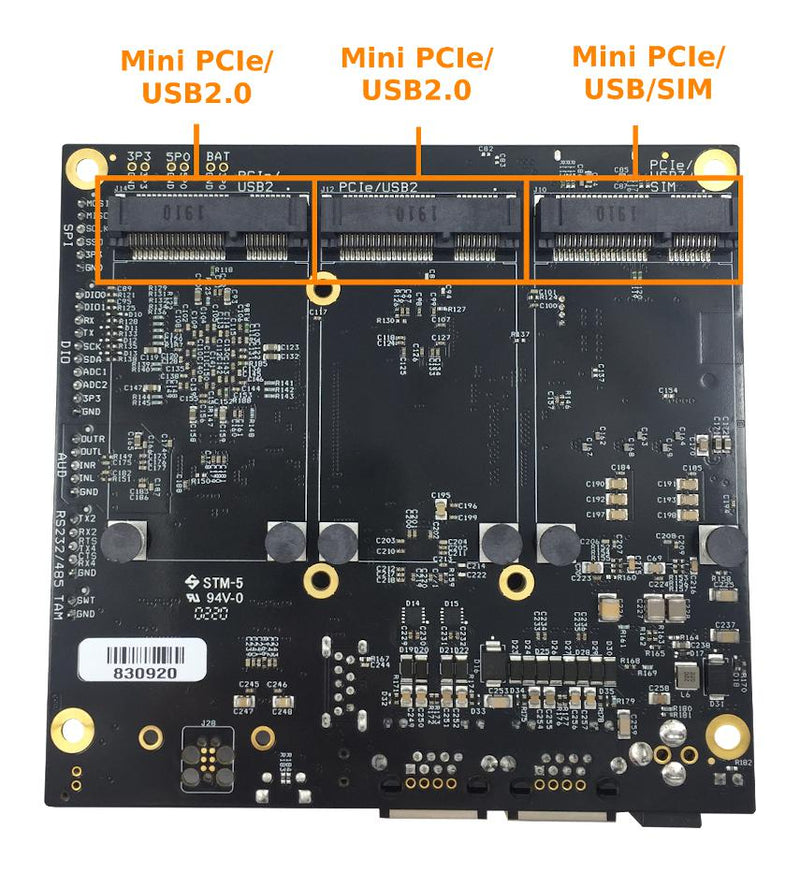

GW11049-2 is a development kit for GW7301-01. GW7301-01 is a Venice GW7300-00 single board computer. It is a member of the Gateworks 7th generation Venice family of single board computers targeted for rugged and industrial embedded applications. The GW7300-00 features the 64-bit NXPâ�¢ i.MX8M Mini Quad Core ARM® Cortexâ�¢-A53 SoC processor operating at 1.6GHz, 4GBytes of LPDDR4 DRAM, and 64GBytes of eMMC System Flash. Two Mini-PCIe expansion sockets can be used for PCI Express peripherals such as 802.11ax/ac/b/g/n Wi-Fi radios and 5G/4G/3G/CATM1 cellular modems. A third Mini-PCIe socket supports only USB for modems. Peripheral headers support Digital I/O, Analog Input, RS232/RS485/TTL Serial, I2C and SPI. A combined MIPI-DSI/CSI header with I2S audio offers video input/output. A MicroSD & Nano SIM slot are standard. A 3-Axis accelerometer is standard. A GPS and onboard Laird Sterling 802.11b/g/n/ac Wi-Fi/Bluetooth module are available.

• Real time clock with battery backup, voltage and temperature monitor, serial configuration EEPROM
• Programmable watchdog timer
• 8 to 60VDC input voltage range
• Power through dedicated connector or Ethernet with 802.3af/at active or passive PoE
• 6W at 25°C typical operating power, 15W available for mini-PCIe sockets
• Reverse voltage protection
• Operating temperature range from -25°C to +85°C
• Ubuntu Linux board support package
• 1 year warranty

Contents

Single board computer, U-boot bootloader, Ubuntu Linux board support package, Interface cables as appropriate for the SBC, Power supply, JTAG programmer to update firmware and provide serial console access.
