Garner IC-UNIVERSAL Overview
-
1Description
-
2Compatibility
-
3Detailed Record-Keeping
-
4Exportable Reports
The IRONCLAD Image Capture System Scanner for Shredders or Stand-Alone Asset Tracking from Garner is a sophisticated data destruction verification system that sanitizes media while logging, tracking, and documenting the process throughout. The system provides customizable Certificates of Erasure and Destruction with JPG images of the media for proof of proper sanitizing before and/or after the process. Garner's complete line of hard drive and tape degaussers as well as hard drives and solid-state physical destroyers fully integrates with IRONCLAD.
Designed for universal application
- Tracks and records media serial/asset numbers, user ID, witness ID, date, time, location, and diagnostic information in a password-protected system
- Provides proof media was sanitized by automatically capturing a JPG image of the media immediately after degaussing
- Informs operator with a green "PASS" or red "FAIL" and numerically records the degausser's field strength immediately after each degauss cycle
- Records the Garner PD-5 crush depth immediately after each cycle
- For hard drive and solid-state physical destruction, captures a before and optional after destruction JPG media image
- Operates in Verification Mode with prompts for new operators and Processing Mode for faster processing
- The maintenance record includes gauss readings for verifying and documenting degausser performance
- ETL listed and certified to UL, IEC, CSA, and CE standards
- TAA compliant
- CSV files with detailed media destruction information and results
- High-resolution JPG images of each piece of processed media
- Excel files with detailed media destruction information and results
- PDFs with Certificates of Erasure & Destruction and JPG images of processed media
- Gauss testing log & report verifying Garner degausser performed to factory specifications
- Export options include: Flash, Ethernet, or optional optical media burner
In the Box

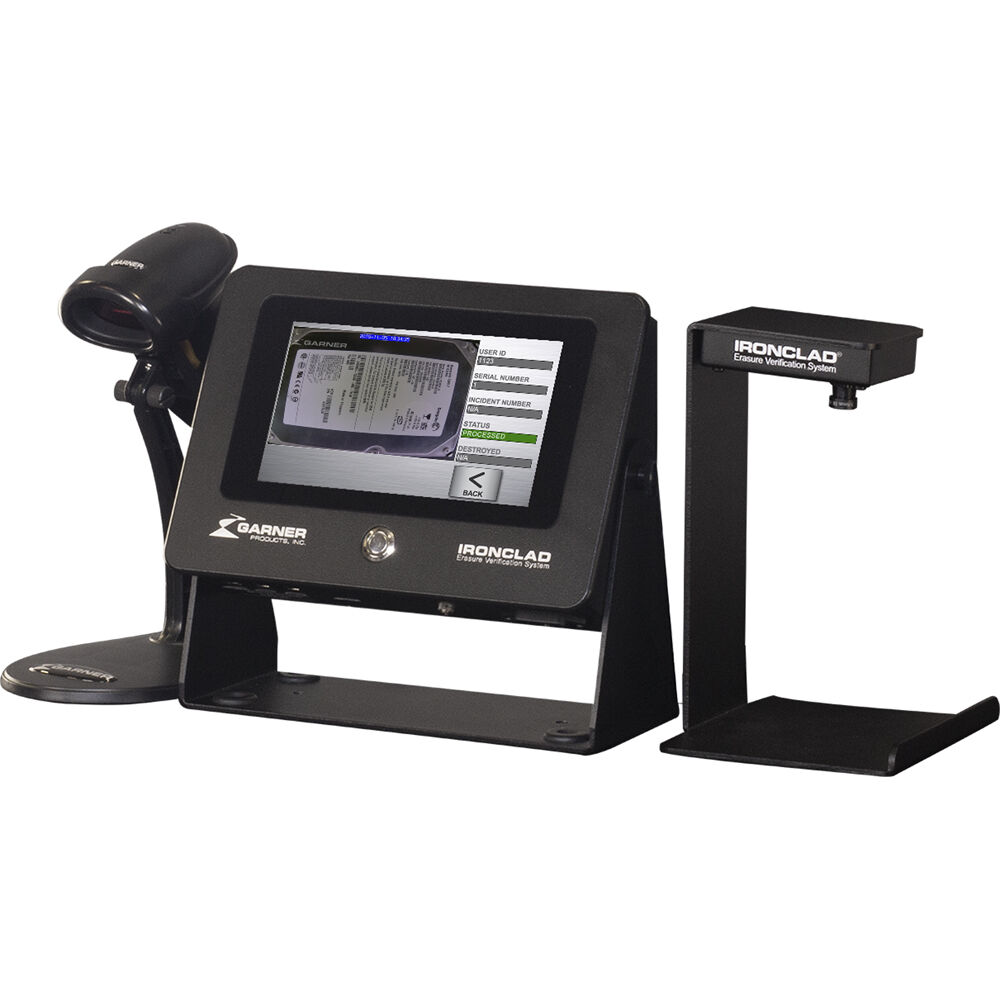

- Garner IRONCLAD Image Capture System Scanner for Shredders or Stand-Alone Asset Tracking
- Image Capture System
- Touchscreen Control Head
- Scanner with Stand
- IRONCLAD Software
- Stylus
Table of Contents
- Description
- Compatibility
- Detailed Record-Keeping
- Exportable Reports
Garner IC-UNIVERSAL Specs
Display
| Panel Type |
Not Specified by Manufacturer |
| Size |
7" |
| Touchscreen |
Yes |
Inputs / Outputs
| USB I/O |
4 x USB-A Female Input |
| Video I/O |
1 x HDMI Output |
Wireless
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Global Positioning (GPS, GLONASS, etc.) |
Yes |
Power
| Power Source |
AC Input (Built-In) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
15 W |
Environmental
| Certifications |
CE, CSA, ETL, FCC, IEC, UL, TAA *as per Manufacturer |
| Operating Temperature |
41 to 104°F / 5 to 40°C |
| Operating Humidity |
10 to 40% (Non-Condensing) |
Physical
| Dimensions |
9.6 x 6.6 x 2.5" / 244 x 168 x 64 mm (Touchscreen) 9 x 5.7 x 5.5" / 229 x 146 x 140 mm (Camera Unit) |
| Weight |
4 lb / 1.8 kg (Touchscreen) 1.1 lb / 0.5 kg (Camera Unit) |
