Galaxy Audio GT-INST-1 Overview
The Galaxy Audio GT-INST-1 is a portable, wireless disc transducer well suited for high-fidelity pickup for acoustic string instruments and box percussion instruments including acoustic guitar, ukulele, box drum, and cajón. The high-quality disc transducer features rich, full-bodied, clear sound reproduction. Easy instrument attachment and worry-free operation make this a convenient on-the-go microphone solution.

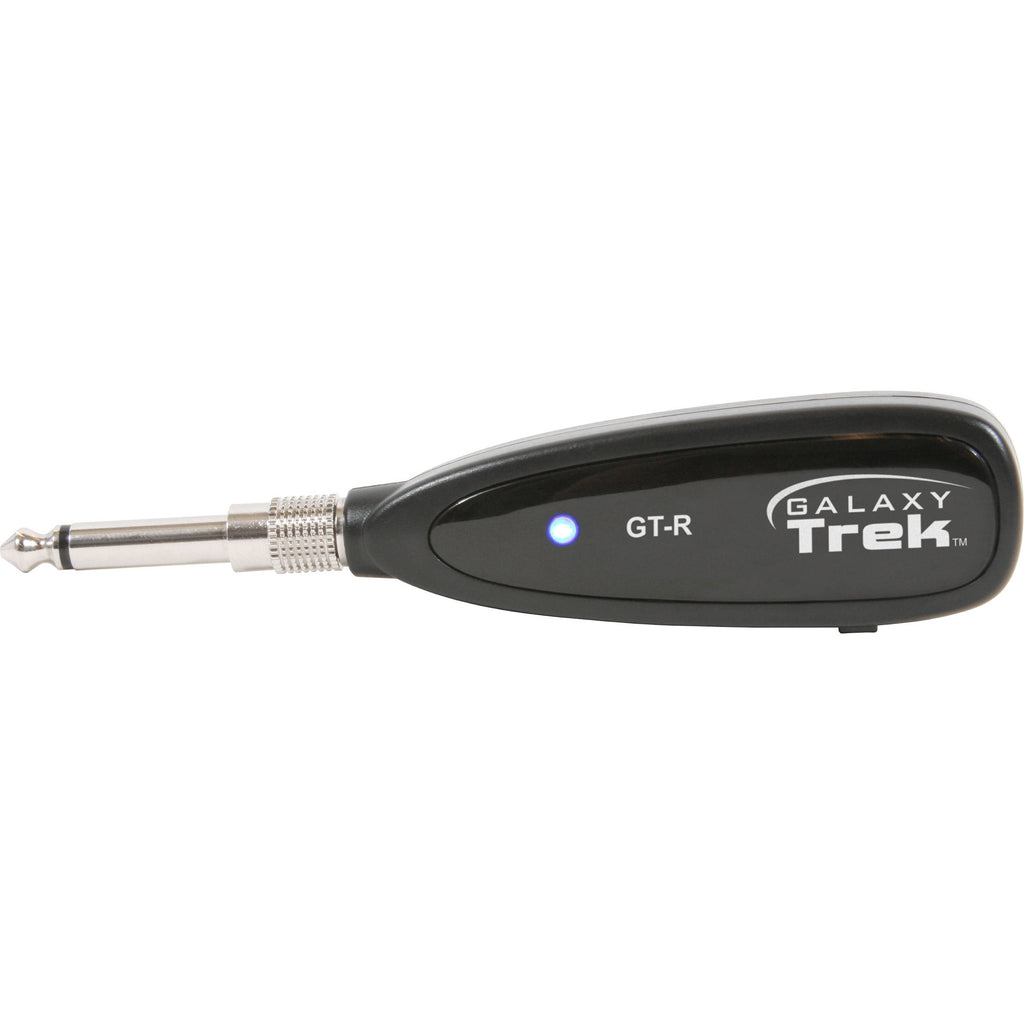

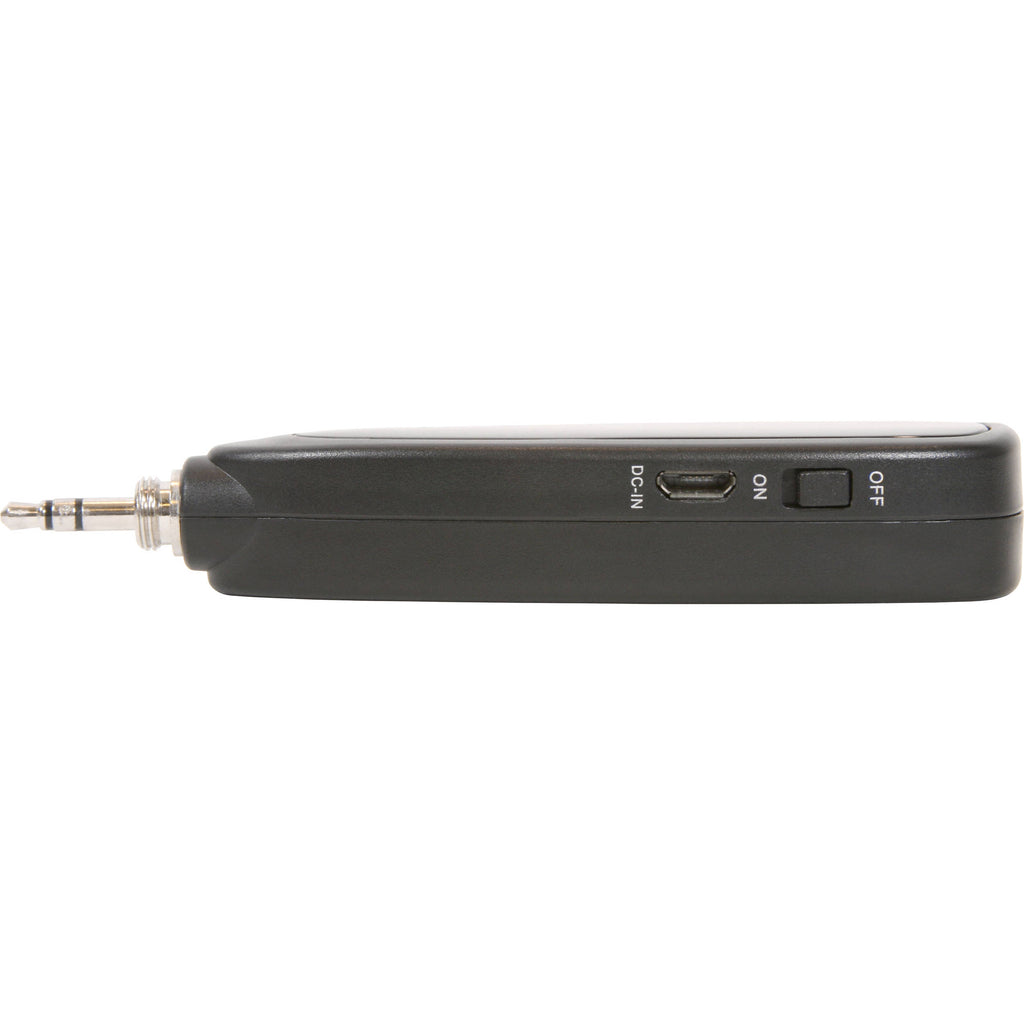

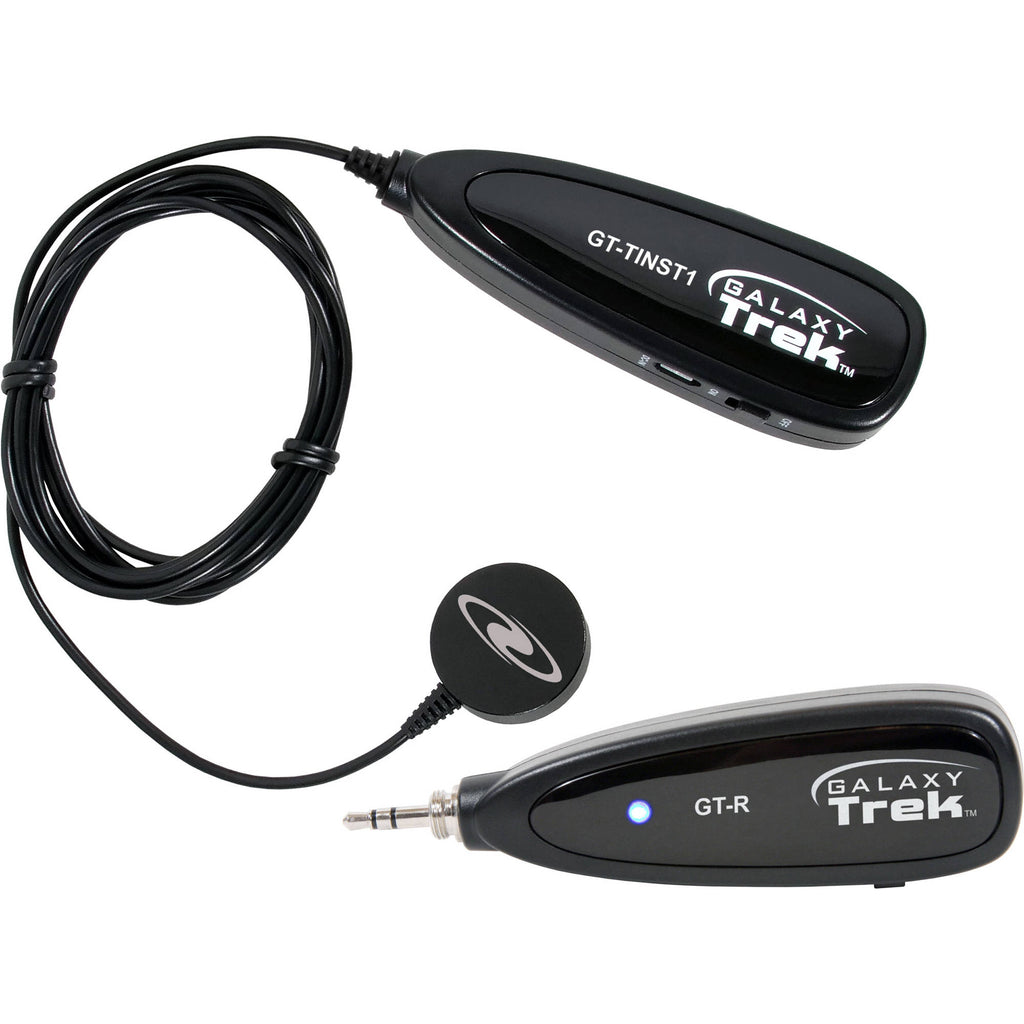

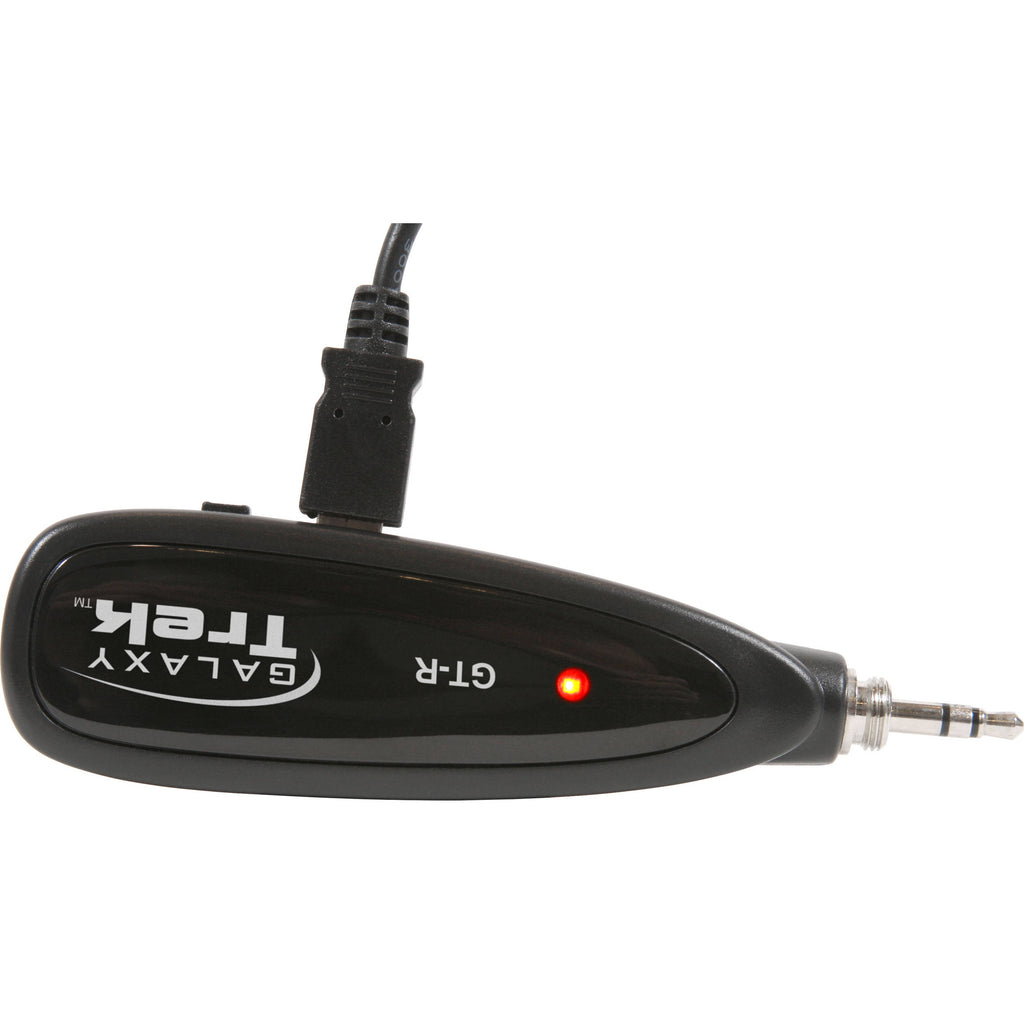

The GT-INST-1 system consists of a wireless transmitter, which transmits seamlessly to the included wireless receiver and plugs into the 3.5mm headphone jack of your smartphone, ensuring quality audio to your video recordings. The system includes a variety of cables and adapters including a 1/4" adapter, allowing you to connect to powered PA systems, mixers, and live sound consoles. Both the receiver and transmitter feature integrated lithium batteries, which charge fast and offers up to 6 hours of battery life. The Galaxy Audio GT-INST-1 ships with a detachable belt clip, two cell phone adapters (Android & iOS), a USB charging cable, a 3.5mm audio extension cable, and six adhesive pads.
- 2.4 GHz wireless transmission
- Compact lightweight design
- Easy setup
- Frequency Response: 10 Hz to 10 kHz

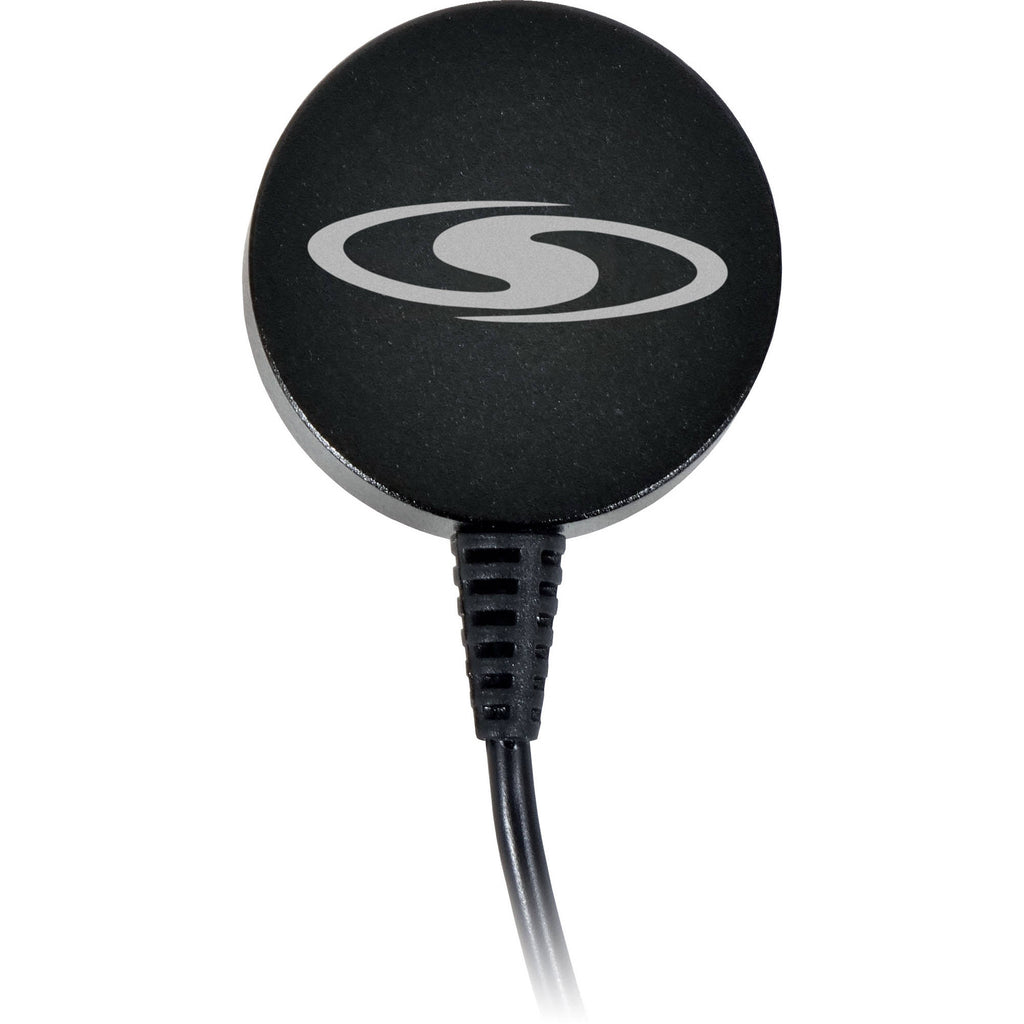

- Disc transducer
- For use with box drum, cajón, acoustic guitar, ukulele, and other acoustic stringed instruments
- 50' operating range
- 6 hours of battery life

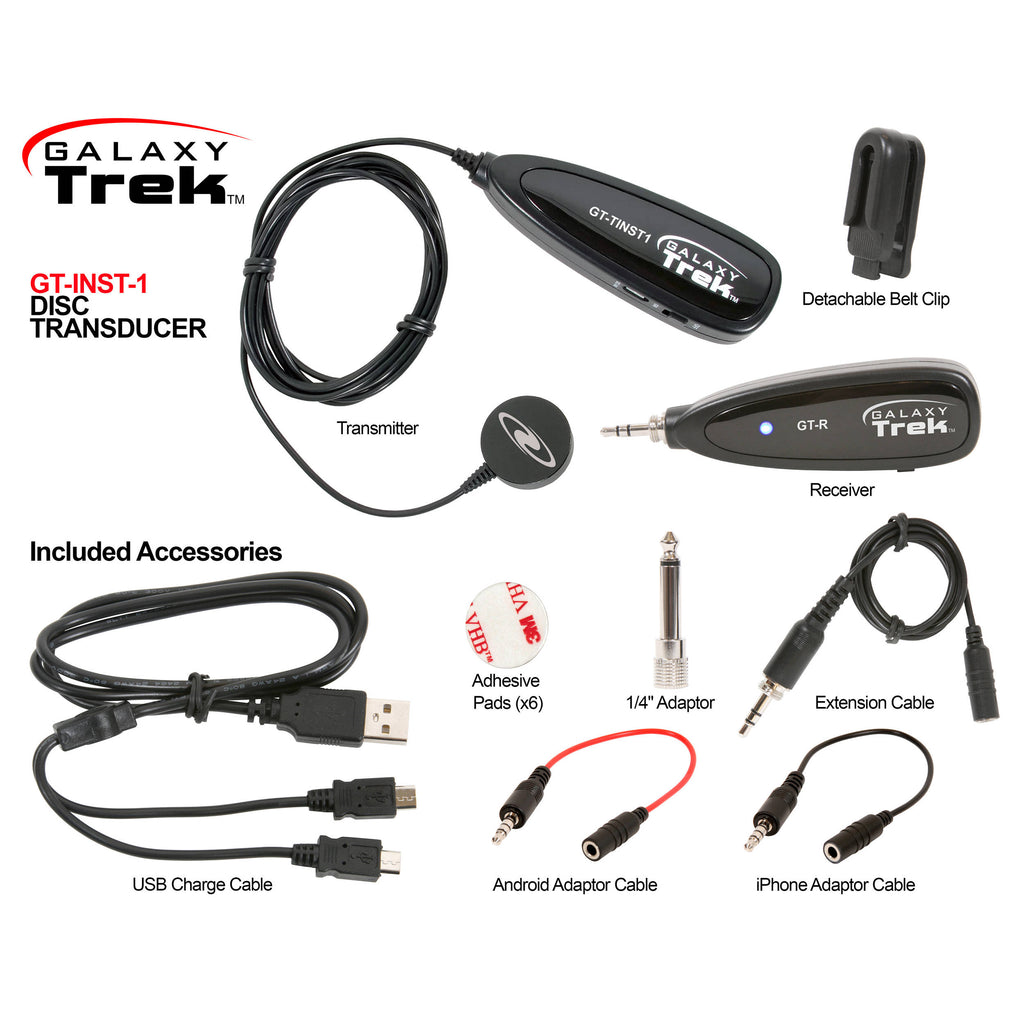

In the Box
- Galaxy Audio GT-INST-1 Wireless Portable Disc Transducer
- Detachable Belt Clip
- 2 x Cell Phone Adapter Cables (Android / iOS)
- 1/4" Adapter
- USB Charging Cable
- 20" Audio Extension Cable
- 6 x Adhesive Pads
- Limited 3-Year Manufacturer Warranty
Galaxy Audio GT-INST-1 Specs
System
| Wireless Technology |
2.4 GHz |
| Included Transmitters |
1 x Clip-On |
| Diversity |
Frequency |
| Max Operating Range |
50' / 15.2 m (Line of Sight) |
Receiver
| Receiver Type |
Portable |
| Number of Audio Channels |
1 |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Male Unbalanced Mic Input |
| Frequency Response |
10 Hz to 10 kHz |
| USB/Lightning Connectivity |
Mini-USB (Charging) |
| Power Requirements |
Battery |
| Battery Type |
1 x Built-In Rechargeable (Included) |
| Approx. Battery Life |
6 Hours (Lithium Rechargeable) |
| Display & Indicators |
1 x LED (Power, Sync) |
Transmitter
| Transmitter Type |
Clip-On |
| RF Output Power |
Not Specified by Manufacturer |
| Audio I/O |
None |
| Muting |
Off/On Switch |
| Frequency Response |
10 Hz to 10 kHz |
| Power Requirements |
Battery |
| Battery Type |
1 x Built-In Rechargeable (Included) |
| Approx. Battery Life |
6 Hours (Lithium) |
| USB/Lightning I/O |
1 x Mini-USB (Charging) |
| Display & Indicators |
1 x LED (Power, Sync) |
Microphone
| Microphone Type |
Integrated |
| Instrument Mic Type |
Acoustic Guitar, Percussion/Drum, Ukelele |
| Sound Field |
Mono |
| Polar Pattern |
Unidirectional |
| Frequency Range |
10 Hz to 10 kHz |
Packaging Info
| Package Weight |
0.605 lb |
| Box Dimensions (LxWxH) |
8.95 x 7.2 x 1.85" |
