Description
Galaxy Audio CSL4 Overview
The Galaxy Audio CSL4-SSSSM is a four-channel, digital UHF diversity wireless headset microphone system designed to deliver reliable, scalable wireless performance for multi-user applications. Operating in the 516 to 558 MHz frequency band, this system combines stable digital transmission with multi-channel flexibility, making it well suited for live sound, presentations, and installed environments requiring multiple bodypack transmitters.
Automatic frequency scanning and an integrated RF spectrum analyzer help identify clean operating channels across all four channels, while IR sync enables fast and accurate pairing between the receiver and each bodypack transmitter. Each channel features its own level control and dedicated 7-band graphic equalizer, allowing precise tonal shaping and gain management directly from the receiver. Color-changing LCD displays provide clear visibility of frequency, system status, and settings for each channel.
The CSL4-SSSSM system includes a 1 RU rack-mountable four-channel diversity receiver and four bodypack transmitters, each equipped with a unidirectional headset microphone. With a wireless operating range of up to 300 feet and up to 1480 selectable frequencies, the Galaxy Audio CSL4-SSSSM delivers dependable digital performance and straightforward operation for professional multi-channel wireless setups.

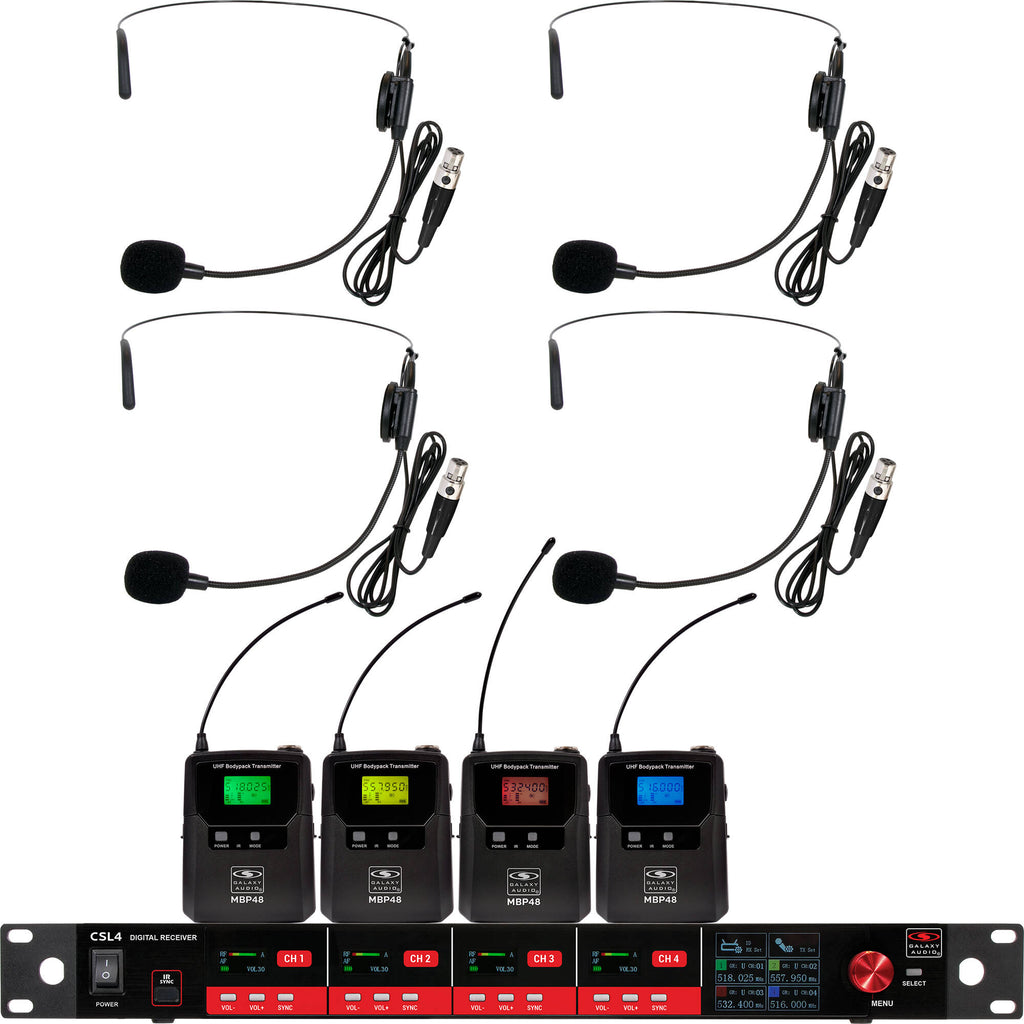

- Galaxy Audio CSL4-SSSSM 4-Channel Digital Wireless Headset Microphone System (516 to 558 MHz)

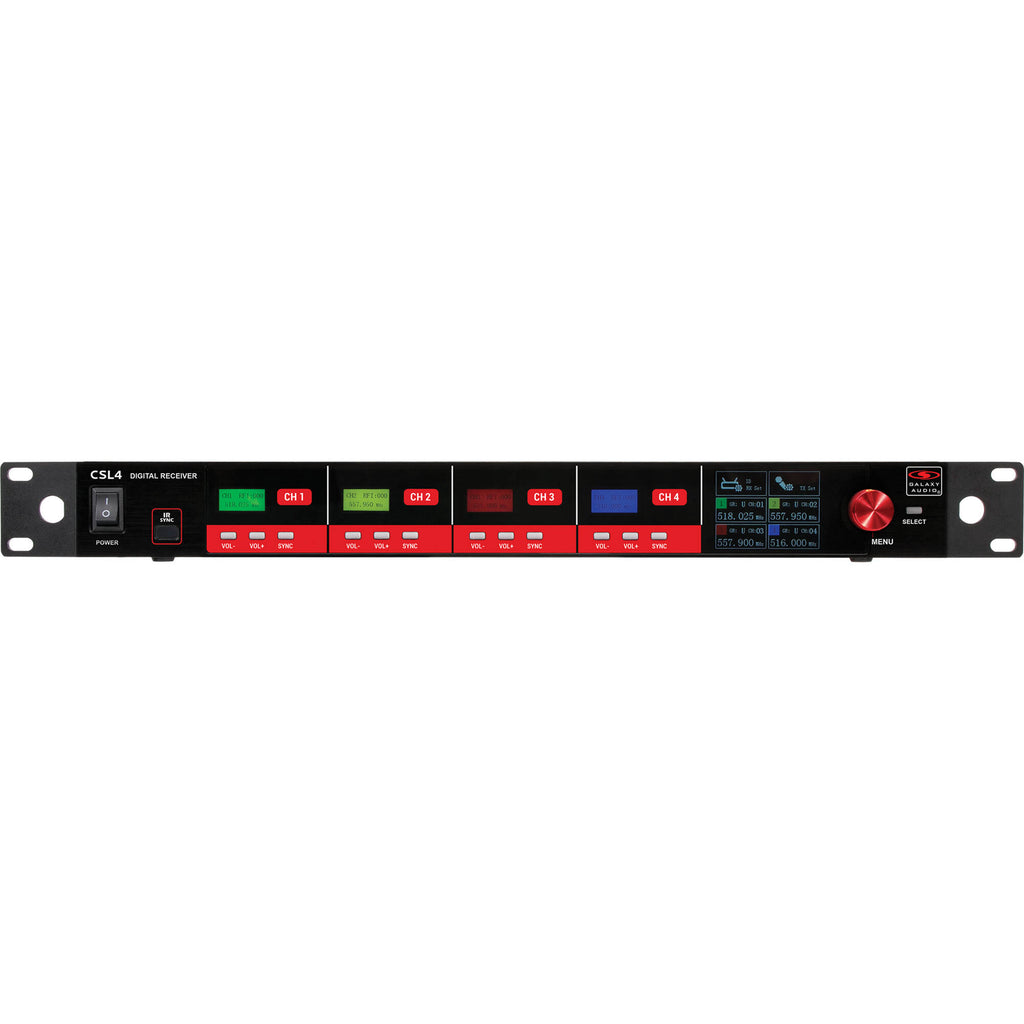

- Four-Channel Rackmount Receiver
- 2 x Antenna
- Power Supply

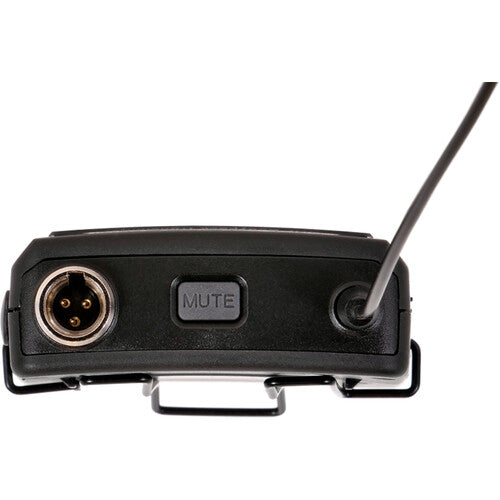

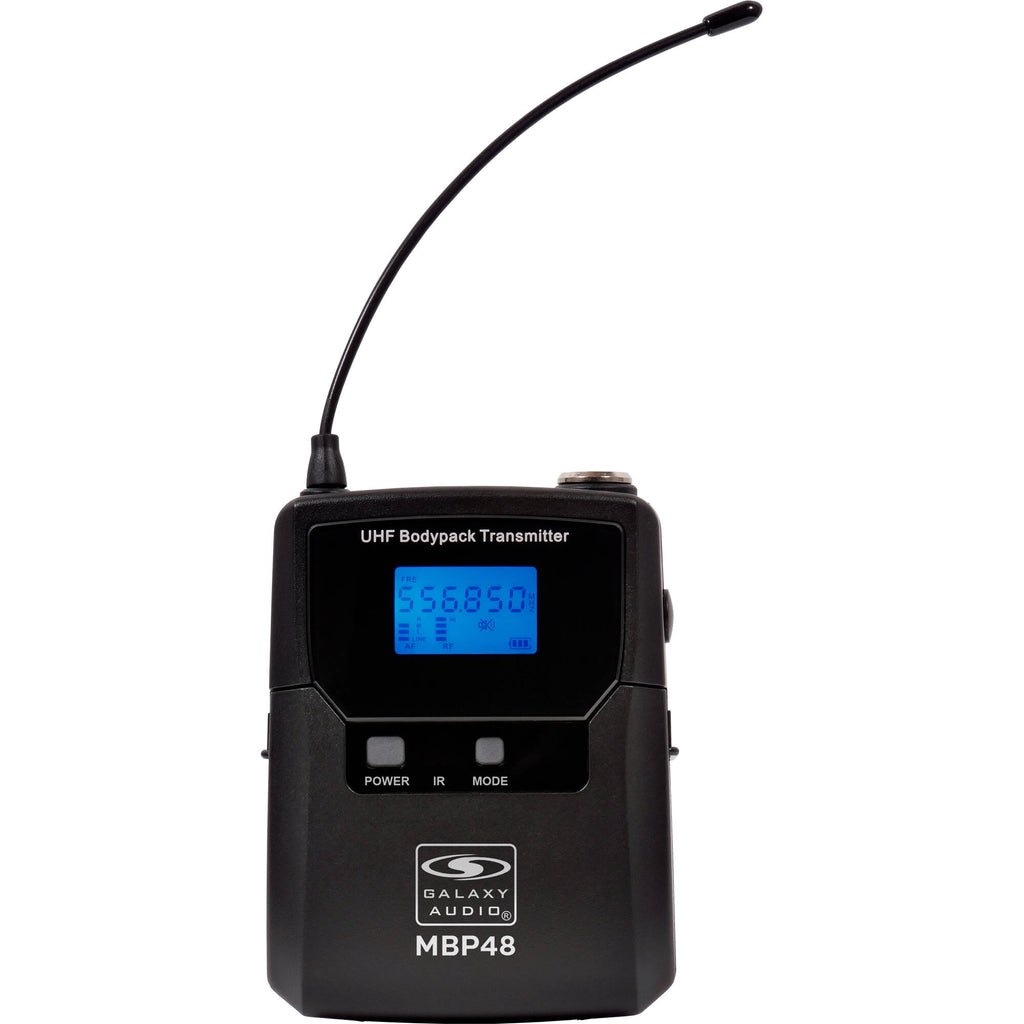

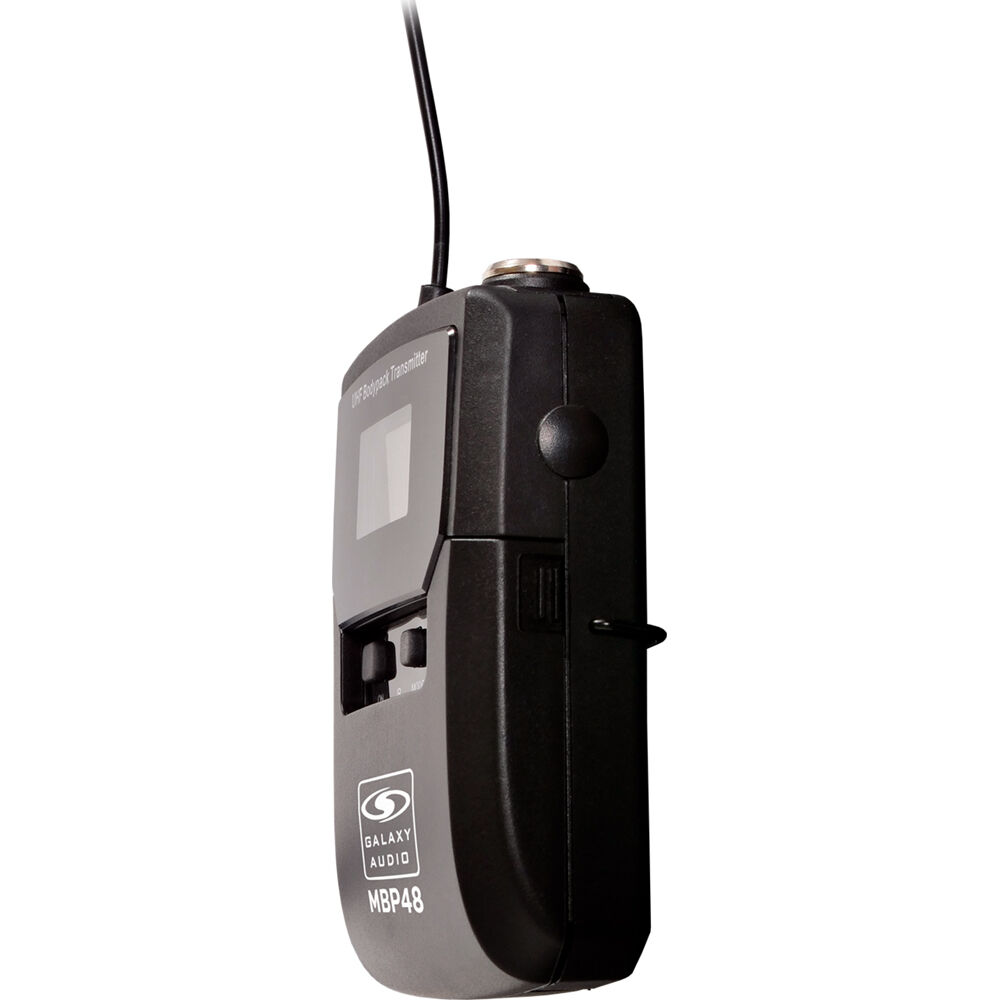

- 4 x Galaxy Audio HH48 Digital Bodypack Wireless Transmitter for CSL Systems (516 to 558 MHz)

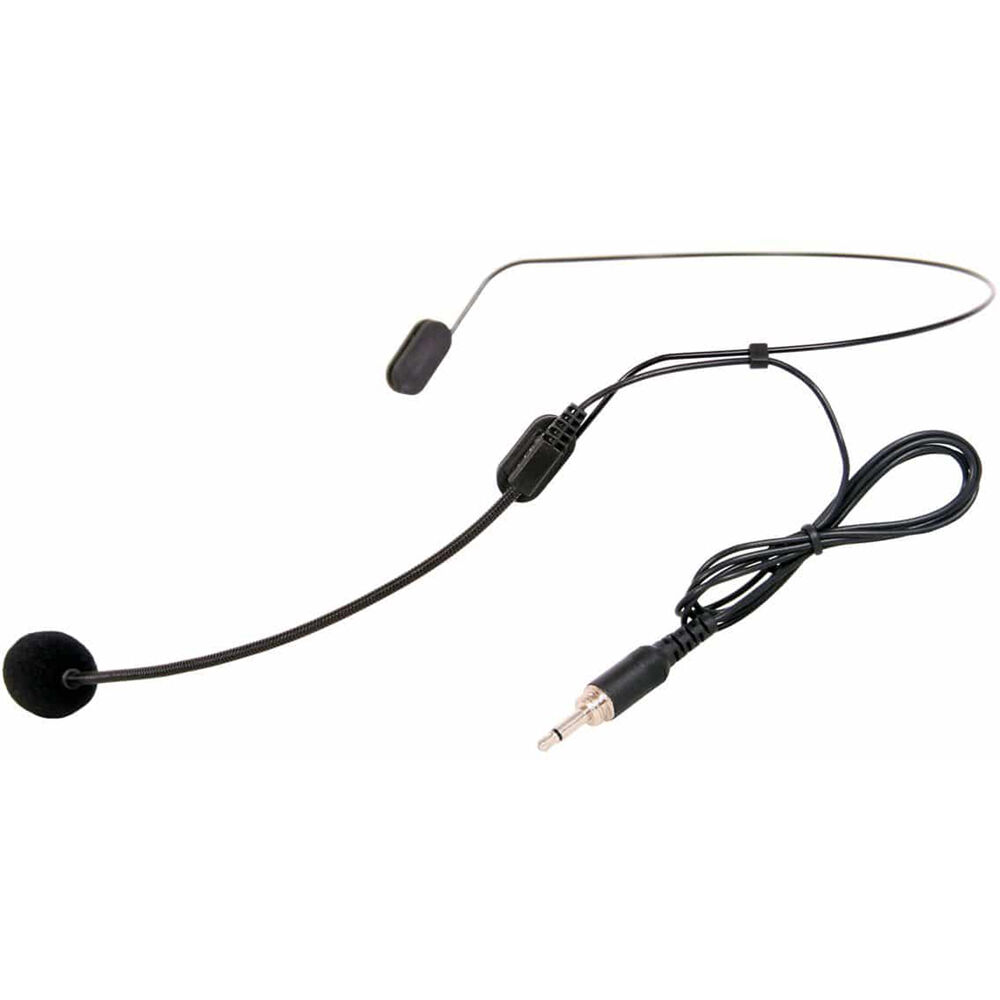

- 4 x HS13-UBK Headset Microphone
- Limited 3-Year Manufacturer Warranty
-
BatteriesEssential
Galaxy Audio CSL4 Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| Max Operating Range |
300' / 91.4 m
|
| Receiver Type |
1x Rackmount (19")
|
| Number of Audio Channels |
4
|
| Included Transmitters |
4x Bodypack
|
| Microphone Type |
4x Headset
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
516 to 588 MHz
|
| Max Operating Range |
300' / 91.4 m
|
| Max Transmitters per Band |
4
|
| Latency |
< 3 ms
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Rack Ears, 1 U)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
4
|

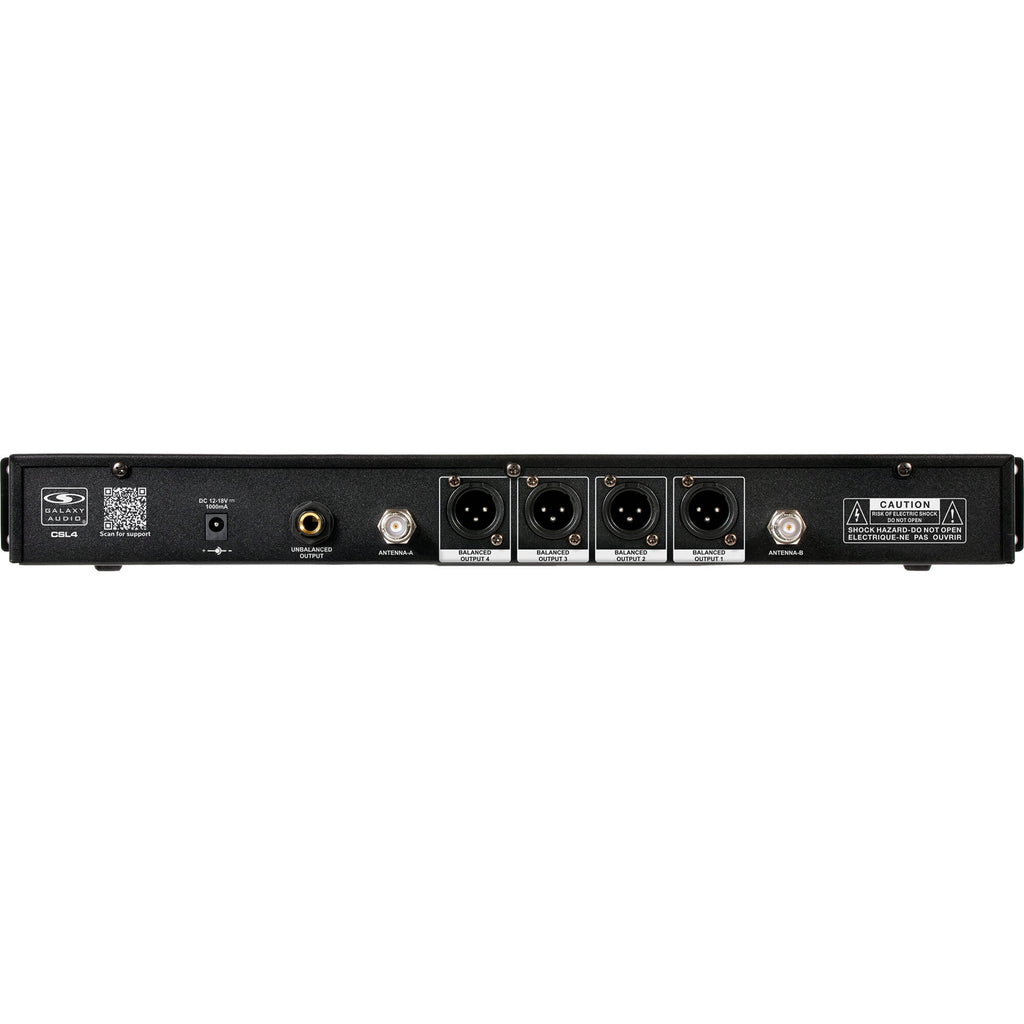

| Audio I/O |
1x 1/4" TS Unbalanced Output
4x XLR 3-Pin Balanced Output |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Frequency Response |
50 Hz to 16 kHz
|
| Display |
Backlit LCD
|
| Power Requirements |
AC/DC Power Adapter
|
| Included Transmitters |
4x Bodypack
|
| RF Output Power |
10 mW
|
| Antenna |
Fixed
|
| Input Level |
Microphone / Instrument
|
| Audio I/O |
1x TA3F/Mini-XLR 3-Pin Female Input
|
| USB I/O |
No
|
| Muting |
Mute Switch
|
| Auto-Level/Gain |
No
|
| Sync Method |
IR
|
| Display |
Backlit LCD
|
| Microphone Type |
4x Headset
|
| Polar Pattern |
Unidirectional
|
| Output Connector |
1x TA3M/Mini-XLR 3-Pin Male
|
| Color |
Black
|
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hours
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 to 18 VDC at 1000 mA (Included)
|
| Input Power |
12 to 18 VDC at 1000 mA
|
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
19 x 7 x 1.8" / 483 x 178 x 45 mm Bodypack Transmitter: 3.3 x 2.4 x 1" / 84 x 62 x 26.4 mm |
| Weight |
Receiver:
3.3 lb / 1515 g Bodypack Transmitter: 2.6 oz / 74 g |
