Description
Galaxy Audio CSL4 Overview
The Galaxy Audio CSL4-HSSSM is a four-channel digital UHF diversity wireless handheld and headset microphone system designed to provide reliable, multi-user vocal performance in live sound, presentation, and installed environments. Operating in the 516 to 558 MHz frequency band, the system delivers stable digital transmission with flexible frequency management across four simultaneous channels.
Automatic frequency scanning and an integrated RF spectrum analyzer help identify clean operating channels, while IR sync enables fast and accurate pairing between the receiver and each transmitter. Individual channel level controls allow precise gain adjustment, and a dedicated 7-band graphic equalizer on each channel provides flexible tonal shaping directly from the receiver. Color-changing LCD screens offer clear visibility of frequency, system status, and settings for all four channels.
The CSL4-HSSSM system includes a 1 RU rack-mountable four-channel diversity receiver, one handheld dynamic cardioid vocal microphone transmitter, three bodypack transmitters, and three unidirectional headset microphones, making it well suited for portable rigs or permanent installations. With a wireless operating range of up to 300 feet and up to 1480 selectable frequencies, the Galaxy Audio CSL4-HSSSM delivers dependable digital performance and straightforward operation for professional multi-channel wireless microphone applications.

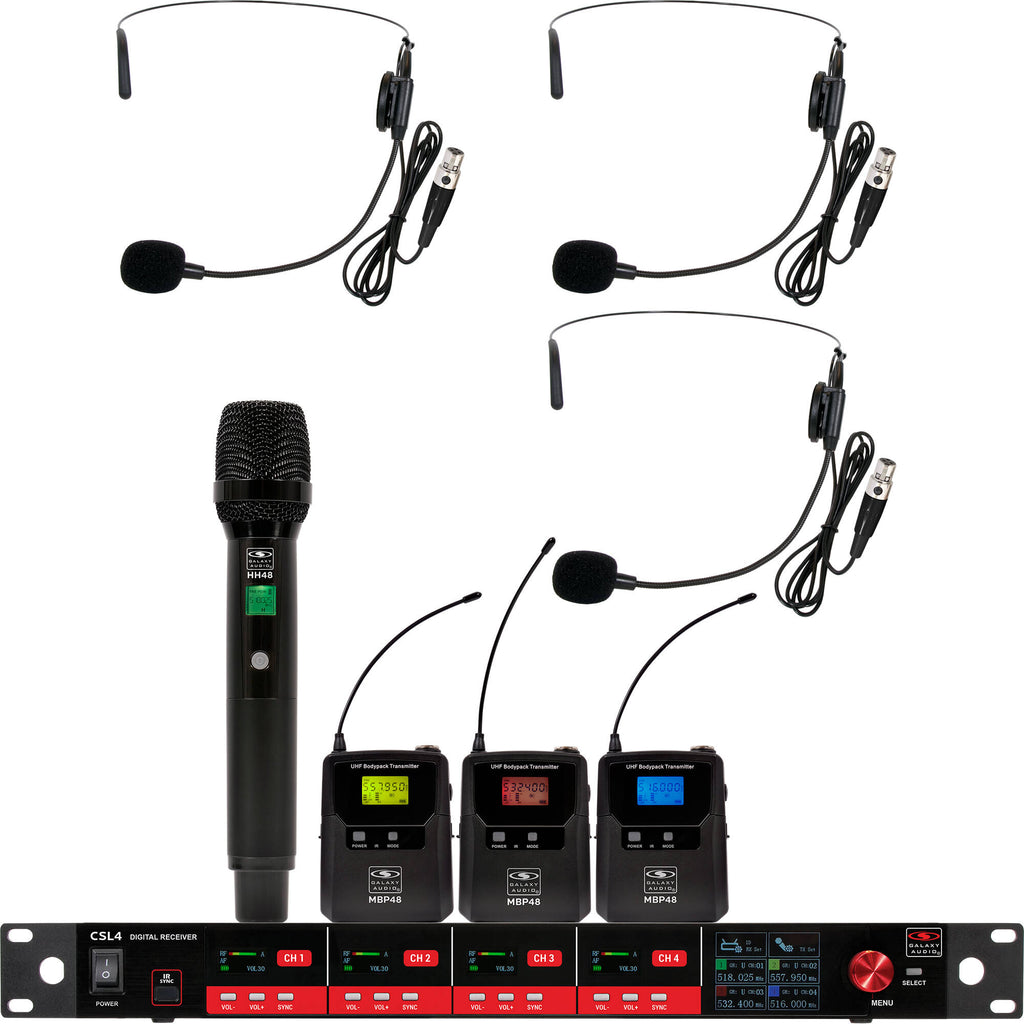

- Galaxy Audio CSL4-HSSSM 4-Channel Digital Wireless System with 1 Handheld & 3 Headset Microphones (516 to 558 MHz)

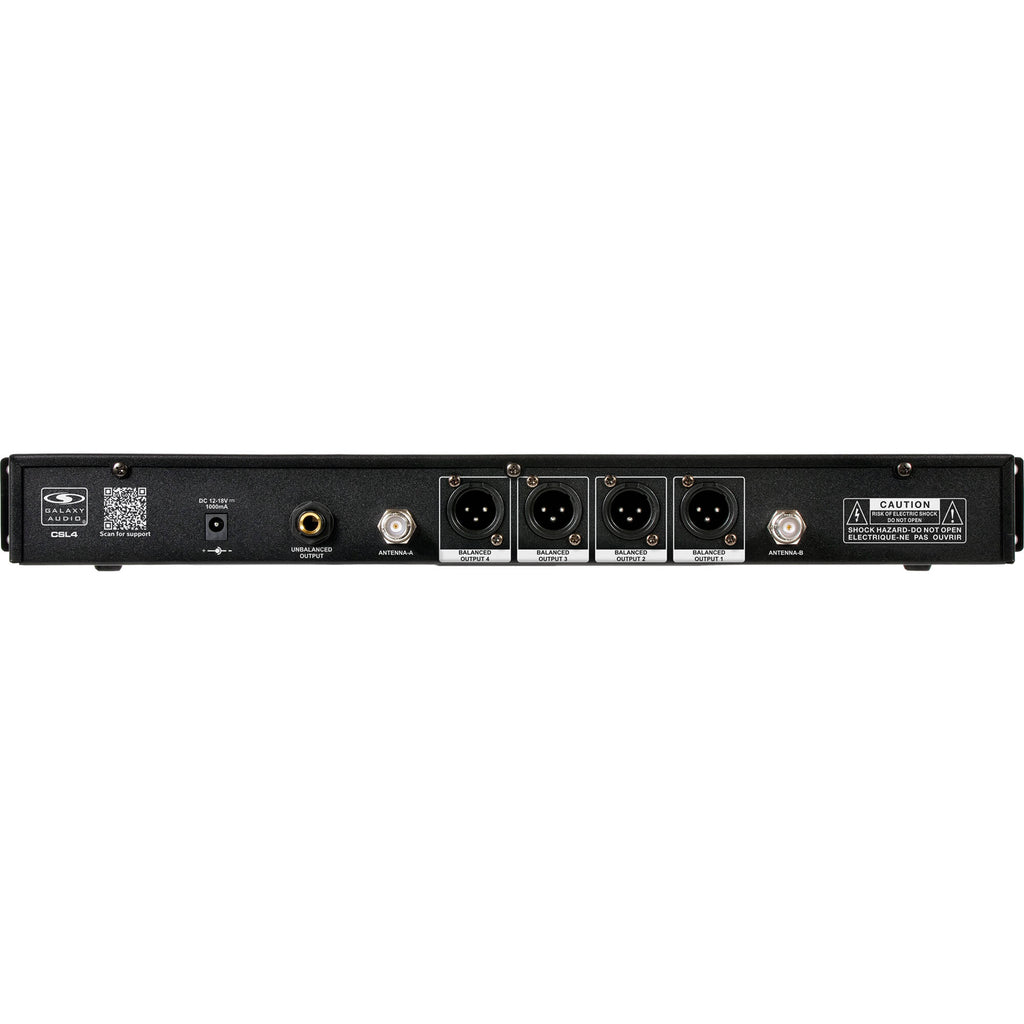

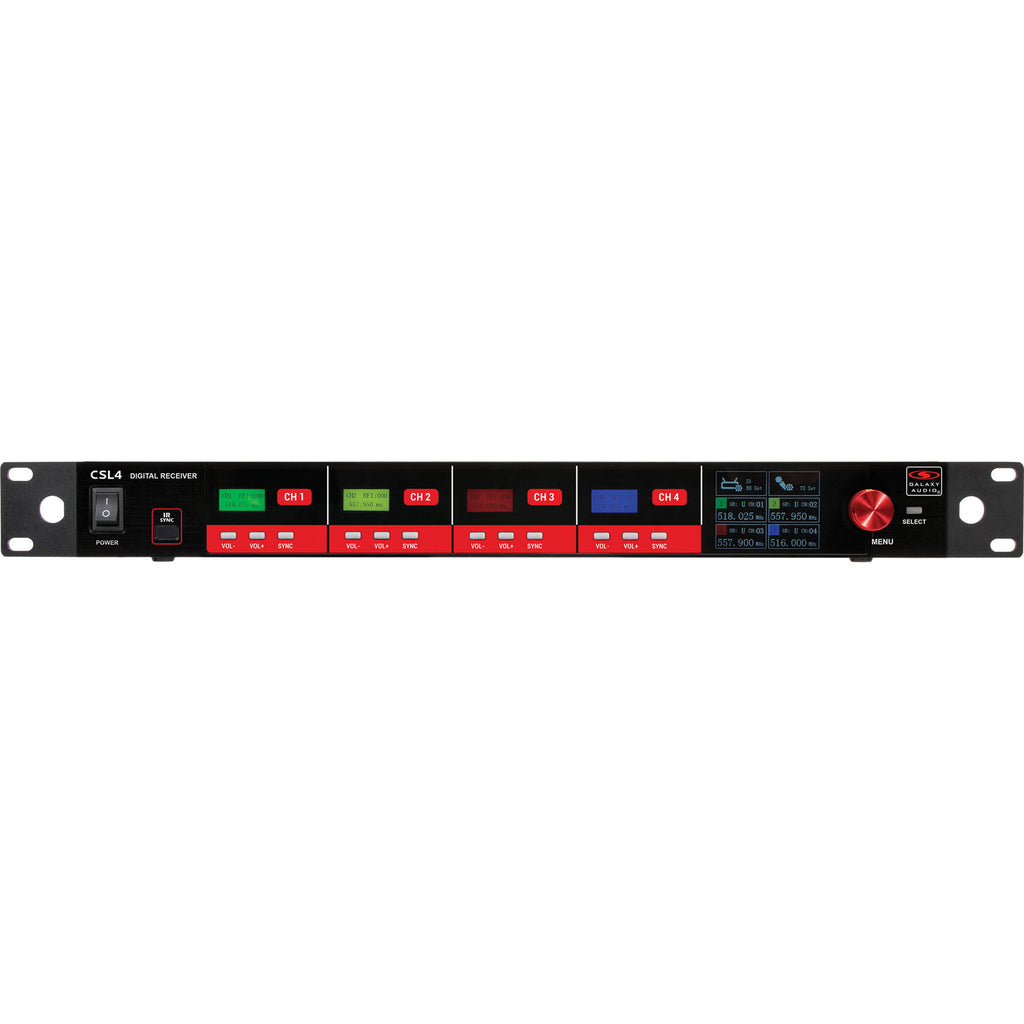

- 4-Channel Rack-Mount Receiver
- 2 x Antenna
- Power Supply

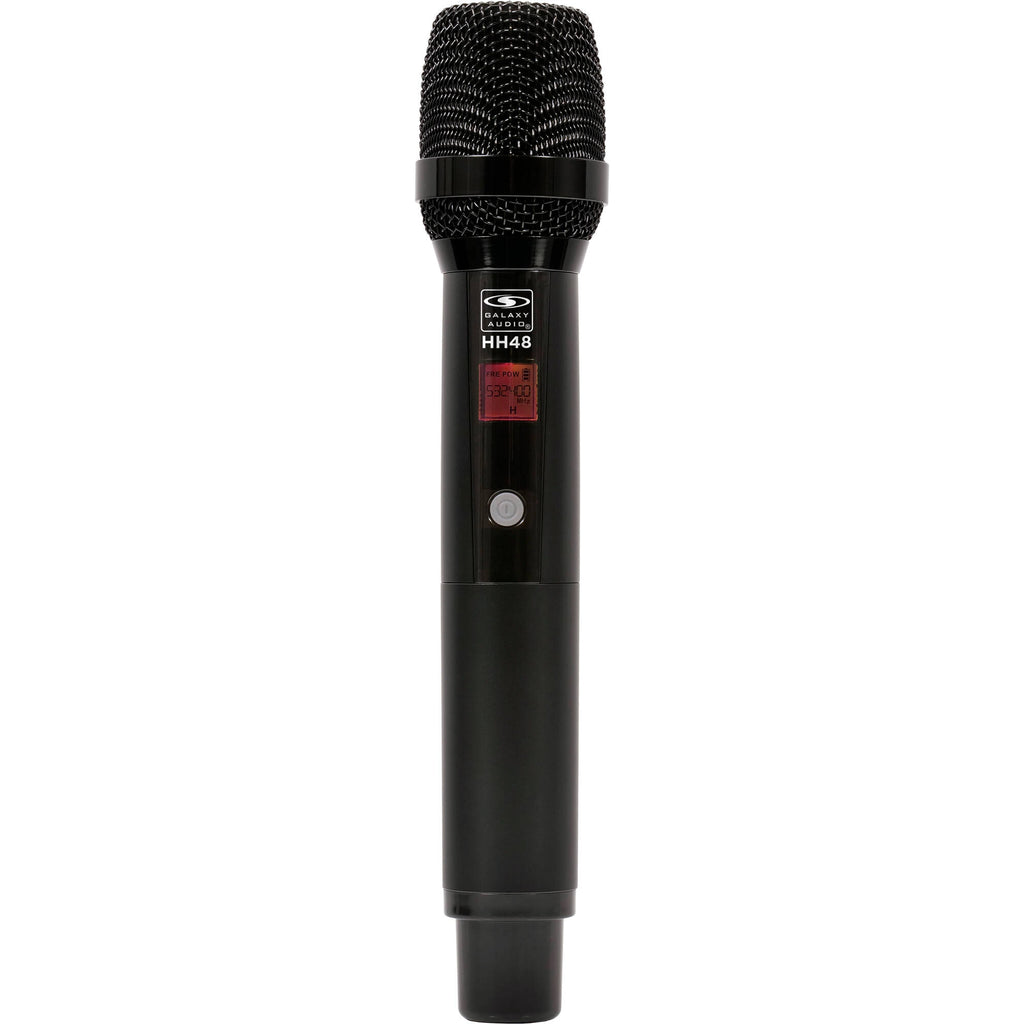

- Galaxy Audio HH48 Digital Handheld Wireless Cardioid Microphone Transmitter for CSL Systems (516 to 558 MHz)

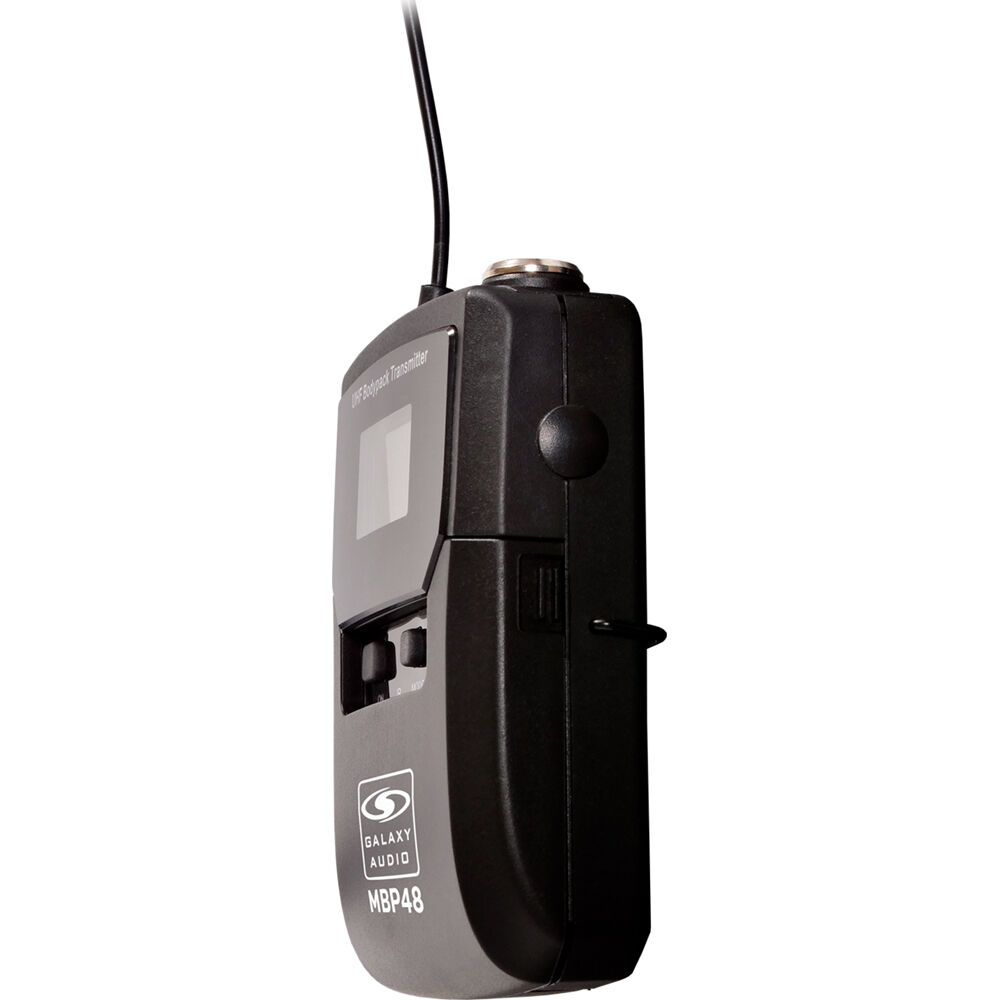

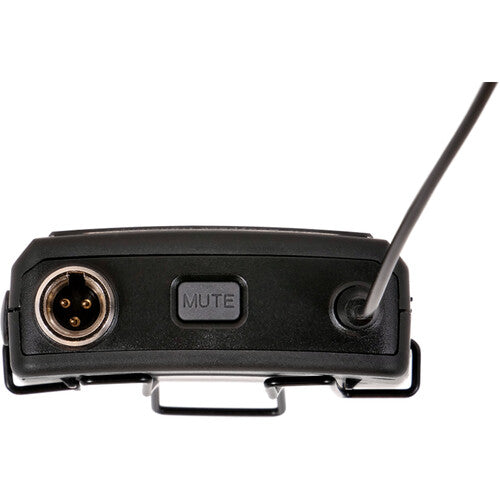

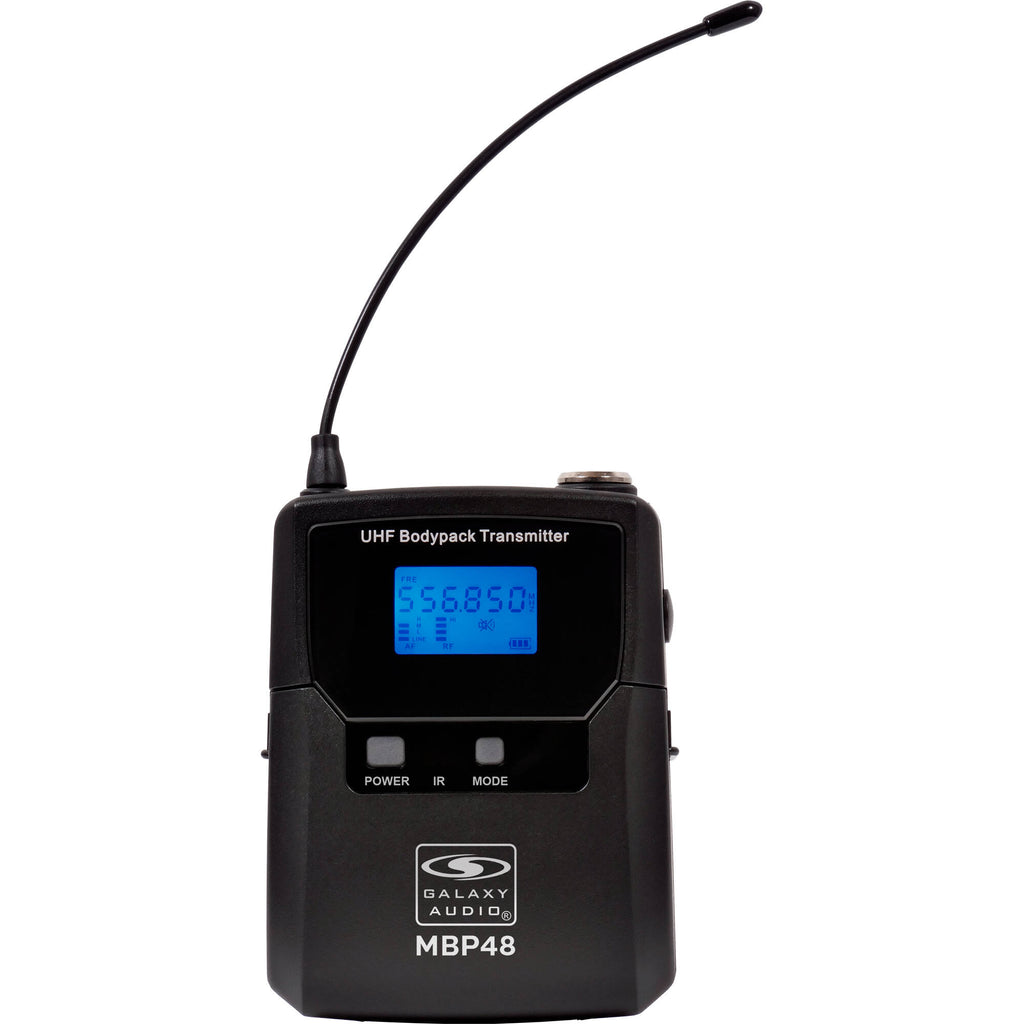

- 3 x Galaxy Audio HH48 Digital Bodypack Wireless Transmitter for CSL Systems (516 to 558 MHz)
- 3 x HS13-UBK Headset
- Limited 3-Year Manufacturer Warranty
-
BatteriesEssential
Galaxy Audio CSL4 Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| Max Operating Range |
300' / 91.4 m
|
| Receiver Type |
1x Rackmount (19")
|
| Number of Audio Channels |
4
|
| Included Transmitters |
1x Handheld
3x Bodypack |
| Microphone Type |
1x Handheld
3x Headset |
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
516 to 588 MHz
|
| Max Operating Range |
300' / 91.4 m
|
| Max Transmitters per Band |
4
|
| Latency |
< 3 ms
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
4
|
| Audio I/O |
1x 1/4" TS Unbalanced Output
4x XLR 3-Pin Balanced Output |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Frequency Response |
50 Hz to 16 kHz
|
| Display |
Backlit LCD
|
| Power Requirements |
AC/DC Power Adapter
|
| Included Transmitters |
1x Handheld
3x Bodypack |
| RF Output Power |
10 mW
|
| Antenna |
Fixed
|
| Input Level |
Microphone / Instrument
|
| Audio I/O |
1x TA3F/Mini-XLR 3-Pin Female Input
|
| Bias/Plug-In & Phantom Power |
N/A: No External Mic Support
|
| USB I/O |
No
|
| Muting |
Mute Switch
|
| Auto-Level/Gain |
No
|
| Sync Method |
IR
|
| Display |
Backlit LCD
|
| Microphone Type |
1x Handheld
3x Headset |
| Polar Pattern |
Unidirectional
|
| Color |
Black
|
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hours
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 to 18 VDC at 1000 mA (Included)
|
| Input Power |
12 to 18 VDC at 1000 mA
|
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
19 x 7 x 1.8" / 483 x 178 x 45 mm Bodypack Transmitter: 3.3 x 2.4 x 1" / 84 x 62 x 26.4 mm Handheld Transmitter: 10 x 1.9" / 254 x 49.5 mm |
| Weight |
Receiver:
3.3 lb / 1515 g Handheld Transmitter: 12.2 oz / 345 g Bodypack Transmitter: 2.6 oz / 74 g |
