Description
Galaxy Audio CSL Overview
The Galaxy Audio CSL-VM is a single-channel digital UHF diversity wireless lavalier microphone system designed for reliable, discreet vocal reinforcement in live sound, presentation, and installed environments. Operating in the 516 to 558 MHz frequency band, the CSL-VM combines stable digital transmission with extensive frequency selection to support consistent performance in challenging RF conditions.
Automatic frequency scanning and a built-in RF spectrum analyzer help quickly identify clear operating channels, while IR sync enables fast and accurate pairing between the receiver and the included bodypack transmitter. A 7-band equalizer integrated into the receiver provides flexible tonal shaping, and color-changing LCD displays offer clear visibility of frequency, system status, and settings.

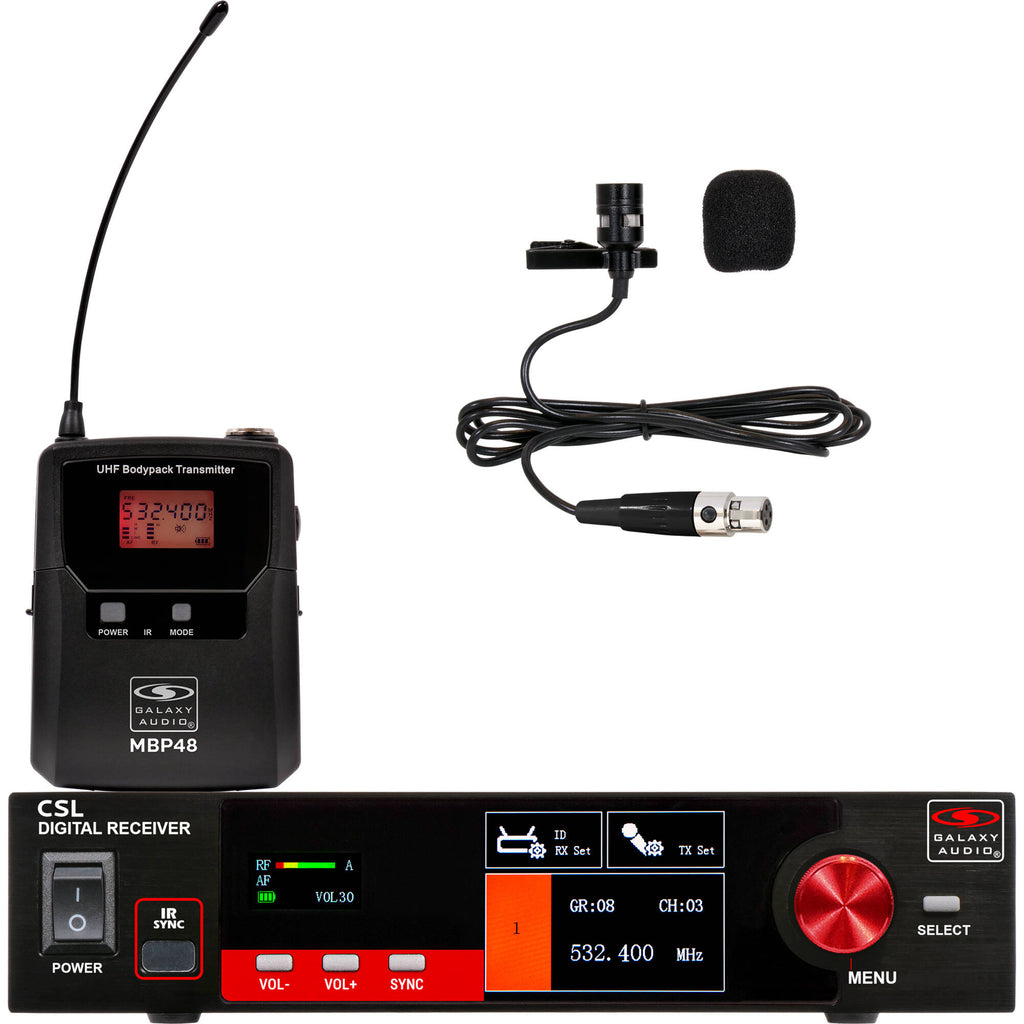

The CSL-VM system includes a diversity receiver, a bodypack transmitter, an LV13-UBK-GAL unidirectional lavalier microphone, and a rackmount kit, making it suitable for both portable and installed setups. With a wireless operating range of up to 300 feet and up to 1480 selectable frequencies, the Galaxy Audio CSL-VM delivers dependable digital performance and straightforward operation for professional lavalier microphone applications.
- Galaxy Audio CSL-VM Digital Wireless Lavalier Microphone System (516 to 558 MHz)

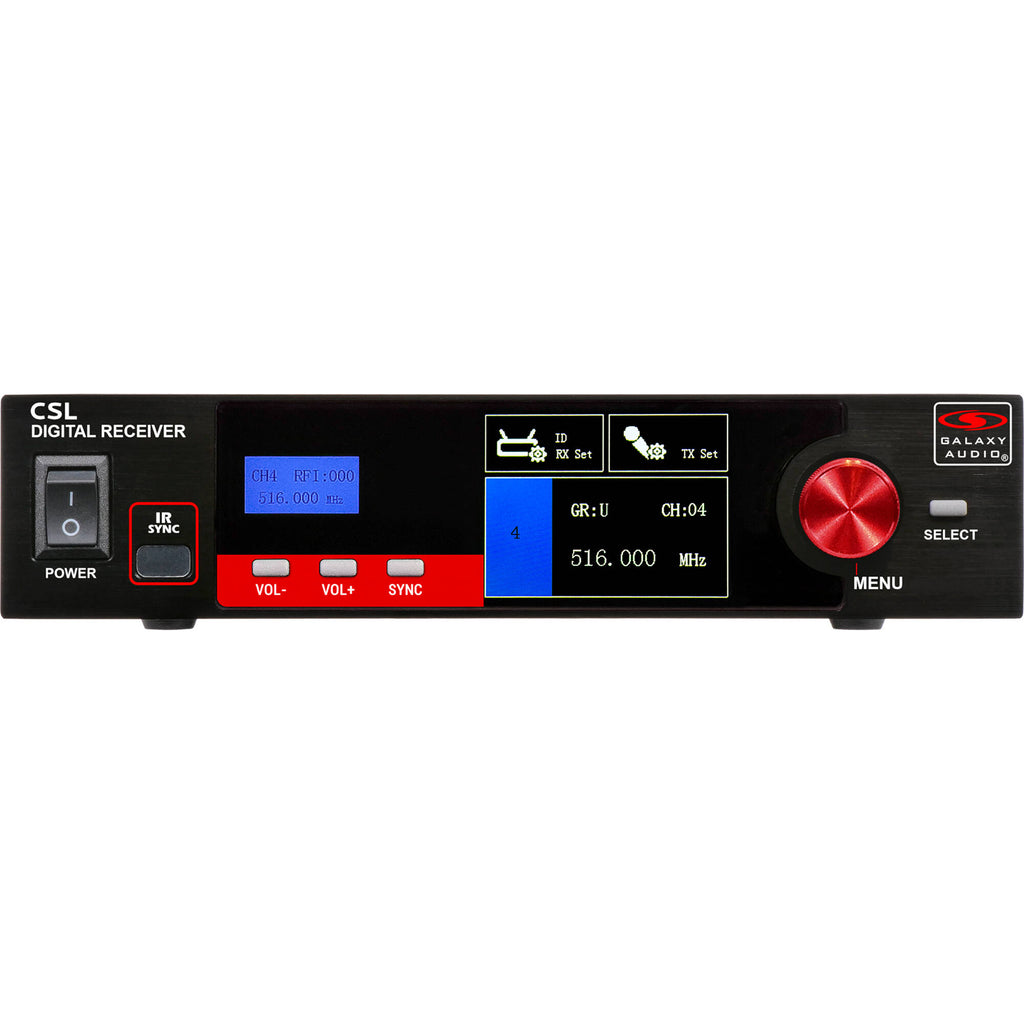

- Single-Channel Tabletop/Rackmount Receiver
- 2 x Antenna
- 1/4" Cable
- Rackmount Kit
- Power Supply

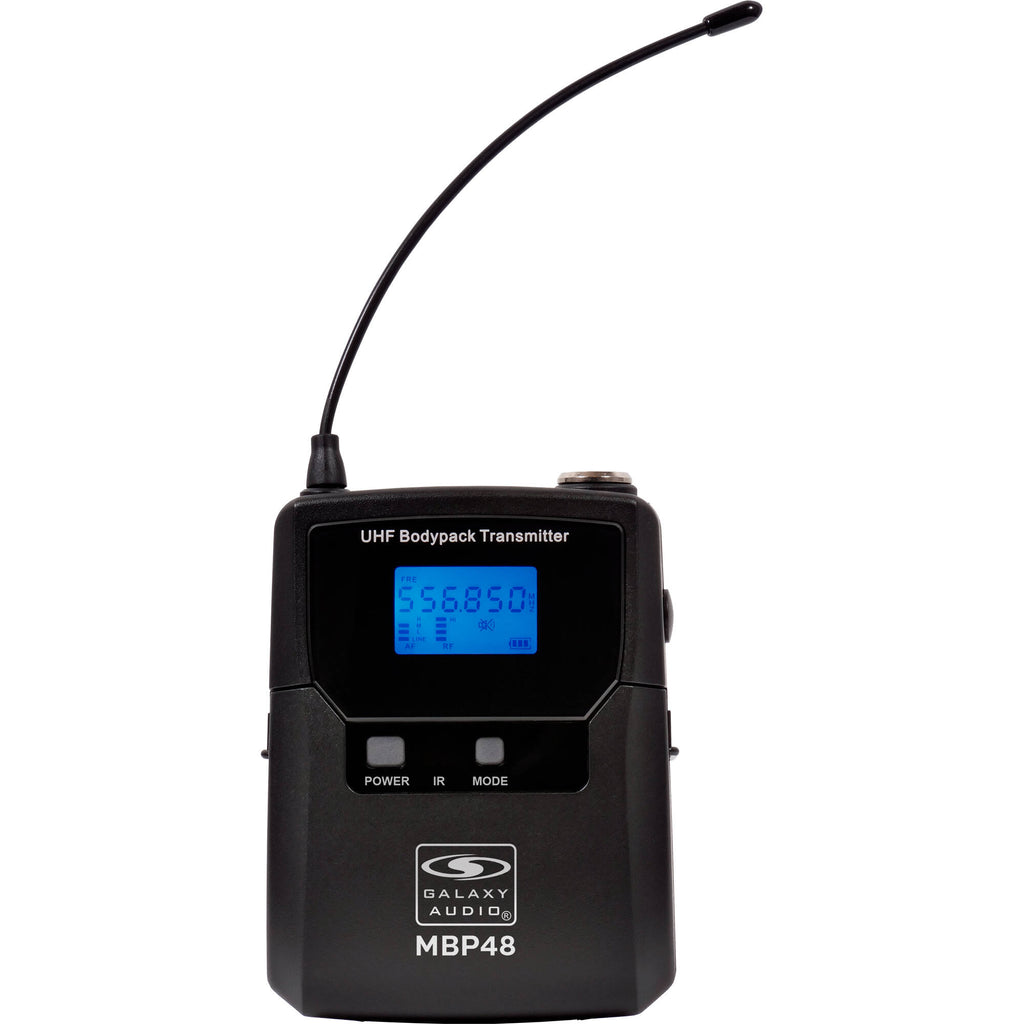

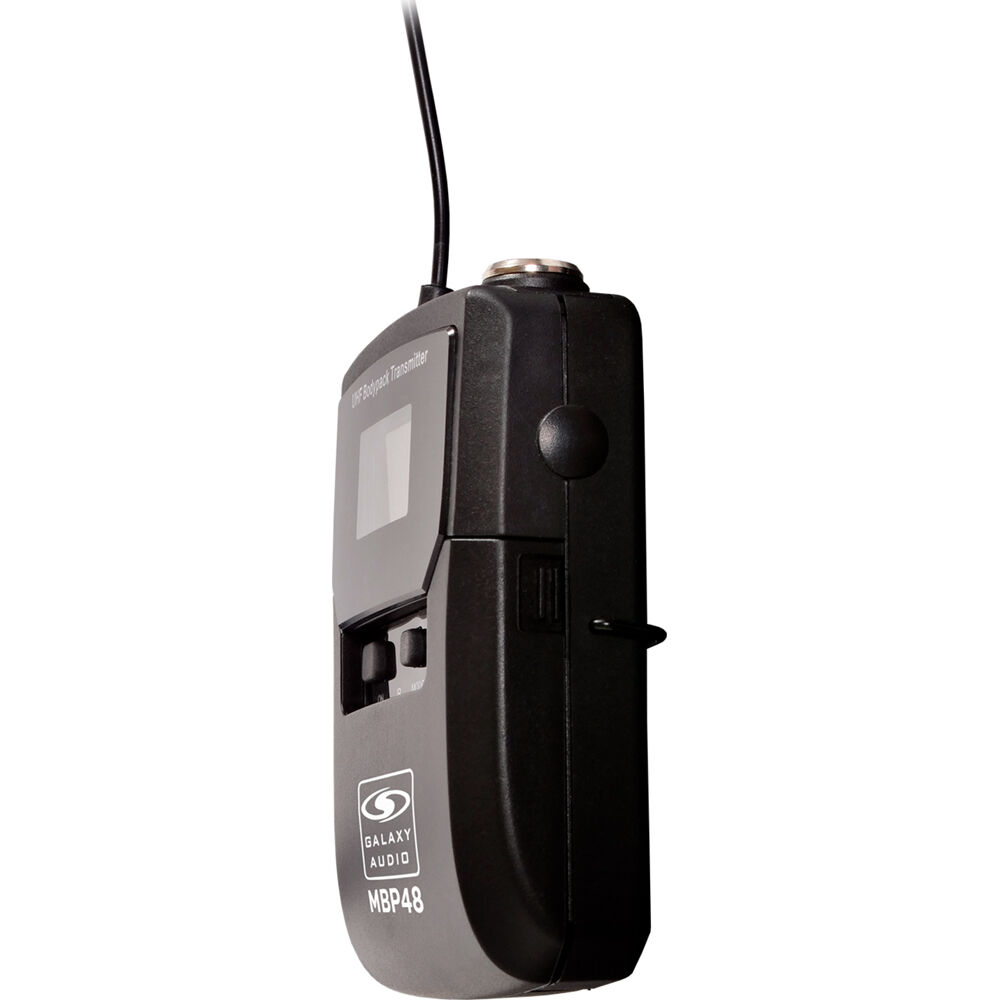

- Galaxy Audio HH48 Digital Bodypack Wireless Transmitter for CSL Systems (516 to 558 MHz)

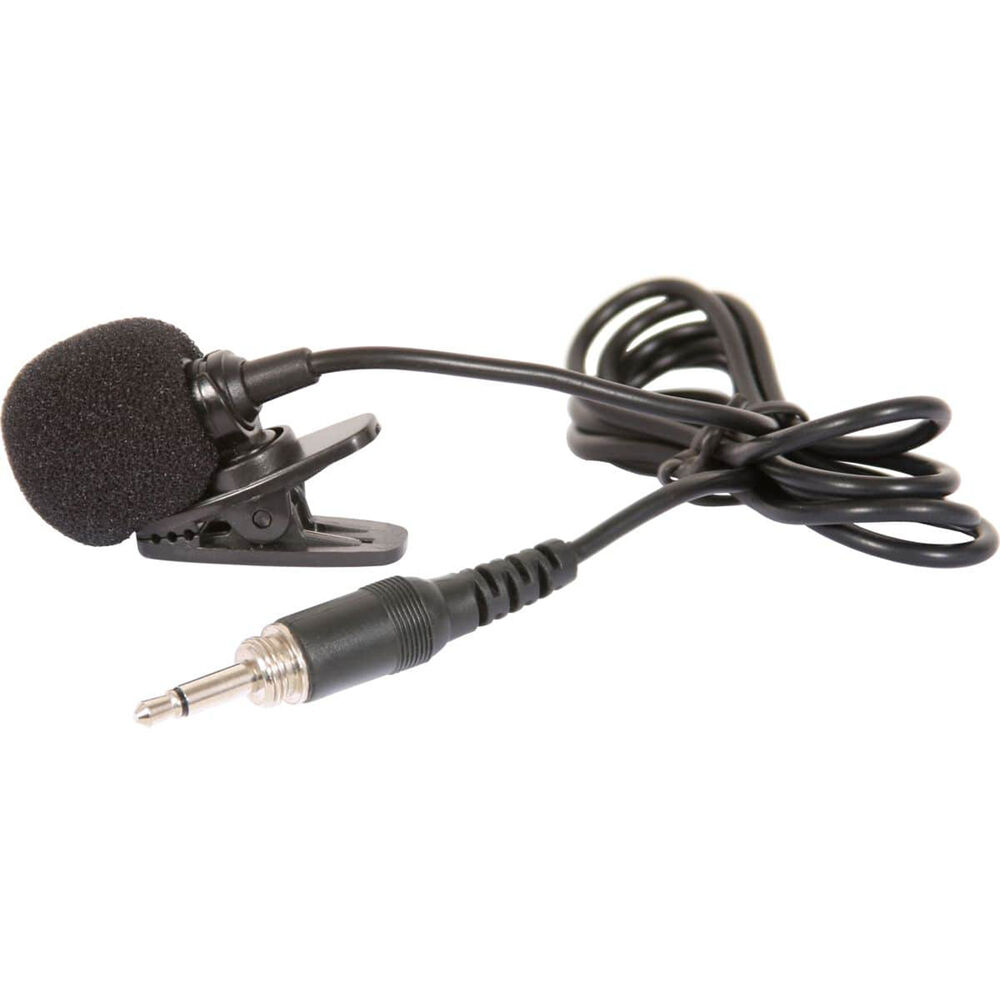

- LV13-UBK-GAL Lavalier Microphone
- Limited 3-Year Manufacturer Warranty
-
BatteriesEssential
Galaxy Audio CSL Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| Max Operating Range |
300' / 91.4 m
|
| Receiver Type |
1x Tabletop/Rack-Mountable
|
| Number of Audio Channels |
1
|
| Included Transmitters |
1x Bodypack
|
| Microphone Type |
1x Lavalier
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
516 to 588 MHz
|
| Max Operating Range |
300' / 91.4 m
|
| Encryption |
Yes (Unspecified Type)
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Tabletop/Rack-Mountable
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U Half-Rack)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
1
|

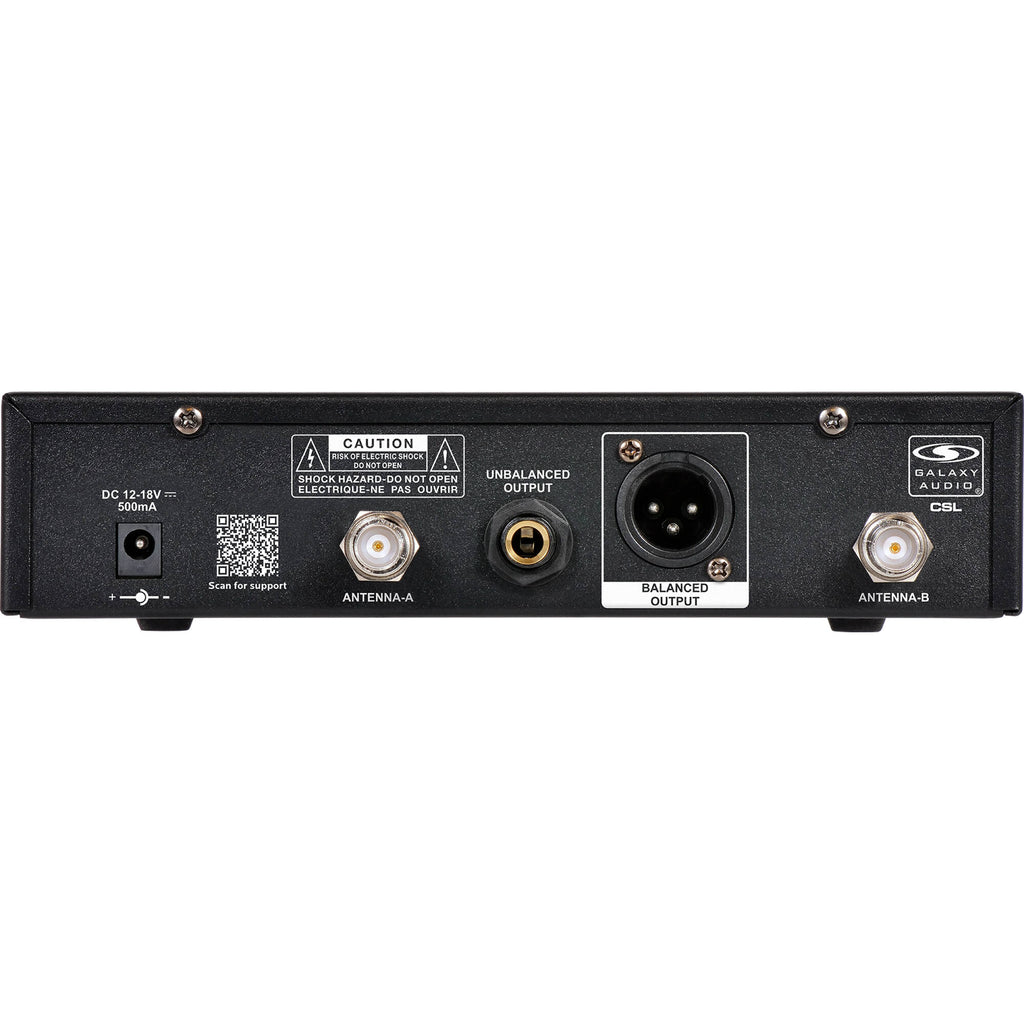

| Audio I/O |
1x 1/4" TS Unbalanced Output
1x XLR 3-Pin Balanced Output |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Frequency Response |
50 Hz to 16 kHz
|
| Display |
Backlit LCD
|
| Power Requirements |
AC/DC Power Adapter
|
| Included Transmitters |
1x Bodypack
|
| RF Output Power |
10 mW
|
| Antenna |
Fixed
|
| Input Level |
Microphone / Instrument
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Input
|
| USB I/O |
No
|
| Muting |

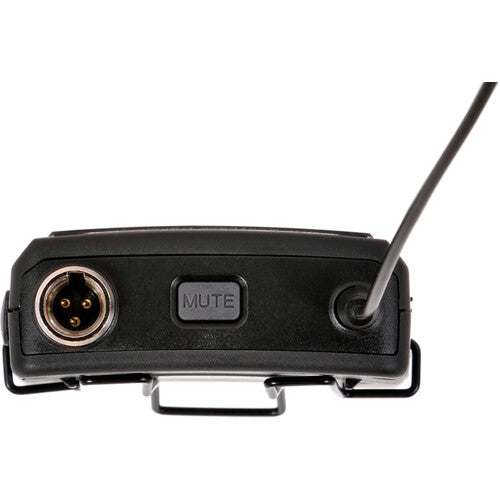

Mute Switch
|
| Auto-Level/Gain |
No
|
| Sync Method |
IR
|
| Display |
Backlit LCD
|
| Microphone Type |
1x Lavalier
|
| Polar Pattern |
Unidirectional
|
| Frequency Response |
100 Hz to 20 kHz
|
| Sensitivity |
-64 dB
|
| Color |
Black
|
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hours
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 to 18 VDC at 500 mA (Included)
|
| Input Power |
12 to 18 VDC at 500 mA
|
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
8.3 x 7 x 1.8" / 210 x 178 x 45 mm Bodypack Transmitter: 3.3 x 2.4 x 1" / 84 x 62 x 26.4 mm |
| Weight |
Receiver:
2 lb / 890 g Bodypack Transmitter: 2.6 oz / 74 g |
