Description
Galaxy Audio CSL Overview
The Galaxy Audio CSL-GM is a single-channel, digital UHF diversity wireless guitar system designed to deliver reliable, cable-free performance for electric instruments. Operating in the 516 to 558 MHz frequency band, the CSL-GM combines stable digital transmission with intelligent frequency management for consistent results on stage and in rehearsal environments.
The system features automatic frequency scanning and an integrated RF spectrum analyzer to help identify clean operating frequencies quickly. IR sync allows fast and accurate pairing between the receiver and the included bodypack transmitter. A built-in 7-band equalizer provides tone-shaping control directly from the receiver, while color-changing LCD displays offer clear visibility of system status and settings.

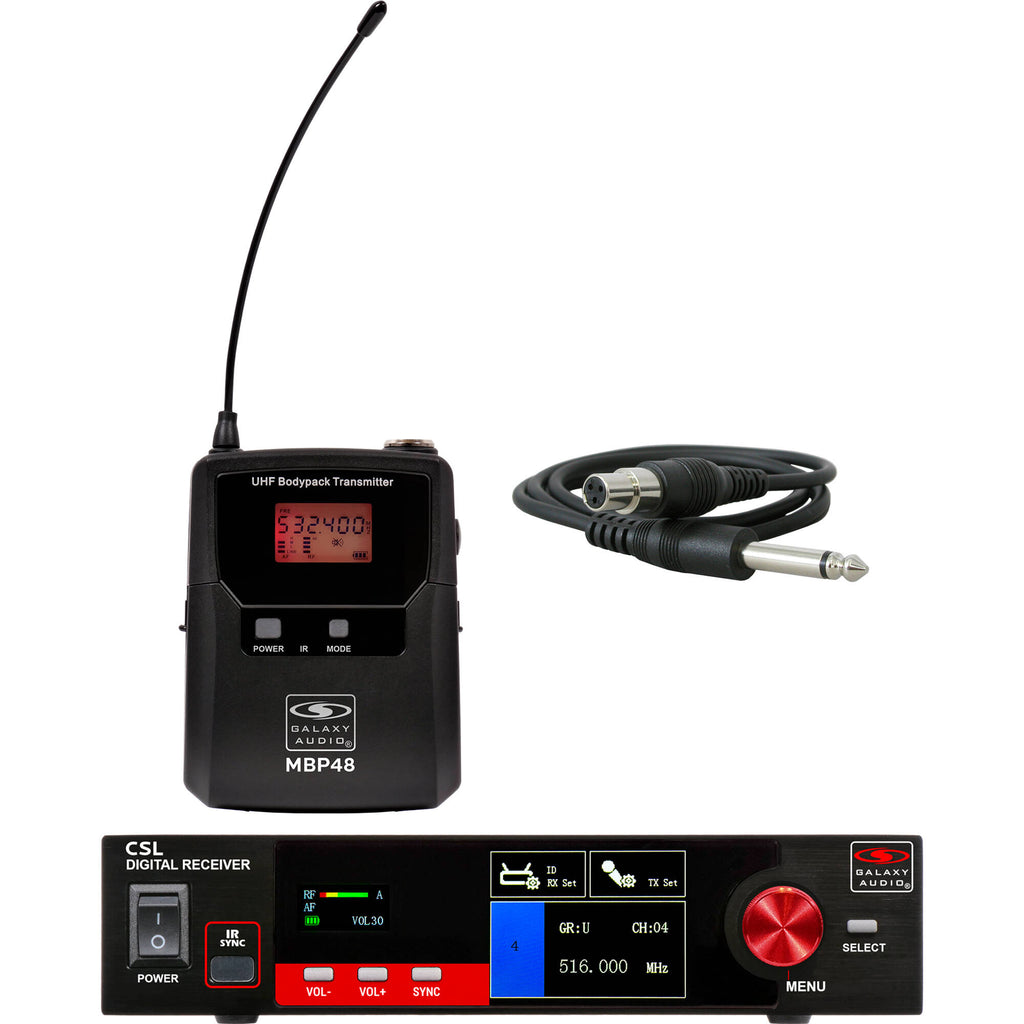

The CSL-GM includes a diversity receiver, a bodypack transmitter, a 1/4" instrument cable, and a rackmount kit, making it ready for portable or installed setups. With a wireless operating range of up to 300 feet, the Galaxy Audio CSL-GM delivers dependable digital performance and flexibility for musicians and performers.
- Galaxy Audio CSL-GM Wireless Guitar System (516 to 558 MHz)

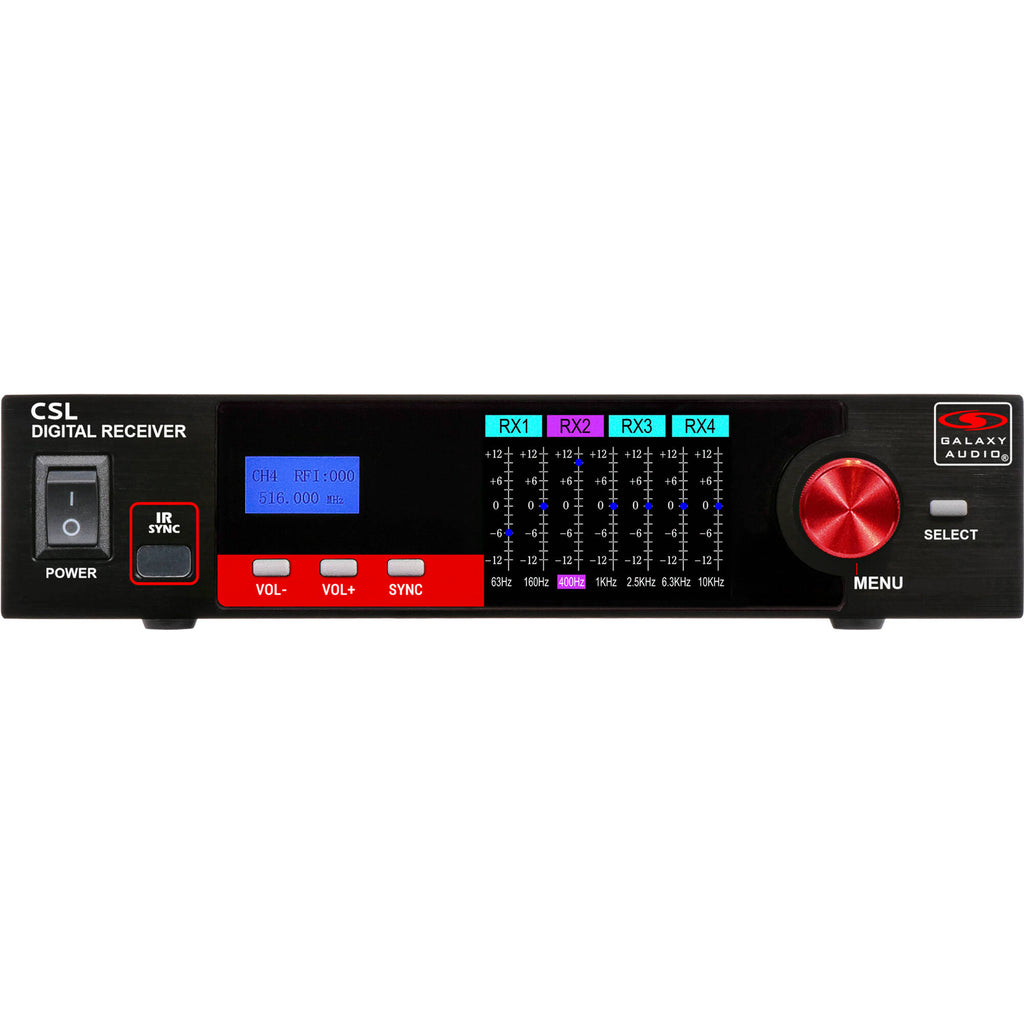

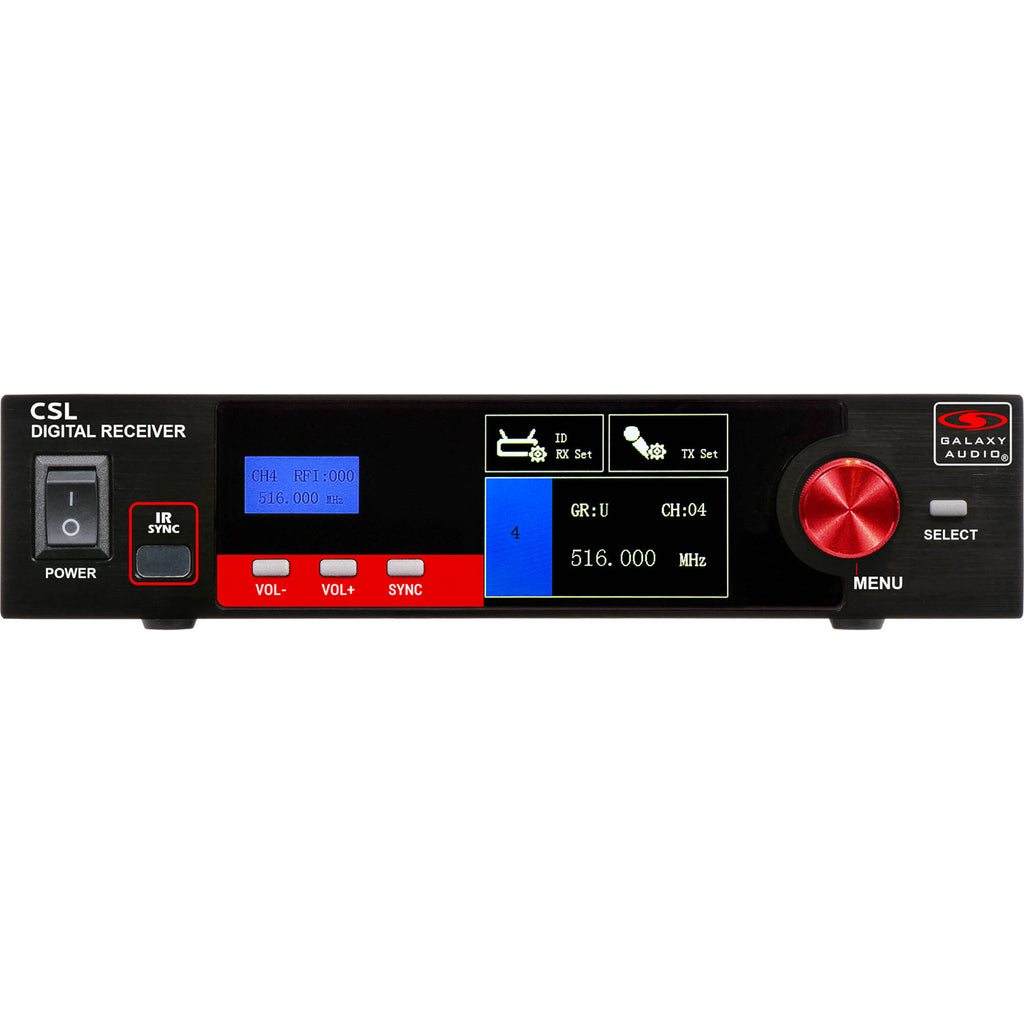

- Single-Channel Tabletop/Rackmount Receiver
- Power Supply
- Rackmount Kit

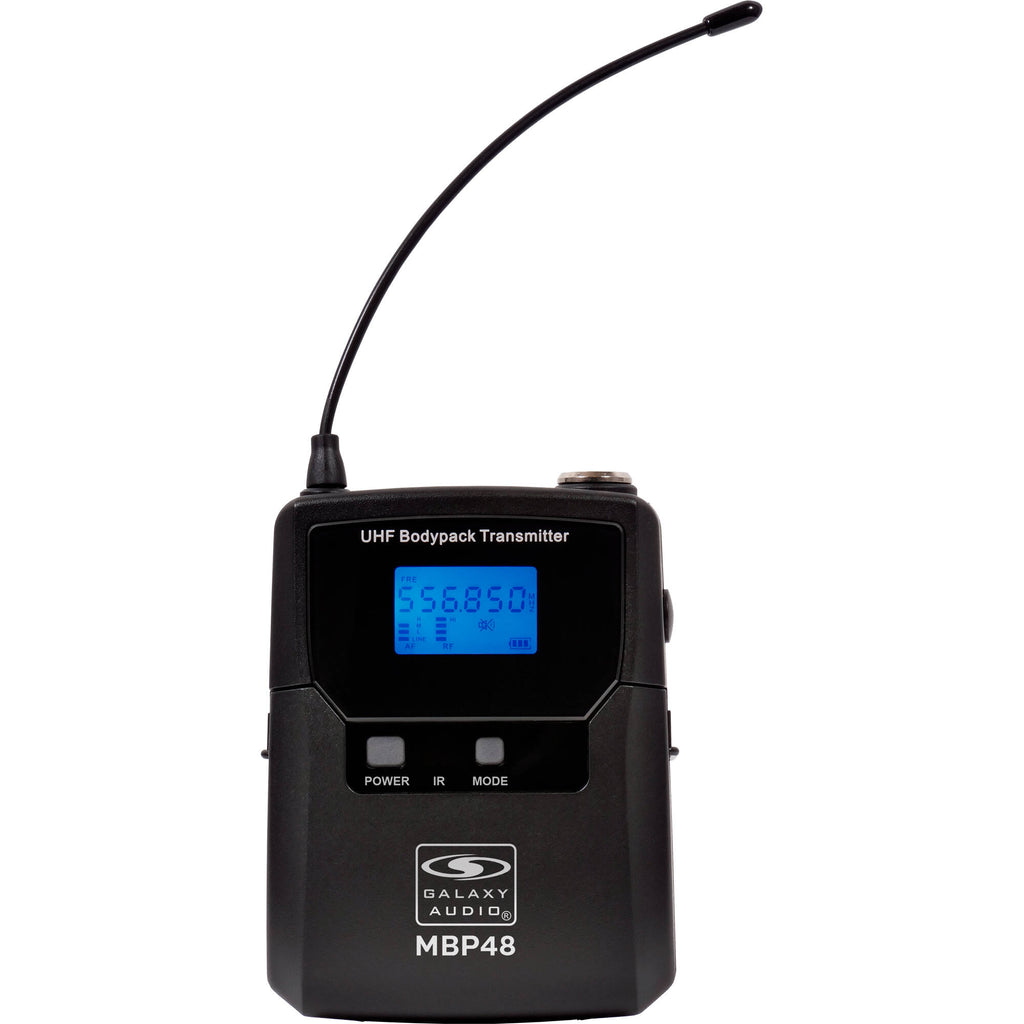

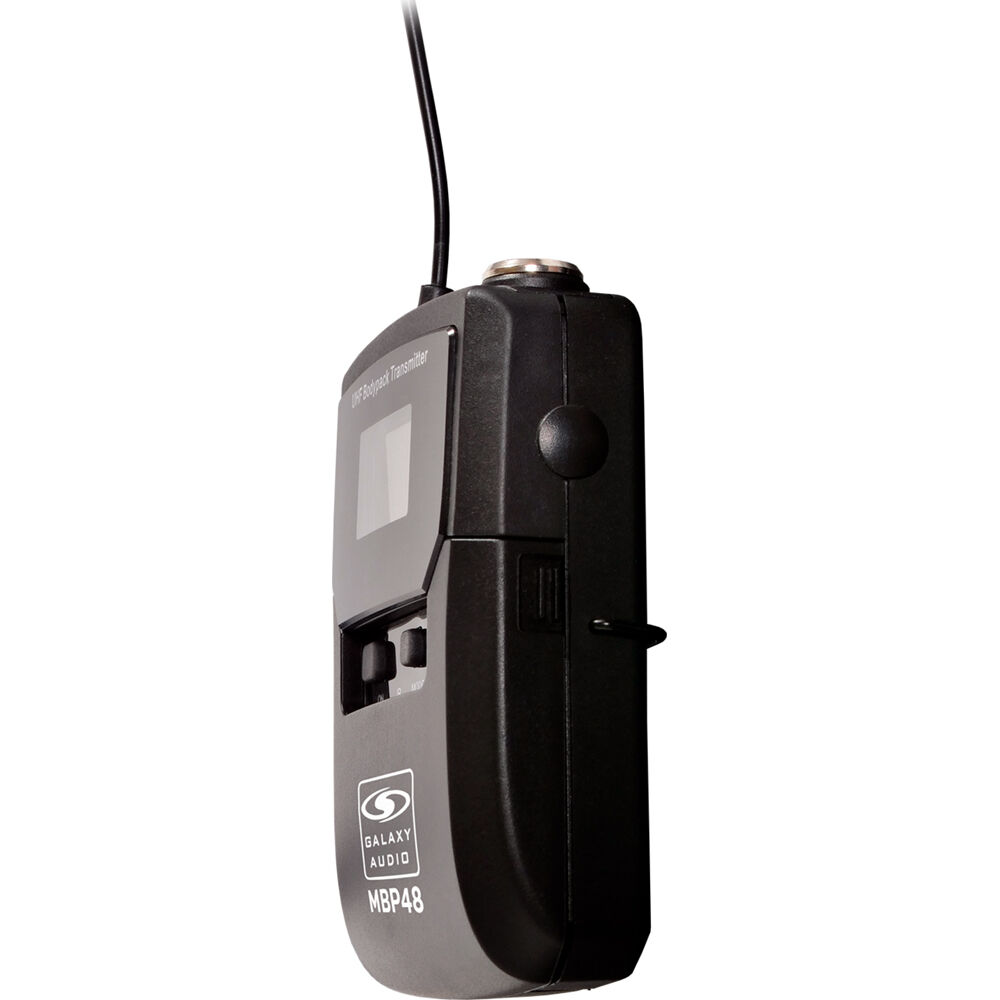

- Galaxy Audio HH48 Digital Bodypack Wireless Transmitter for CSL Systems (516 to 558 MHz)
- Guitar Cable
- Limited 3-Year Manufacturer Warranty
-
BatteriesEssential
Galaxy Audio CSL Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| Max Operating Range |
300' / 91.4 m
|
| Receiver Type |
1x Tabletop/Rack-Mountable
|
| Number of Audio Channels |
1
|
| Included Transmitters |
1x Bodypack
|
| Microphone Type |
No Microphone Included
|
| Intended Sound Sources |
Electric Guitar, Electric Bass
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
516 to 588 MHz
|
| Max Operating Range |
300' / 91.4 m
|
| Max Transmitters per Band |
4
|
| Latency |
< 3 ms
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Tabletop/Rack-Mountable
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U Half-Rack)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
1
|

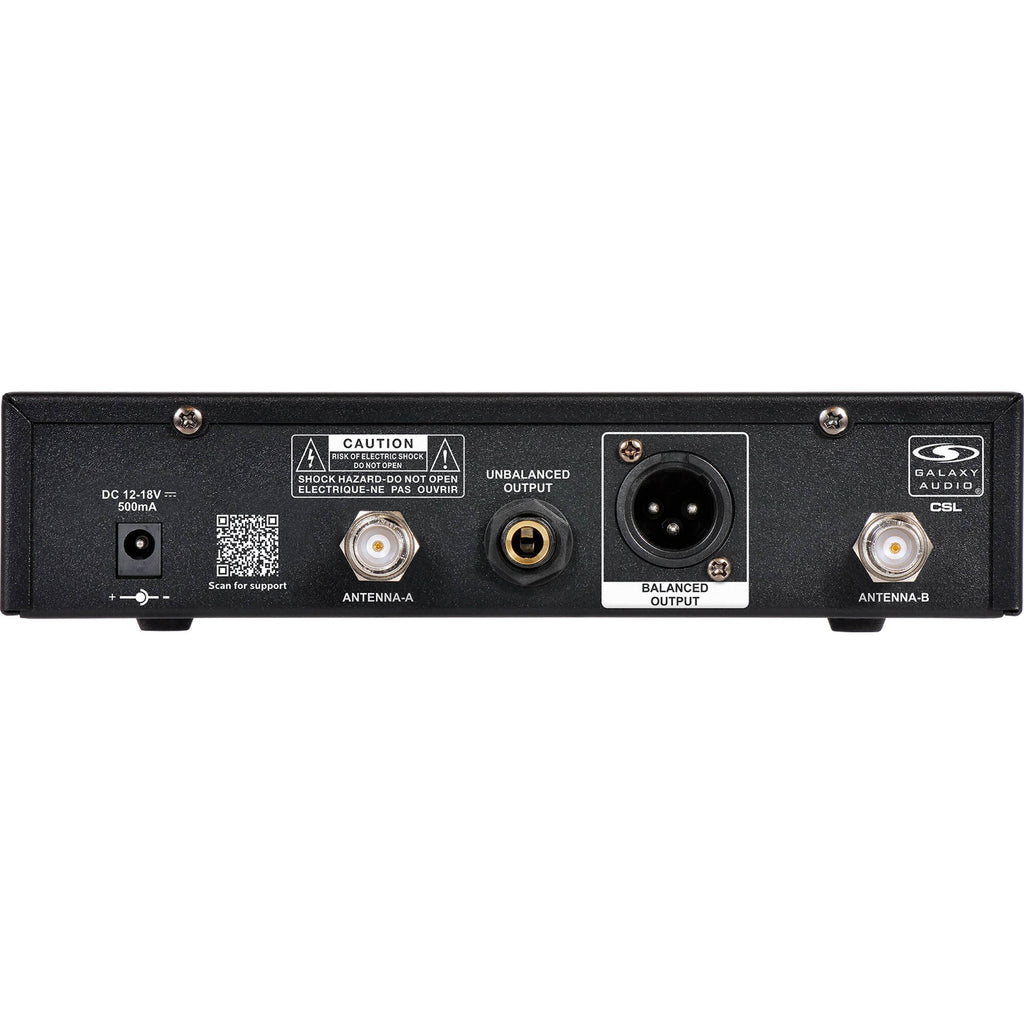

| Audio I/O |
1x 1/4" TS Unbalanced Output
1x XLR 3-Pin Balanced Output |
| USB/Lightning Connectivity |
No
|
| Frequency Response |
50 Hz to 16 kHz
|
| Display |
Backlit LCD
|
| Power Requirements |
AC/DC Power Adapter
|
| Included Transmitters |
1x Bodypack
|
| RF Output Power |
10 mW
|
| Antenna |
Fixed
|
| Input Level |
Microphone / Instrument
|
| Audio I/O |
1x TA3F/Mini-XLR 3-Pin Female Input
|
| USB I/O |
No
|

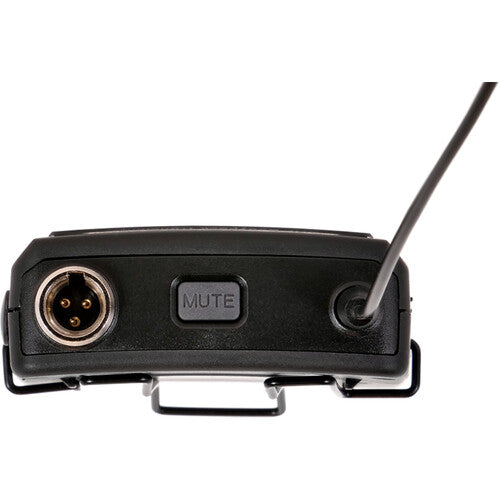

| Muting |
Mute Switch
|
| Auto-Level/Gain |
No
|
| Sync Method |
IR
|
| Display |
Backlit LCD
|
| Microphone Type |
No Microphone Included
|
| Intended Sound Sources |
Electric Guitar, Electric Bass
|
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hours
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 to 18 VDC at 500 mA (Included)
|
| Input Power |
12 to 18 VDC at 500 mA
|
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
8.3 x 7 x 1.8" / 210 x 178 x 45 mm Transmitter: 3.3 x 2.4 x 1" / 84 x 62 x 26.4 mm |
| Weight |
Receiver:
2 lb / 890 g Transmitter: 2.6 oz / 74 g |
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
