Description
Gabor SCP-770 Overview
- 1 Description
- 2 Drop Ceiling Mounting
- 3 Lateral Projector Adjustment
- 4 Universal 1.5" NPT Attachment
- 5 Preassembled Installation
- 6 Cable Support System
- 7 Optional Outlets

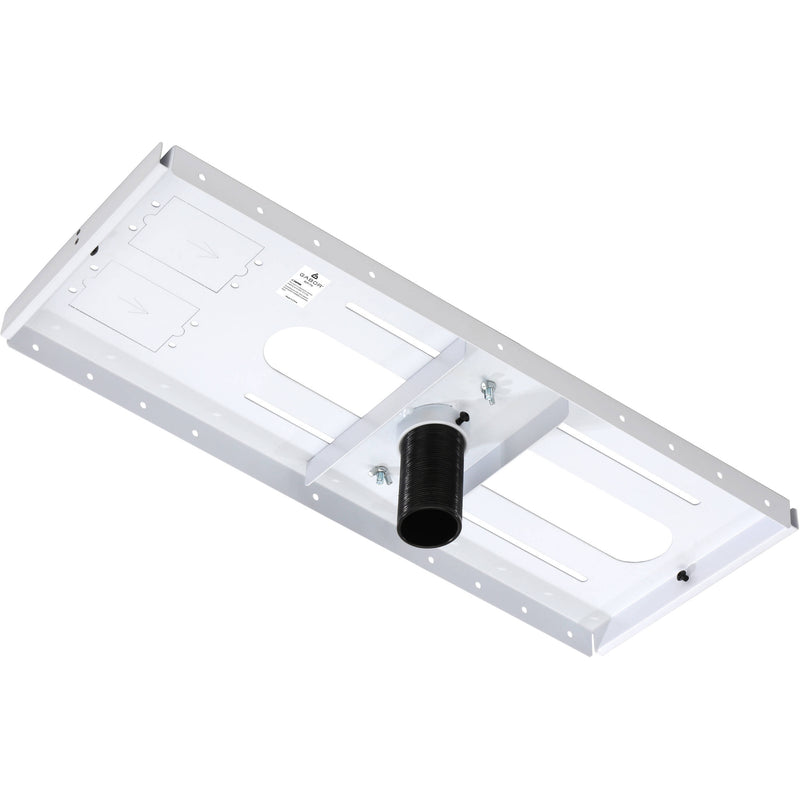

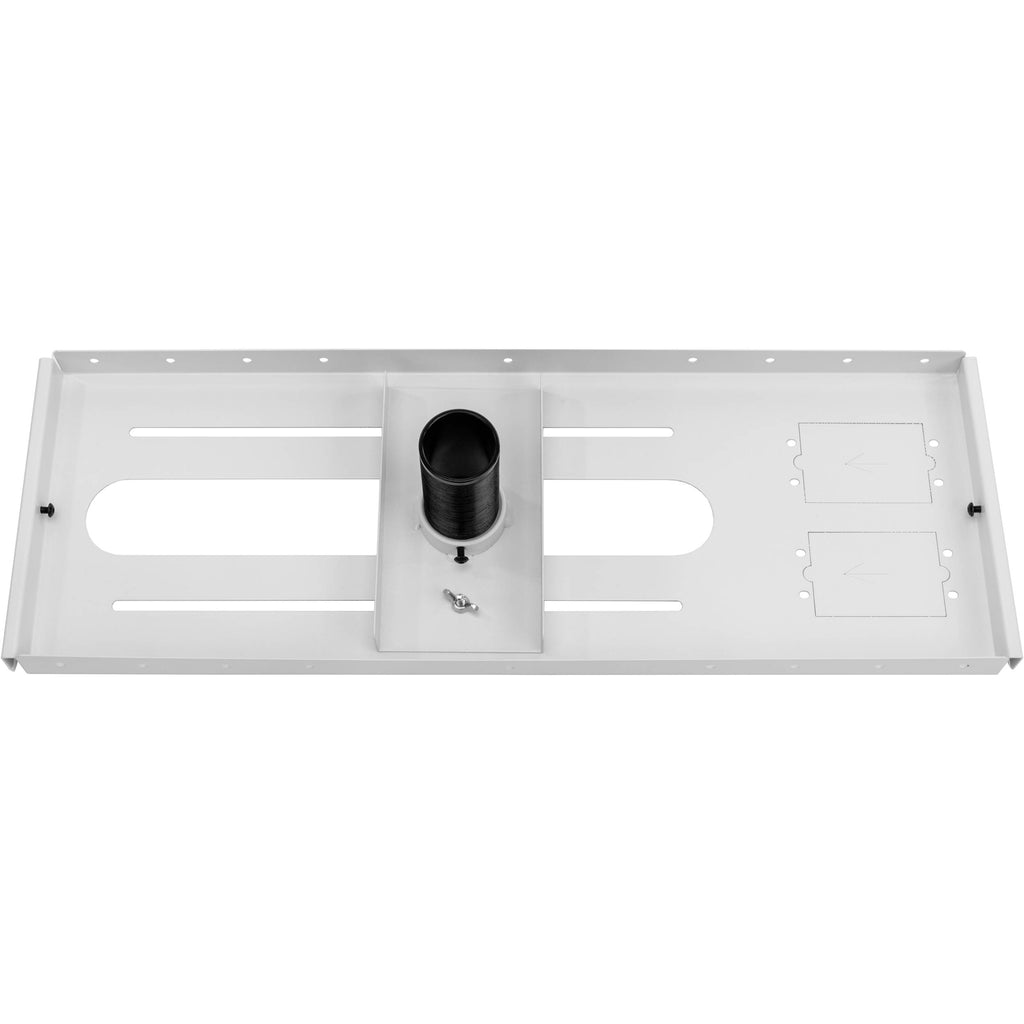

Mount your projector to your drop ceiling cleanly with this Gabor Suspended Ceiling Mounting Plate . It has a 4" long 1.5" NPT column for universal mount and extension column compatibility and provides lateral adjustment of your projector. The plate has a 60 lb weight capacity with a locking cable support system and features two knockouts for installing optional electrical boxes or cable junctions.
Drop Ceiling Mounting
The drop ceiling plate fits over the ceiling grid, above tiles measuring 2 x 2' or 2 x 4', and allows just the projector to be exposed, providing a discreet mounting solution for use in classrooms, conference rooms, or home theaters.
Lateral Projector Adjustment
This plate provides lateral adjustment, enabling you to fine-tune the projector's placement.
Universal 1.5" NPT Attachment
The 1.5" NPT interface allows for use with a variety of mounts and extension columns. You can affix optional extension columns of different lengths to accommodate various ceiling heights and installation angles. The included 4" column is designed to provide a clean, discreet look.
Preassembled Installation
The mounting plate comes preassembled to help reduce installation time.
Cable Support System
A locking four-cable support system provides security for the weight of the mounting plate and your projector. They attach to concrete, wood studs, or metal truss supports near the plate's installation point. The locks feature a push-button locking mechanism, allowing you to easily adjust the tension of the cables and lock them into position.
Optional Outlets
The ceiling plate features two knockouts for optional outlets that can provide power and video hookups for easy access. The outlets sit flush against your ceiling and offer a cleaner look than having cables running along the ceiling or wall.
UPC: 847628011854
In the Box
- Gabor Suspended Ceiling Mounting Plate
- 4" Flush Column
- Ceiling Tile Cutter
- 4 x Support Cables
- Escutcheon Plate
- 4 x Cable Locks
- 4 x Screw Eyes
- 4 x Anchor Screws
- 4 x Concrete Anchors
- 3 x Hex Screws
- Hex Key
- Limited 5-Year Warranty
Table of Contents
- Description
- Drop Ceiling Mounting
- Lateral Projector Adjustment
- Universal 1.5" NPT Attachment
- Preassembled Installation
- Cable Support System
- Optional Outlets
Gabor SCP-770 Specs
| Compatibility | Drop Ceilings with Tiles Measuring 2 x 2 or 2 x 4' / 0.61 x 0.61 or 0.61 x 1.22 m |
| Weight Capacity | 60 lb / 27.22 kg |
| Mount Compatibility | 1.5" NPT |
| Column | Length: 4" / 101.6 mm |
| Adjustments | Lateral Column Shift, Variable Column Height |
| Knockouts | 2 x Electrical Box Knockouts |
| Overall Dimensions (W x H x D) | 24.5 x 1.2 x 8.3" / 62.2 x 3 x 21.1 cm |
| Weight | 4.6 lb / 2 kg |
Packaging Info
| Package Weight | 6.475 lb |
| Box Dimensions (LxWxH) | 25.1 x 8.5 x 2.2" |
