Description
- Power Sequencing
- Noise Filtration
- Surge Protection
- 9 Total Outlets
- 15 Amp Rating
- "Protection OK" Indicator
- Spaced Outlets for Bulky Adapters
The Merit M-8S from Furman is an AC power sequencing solution for your rack mount system. Install an M-8S in your rack, and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load. There is also an additional unswitched single outlet on the front of the unit for convenience.
- Features:
-
- Standard level AC protection and filtering

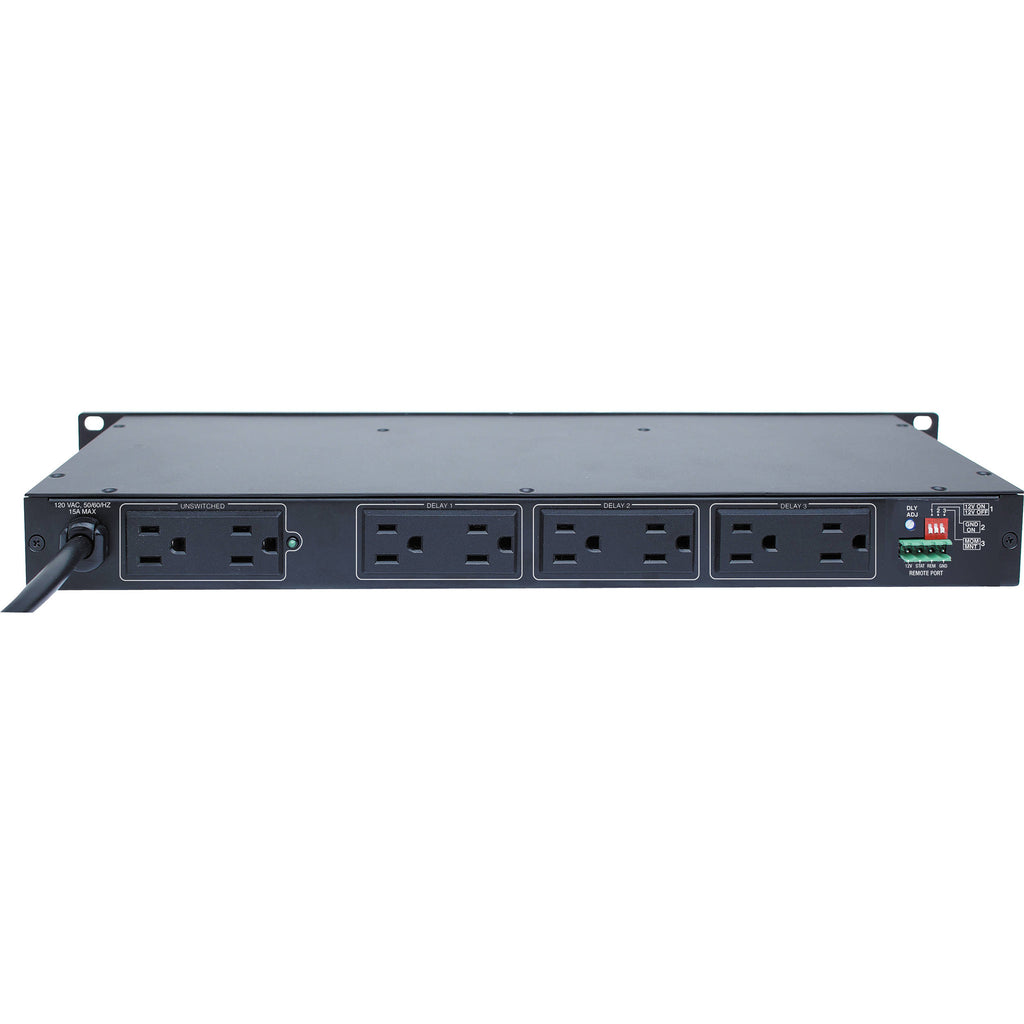

- Six configurable delayed rear panel outlets (in 3 groups), two unswitched rear panel outlets, and one front panel unswitched outlet
- Momentary and Maintained sequencing via rear panel terminal block or front panel switch (momentary only)
- All settings and configurations available on rear panel
- 15 amp rating
UPC: 654061041078
| Maximum Output Current | 15 amps, 120 VAC (thermal breaker) |
| Line Cord | 14 AWGx3, 10 feet, black, fixed, NEMA 5-15P plug |
| AC Receptacles | Convenience Outlet (Front Panel): 1 un-switched NEMA 15-5R Rear Panel Outlets: 2 un-switched NEMA 5-15R (1 duplex) 6 Sequenced Outlets: NEMA 5-15R (3 duplexes, each controlled by separate relay)
|
| AC Surge Protection | Merit class (sacrificial) |
| Protection Modes | Line to neutral, zero ground leakage (spike protection) |
| Operating Voltage | 130 V RMS (max continuous) |
| Max Clamp Voltage | 500 V peak |
| Peak Impulse Current | 12,000 amps |
| Energy Rating | 225 joules |
| Filtering | Standard level Pi LCR filter (AC) |
| Noise Attenuation | > 26 dB, 100 kHz to 1 MHz |
| Operating Temperature Range | 5 C (40 F) to 40º C (105º F) |
| Humidity Range | < 90% rH (relative humidity) |
| Switch | Front panel, sequence (ON, OFF) |
| Circuit Breaker | Front panel, push to reset (thermal) |

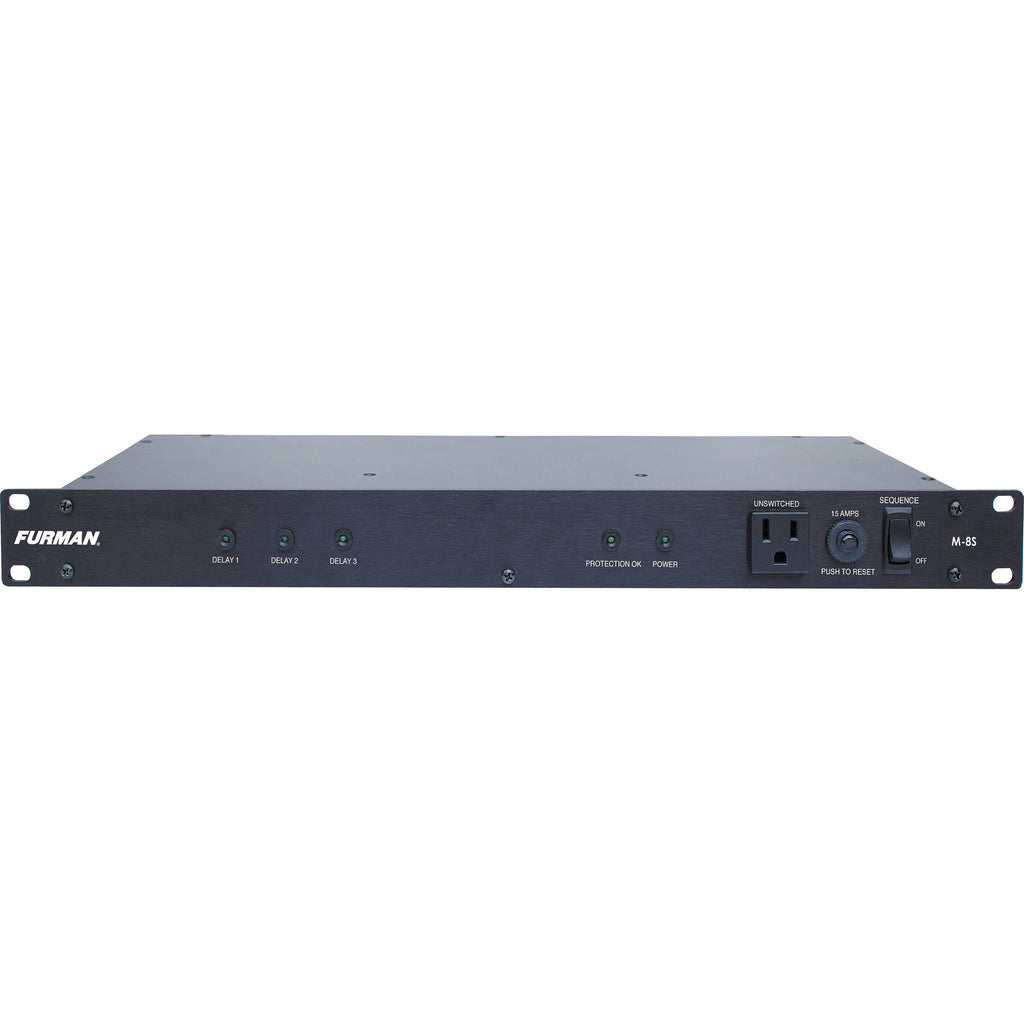

| Front Panel Indicators | Delay 1, delay 2, delay 3, power, protection OK |
| Dip Switches | 12V Mode on/off, GND mode on, momentary/maintained (rear panel) |
| Potentiometer | Rear panel, time calibration fine tune delay adjust |
| Remote Terminal | +5-30 VDC In, 12 VDC (12 mA) out Phoenix type 4-pin connector with screw terminals; +12V, STAT, REM, GND (class 2 wiring) |
| Dimensions | 19.00 x 8.75 x 1.75" (482.60 x 222.30 x 44.50 mm) |
| Weight | 7.00 lb (3.18 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.5 lb |
| Box Dimensions (LxWxH) | 21.5 x 9.0 x 3.5" |
In the Box
Furman Merit M-8S Power Sequencer
- Limited 3-Year Warranty
