Description
- Protects Your Valuable Equipment
- Regulated & Conditioned Power
- Eight AC Outlets in Rear & One on Front
- Over/Under Voltage Shutdown
- 2-Color Meter Indicates Input Voltage

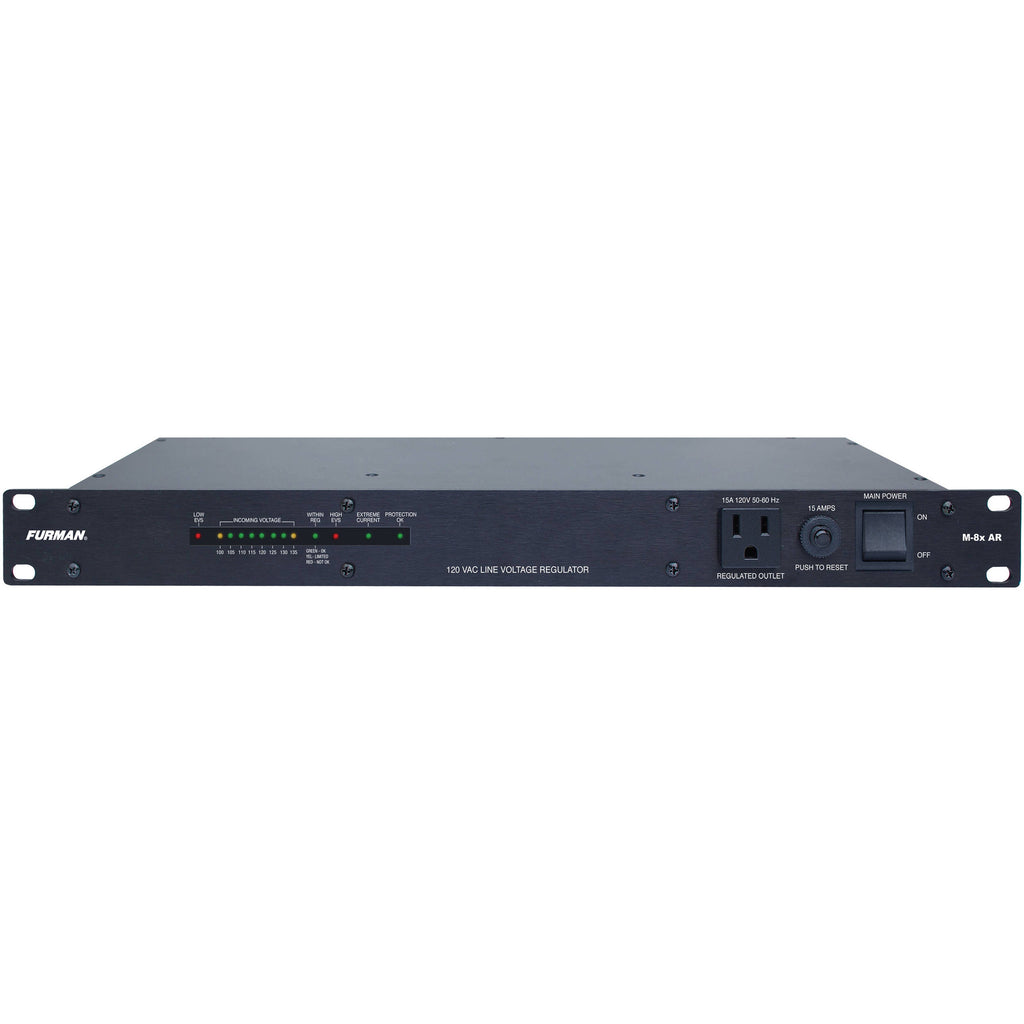

The M-8x AR Voltage Regulator from Furman is intended to protect your sensitive electronic equipment from problems caused by AC line voltage irregularities such as brownouts, sags, and over-voltage conditions. Such irregularities can cause audio tonal changes, digital equipment malfunctions such as loss of MIDI programs or other data, or in extreme cases, permanent damage. The M-8x AR can be used in a variety of pro audio and A/V applications common in studio recording, live sound reinforcement and other scenarios.
- Features at a Glance
-

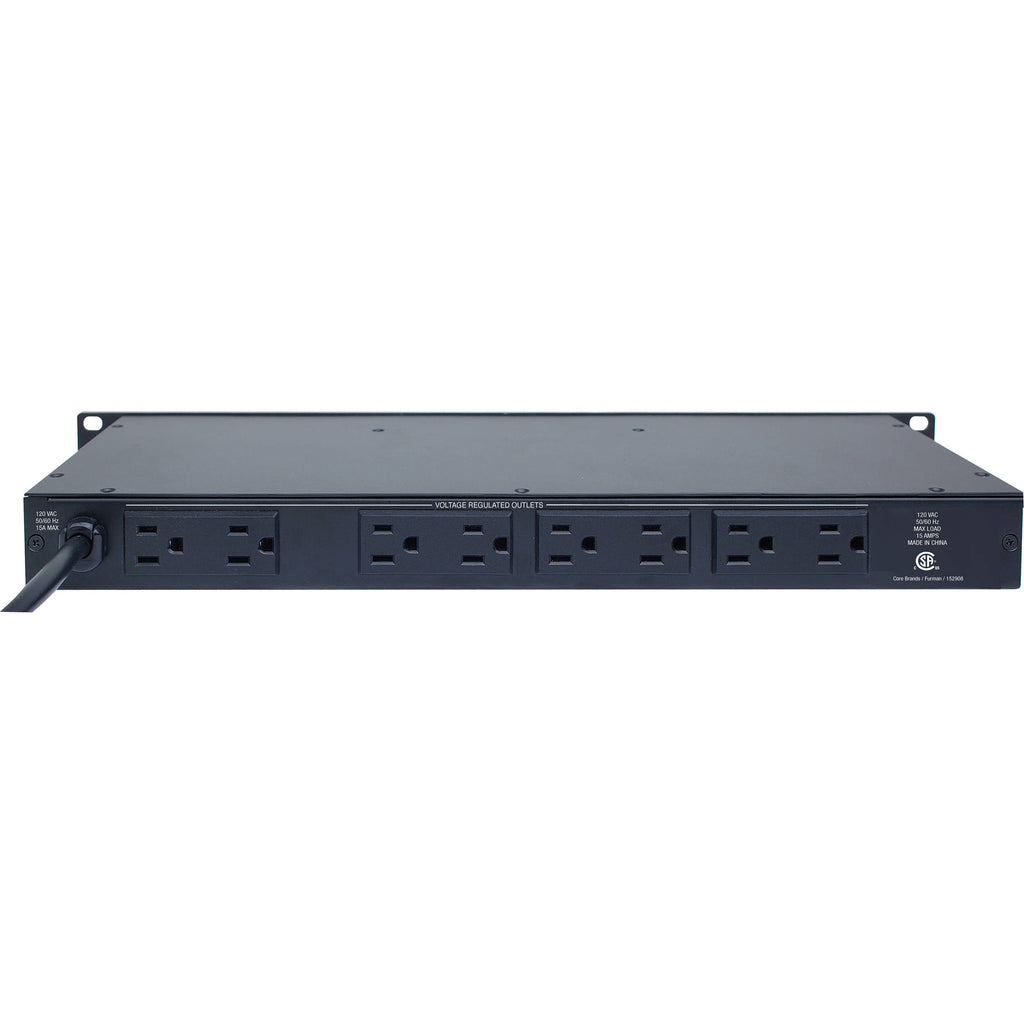

- Provides nine total regulated, conditioned AC outlets with eight on the rear panel and one on the front
- Input capacity is 15 A; output capacity is 12 to 15 A
- Extreme over-voltage (instant) shutdown and under-voltage (delayed) shutdown, safeguard connected equipment
- Extreme Voltage Shutdown (EVS) indicator LED
- Extreme over-current shutdown protects regulator and connected equipment
- Extreme Current Shutdown (ECS) indicator LED
- Tri-color "In-Regulation" indicator
- Protection OK indicator
- Eight element, 2-color bar graph meter to indicate input line voltage
- User accessible thermal circuit breaker protects against overload
- Low noise toroidal autotransformer with very low stray magnetic field leakage
- Front Panel ON/OFF switch
- Compact, lightweight unit weighs 15.75 lb (7.15 kg)
UPC: 654061041146
| Nominal Input Voltage | 120 VAC 50/60 Hz |
| Regulation capture range: | 97 VAC to 141 VAC |
| Output Voltage | 120 VAC ±5 V |
| Output Current | 15 Amps for input voltages of 124 V |
| Output Current | 113 mA per volt to a minimum of 12.3A at 100 V (de-rating) |
| Voltage Shutdown Range | Less than 75 V or greater than 145 V |
| ECS Shutdown Range | Within 10 cycles at 100 A, and within 1 cycle for currents greater than 200 A |
| Accuracy | ±5 VAC (voltmeter) |
| Protection Modes | L-N |
| Spike Clamping Voltage | TVSS rating of 400 volts peak at 500 A, L-N (tested to UL-1449 3rd Ed.) |
| Response Time | 1 nanosecond |
| Maximum Surge Current | 15,000 Amps |
| Maximum spike energy | 225 joules |
| Noise Attenuation | Transverse: -16dB @ 10KHz, -33dB @ 100 kHz, -48 dB @ 400 KHz |
| Safety | cCSAus |
| EMI | FCC Part 15 Class B |
| Dimensions | 1.75 x 19.00 x 11.00" (4.45 x 48.30 x 28.00 cm) |
| Weight | 15.75 lb (7.15 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 17.6 lb |
| Box Dimensions (LxWxH) | 22.0 x 14.0 x 4.0" |
In the Box
Furman M-8x AR Voltage Regulator
- Limited 3-Year Warranty
