Description

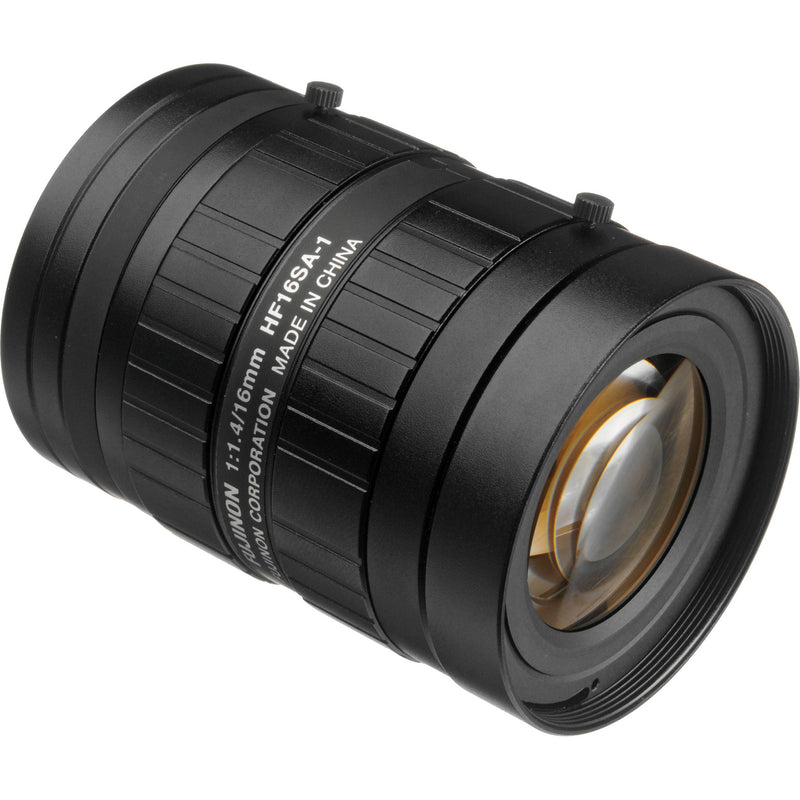

Designed for factory automation and machine vision applications, the Fujinon HF16SA1 high resolution C-mount lens supports digital cameras up to 5 mega pixel and uses superior optics to achieve corner-to-corner performance with low distortion. Requiring a minimum focusing range of only 0.1 meter, this compact and robust lens features a rear focusing system and is particularly suited for applications where highly detailed close-up imaging is a priority. Additionally, this lens employs a ring lock system to prevent focus and iris shifting when used on vibrating machinery.
- High Resolution
- Designed for digital cameras up to 5 mega pixel, this lens employs superior optics to achieve quality corner-to corner performance with low distortion and features a wide-aperture (f/1.4) design to enhance image illumination in low light conditions.
- Compact & Robust
- Engineered for machine vision and factory automation applications, this compact and robust lens is designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.
- Ring Lock
- Employs a ring lock mechanism to prevent focus and iris shift when used on vibrating machinery.
| Imager Size | 2/3" |
| Mount | C |
| Focal Length | 16mm |
| Iris Range | F1.4 ~ F22 |
| Focus Operation | Manual |
| Iris Operation | Manual |
| Angle of View | 2/3": 30° 45' x 23° 18' 1/2": 22° 37' x 17° 04' 1/3": 17° 04' x 12° 50' |
| Object Dimensions | 2/3": 69 x 51 1/2": 50 x 37 1/3": 37 x 28 |
| Focusing Range | 0.1m |
| Back Focus | 17.99mm (in air) |
| Filter Thread | M49 |
| Weight | 0.6 lb 285 g |
| Packaging Info | |
|---|---|
| Package Weight | 0.72 lb |
| Box Dimensions (LxWxH) | 4.3 x 3.0 x 3.0" |
In the Box
Fujinon HF16SA1 2/3" 16mm f/1.4 C-Mount Fixed Focal Lens for 5 Mega Pixel Cameras
- 1 Year parts & labor warranty
