Description
- PL Mount 20-120mm Zoom Lens
- T3.5 Maximum Aperture with 9 Iris Blades
- 31.5mm Diameter Image Circle
- Removable ENG-Style Digital Drive
- Standard 0.8 Film Pitch Gears
- Power and Control Connections to Camera
- LDS and /i Technology Lens Data
- 200-Degree Focus Rotation
- Macro Focus Function
- Flange Focal Distance Adjustment

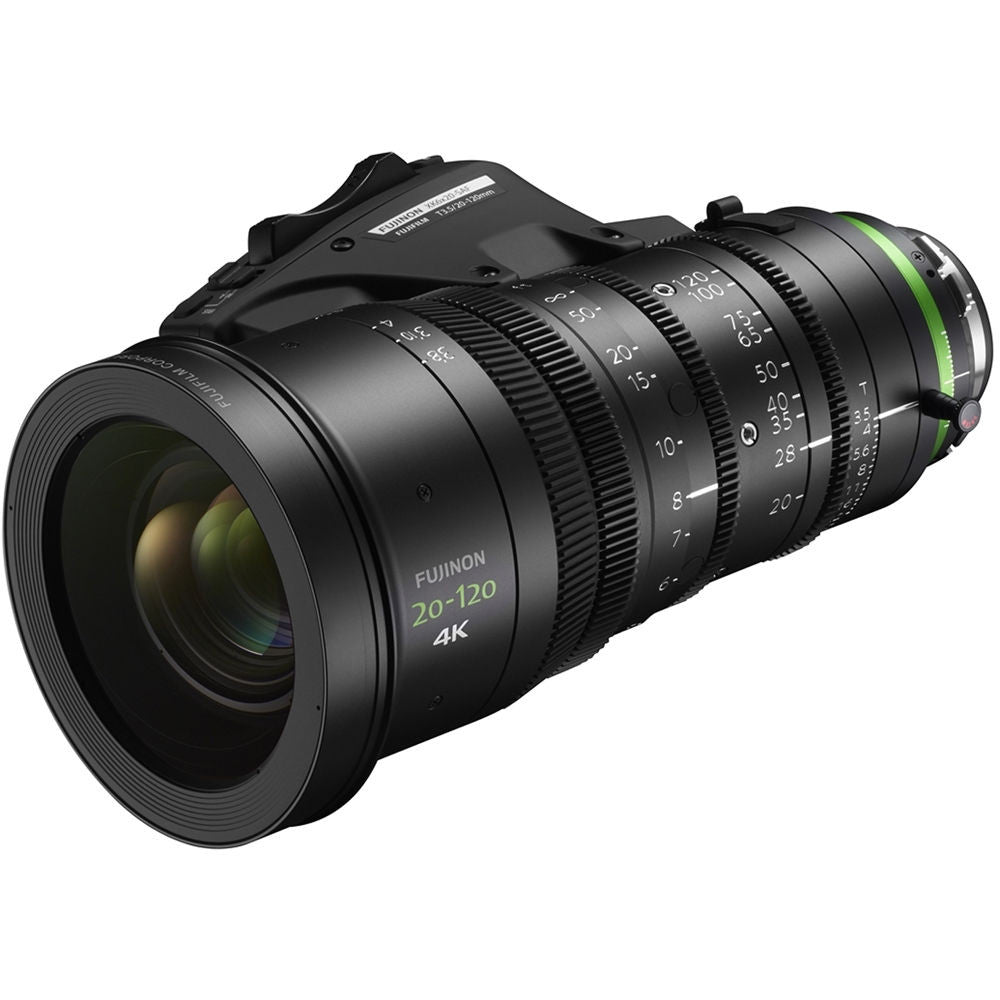

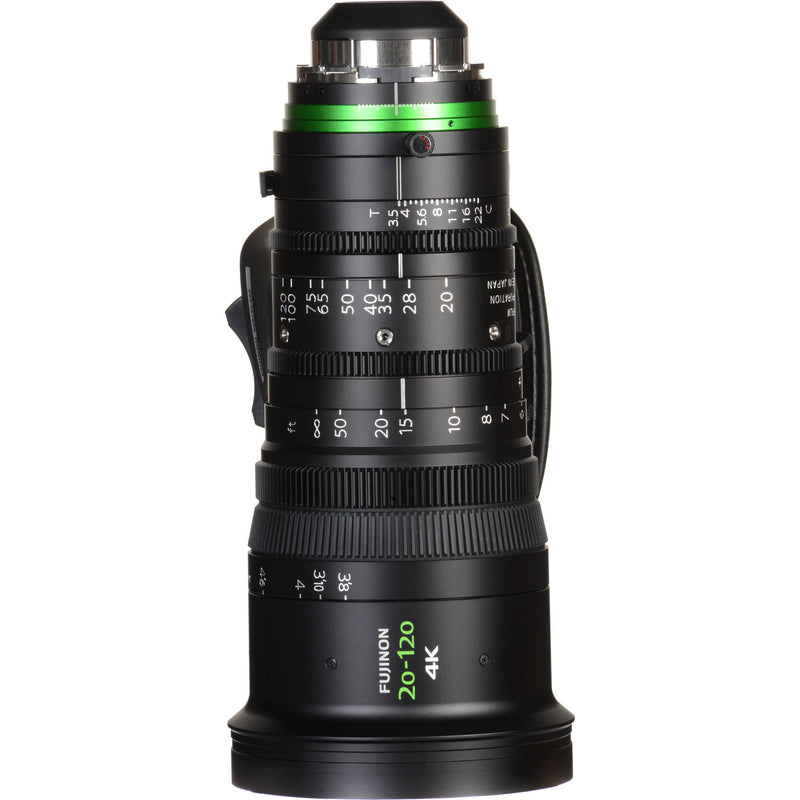

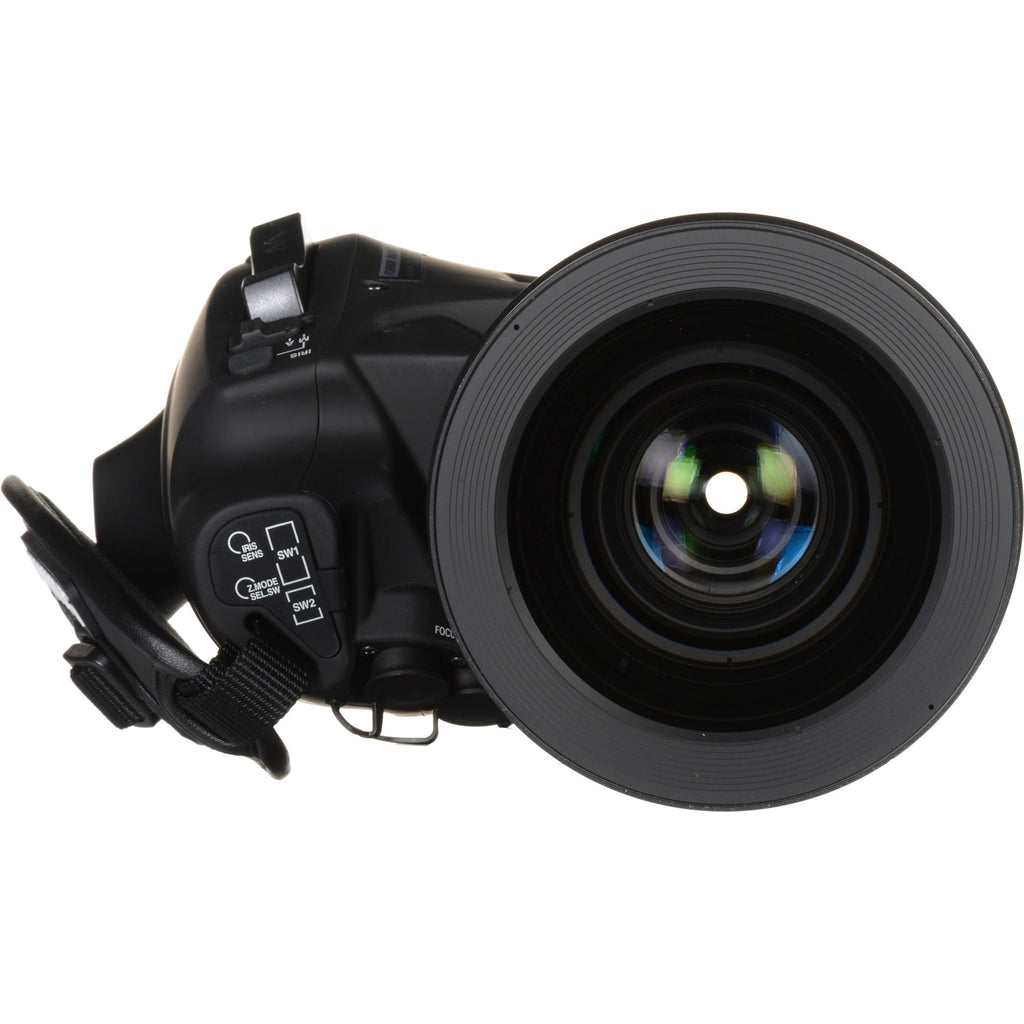

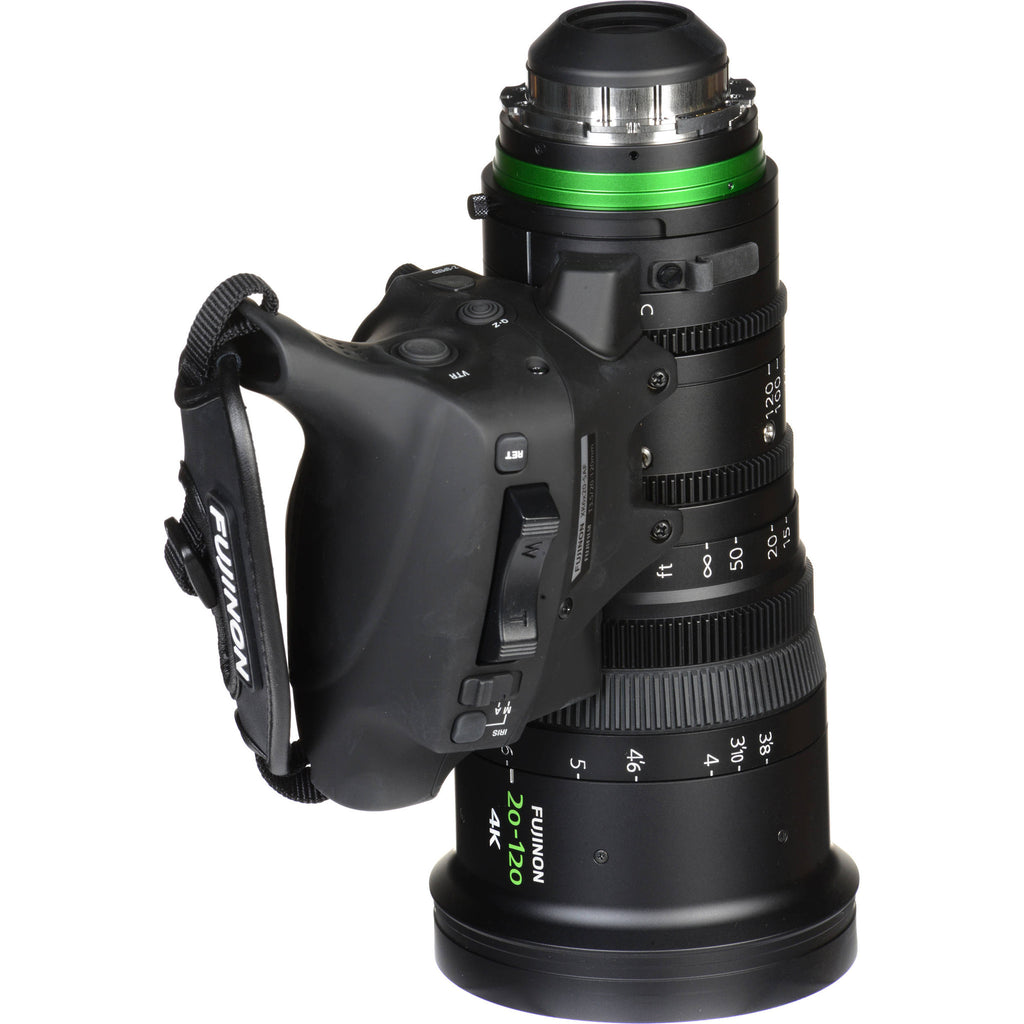

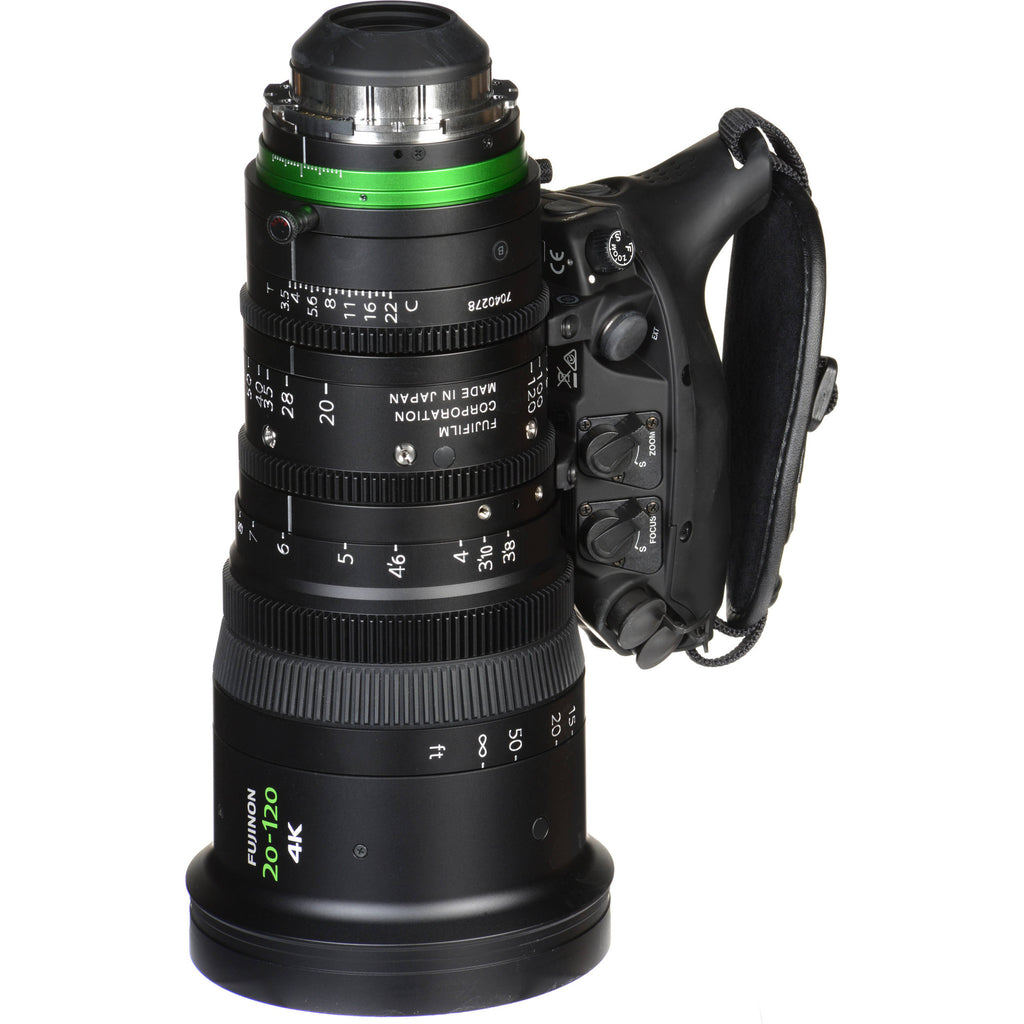

The Fujinon 20-120mm T3.5 Cabrio Premier PL Lens is a wide to telephoto zoom lens for Super 35mm cameras. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.

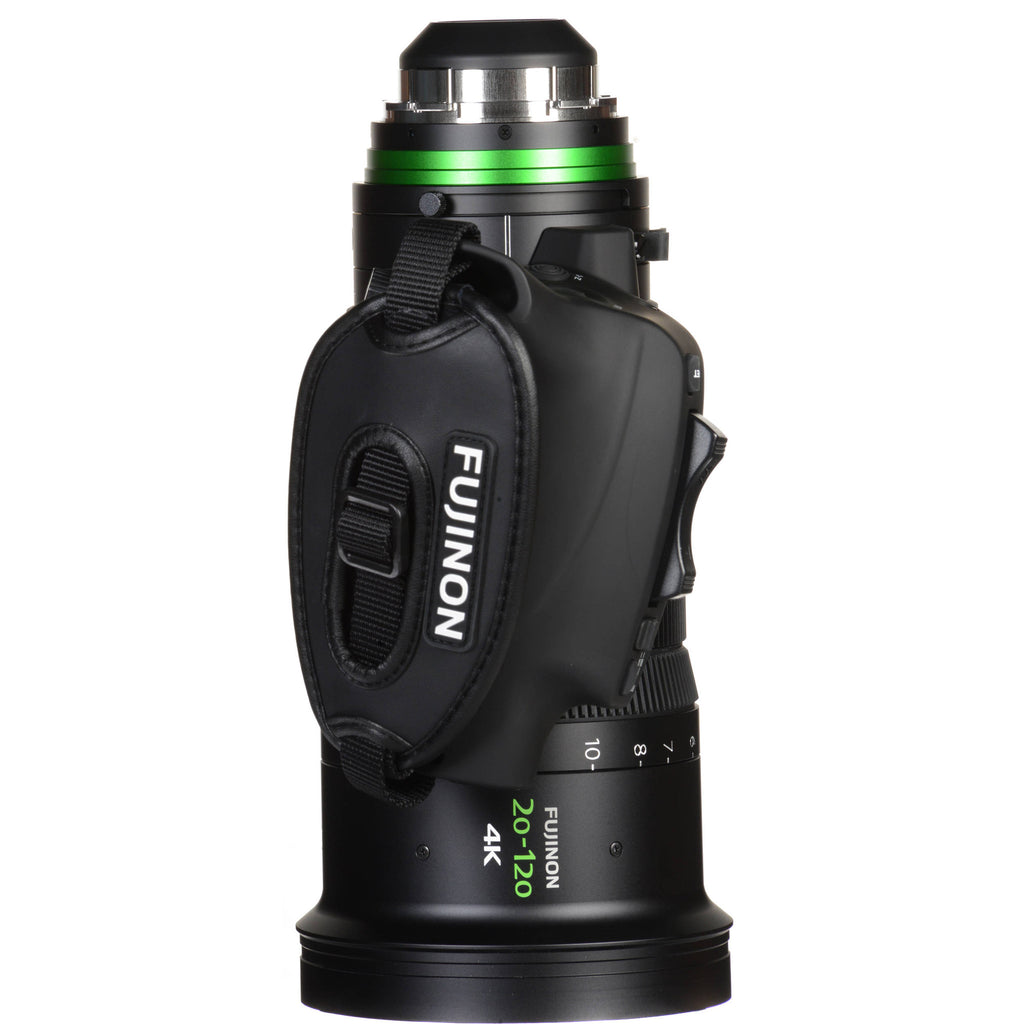

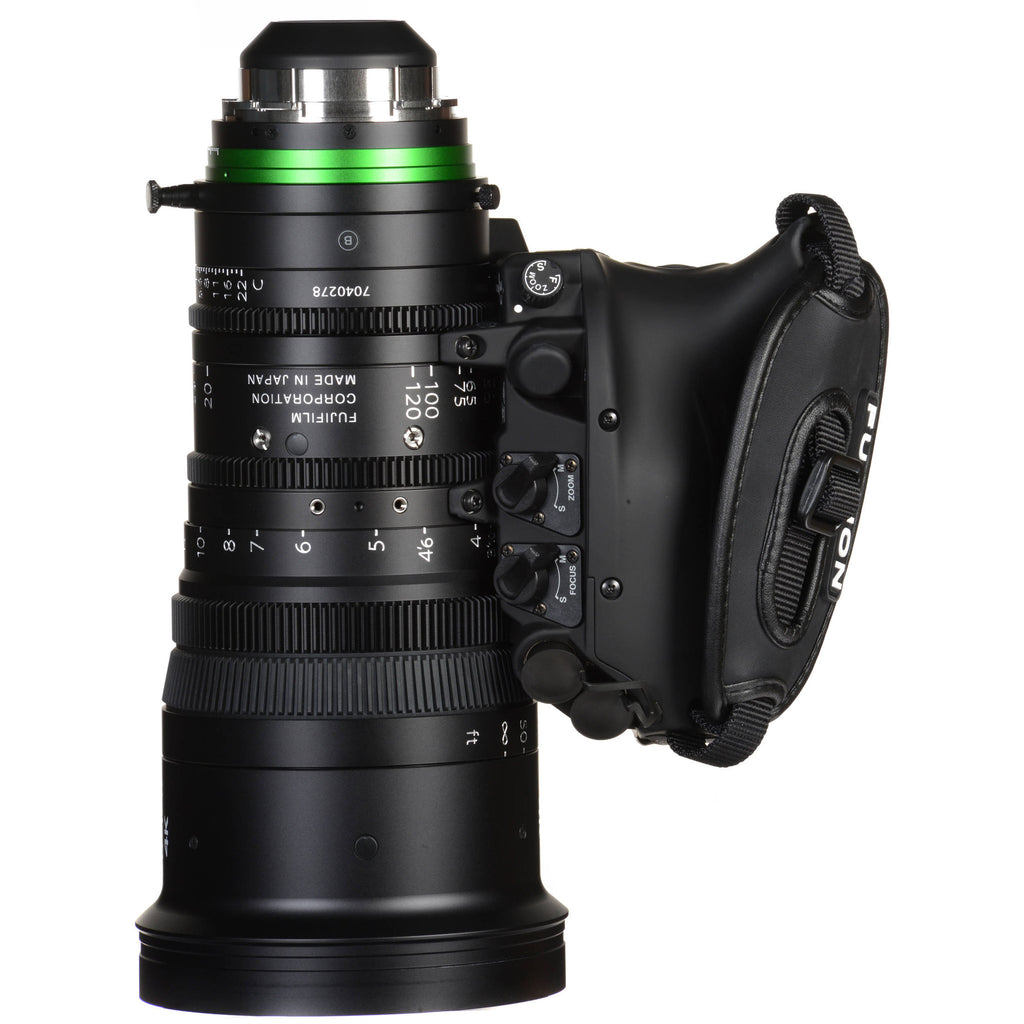

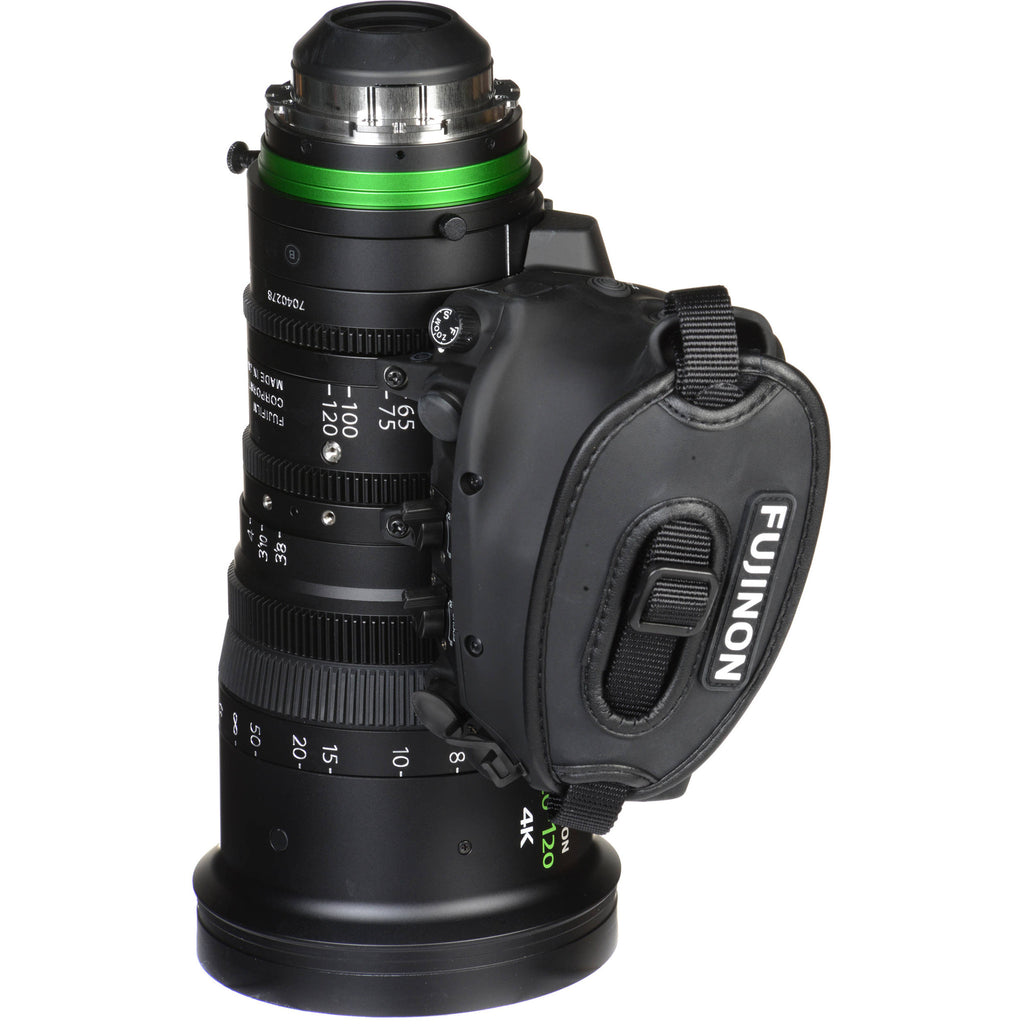

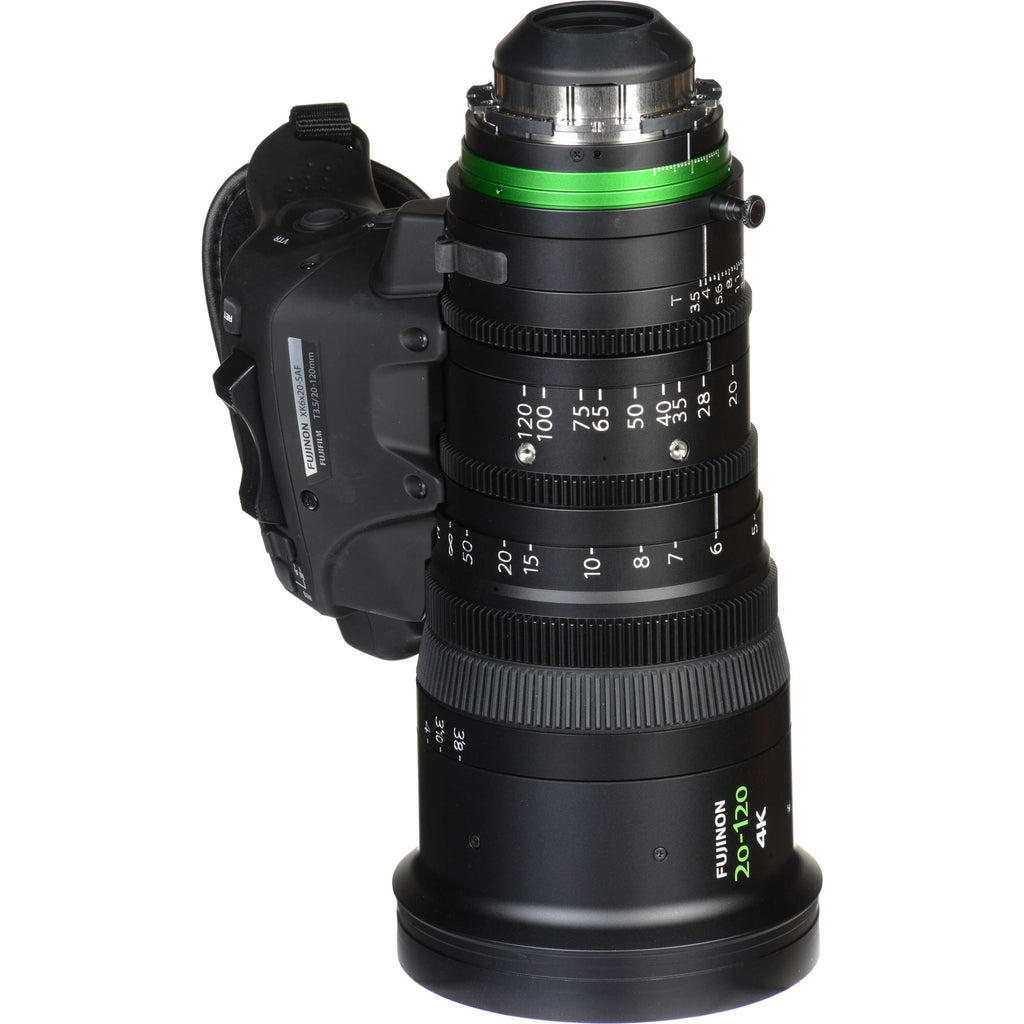

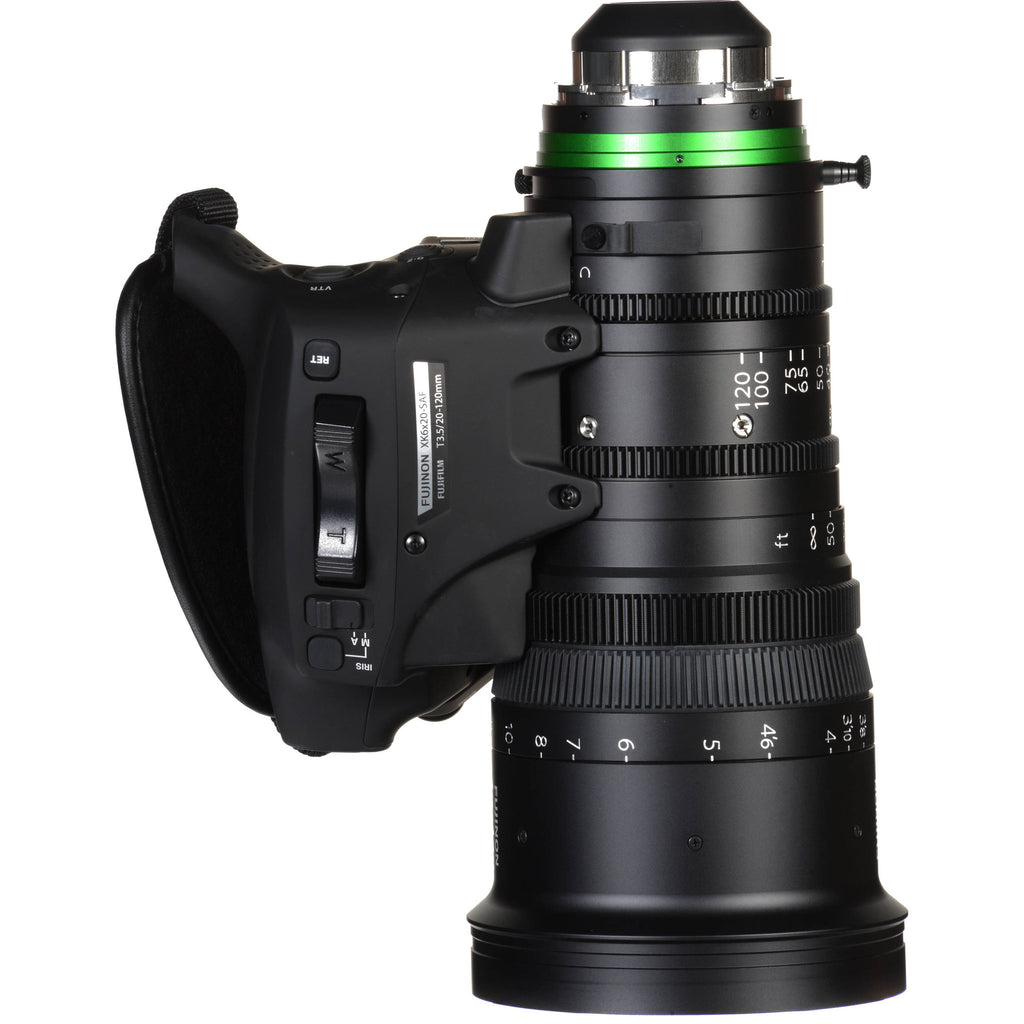

The detachable drive unit is an ENG-style handgrip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount's interface. Included with the lens is a 111mm clear protection filter that helps to protect the front of the lens.
- T3.5 to T22 aperture with 9 iris blades for attractive bokeh
- Detachable, ENG-style, digital drive unit with zoom rocker switch
- Industry standard 0.8 film MOD gears for focus, zoom, and iris control
- Power and data/control connections to the camera via connectors in the rear of the lens.
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera
- The barrel markings in metric or imperial measurements are switchable in the field
- Luminous barrel markings make it easier to read measurements
- 200° focus barrel rotation and 120° zoom rotation
- No shims are required to adjust the flange focal distance
- Macro focus function available
| Mount Type | PL |
| Format | Super 35 |
| Image Circle | Covers 24.84 x 13.97 |
| Focal Length | 20 - 120 mm |
| Zoom Ratio | 6x |
| Aperture | Max: T3.5 Min: T22 |
| Iris Blades | 9 |
| Gear Mod | 0.8 |
| Focus Rotation | 200° |
| Zoom Rotation | 90° |
| Barrel Markings | Metric/Imperial switchable |
| M.O.D. From Image Plane | 3.8" / 9.7 cm |
| Minimum Focus Distance | 2.8' / 85 cm |
| Object Dimensions at M.O.D. (16:9) | 20 mm: 43.7 x 24.6" / 110.9 x 62.4 cm 120 mm: 7.2 x 4.0" / 182.0 x 102.0 mm |
| Angular Field of View (16:9) | 20 mm: 63°41' × 38°30' 120 mm: 11°49' × 6°40' |
| Dimensions (Ø x L) | 4.5 x 8.9" / 114.0 x 226.0 mm |
| Weight | With Servo: 6.4 lb / 2.9 kg Without Servo: 5.3 lb / 2.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 12.6 lb |
| Box Dimensions (LxWxH) | 18.9 x 14.3 x 13.0" |
- 111mm Diameter Clear Filter
- Limited 2-Year Warranty
