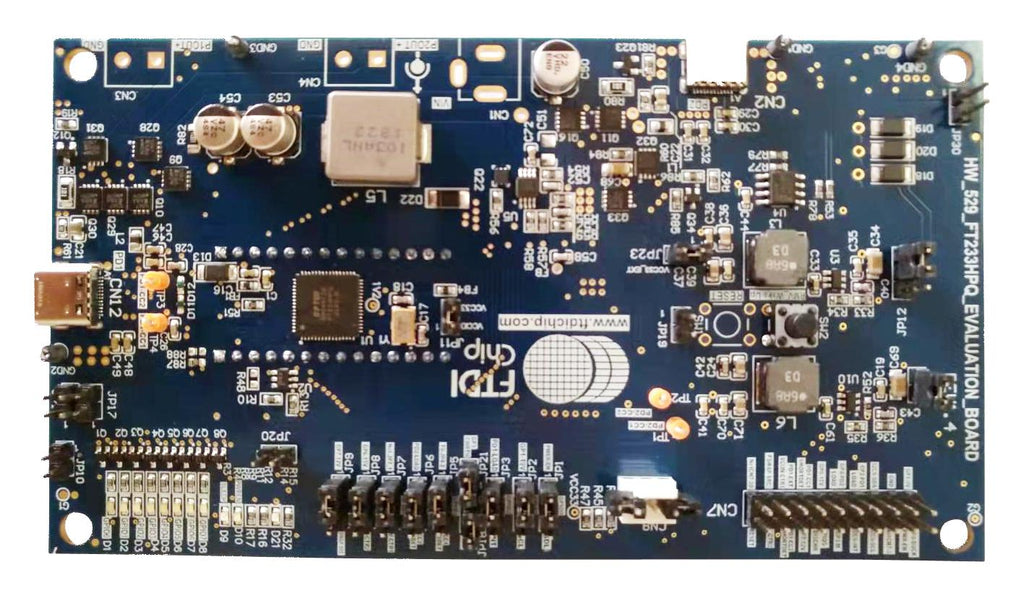

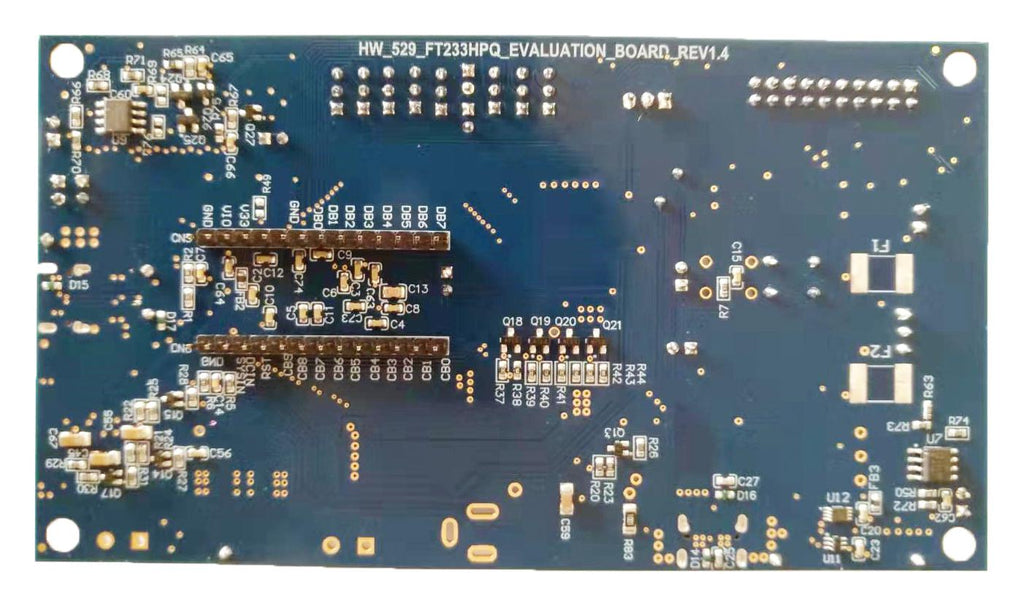

High speed USB Serial/FIFO bridge evaluation module with two Type-C USB PD ports with PD1 port supporting both power sink and source roles (Initial Sink) and PD2 port only supporting a power sink port role. Both PD ports support 5V, 9V, 12V,15V and 20V PDO profiles and these profiles are configurable through the external EEPROM at power-up. PD1 port supports USB communication and PD2 port is power port only without USB data. EVB supports power pass-through feature where the input power on PD2 is passed through to PD1.
- 12Mbaud data rates
- MPSSE interfaces
- 1 channel, 3.3V I/O voltage
- Virtual com port
- High speed (480Mbps)
- Two 14-pin, 0.1" dual-row headers I/O connector
- USB class FTDI drivers
- FT4233HP FTDI Internal IC
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
FTDI |
| Part Number |
UMFT233HPEV |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
