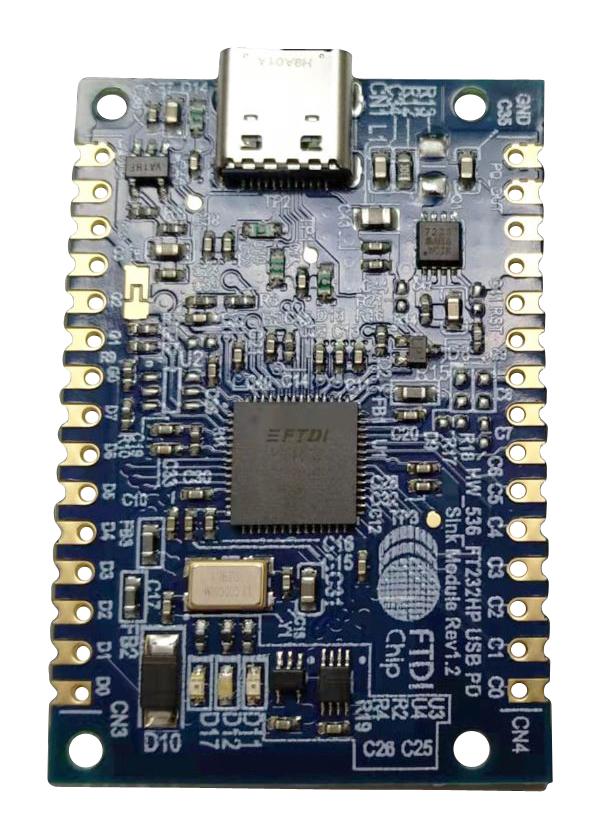

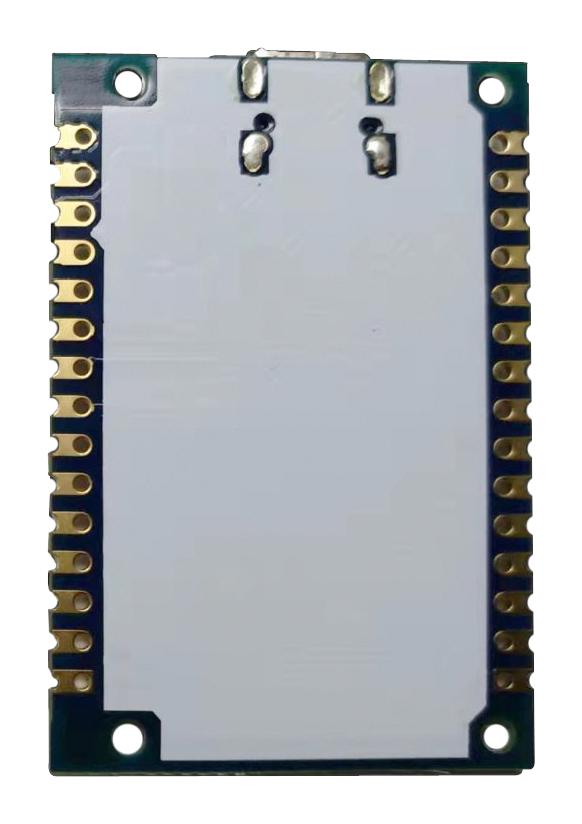

UMFT232HPEV-S sink module board is a high speed USB Type-C to multipurpose UART/JTAG/SPI/I2C serial interface module with single Type-C� USB PD port. The module has 47mm x 32mm dimensions, with single Type-C power delivery port incorporated into it. The port serves only as a sink port. EEPROM is not mounted in this module, As such the port supports the following configuration: 5V power delivery object (PDO) profiles - as defined in revision 3.0 of the USB Power Delivery specification when connected to PD chargers, offers USB data transmission with default USB power capability when connected to non PD PC host. GPIO pins are used to provide indication via LEDs whether module is connected to PD charger or USB2.0 host as well as to control the load switch.
- Single PD USB type-C sink only ports
- LEDs indication for the USB, Power Source and PDO profiles
- Connector for functional interface
- DC-DC converters for FT232HPQ and other circuits
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
FTDI |
| Part Number |
UMFT232HPEV-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
