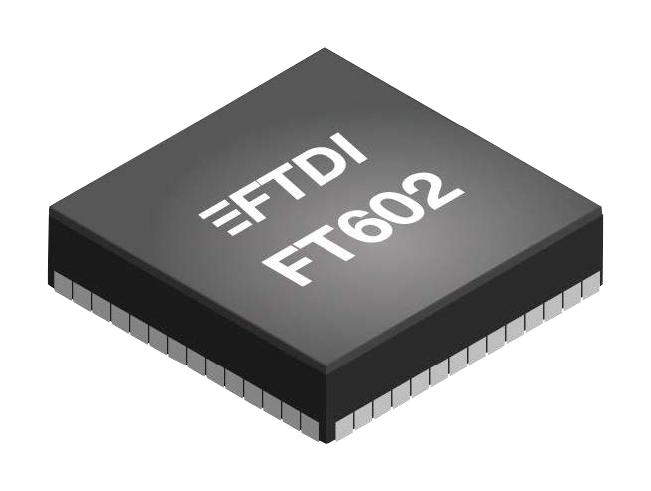

The FT602 is a high performance USB 3.1 UVC bridge with a FIFO interface. It is designed to transfer uncompressed YUV422 video data from the 32bit FIFO interface to the USB 3.1 bus. It supports resolutions and frame rates up to 1920x1080@60 frames per second. In FT600 multi-channel mode, up to 4 UVC channels of video may be transported. It can be used in those applications which require high resolution imaging devices. The FIFO interface supports multi-voltage I/O of 1.8V, 2.5V or 3.3V and operating frequencies of 66MHz or 100MHz. At 100MHz operation only 2.5V or 3.3V I/O voltages are supported.
- Supports USB 3.1 GEN 1 Super Speed (5Gbps) / USB 2.0 High Speed (480Mbps)
- Supports USB Transfer Types: Control/Bulk/Interrupt
- Supports UVC version 1.1
- Supports up to 4 video input channels on the FIFO bus
- Built-in 16kB FIFO data buffer RAM
- Supports multi voltage I/O: 1.8V, 2.5V and 3.3V
- Internal LDO 1.0V regulator
- Integrated power-on-reset circuit
- User programmable USB and UVC descriptors
- Industrial operating temperature range: -40 to 85�C
- Available in compact Pb-free QFN-76 RoHS compliant package
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
FTDI |
| Part Number |
FT602Q-B-T |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
