| ₹ 335.3 includes GST and import duties. | |
| B2B customers can avail ₹ 51.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

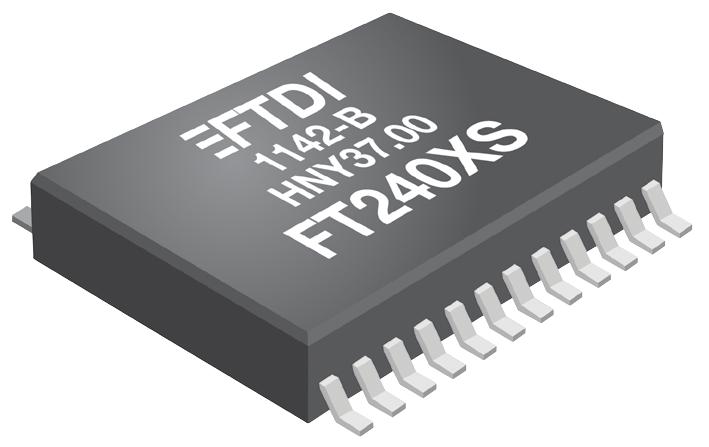

The FT240XS is an USB 2.0 Full-speed IC, offers a compact bridge to 8-bit wide FIFO interfaces. The device is a FIFO, capable of operating up to 1Mbps, with low power consumption (8mA). The IC includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a 8-bit wide FIFO interface.
- Entire USB protocol handled on chip, no USB specific firmware programming required
- Fully integrated 2048-byte MTP memory for storing device descriptors and CBUS I/O configuration
- Fully integrated clock generation with no external crystal required
- Data transfer rates to 1Mbps
- 512-byte receive buffer and 512-byte transmit buffer utilising buffer smoothing technology
- FTDI's royalty-free virtual com port (VCP) and direct (D2XX) drivers
- Configurable CBUS I/O pins
- Transmit and receive LED drive signals
- Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
- Battery charger detection
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O
- True 3.3V CMOS drive output and TTL input
- Configurable I/O pin output drive strength
- Integrated power-on-reset circuit
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full-speed compatible
- Extended operating temperature range
Computers & Computer Peripherals, Consumer Electronics, Sensing & Instrumentation, Industrial, Automation & Process Control
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings ESD sensitive device, take proper precaution while handling the device.Other details
| Brand | FTDI |
| Part Number | FT240XS-R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 328.59 |
| 3-5 | ₹ 325.24 |
| 5-10 | ₹ 318.54 |
| 10+ | ₹ 311.83 |
Bulk discount will be automatically applied during checkout based on quantity.
