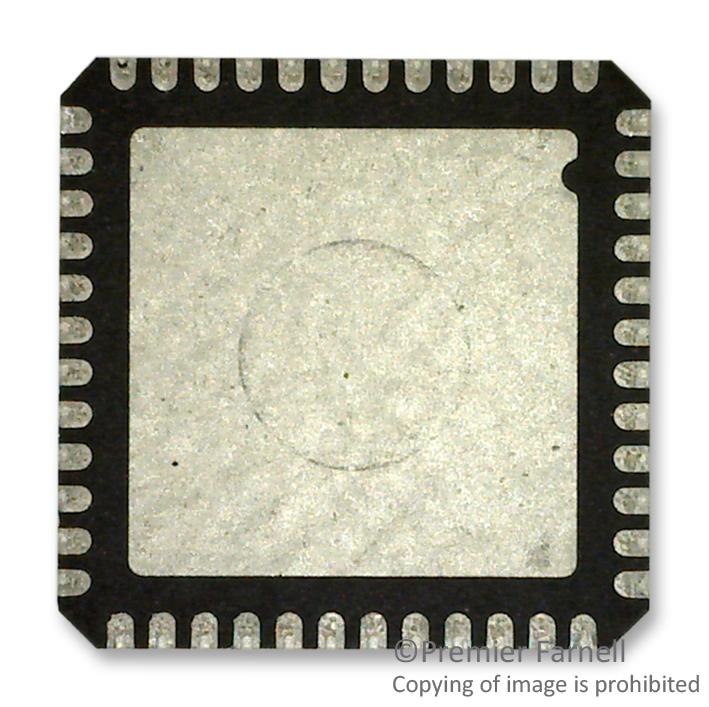

Ftdi FT232HQ-REEL FT232HQ-REEL Interface Bridges USB to Uart Fifo 2.97 V 3.63 QFN 48 Pins -40 °C

The FT232HQ-REEL is a single channel USB to multipurpose UART/FIFO IC, operating at USB high-speed 480Mbps rate, this fast single channel bridge chip features either a flexible serial interface or parallel FIFO interface, with data transfer speeds up to 40Mbps. Using a serial EEPROM interface, this device can be configured for a wide variety of asynchronous and synchronous serial standards, such as JTAG, SPI, I²C and UART as well as synchronous and asynchronous parallel FIFO interfaces. In addition, this device features the new synchronous, half-duplex FT1248 bus, which allows an engineer to trade off bandwidth for pin count using 1, 2, 4 or 8 data lines at up to 30Mbps. The I/O structure is 3.3V with built-in tolerance for 5V, allowing the designer maximum flexibility when interfacing with FPGAs. On-board voltage regulation provides 3.3 and 1.8V supplies from a 5V source, as well as a power-on-reset function.

• Single channel USB to serial/parallel ports with a variety of configurations
• Entire USB protocol handled on chip, no USB specific firmware programming required
• USB 2.0 high-speed (480Mbps) and full-speed (12Mbps) compatible
• Multi-protocol synchronous serial engine (MPSSE) to simplify synchronous serial protocol design
• UART transfer data rate up to 12Mbaud (RS232 data rate limited by external level shifter)
• USB to asynchronous 245 FIFO mode for transfer data rate up to 8Mbps
• USB to synchronous 245 parallel FIFO mode for transfers up to 40Mbps
• Supports a half duplex FT1248 interface with a configurable width, bi-directional data bus
• CPU-style FIFO interface mode simplifies CPU interface design
• Fast serial interface option

• FTDI's royalty-free virtual com port (VCP) and direct (D2XX) drivers
• Adjustable receive buffer timeout
• Option for transmit and receive LED drive signals
• Bit-bang mode interface option with RD# and WR strobes
• Highly integrated design includes 5 to 3.3/+1.8V LDO regulator for VCORE, integrated POR function
• Asynchronous serial UART interface option with full hardware handshaking and modem interface signals
• Fully assisted hardware or X-On/X-Off software handshaking
• UART interface supports 7/8-bit data, 1/2 stop bits and odd/even/mark/space/no parity
• Auto-transmit enable control for RS485 serial applications using TXDEN pin
• Operation configuration mode and USB description strings configurable in external EEPROM over USB

Applications

Computers & Computer Peripherals, Signal Processing, Sensing & Instrumentation, Industrial, Automation & Process Control

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings ESD sensitive device, take proper precaution while handling the device.

Other details

Brand	FTDI
Part Number	FT232HQ-REEL
Quantity	Each
Technical Data Sheet EN
