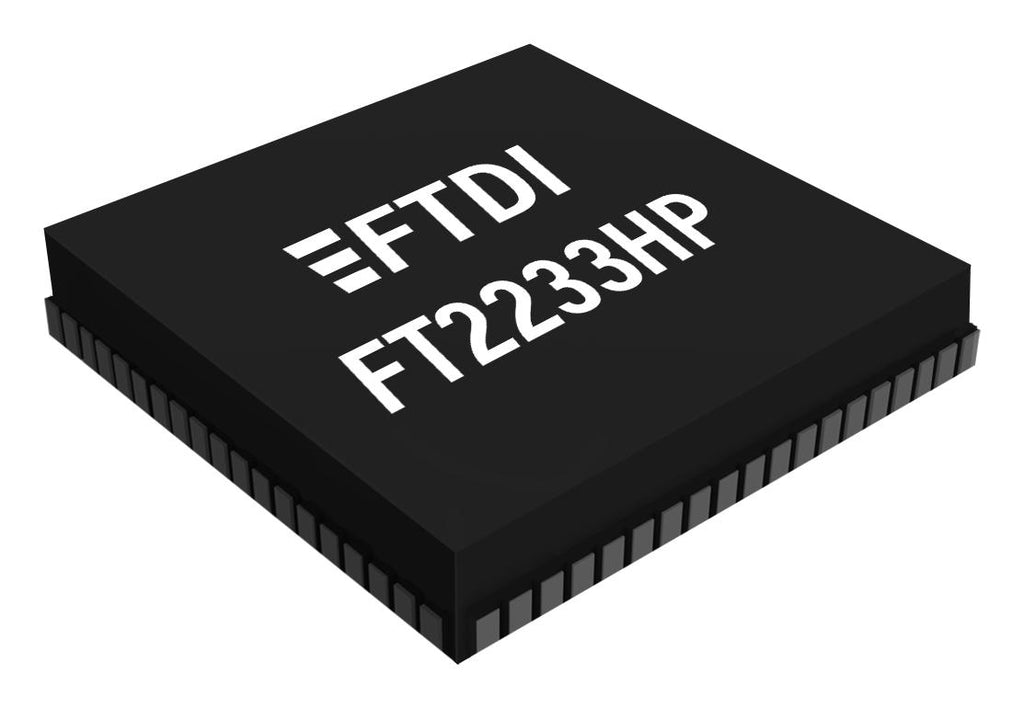

FT2233HP is a hi-speed USB device with a Type-C/PD 3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 2 independent channels compatible with the FT2232H dual hi-speed USB to multipurpose UART/MPSSE solution. Port 1 mode configuration for sink or dual-role and port 2 works as sink, supporting charge through to port1. Supports 5V3A, 9V3A, 12V3A, 15V3A and 20V3A PDOs as sink or source Type-C/PD physical layer protocol. PD policy engine using 32bit RISC controller with 8KB data RAM and 48KB code ROM. Entire USB protocol handled on the chip. No USB specific firmware programming required. USB 2.0 high speed (480Mbits/second) and full speed (12Mbits/second) compatible. It features independent baud rate generators, RS232/RS422/RS485 UART transfer data rate up to 12Mbaud.
- Support PD specification Rev 3.0
- PD mode configuration through external EEPROM
- Options to use external MCU controlling PD policy through I2C interface
- USB to dual serial ports with a variety of configurations
- Extended -40°C to 85°C industrial operating temperature range
- 3.3V single supply operating voltage range, +3.3V I/O interfacing
- USB bulk data transfer mode (512byte packets in high speed mode)
- Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate
- Low operating and USB suspend current
- Optional traffic TX/RX indicators can be added with LEDs
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
FTDI |
| Part Number |
FT2233HPQ-TRAY |
| Quantity |
Each |
