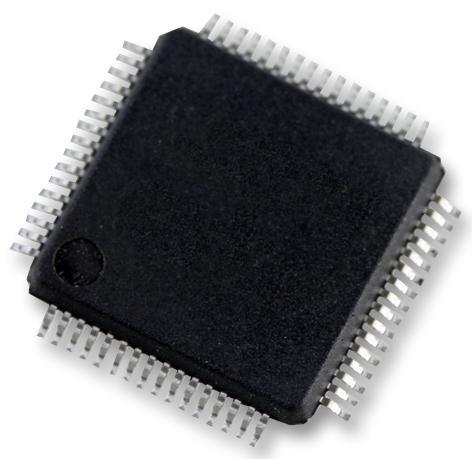

Ftdi FT2232HL-REEL Interface Bridges USB to Uart Fifo 1.62 V 3.63 Lqfp 64 Pins -40 °C

• Single chip USB to dual serial/parallel ports with a variety of configurations
• Entire USB protocol handled on the chip. No USB specific firmware programming required
• USB 2.0 high speed (480Mbits/Second) and full speed (12Mbits/Second) compatible
• Dual multi protocol synchronous serial engine (MPSSE) to simplify synchronous serial protocol design
• Independent Baud rate generators
• USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec
• Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec
• CPU style FIFO interface mode simplifies CPU interface design
• MCU host bus emulation mode configuration option
• Fast opto-isolated serial interface option
• FTDIs Virtual Com Port and direct drivers eliminate the requirement for USB driver development
• Adjustable receive buffer timeout
• Option for transmit and receive LED drive signals on each channel
• Enhanced bit-bang Mode interface option with RD# and WR# strobes
• FT245B style FIFO interface option with bi-directional data bus & simple 4 wire handshake interface
• Highly integrated design includes +1.8V LDO regulator for VCORE
• Integrated POR function and on chip clock multiplier PLL (12MHz-480MHz)
• Asynchronous serial UART interface option with full hardware handshaking and modem interface signals
• Fully assisted hardware or X-On / X-Off software handshaking
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity

Applications

Communications & Networking, Consumer Electronics, Multimedia, Portable Devices

Contents

UHCI/OHCI/EHCI host controller compatible

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	FTDI
Part Number	FT2232HL-REEL
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
