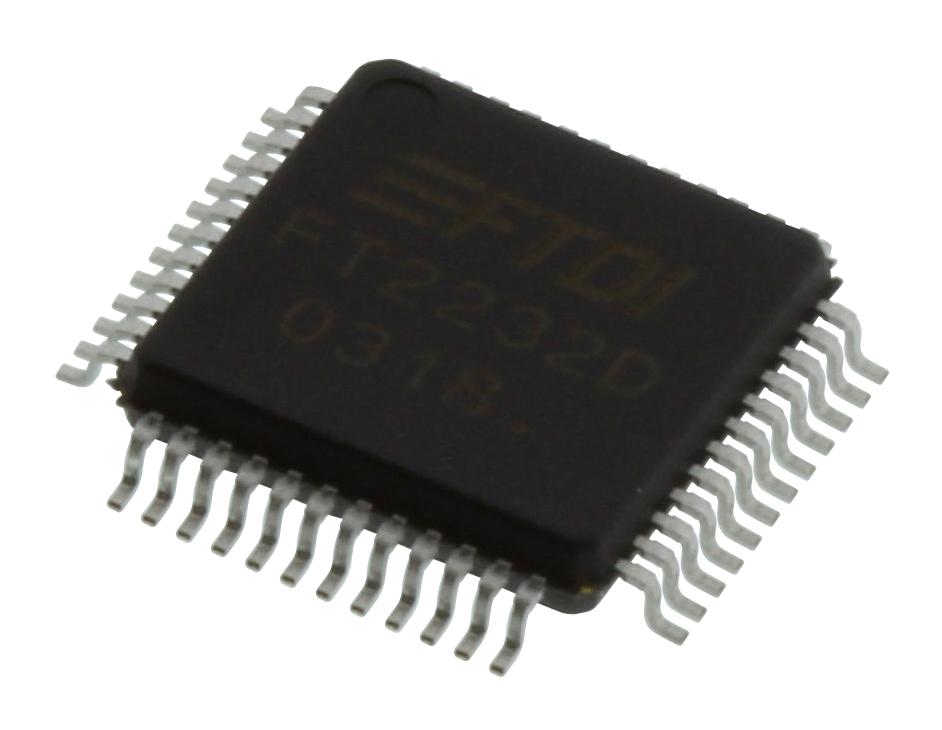

Ftdi FT2232D-REEL Interface Bridges USB to Uart Fifo 3 V 5.25 Lqfp 48 Pins -40 °C

• Single chip USB to dual channel serial/parallel ports with a variety of configurations
• Entire USB protocol handled on the chip. No USB specific firmware programming required
• Transfer Data Rate 300 to 3Mbaud
• USB to parallel FIFO transfer data rate up to 1 megabyte/second
• Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol design
• CPU style FIFO interface mode simplifies CPU interface design
• FTDIs Virtual Com Port and Direct drivers eliminate requirement for USB driver development
• Highly integrated design includes 3.3V LDO regulator for USB I/O
• Integrated POR function and on chip clock multiplier PLL (6MHz-48MHz)
• Asynchronous serial UART interface option with full hardware handshaking and modem interface signals
• Enhanced bit-bang Mode interface option with RD# and WR# strobes
• Configurable I/O drive strength
• Fully assisted hardware or X-On/X-Off software handshaking
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity
• Configuration mode and USB Description strings configurable in external EEPROM over USB interface
• Supports bus powered, self powered and high power bus powered USB configurations
• Low operating and USB suspend current
• UHCI/OHCI/EHCI host controller compatible
• USB 2.0 Full Speed (12Mbits/Second) compatible

Applications

Communications & Networking, Consumer Electronics, Multimedia, Portable Devices

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	FTDI
Part Number	FT2232D-REEL
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
