Description
FSR PCI-5BWPA Overview
- 1Description
- 2Connectivity
- 3Bandwidth
- 4Wall Mount

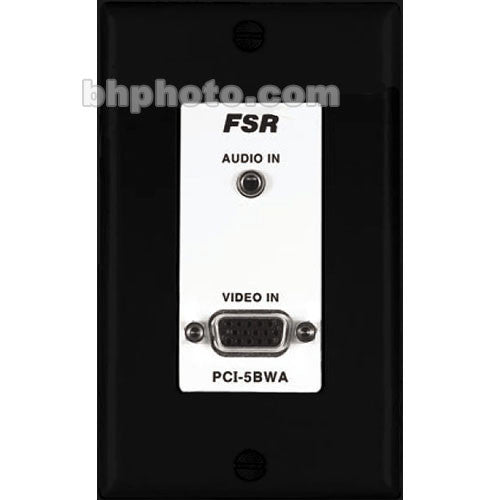

The FSR PCI-5BWPABLK is an interface converter for computer generated video; it accepts video from a computer source on an HD-15 connector and interfaces to a 5 BNC output for RGBHV connectivity. The audio interfaces from unbalanced stereo mini to balanced stereo audio.
Connectivity
Converts an HD-15 connection with a VGA type signal to break out in five BNC connectors, therefore outputting RGB, RGBS and RGBHV.
Bandwidth
A bandwidth of 500 MHz allows for the passage of high resolution signals such as XGA.
Wall Mount
This unit mounts in a wall with the same dimensions as a power outlet; it allows for decorative connectivity without cables running across carpets or in walkways.
In the Box
- FSR PCI-5BWPABLK Wall Plate Interface - HD-15 to 5 BNC Interface, Stereo Mini to Balanced Stereo Audio, Black Color
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Connectivity
- Bandwidth
- Wall Mount
FSR PCI-5BWPA Specs
| Input | Computer Generated VGA type, on an HD-15 type connector Unbalanced Stereo Audio, PC level, on a stereo mini plug |
| Output | RGBHV, 0.7 Vpp on RGB @ 75 ohms, on BNC connectors Balanced Stereo Audio, on captive screw connectors |
| Conversion | Computer Generated VGA type signal on HD-15 connectors to RGBS or RGBHV on BNC connectors Unbalanced Stereo Audio to Balanced Stereo Audio |
| Control | None |
| Power Source | None Passive Device |
| Dimensions | 1.7 x 0.65 x 4.94" 4.3 x 1.65 x 12.5cm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 8.8 x 5.3 x 3.4" |
