Description
Fredenstein F610 Overview
- 1Description
- 2Analog EQ with Impressive Digital Tech
- 3Color LCD with Touch Fields
- 4Four Flexible Filters
- 5Low-Cut Filter and Harmonic Coloration
- 630-Band RTA
- 7User Settings
Packing a stereo 4-band parametric EQ, a 30-band spectrum analyzer, total recall, and a 3.5" color LCD with touch fields into a double-slot 500 Series module, the Fredenstein F610 Universal Entzerrer UE-1 is equally powerful for tracking, mixing, and mastering applications. Thanks to its digitally controlled analog circuitry, up to 99 user settings, and remote control via USB, the F610 UE-1 offers the sonic performance of a boutique analog EQ along with the convenience and advanced workflow of a digital processor.
As an equalizer, the F610 UE-1 features four fully parametric bands, each with adjustable frequency from 20 Hz to 20 kHz, Q control, and up to 16 dB of boost/cut in 0.25 dB steps. Plus, it provides a low-cut filter and switchable harmonic coloration based on tube characteristics. The EQ can be used in stereo or as two independent mono EQs with the ability to copy and paste across channels. The 30-band RTA is configurable to allow viewing of the input or output signal for the left, right, or 2-channel signal, and it has customizable range and decay settings.
Analog EQ with Impressive Digital Tech
Color LCD with Touch Fields

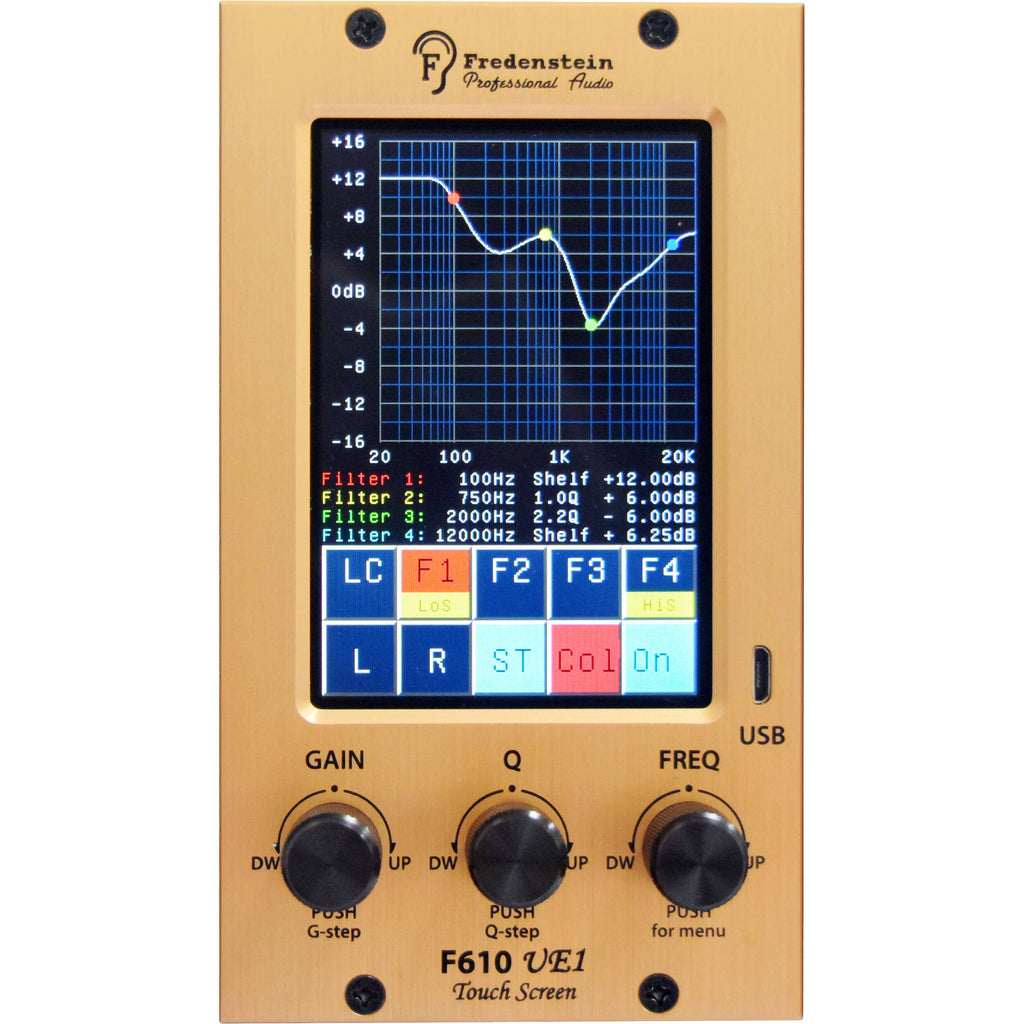

Four Flexible Filters
Low-Cut Filter and Harmonic Coloration

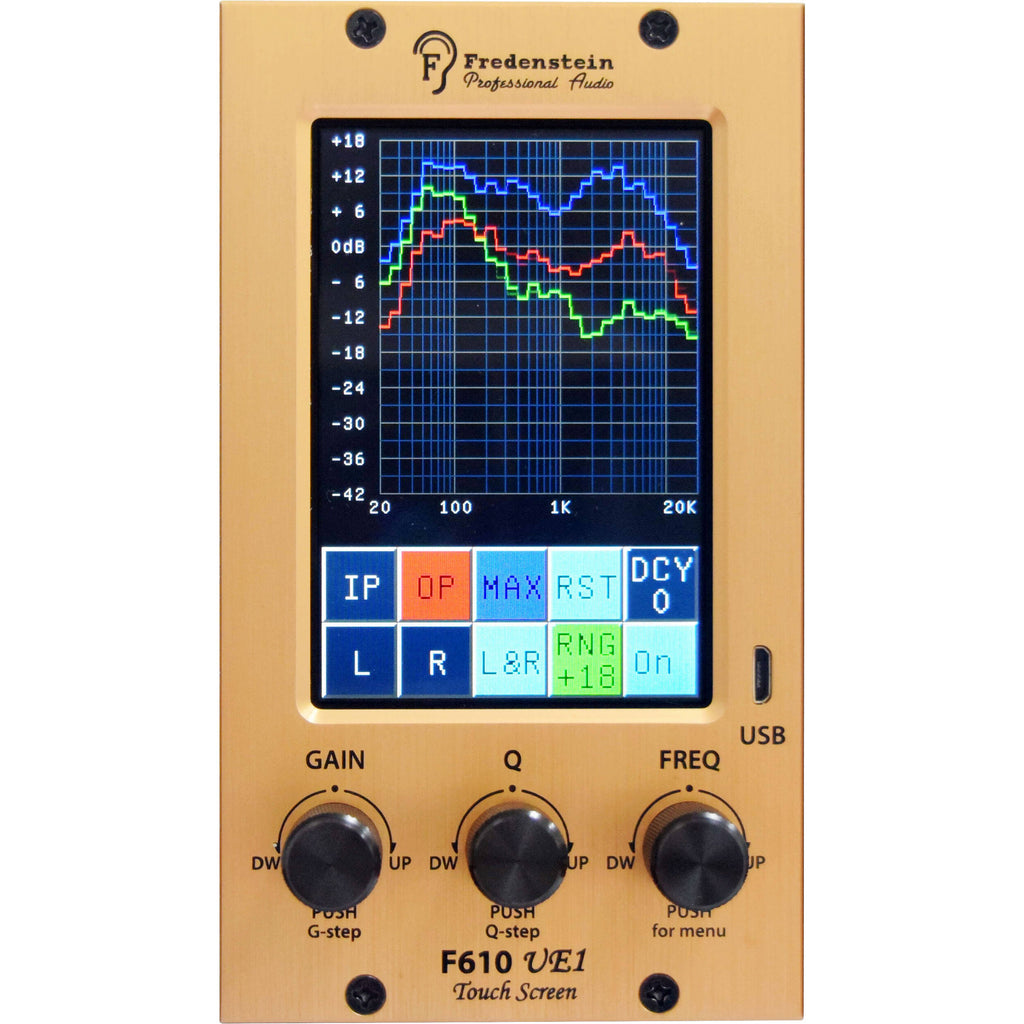

30-Band RTA
User Settings
In the Box
- Fredenstein F610 Universal Entzerrer UE-1 500 Series Stereo 4-Band Parametric Equalizer and 30-Band RTA
- Limited 1-Year Warranty
Not in the Box
- Essential Mounting (Not Included)
- Description
- Analog EQ with Impressive Digital Tech
- Color LCD with Touch Fields
- Four Flexible Filters
- Low-Cut Filter and Harmonic Coloration
- 30-Band RTA
- User Settings
Fredenstein F610 Specs
| Slot Size | Double Slot |
| Filter Type | Parametric |
| Number of Channels | 2 |
| Inputs | 2 x Balanced Line Input via 500 Series Multipin Connector |
| Outputs | 2 x Balanced Line Output via 500 Series Multipin Connector |
| USB | 1 x Micro-USB Port (Front Panel) |
| Display | 3.5" Color LCD |
| Maximum Input Level | +26 dBu |
| Maximum Output Level | +27 dBu |
| Input Impedance | 20 Kilohms (Electronically Balanced) |
| Output Impedance | 44 Ohms (Electronically Balanced) |
| Frequency Bands | 1 (Bell or Shelf): Tunable from 20 Hz to 20 kHz 2 (Bell): Tunable from 20 Hz to 20 kHz 3 (Bell): Tunable from 20 Hz to 20 kHz 4 (Bell or Shelf): Tunable from 20 Hz to 20 kHz |
| Bandwidth | Adjustable Q per Band from 0.4 to 7.9 |
| Range (Boost/Cut) | ±16 dB in 0.25 dB Steps |
| Low-Cut Filter | 12 dB/Octave, Frequency Adjustable from 20 to 975 Hz |
| RTA | Bands: 30 Dynamic Range: 60 dB Sensitivity: +6 to +24 dBu, Selectable in 6 dB Steps |
| User Settings | 99 |
| Frequency Response | 10 Hz to 30 kHz (-0.5 dB) 6 Hz to 60 kHz (-3 dB) |
| THD + N | <0.004% at +24 dBu Output Level |
| Signal-to-Noise Ratio | -106 dB at +26 dB Output Llevel |
| Crosstalk | < -102 dB at 10 kHz |
| Power Consumption | +16 V Rail: <400 mA -16 V Rail: <350 mA |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
